220 W SOLA Flex Mono mobile home solar system complete set - 11-14006 Incl. 0% VAT according to §12 para. 3 UStG.

220 W SOLA Flex Mono HV Motorhome Complete Set – Flexible solar technology for self-sufficient energy on the go

The 220W SOLA Flex Mono HV motorhome complete set offers a powerful and flexible solution for self-sufficient power supply in your motorhome. The flexible WATTSTUNDE SOLA Flex Mono 220 Wp HV adapts perfectly to curved roof surfaces and impresses with its high efficiency. The smart Victron SmartSolar MPPT 100/20 with Bluetooth interface maximizes energy yield and allows for convenient monitoring via smartphone.

Flexible installation – Safe and durable

The ultra-flat solar panels can be attached directly to the vehicle roof using the included 3M VHB adhesive tape – quickly and securely, without the need for additional brackets. The WATTSTUNDE DX1/S roof feed-through included in the set allows for reliable cable routing into the vehicle interior. To ensure permanent protection against moisture, the feed-through must be professionally sealed with a watertight sealant by the user. The set is complemented by the high-quality ELS junction box for safe and protected wiring of all cables. Ideal for flexible installations with high demands on durability and quality.

WATTSTUNDE SOLA Flex Mono 220 Wp HV – High performance in a flexible design

• Monocrystalline high-performance cells with over 20% efficiency
• ETFE coating for UV and weather resistance
• Ultra-flat design (only 3.1 mm thick) for discreet roof integration
• Flexible design, ideal for curved surfaces

Victron SmartSolar MPPT 75/100/20 – Intelligent battery management with Bluetooth

• Maximum energy yield thanks to ultra-fast MPPT algorithm
• Up to 30% more yield compared to PWM controllers
• Integrated Bluetooth interface for monitoring via smartphone

Product features in detail:

• Flexible solar module with 220 Wp HV – ideal for curved roof surfaces
• ETFE coating – robust, durable and resistant to environmental influences
• Victron SmartSolar MPPT 100/20 – Maximum energy yield through MPPT technology
• Integrated Bluetooth – Easy monitoring and control via smartphone

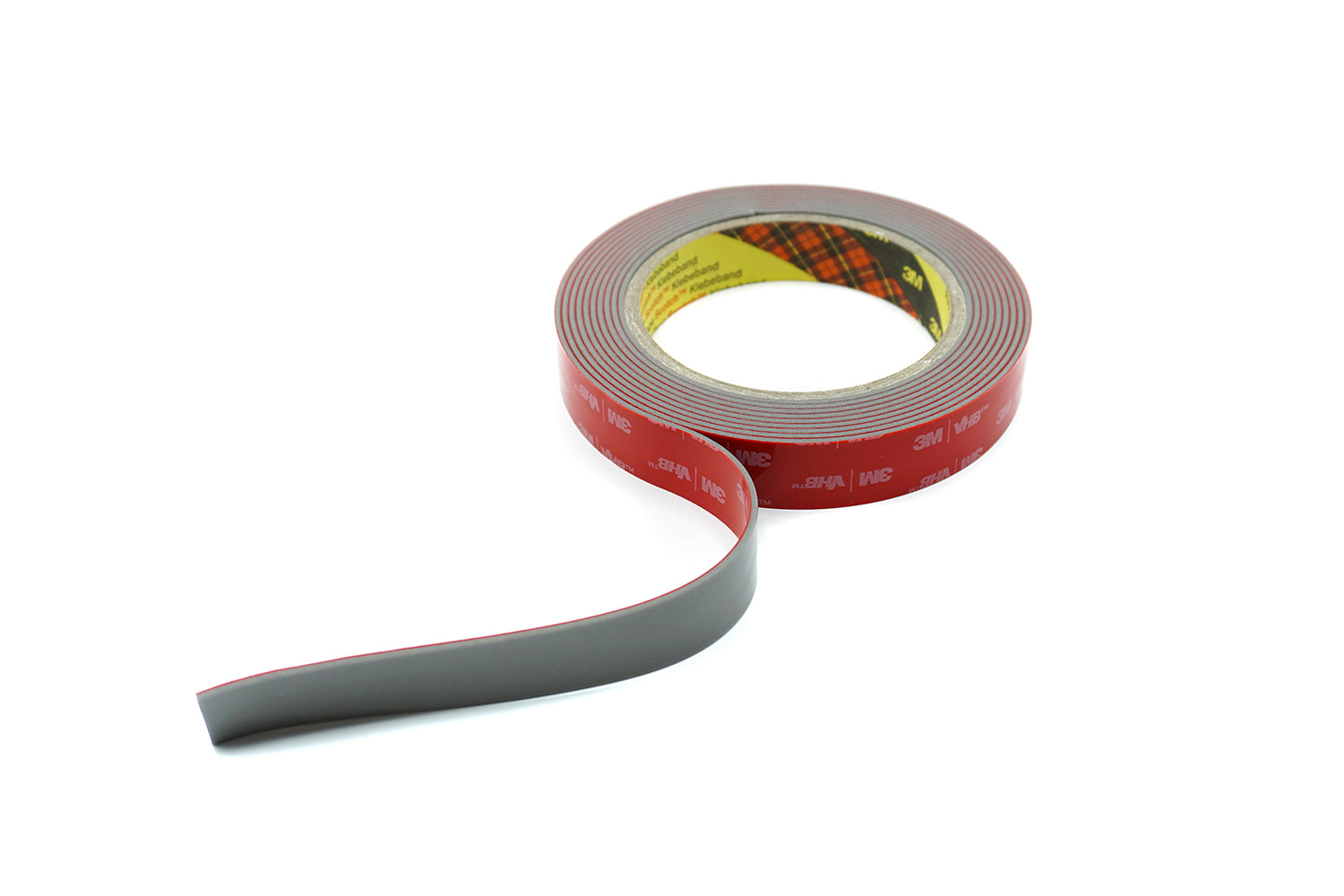

• 3M VHB Adhesive Tape – Secure fastening

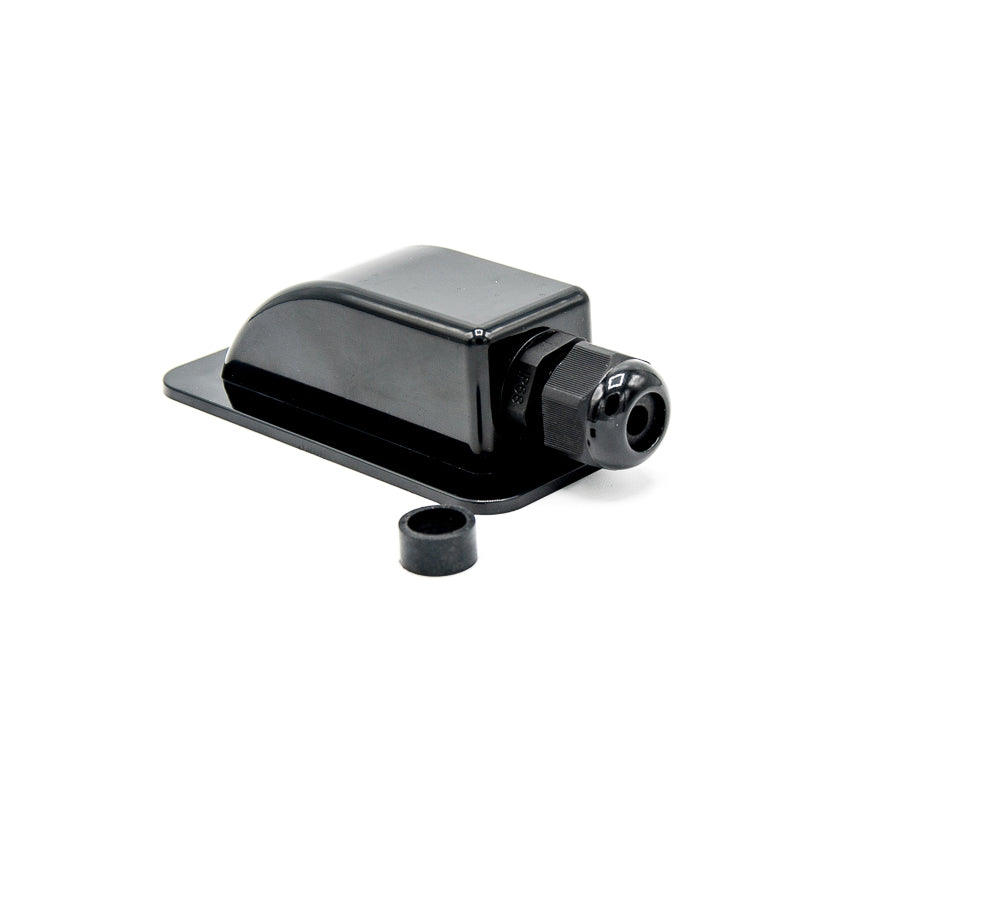

• WATTSTUNDE roof penetration DX1/S – Protection against water and dust
• 10 m Helukabel SOLARFLEX-X H1Z2Z2-K BLACK 1 x 4 mm² – High-quality solar cable for secure connections

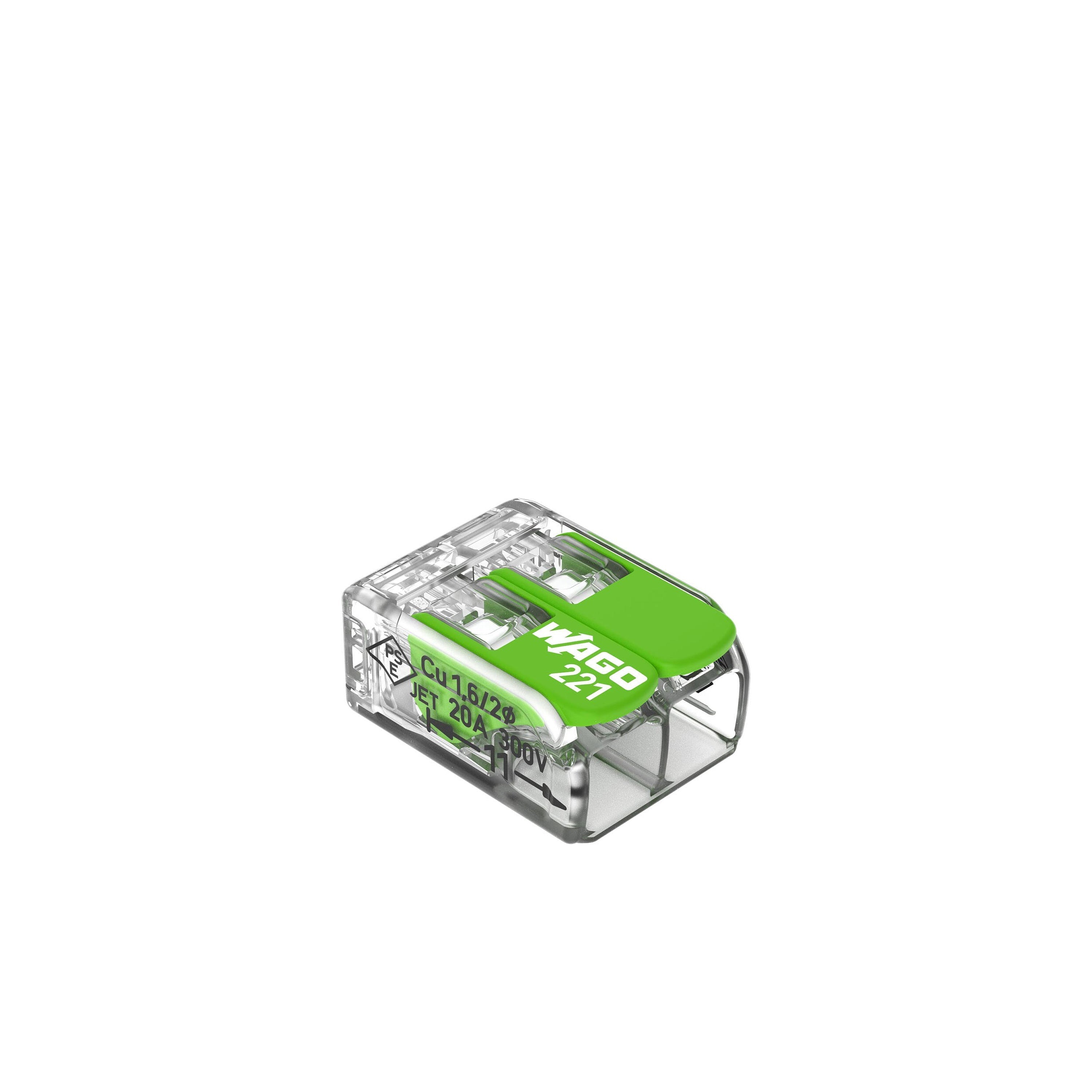

• WAGO Green Range connector – Flexible and secure cable connection
• Battery connection cable with 30 A fuse – Reliable and protected power supply

Here's how to install the set:

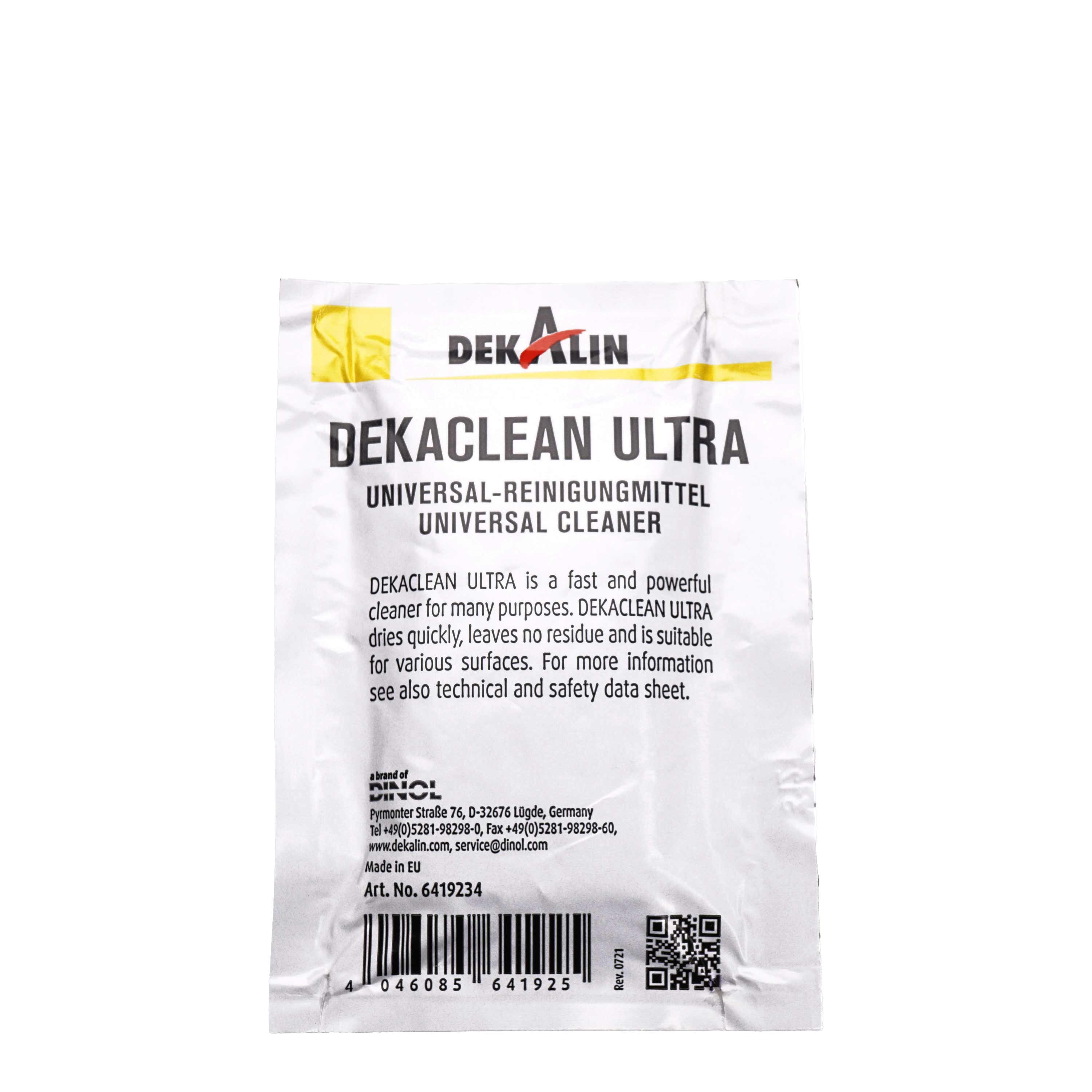

1. Cleaning the mounting surface with Dekalin Dekaclean Ultra cleaning wipes
2. Attach the solar panel with 3M VHB adhesive tape – for a secure hold.
3. Install roof feedthrough and route cables into the vehicle interior.
4. Connect the Victron SmartSolar MPPT 100/20:
   • First, connect the battery connection cable to the battery.
   • Then connect the solar panel to the charge controller.
   • Finally, connect the load to the load output of the controller (optional).

Important: Always connect the battery first to ensure the controller initializes correctly!
