250 W SOLA Flex Daylight mobile home solar system complete set - 11-15006

250Wp HV SOLA Flex Daylight Motorhome Complete Set – Flexible high-voltage solar technology for maximum efficiency

This carefully curated complete set provides you with all the components you need for a reliable solar system for your motorhome. The WATTSTUNDE SOLA Flex Daylight 125Wp HV (two included in this set) is a powerful, flexible solar panel with Sunpower solar cell technology, ideal for limited space on motorhome roofs. Combined with the high-performance Victron SmartSolar MPPT 100/20 charge controller with Bluetooth functionality and the necessary connection components, you benefit from a comprehensive complete set that allows you to maximize your use of solar energy while on the go.

Your advantages with 2x SOLA Flex Daylight 125Wp HV modules

• High output voltage (46V): Perfect for systems that require higher voltages.
• Durable ETFE coating: UV-resistant, abrasion-resistant and durable for use in demanding conditions.
• Ultra-flat & lightweight: With a thickness of only 4.3mm, the module is perfect for mobile applications.

Set contents! All components for your complete solar system included.

• 2x WATTSTUNDE SOLA Flex Daylight 125HV: Flexible high-voltage solar modules with ETFE coating for maximum efficiency and longevity.
• Victron SmartSolar MPPT 100/20: Modern charge controller with Bluetooth for optimal charging performance and monitoring via app.
• Helukabel SOLARFLEX-X H1Z2Z2-K BLACK 1 x 4 mm²: High-quality solar cable for safe and durable connections.
• WATTSTUNDE battery connection cable with 30A fuse: Reliable protection for your battery and electronics.

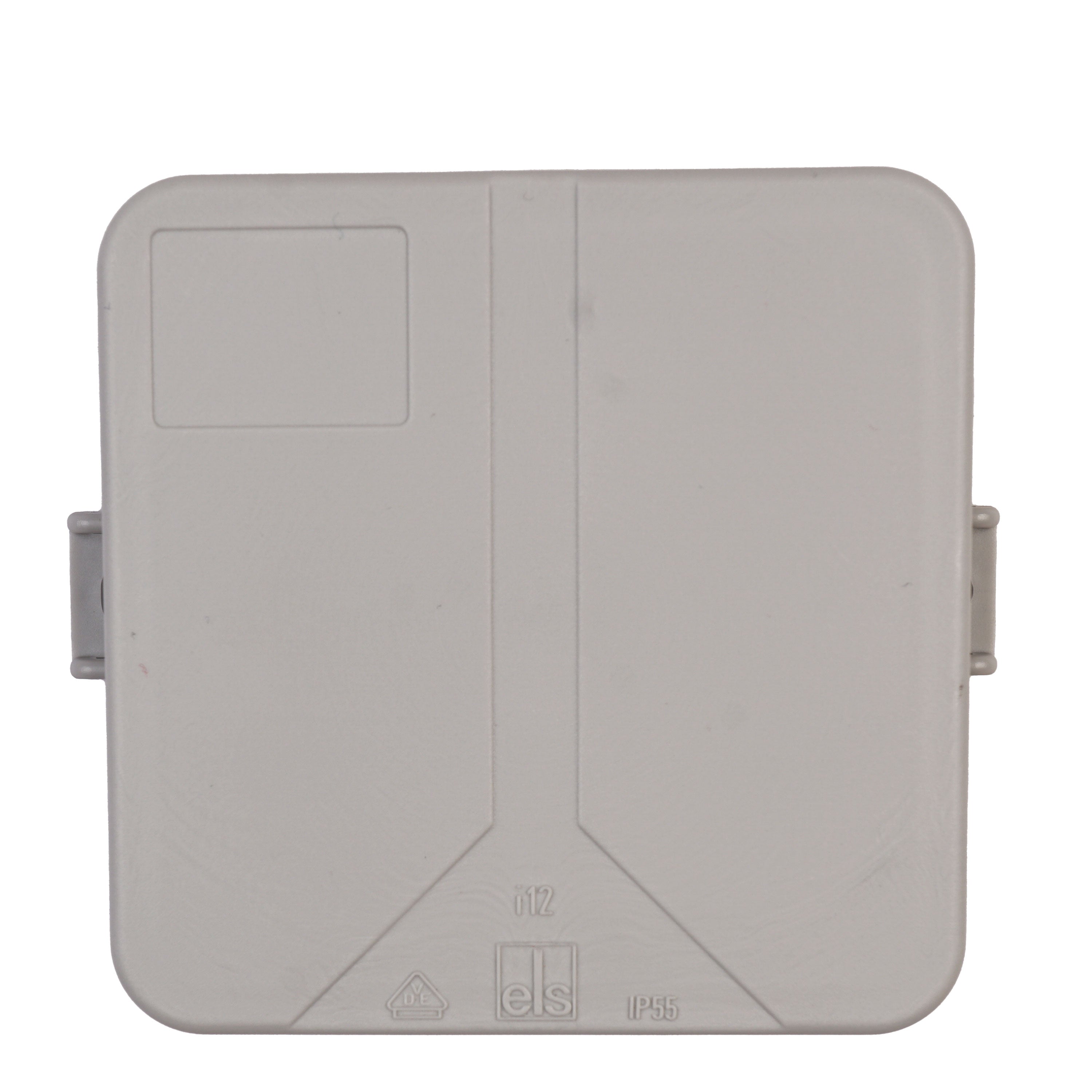

• ELS IP55 junction box: Robust protective box for secure cable connections.

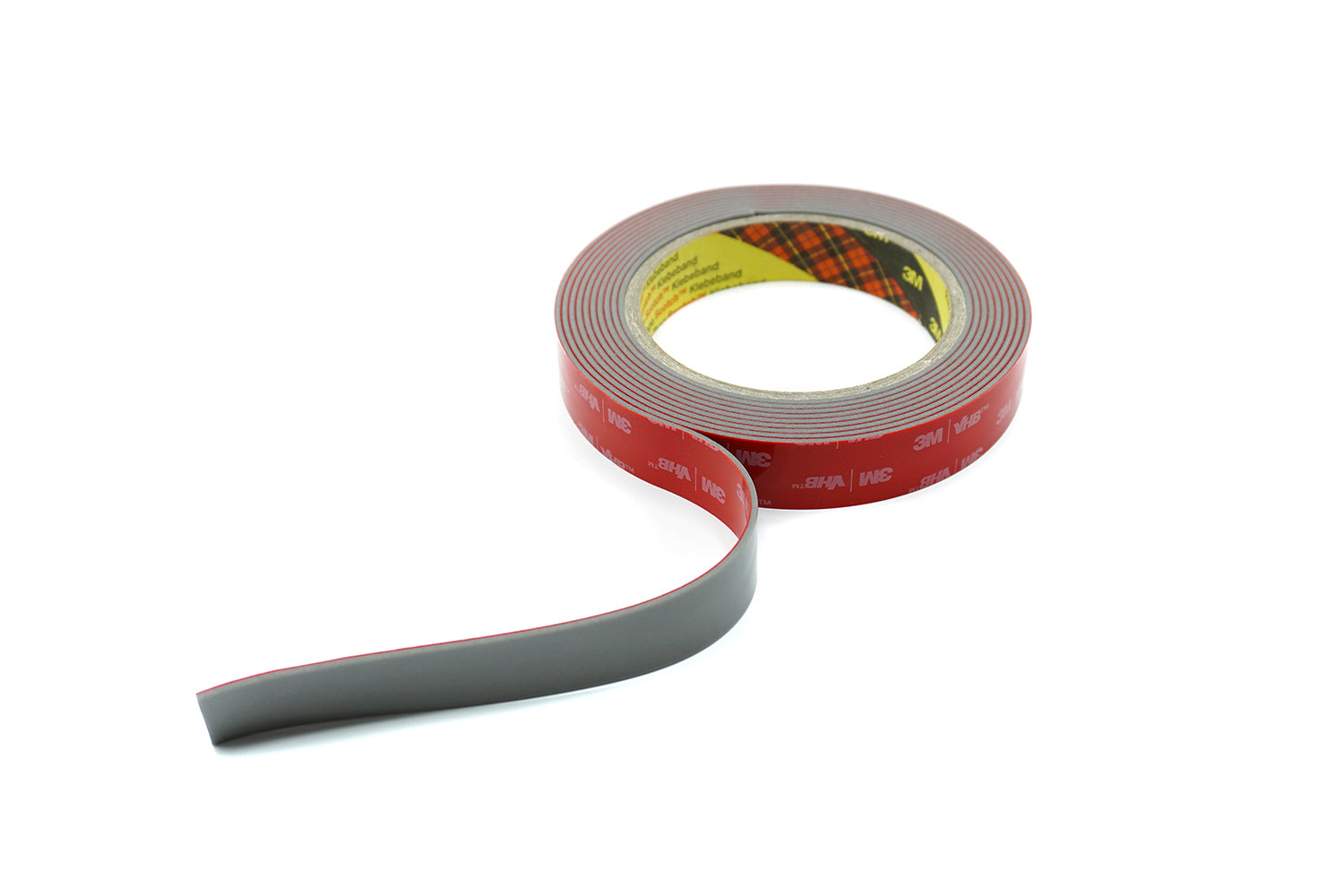

• 3M VHB adhesive tape: Special adhesive tape for a stable and permanent attachment of solar modules.
• WATTSTUNDE roof penetration DX1/S: Safe and waterproof cable routing through the roof.

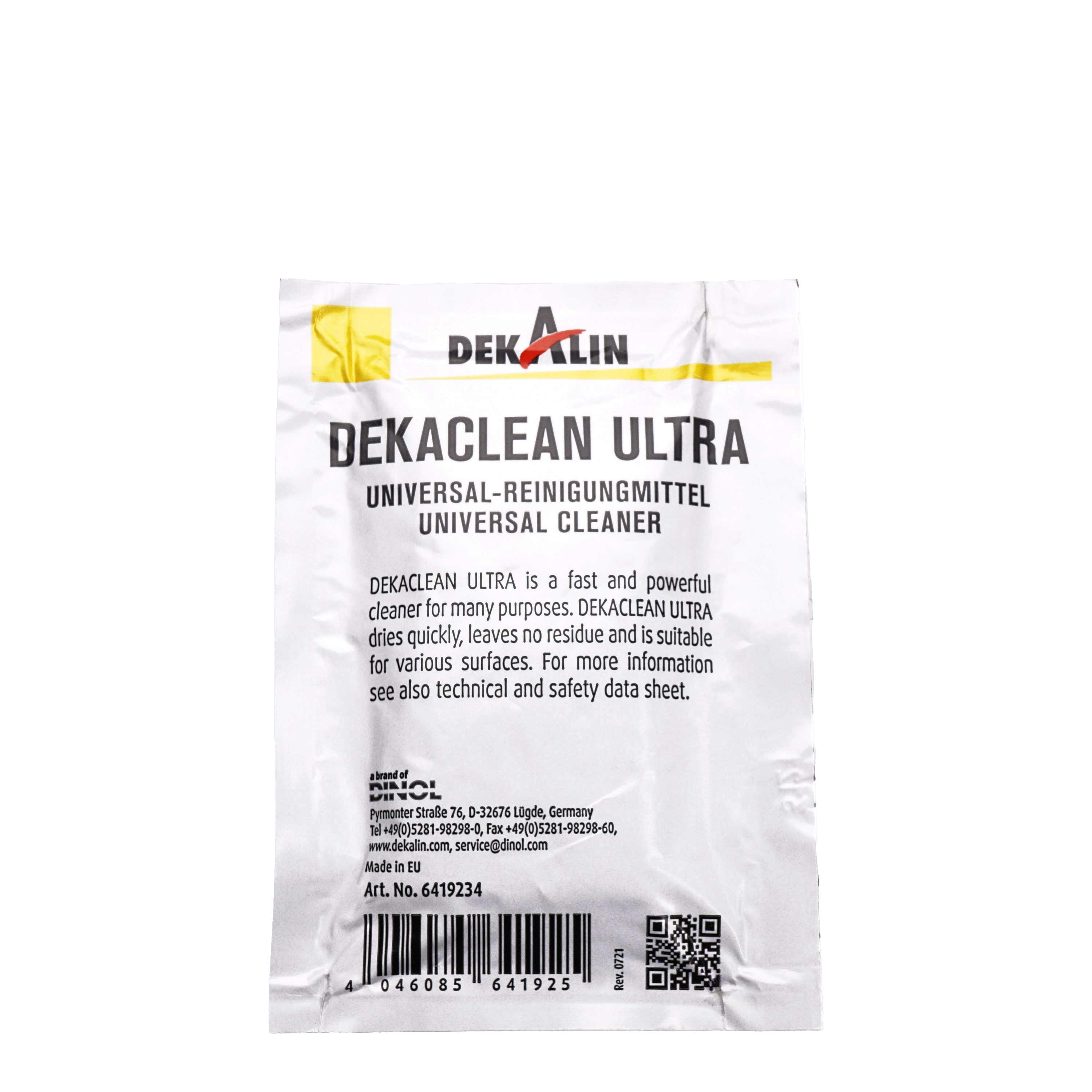

• Dekalin Dekaclean Ultra cleaning wipes: For optimal preparation and cleaning of adhesive surfaces.
• WAGO Green Range connectors: High-quality connectors for simple and reliable wiring.

No drilling required! Easy installation with special adhesive tape.

The solar module's ultra-flat design allows for quick and easy installation. The solar modules can be attached to various surfaces using the double-sided adhesive tape – ideal for vehicle roofs. The WATTSTUNDE DX1/S roof feed-through ensures a watertight cable routing into the vehicle interior, while the high-quality ELS junction box guarantees safe and reliable wiring.

Victron SmartSolar MPPT 100/20 – Maximum solar power with smart control

The Victron SmartSolar MPPT 100/20 increases energy efficiency thanks to its highly precise MPPT algorithm, which enables up to 30% more solar yield compared to conventional PWM controllers. Thanks to the integrated Bluetooth function, you can conveniently monitor and configure your energy production and battery status in real time via your smartphone or tablet.

Here's how to install the set:

• Preparing the mounting surface with Dekalin Dekaclean Ultra cleaning wipes.
• Connect the two WATTSTUNDE SOLA Flex Daylight 125Wp HV modules using the SOLARFLEX-X 4mm² Helu cables. The ELS 85x85x37mm IP55 junction box reliably protects the electrical connections from external influences.
• Attach solar panels to the motorhome roof using 3M VHB double-sided adhesive tape.
• Install the WATTSTUNDE roof feedthrough and route the cable into the vehicle interior. The WAGO Green Range connectors ensure a quick and secure cable connection.
• Connecting the Victron SmartSolar MPPT 100/20: The current from the charge controller safely reaches the battery via the WATTSTUNDE 4mm² battery connection cable with 20A fuse.
  • First, connect the WATTSTUNDE battery connection cable to your battery.
  • Then connect the two SOLA Flex Daylight 125Wp HV modules to the Victron SmartSolar MPPT 100/20 charge controller.
  • Finally, connect the load to the load output of the controller (optional).

Important: Always connect the battery first to ensure the controller initializes correctly!

Thanks to the high-quality components in this set, you get a reliable and easy-to-install solution for your self-sufficient energy supply on your motorhome!
