260 W SOLA Frame Mono HV motorhome complete set white - 11-11005-02 Incl. 0% VAT according to §12 para. 3 UStG.

MONO 260W Motorhome Solar Set

The MONO solar kit for motorhomes from WATTSTUNDE allows you to easily get started with an independent energy supply. While modern motorhomes are equipped by manufacturers for limited self-sufficient use, an upgrade is often necessary for longer independent trips. This complete kit offers everything you need to begin installation on your motorhome roof immediately and, with its high-quality components, ensures a reliable and safe energy supply away from public grids.

Components of the set

The MONO 260W motorhome solar kit includes high-quality and reliable components that are specifically optimized for use on the go:

• 2x WATTSTUNDE SOLA Frame Mono 130Wp HV with MC-compatible connectors
• Victron SmartSolar MPPT 100/20 with integrated Bluetooth (up to 48 V)

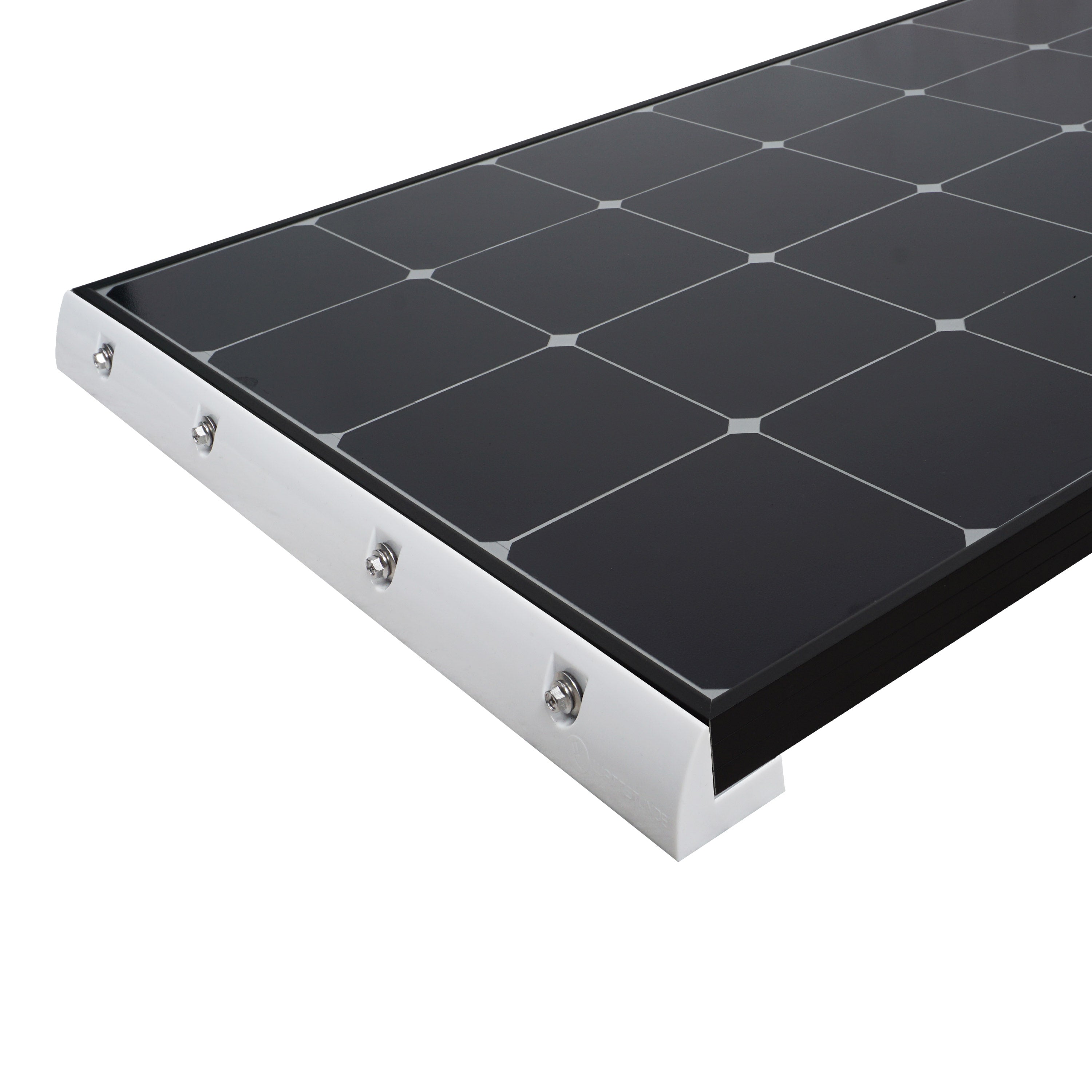

• 2x WATTSTUNDE solar panel mounting bracket MOUNT 53 ASA plastic white incl. stainless steel screws

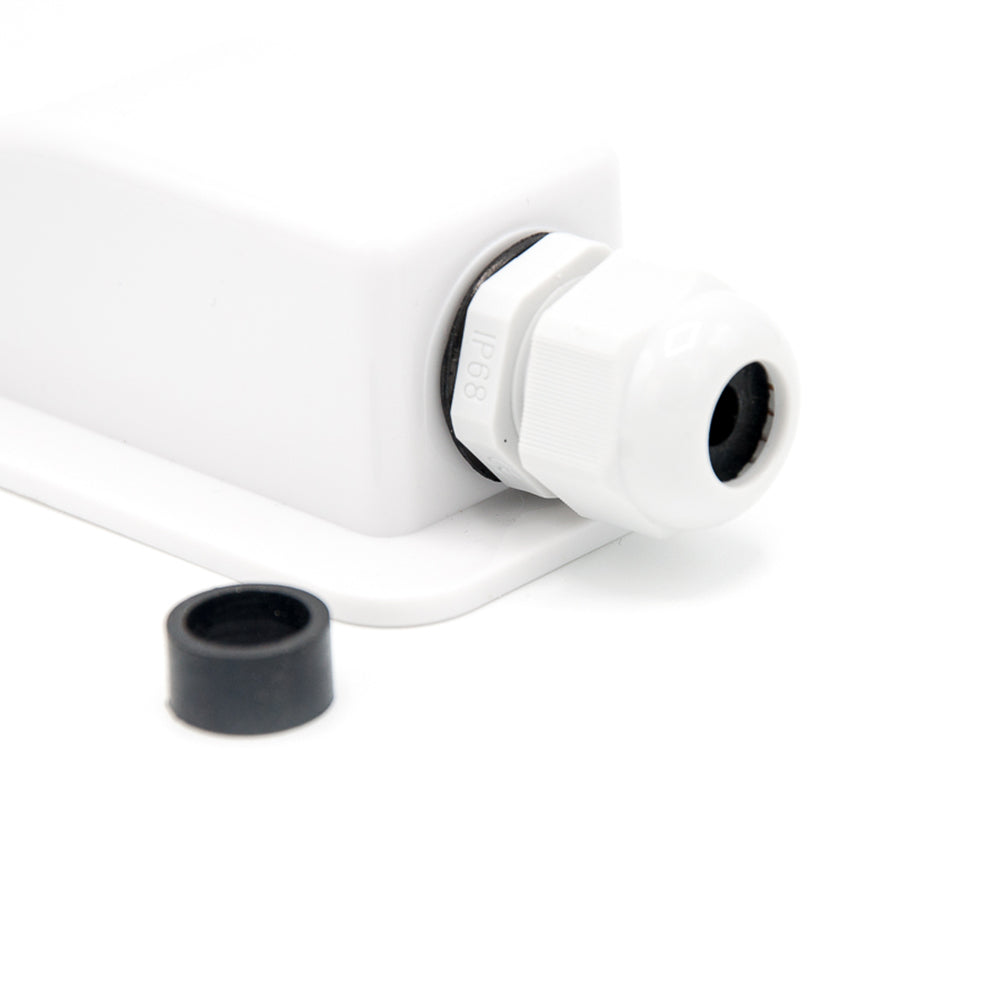

• WATTSTUNDE roof penetration DX1/W white

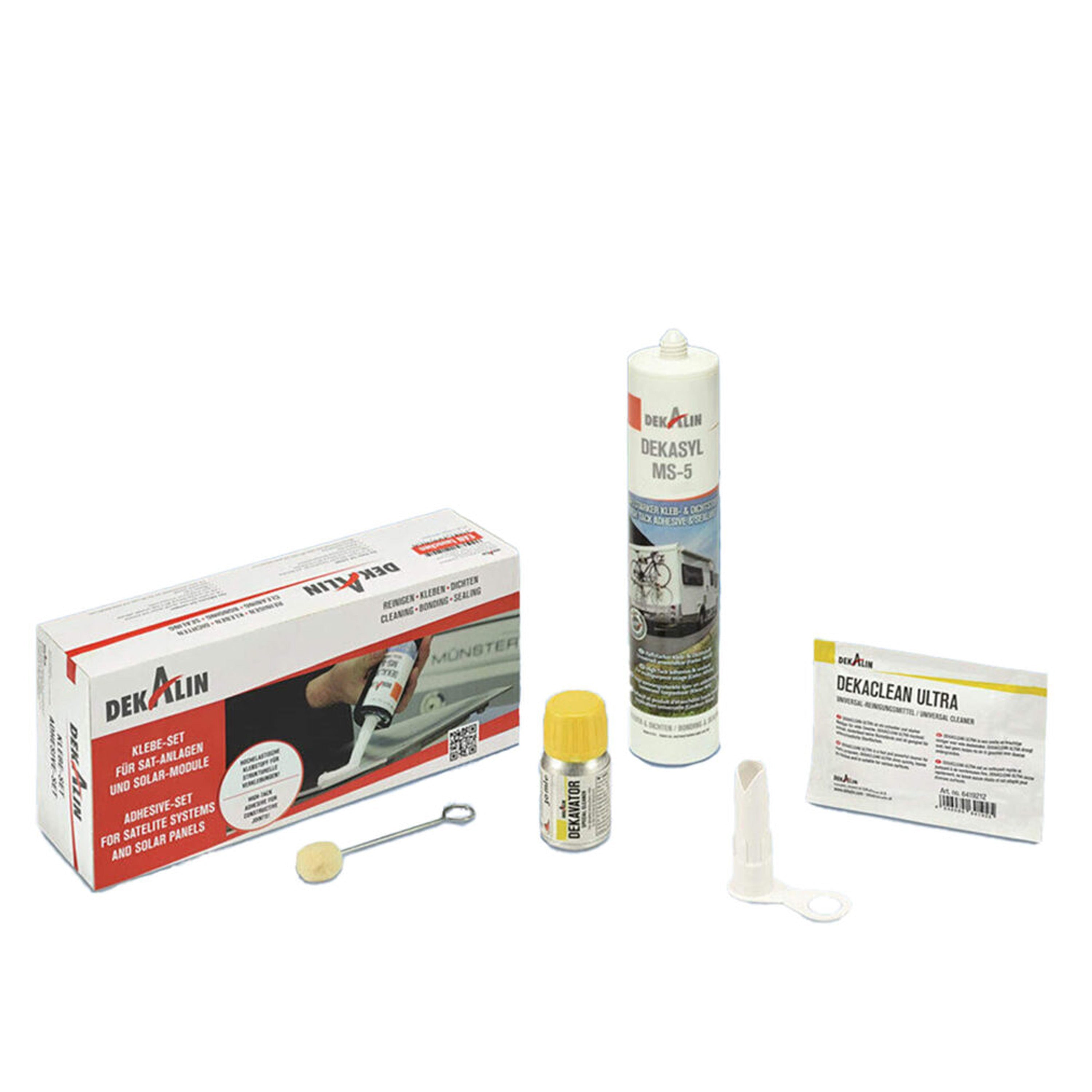

• 2x Dekalin adhesive set in white
• WATTSTUNDE DAC 4.7 Connection cable solar module to charge controller 7 meters 2x4mm²
• MC4-compatible connector set (socket + plug) pre-assembled

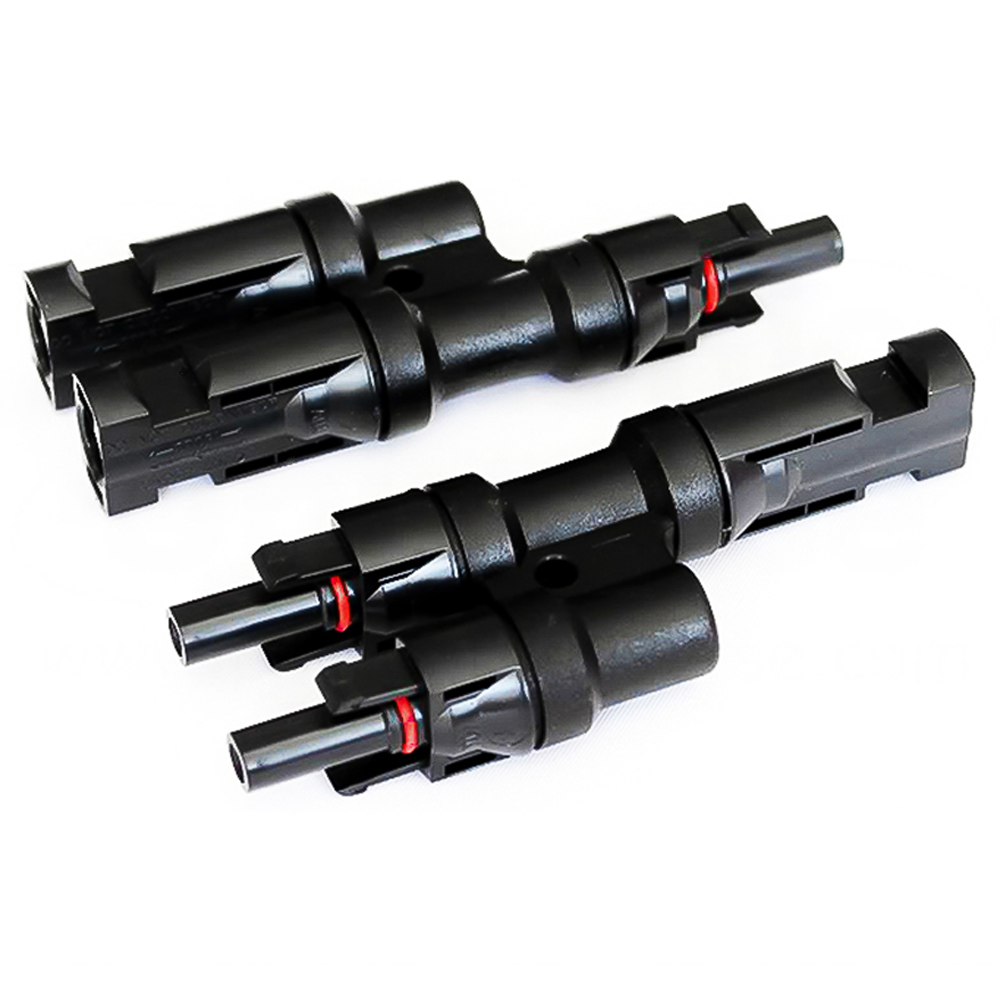

• WATTSTUNDE MC4.2 Connector Set
• WATTSTUNDE 6mm² battery connection cable with 30A fuse
• Operating instructions for all devices in German

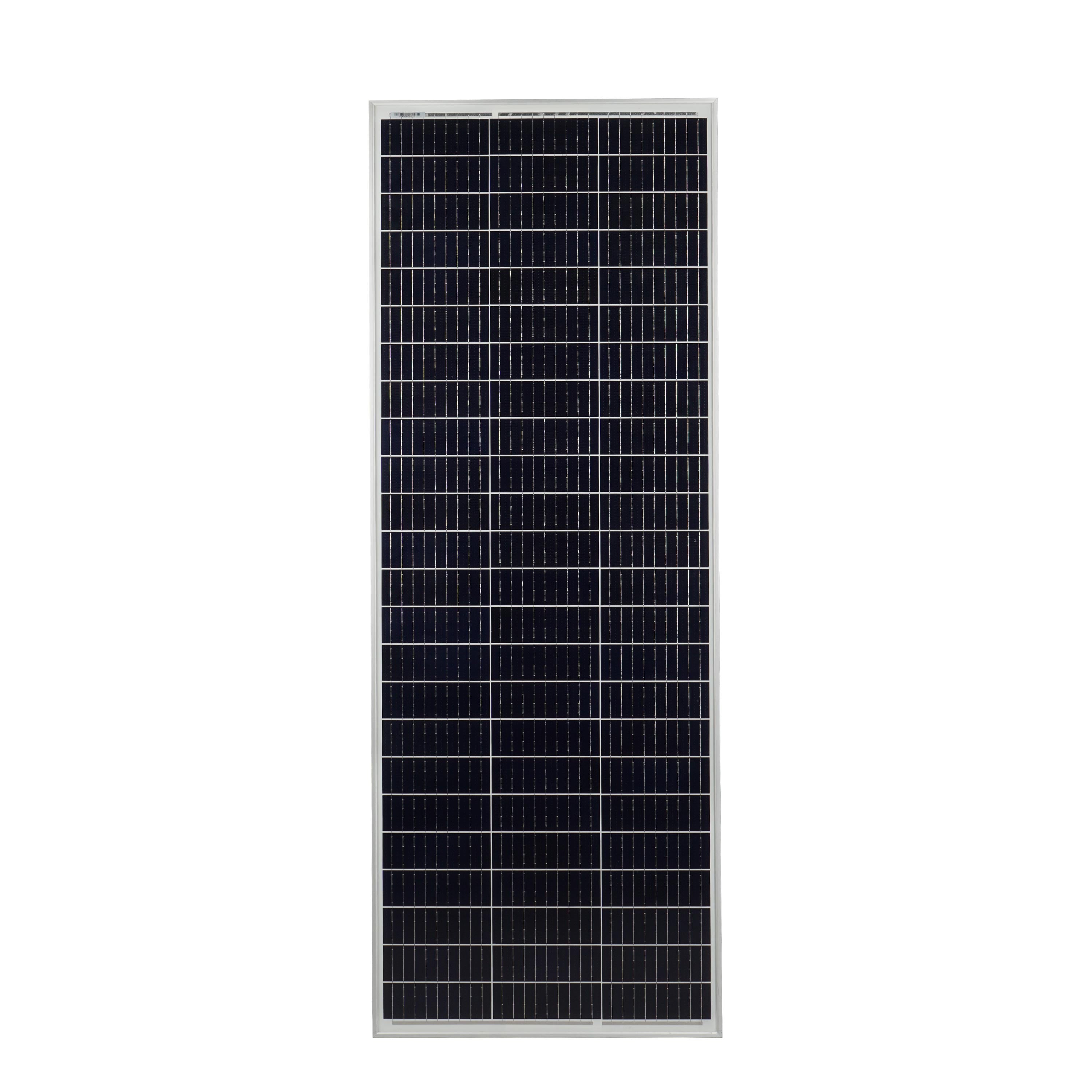

Details on the SOLA Frame Mono 130Wp HV

The solar modules of the Mono series are characterized by the following features:

• Highly transparent, heat-resistant, anti-reflective glass
• Weatherproof junction box (IP68)
• Easy connection of multiple modules thanks to MC4 compatibility
• Frame made of stable hollow chamber profile offers maximum stability even under extreme weather conditions.
• Higher voltage reduces cable losses and improves yields in diffuse light intensity.
• Integrated bypass diodes
• Manufactured according to an ISO 9001 certified process

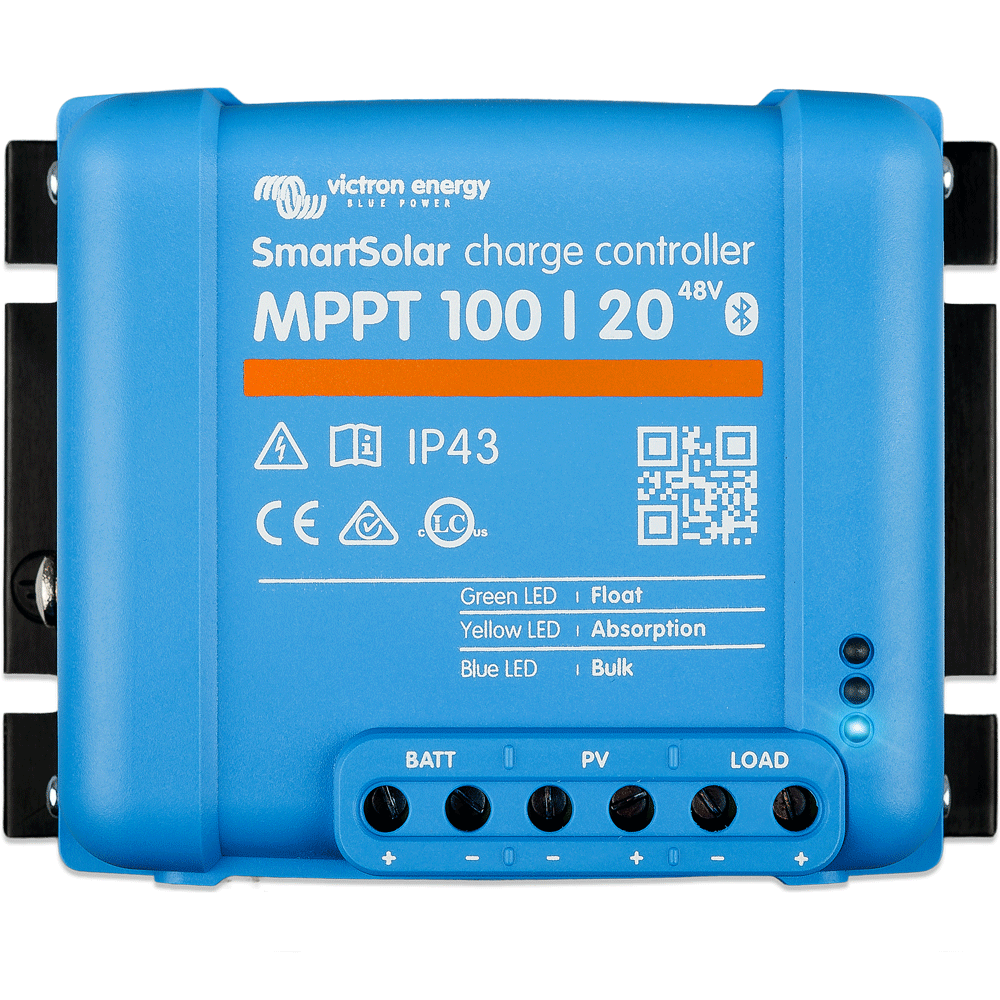

Details about the Victron SmartSolar MPPT 100/20 charge controller

The MPPT charge controller significantly improves energy yield:

• Up to 30% more energy yield compared to PWM charge controllers and up to 10% more than slower MPPT controllers.
• Real-time data display and wireless control via a Bluetooth-enabled smartphone
• Integrated Bluetooth interface, meaning no additional accessories are required.
• Compatible with Apple and Android devices for easy setup, monitoring, and updates.
