300 W SOLA Flex Mono mobile home solar system complete set - 11-14009 Incl. 0% VAT according to §12 para. 3 UStG.

300 W SOLA Flex Mono HV Motorhome Complete Set – Flexible solar technology for self-sufficient energy on the go

The 300W SOLA Flex Mono HV motorhome complete set offers a powerful and flexible solution for self-sufficient power supply in your motorhome. The flexible WATTSTUNDE SOLA Flex Mono 150Wp HV modules (2 x 150Wp) adapt perfectly to curved roof surfaces and impress with their high efficiency. The smart Victron SmartSolar MPPT 100/30 with Bluetooth interface maximizes energy yield and allows for convenient monitoring via smartphone.

Flexible installation – Safe and durable

The ultra-flat solar panels can be attached directly to the vehicle roof using the included 3M VHB adhesive tape – quickly and securely, without the need for additional brackets. The WATTSTUNDE DX1/S roof feed-through included in the set allows for reliable cable routing into the vehicle interior. To ensure permanent protection against moisture, the feed-through must be professionally sealed with a watertight sealant. The set is complemented by the high-quality ELS junction box for safe and protected wiring of all cables. Ideal for flexible installations with high demands on durability and quality.

WATTSTUNDE SOLA Flex Mono 150 Wp HV – High performance in a flexible design

• 150Wp HV monocrystalline high-performance cells with over 20% efficiency
• ETFE coating for UV and weather resistance
• Ultra-flat design (only 3.1 mm thick) for discreet roof integration
• Flexible design, ideal for curved surfaces

Victron SmartSolar MPPT 100/30 – Intelligent battery management with Bluetooth

• Maximum energy yield thanks to ultra-fast MPPT algorithm
• Up to 30% more yield compared to PWM controllers
• Integrated Bluetooth interface for monitoring via smartphone

Product features in detail:

• 2x 150 Wp HV flexible solar modules – ideal for curved roof surfaces
• ETFE coating – robust, durable and resistant to environmental influences
• Victron SmartSolar MPPT 100/30 – Maximum energy yield through MPPT technology
• Integrated Bluetooth – Easy monitoring and control via smartphone

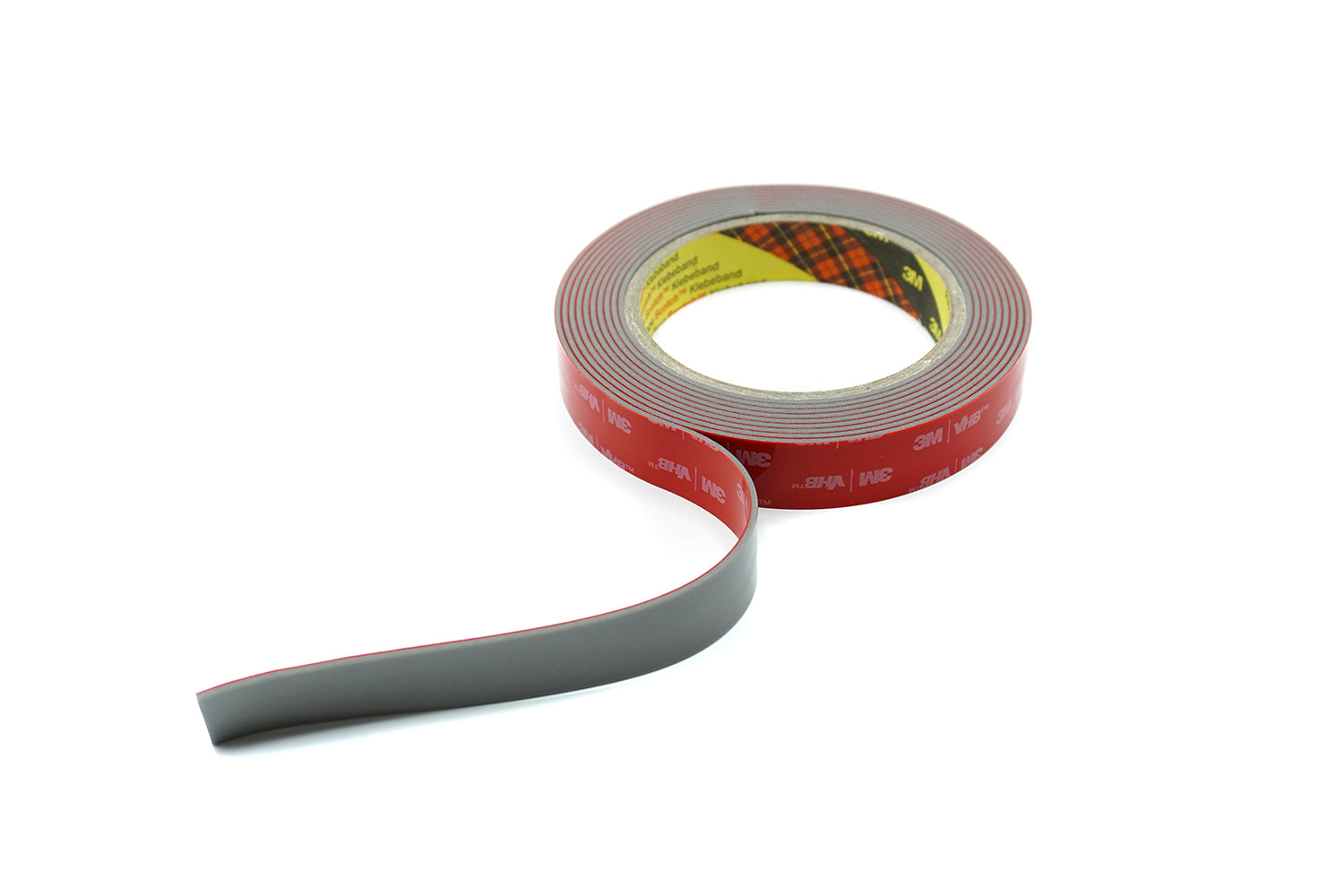

• 3M VHB Adhesive Tape – Secure fastening

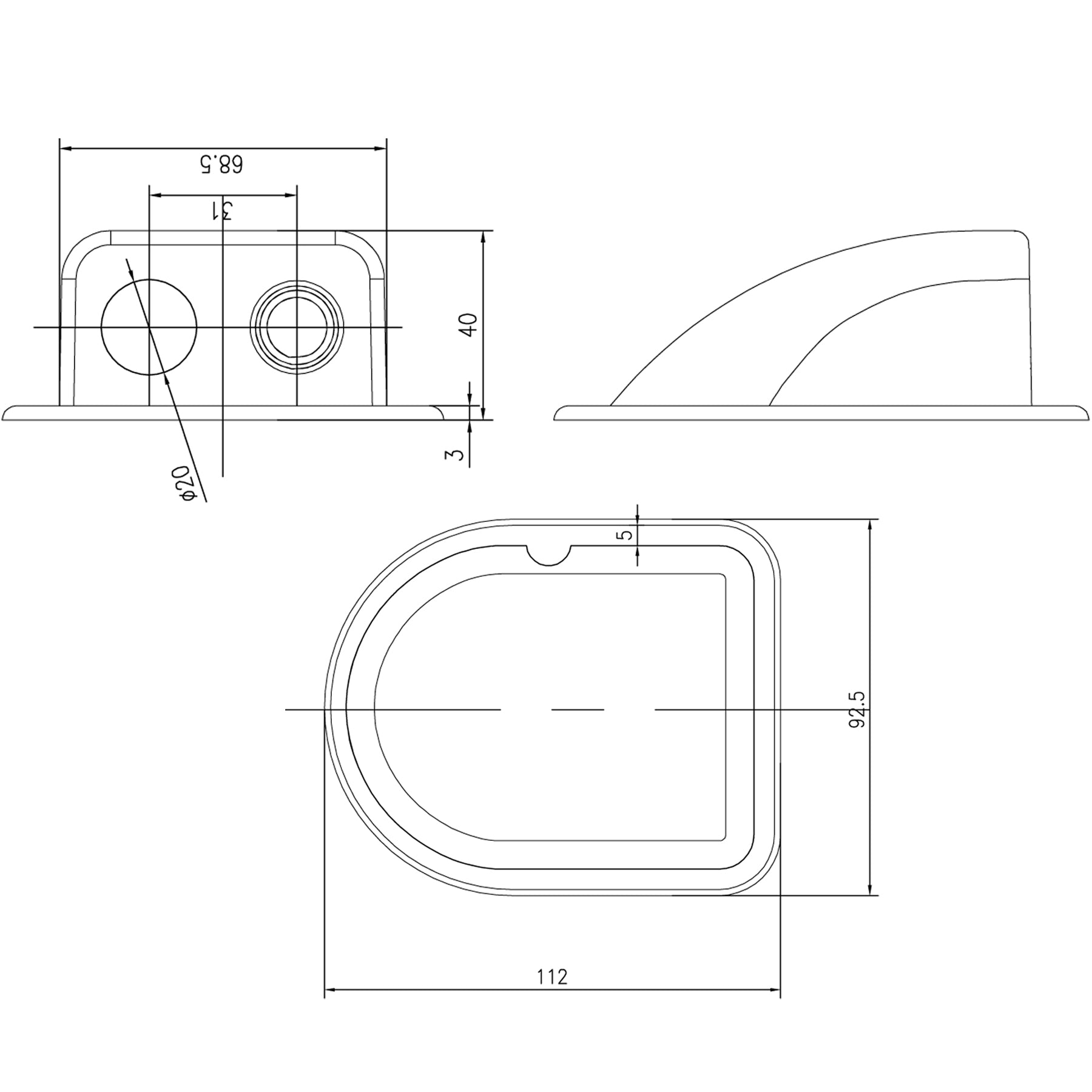

• WATTSTUNDE roof penetration DX1/S – Protection against water and dust
• 10 m Helukabel SOLARFLEX-X H1Z2Z2-K BLACK 1 x 4 mm² – High-quality solar cable for secure connections

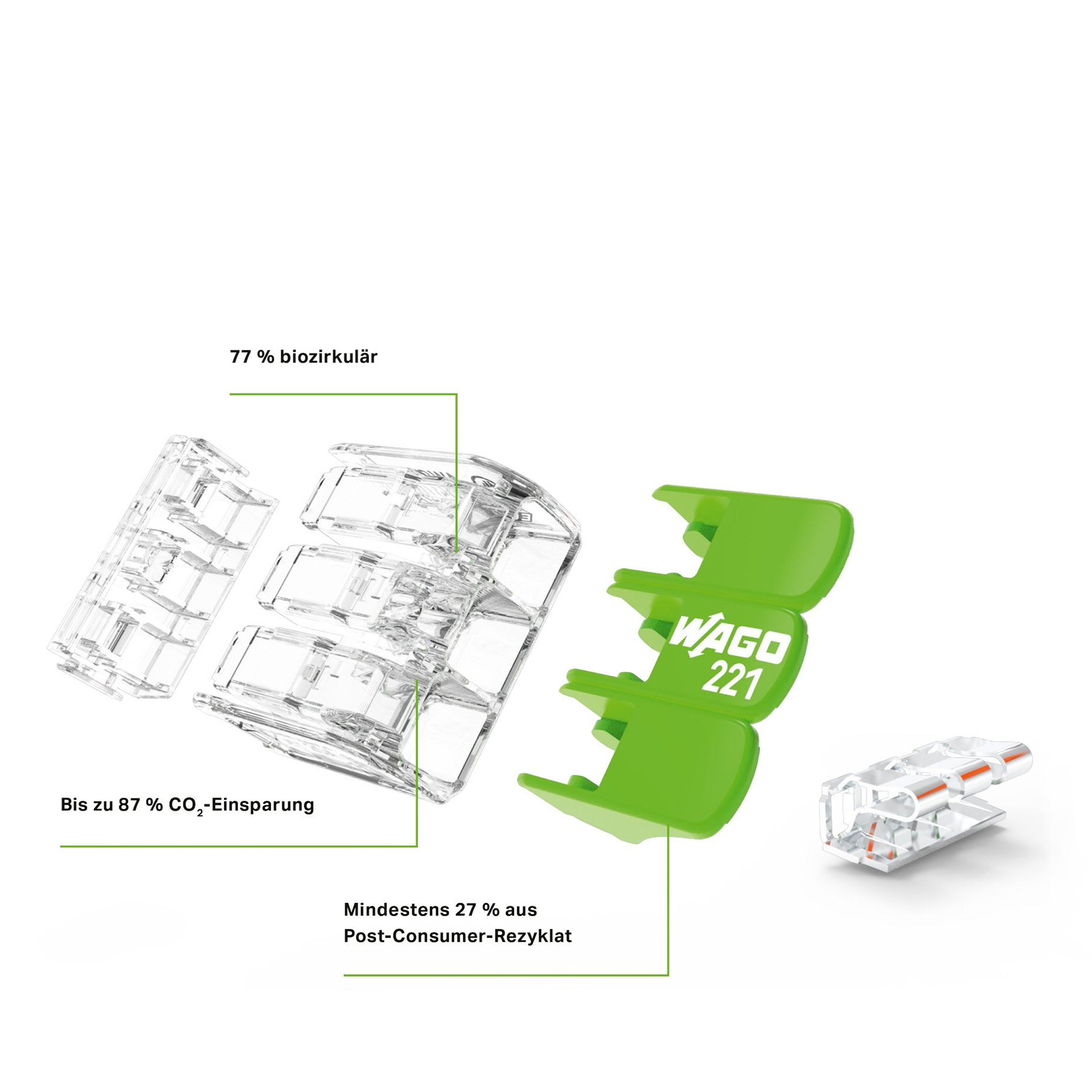

• WAGO Green Range connector – Flexible and secure cable connection
• Battery connection cable with 40 A fuse – Reliable and protected power supply

Here's how to install the set:

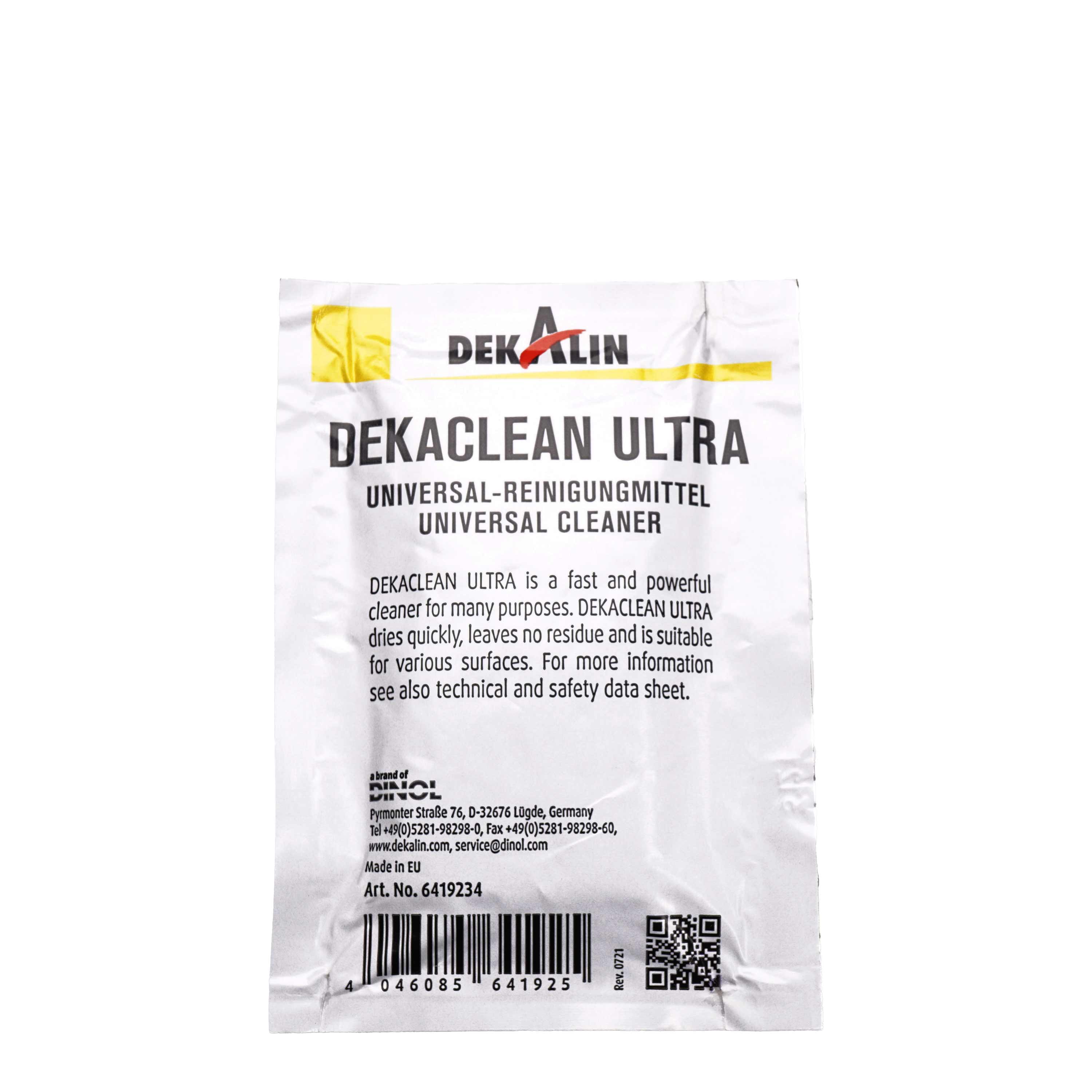

1. Cleaning the mounting surface with Dekalin Dekaclean Ultra cleaning wipes
2. Attach solar panels with 3M VHB adhesive tape – for a secure hold
3. Install roof feedthrough and route cables into the vehicle interior.
4. Connecting the Victron SmartSolar MPPT 100/30:
   • First, connect the battery connection cable to the battery.
   • Then connect the solar panels to the charge controller.
   • Finally, connect the load to the load output of the controller (optional).

Important: Always connect the battery first to ensure the controller initializes correctly!
