DAYLIGHT Sunpower 380Wp Motorhome Solar System DLS380 Victron SmartSolar 100/30 - 11-55702-003 Incl. 0% VAT according to §12 Abs.3 UstG.

380W DLS solar system for motorhomes and campervans

WATTSTUNDE® DAYLIGHT Complete Set with 380 W power and Sunpower Back-Contact cells

WATTSTUNDE's premium DLS solar complete systems for motorhomes, campers, and caravans. High-performance solar systems for the discerning user. Optimal performance in the smallest possible space, even in poor and diffuse light conditions. The DAYLIGHT series of motorhome solar systems is characterized above all by its high level of quality and performance, enabling you to achieve the highest possible yields in mobile applications.

WATTSTUNDE solar modules of the SPS DAYLIGHT series are manufactured according to strict quality guidelines and consist of high-performance and patented SunPower® solar cells. Thanks to the innovative back-contact cell technology, the cell efficiency is significantly above 24%.


The DLS380 solar set for motorhomes consists of:

• 2 x WATTSTUNDE® WS190SPS DAYLIGHT solar module with cable and MC4 connectors
• Victron SmartSolar 100/30 charge controller with Bluetooth

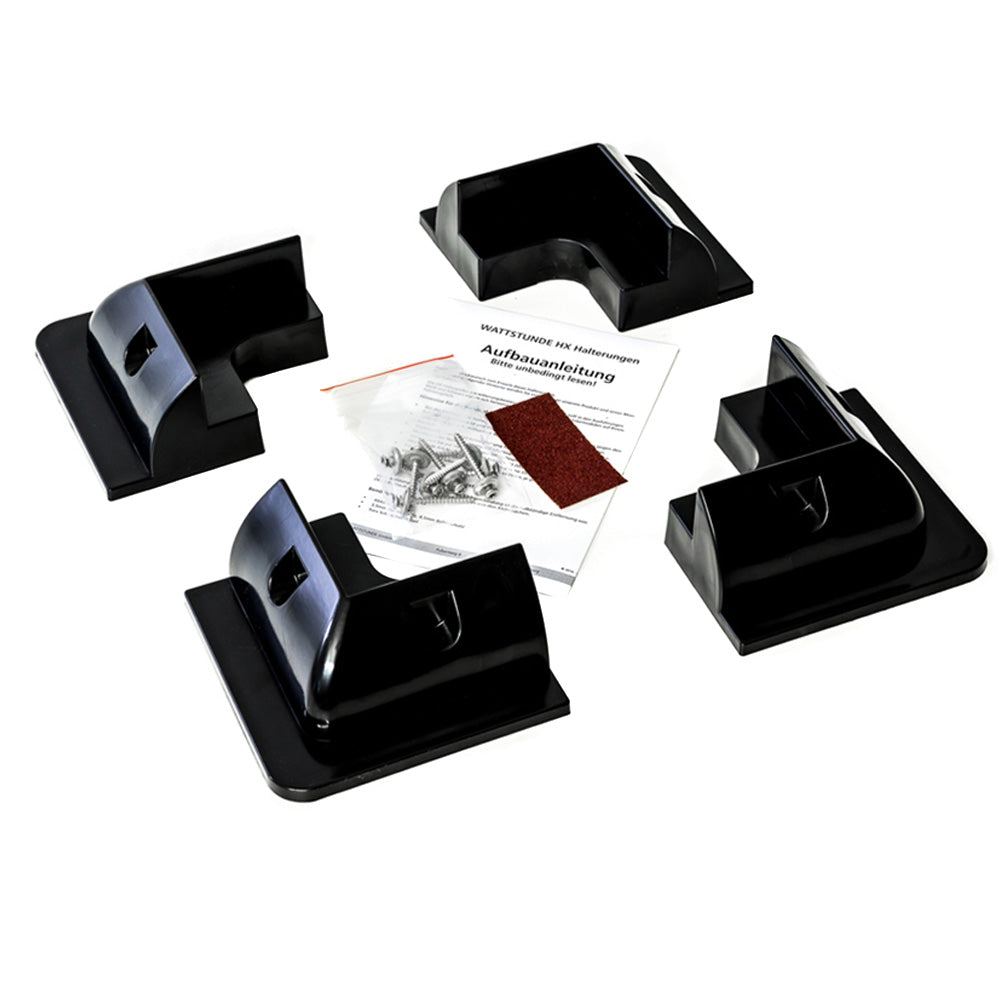

• 2 x WATTSTUNDE® HXE mounting corners incl. stainless steel screws
• WATTSTUNDE® DX2 Solar Roof Feedthrough

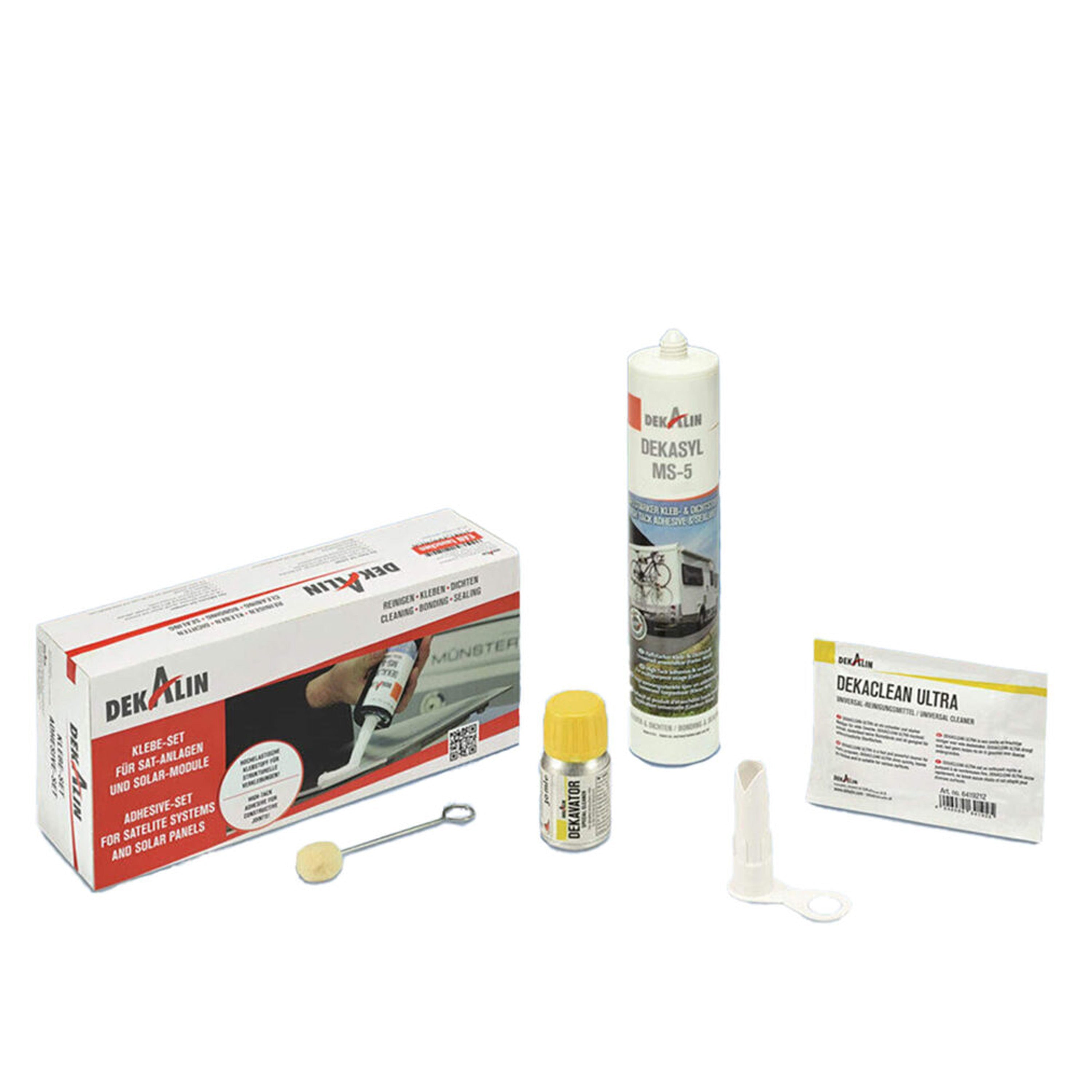

• 2 x Dekalin adhesive set - black

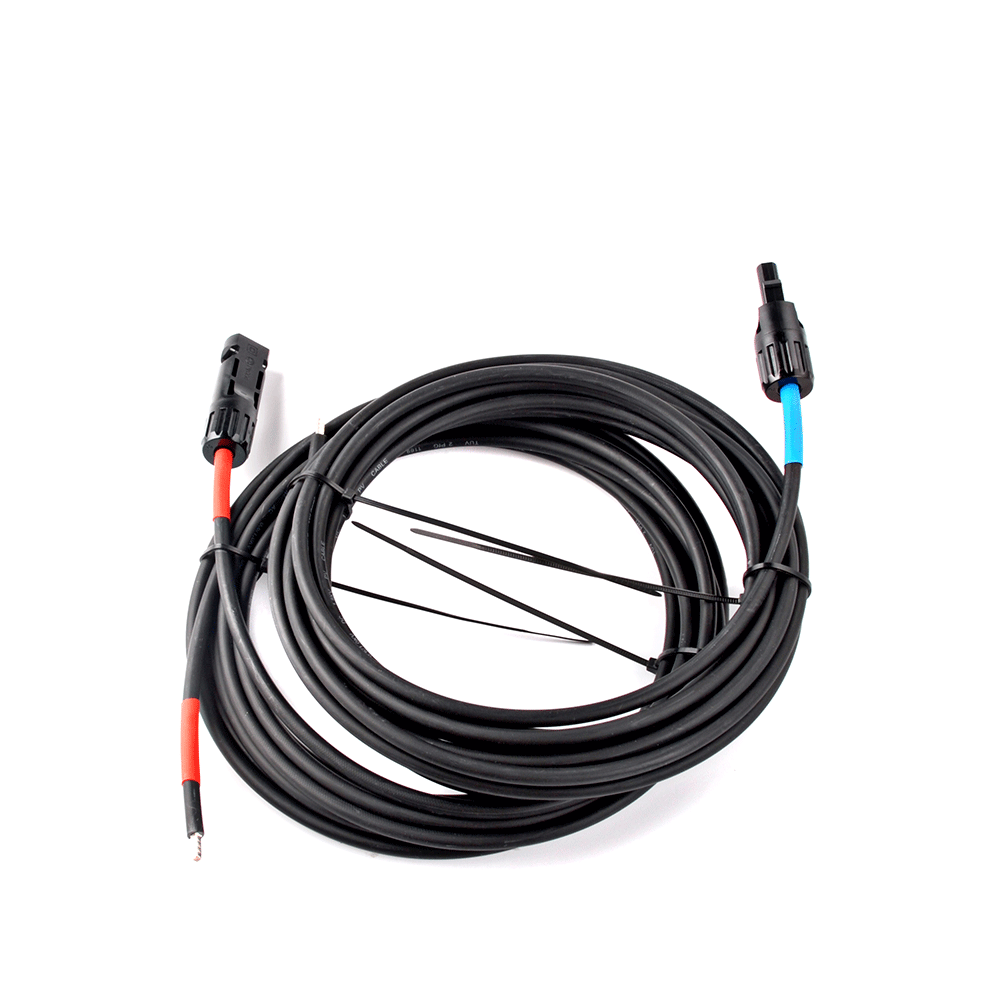

• 2 x 7 m solar connection cables 6 mm² incl. compatible MC4 connector system (solar module to charge controller)
• MC4 connector set (socket + plug) already pre-assembled

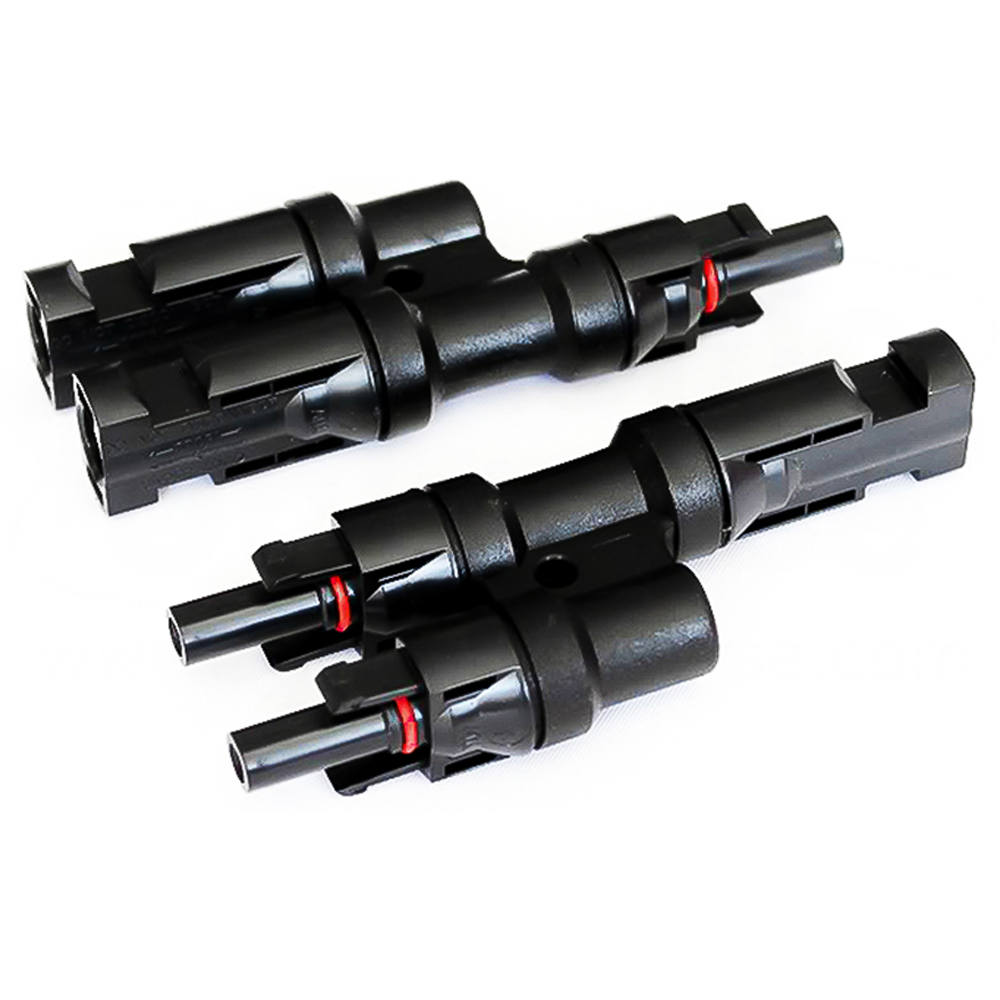

• MC4 Y connector set for connecting solar modules in parallel
• 1.5 m battery connection cable 10 mm² incl. 40A blade fuse
• Operating instructions for all devices in German

The complete kits in the WATTSTUNDE® series are characterized above all by their high quality and provide you with a sense of security and independence from the public power grid while on the go. The 380W complete kit contains only high-quality and reliable components and everything you need to begin installation and mounting on your motorhome roof immediately.

Easy installation, quick setup and pre-prepared materials make your assembly a breeze!

WATTSTUNDE DAYLIGHT solar modules are equipped with back-contact Sunpower cells, which have a significantly higher cell efficiency of up to 24% than standard monocrystalline or polycrystalline solar modules, thus ensuring a higher energy yield! Thanks to back-contact technology, the cell can absorb more light and convert this additional energy into electrical energy.

These modules are unique due to their exceptionally high light output!

The included mounting spoilers are made of solid plastic and, thanks to their aerodynamic shape, prevent any driving noise.
The construction adhesive included in the set is a one-component elastic adhesive, specifically designed for this application.
The special chemistry enables reliable and durable bonding, thus reliably and permanently fixing the module to the vehicle roof.

Ultra-fast MPPT tracking of the Victron SmartSolar 100/30

Especially under cloudy skies, when the light intensity is constantly changing, the super-fast MPPT algorithm improves energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in Partial Shading. In the case of partial shading, two or more maximum power points (MPPs) may exist on the current-voltage curve. Conventional MPPTs tend to settle on a local MPP, which may not be the optimal MPP.
The innovative algorithm of the SmartSolar device will always maximize energy yield by adjusting itself to the optimal MPP.

Highlight: Real-time data display on your smartphone!
A Bluetooth-enabled smartphone can display a variety of data live. This wireless solution allows for the setup, monitoring, and updating of the controller using Apple and Android smartphones, tablets, or other devices.
Unlike the BlueSolar controllers, this one already has a built-in Bluetooth interface, so no additional accessories need to be purchased.

Together with the DAYLIGHT back-contact solar modules and the MPP charge controller, you receive an efficient premium set with high-quality products for maximum energy yield.

Enjoy your freedom with the high-quality motorhome solar systems from WATTSTUNDE®

Technical specifications WS190SPS
