WATTSTUNDE® Motorhome Power Set 2400 W MultiPlus 12/3000 Elite - 11-20150-04
- Victron MultiPlus 12/3000
- WATTSTUNDE� 200Ah LiFePO4 Batterie
- Victron GX 50
Tax included. Shipping calculated at checkout
Unser Versand ist am 19./22./23.12. geschlossen und arbeitet in der Zeit vom 29.12.25 bis einschließlich 02.01.26 nur eingeschränkt. Es kann zu Verzögerungen kommen. Ab dem 05.01.26 läuft der Versand wieder wie gewohnt.
Product details
WATTSTUNDE® Motorhome Power Set 2400 W MultiPlus 12/3000 Elite - 11-20150-04
- Victron MultiPlus 12/3000
- WATTSTUNDE� 200Ah LiFePO4 Batterie
- Victron GX 50
Manufacturer information and, if applicable, the responsible person:
Product description
WATTSTUNDE® Motorhome Power Set 2400 W Elite
Optimize your motorhome's power supply while on the go with the 2400W motorhome power set.
Prepare your vehicle for extended trips into the wilderness with our versatile power set. Available in different power outputs – 2400W, 1600W, or 700W – the set can be precisely tailored to your specific needs. It's also ideal for increasing your self-sufficiency by adding extra solar panels.
The quality of each set is ensured by the proven technology of Victron Energy and WATTSTUNDE. At its heart is the multifunctional Victron MultiPlus, which combines an inverter and charger in one. The set is rounded out with suitable fuses, battery cables, and lithium batteries, guaranteeing a stable 230V power supply so you can use your household appliances anywhere without worry.
Prioritize adaptability and convenience on your travels. Our power set caters to your personal needs and gives you the autonomy you need for your next big adventure.

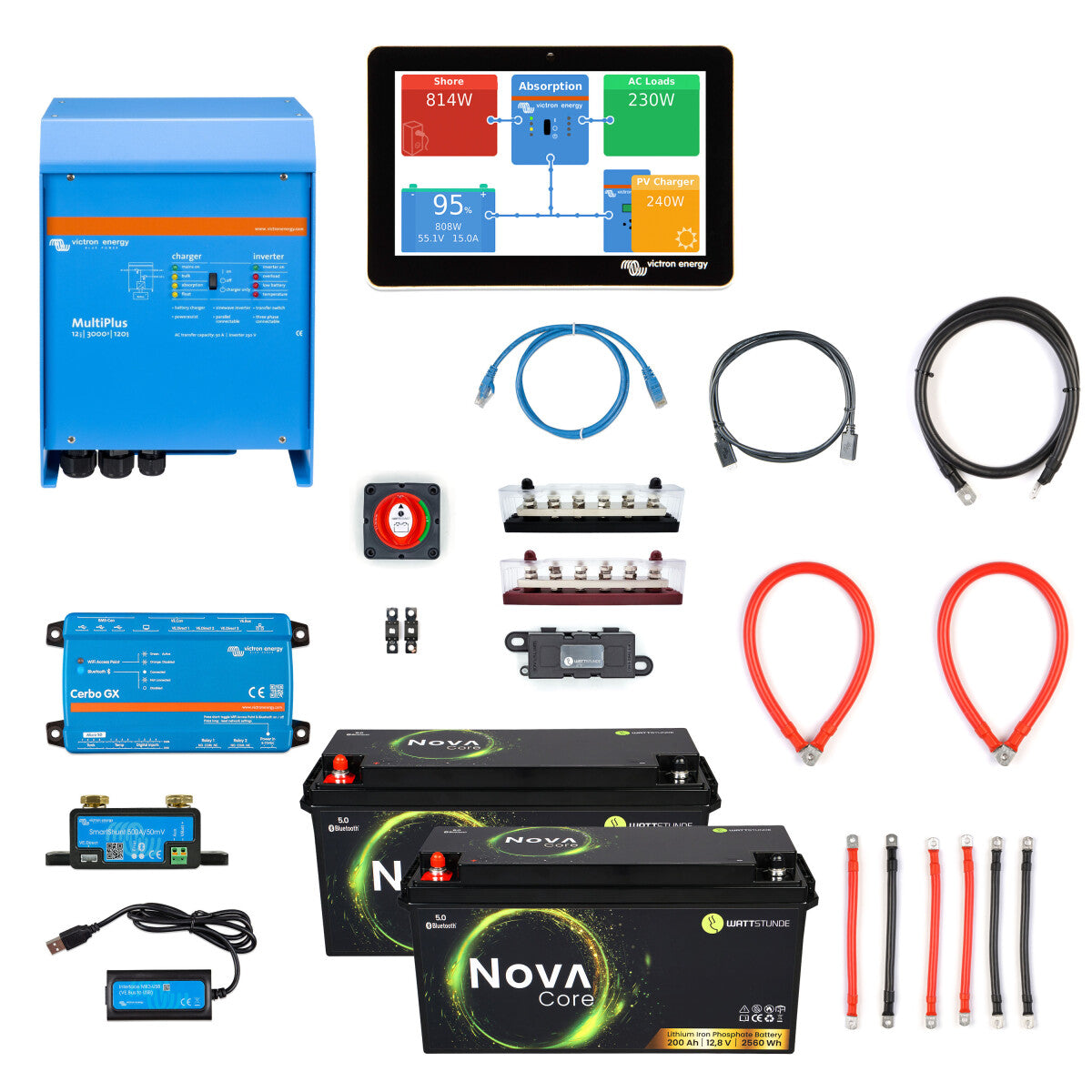

This "Motorhome Power Set 2400W Elite" consists of:

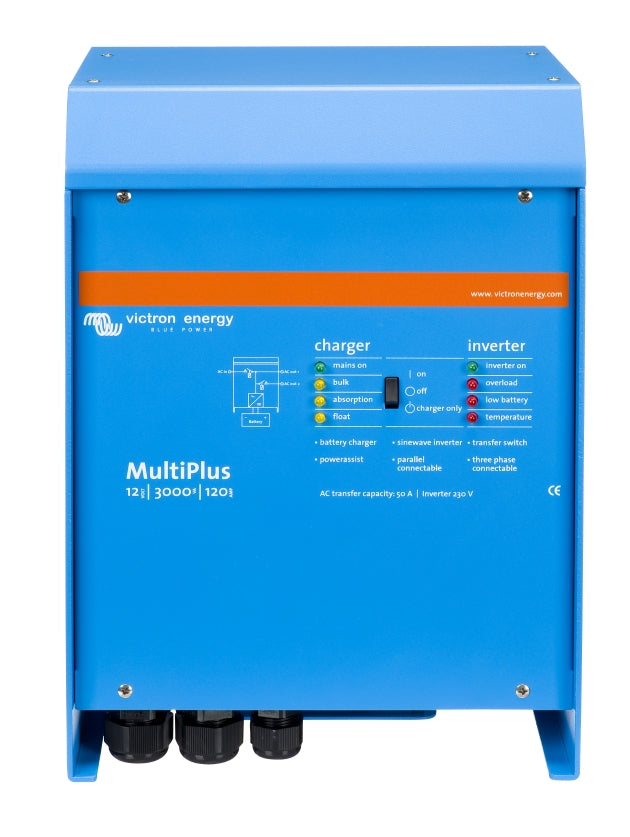

- Victron MultiPlus 12/3000/120-32 230V

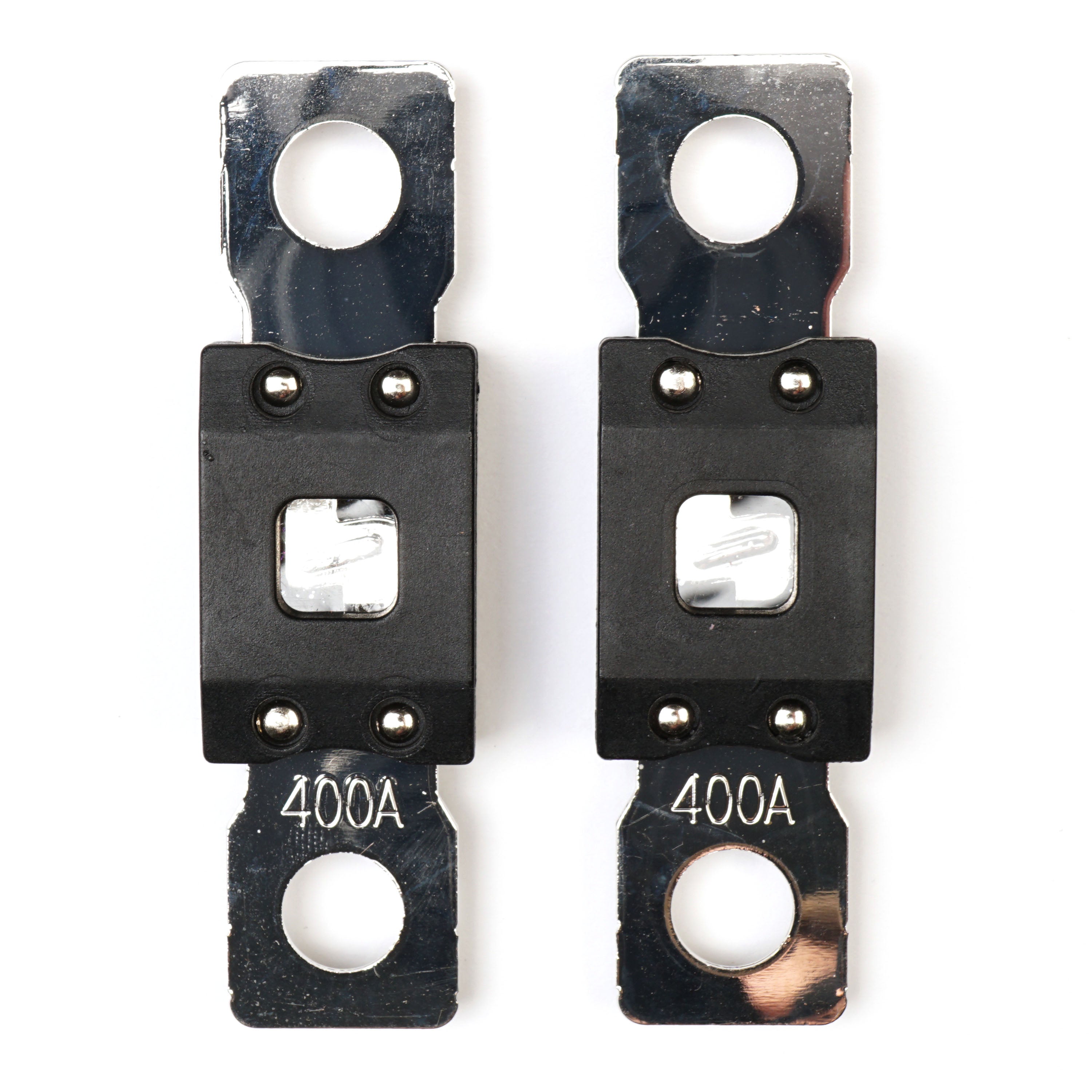

- WATTSTUNDE® ANM High-load strip fuse 2x400A

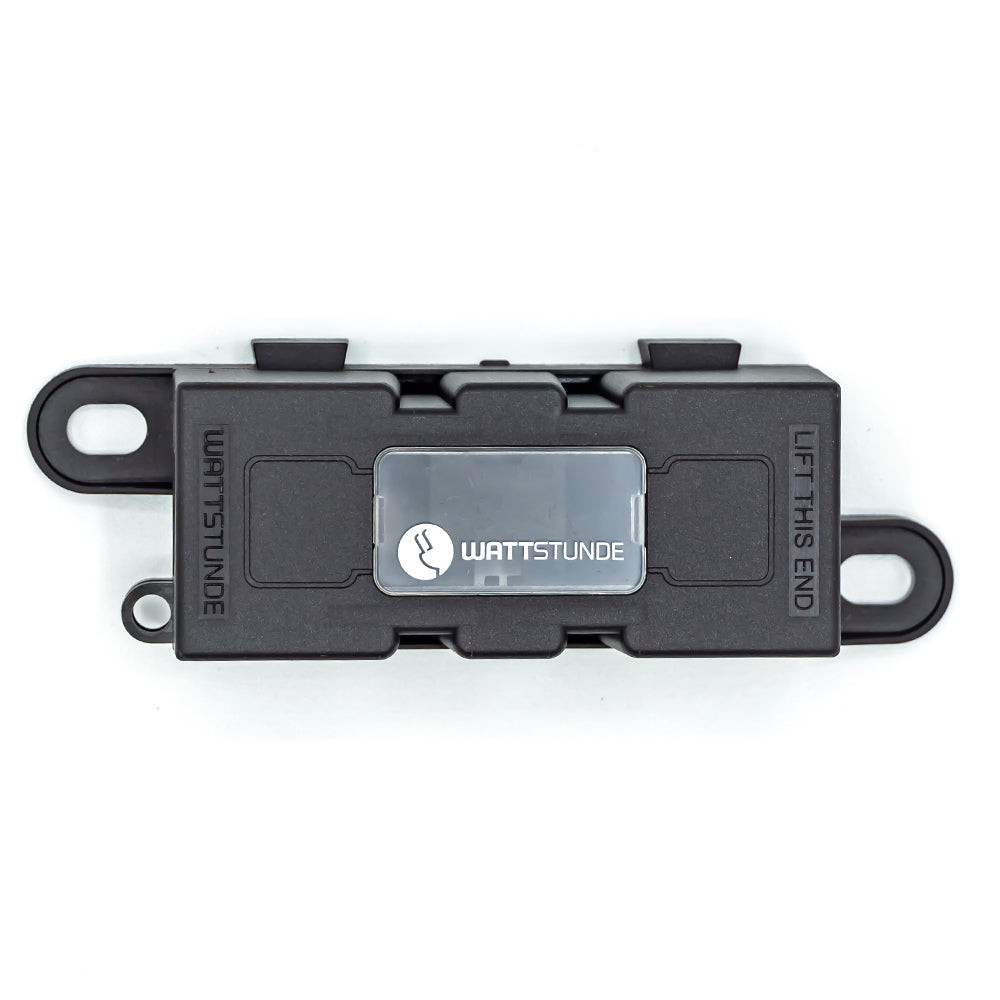

- WATTSTUNDE® fuse holder black for ANM high-current fuses

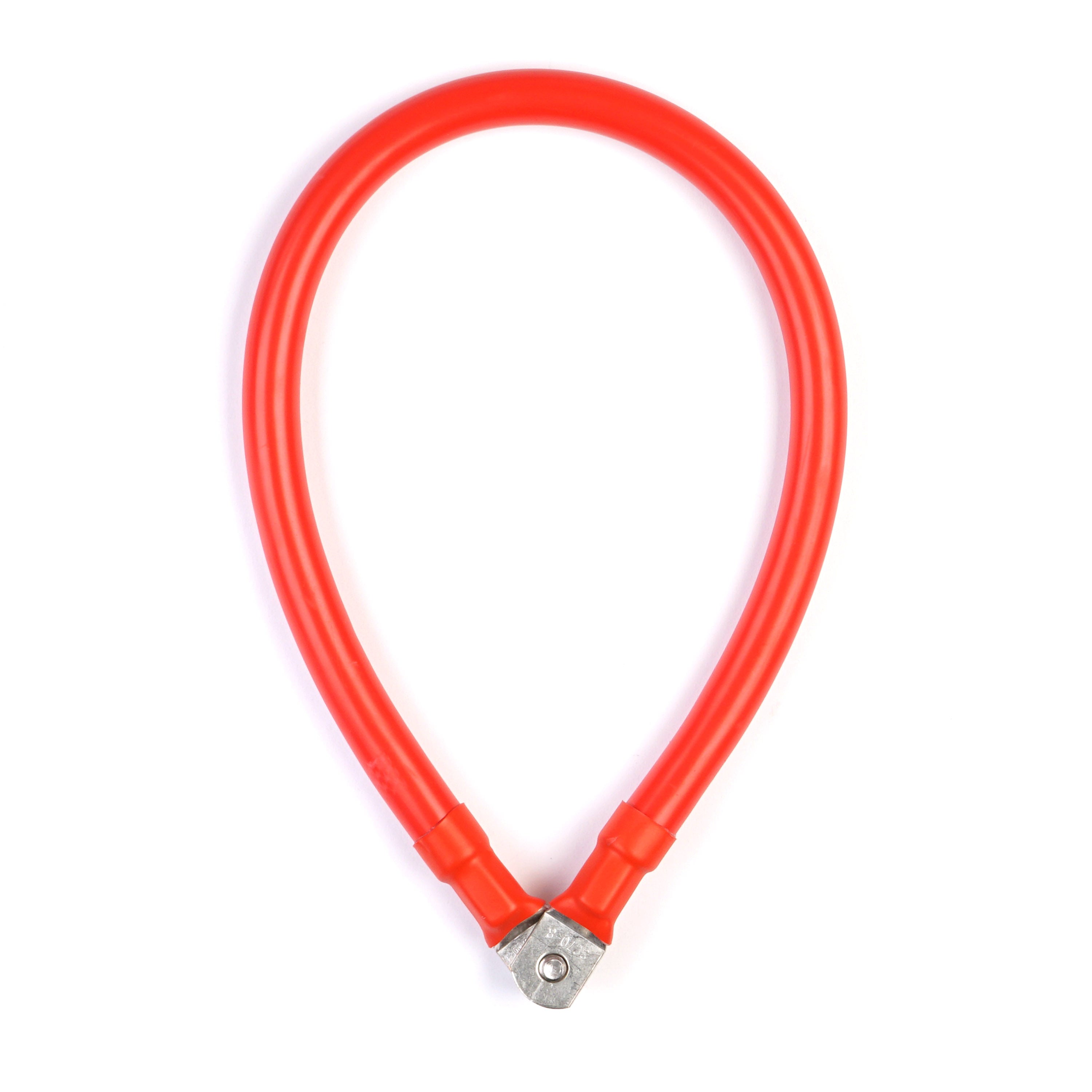

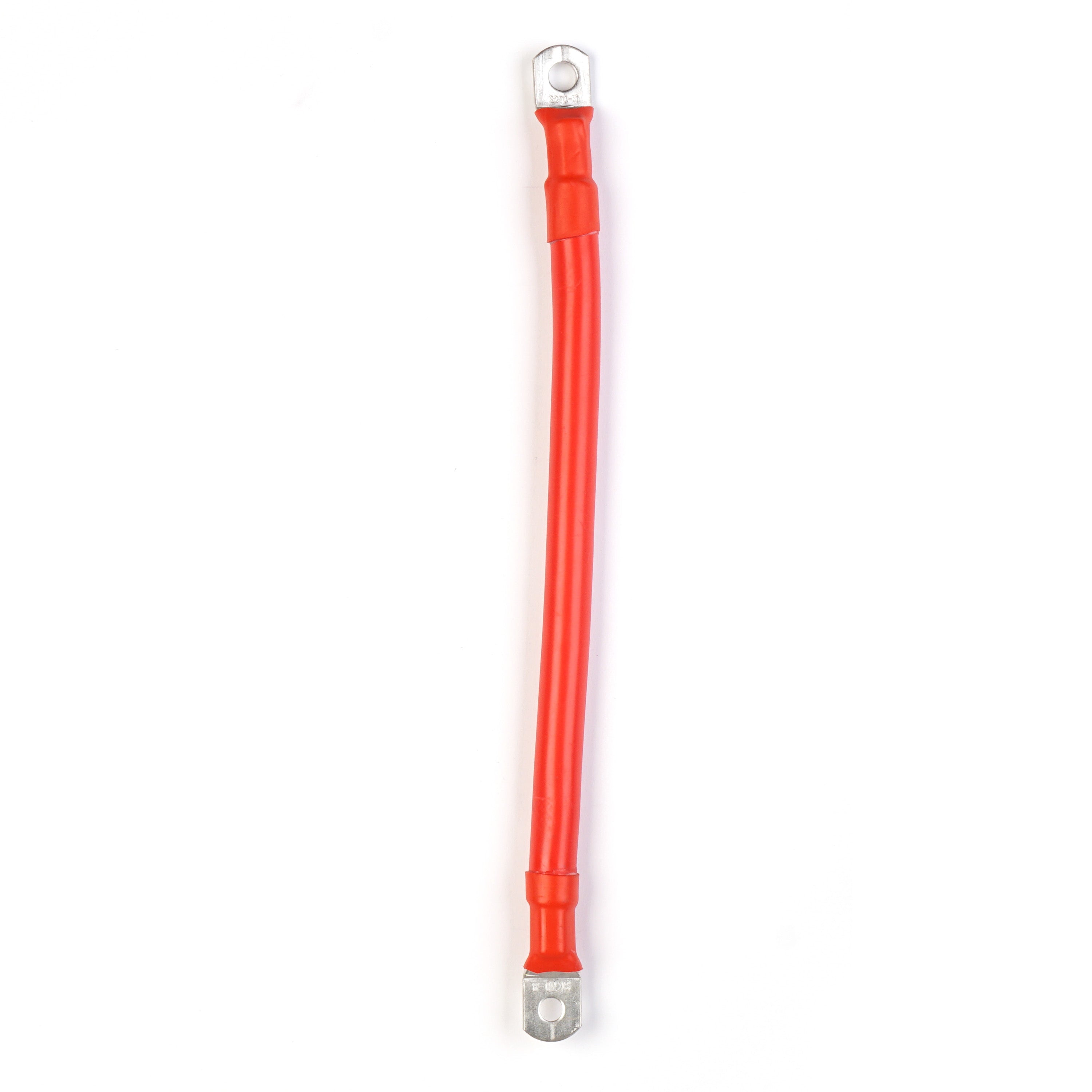

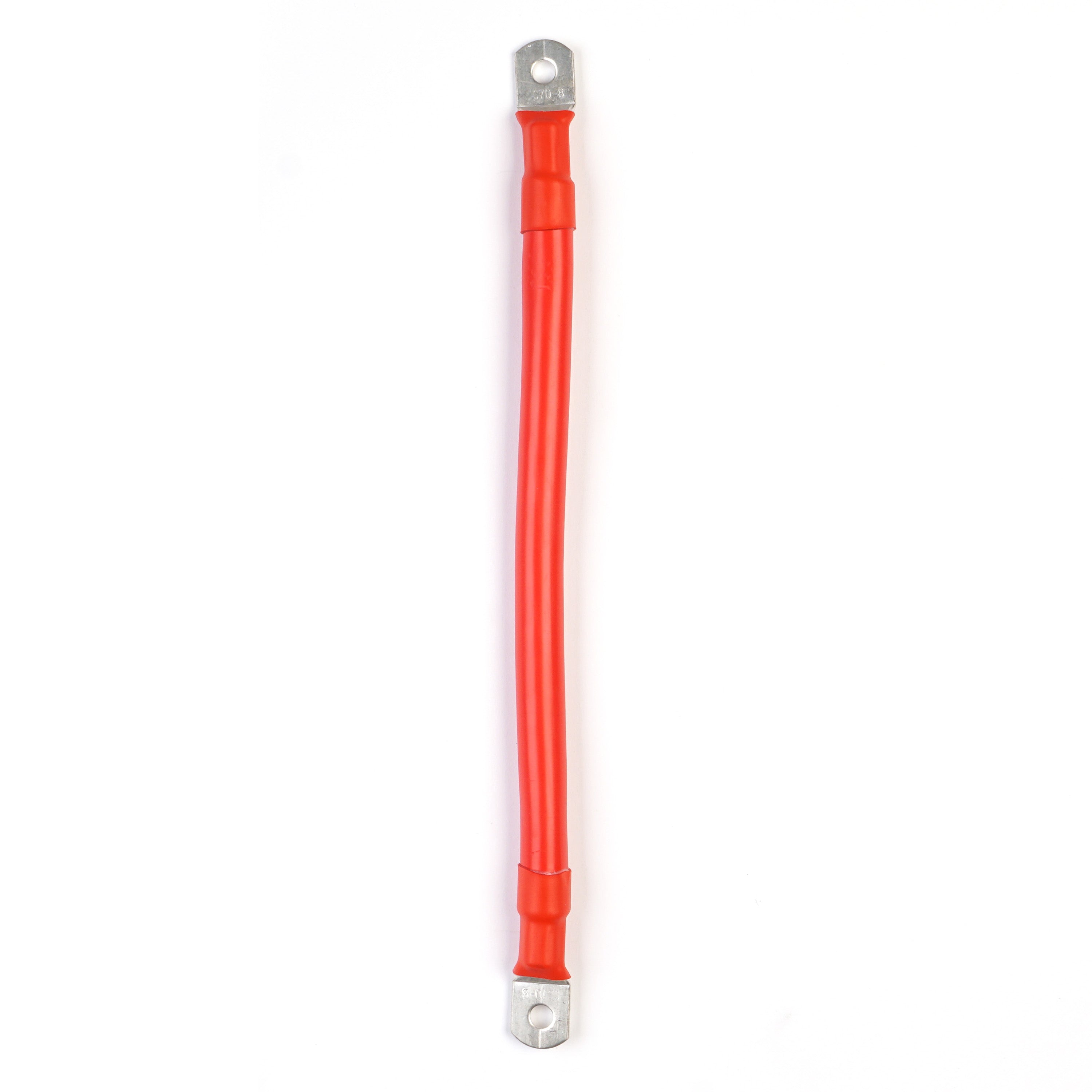

- WATTSTUNDE® battery cable 70mm² M8/M8 30cm red

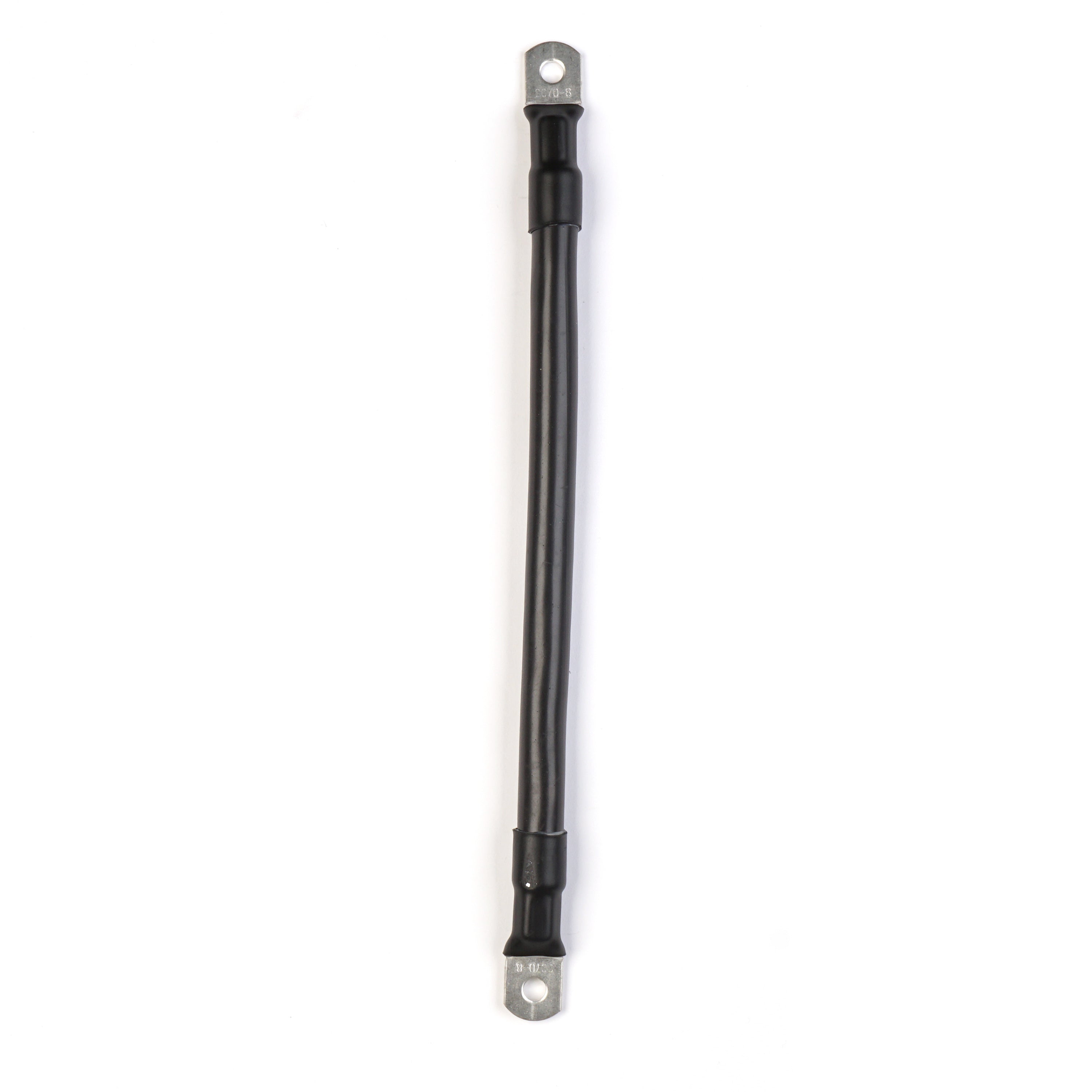

- WATTSTUNDE® Battery Cable 70mm² M8/M8 30cm Black
- WATTSTUNDE® battery cable 70mm² M8/M10 60cm red

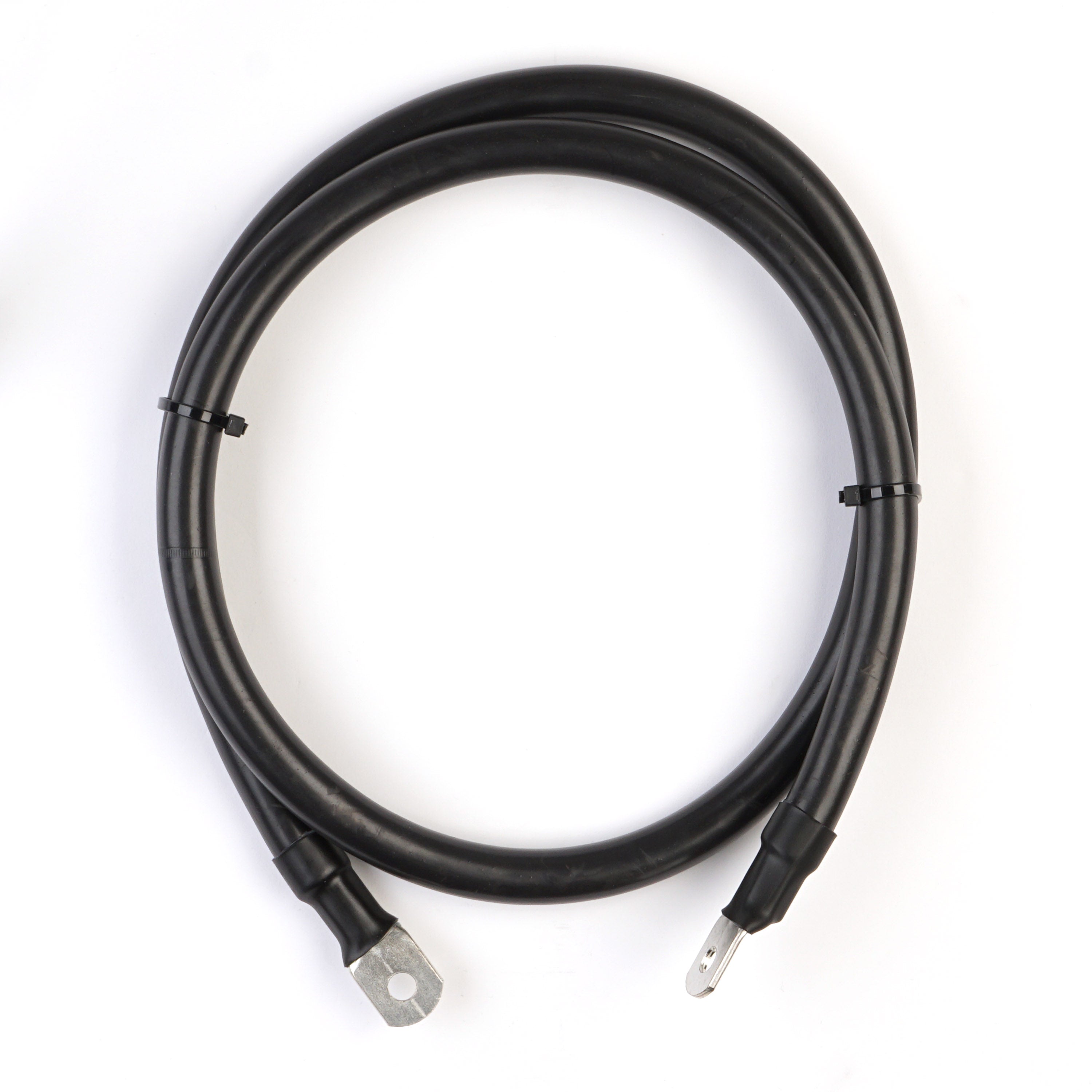

- WATTSTUNDE® Battery Cable 70mm² M8/M8 130cm Black

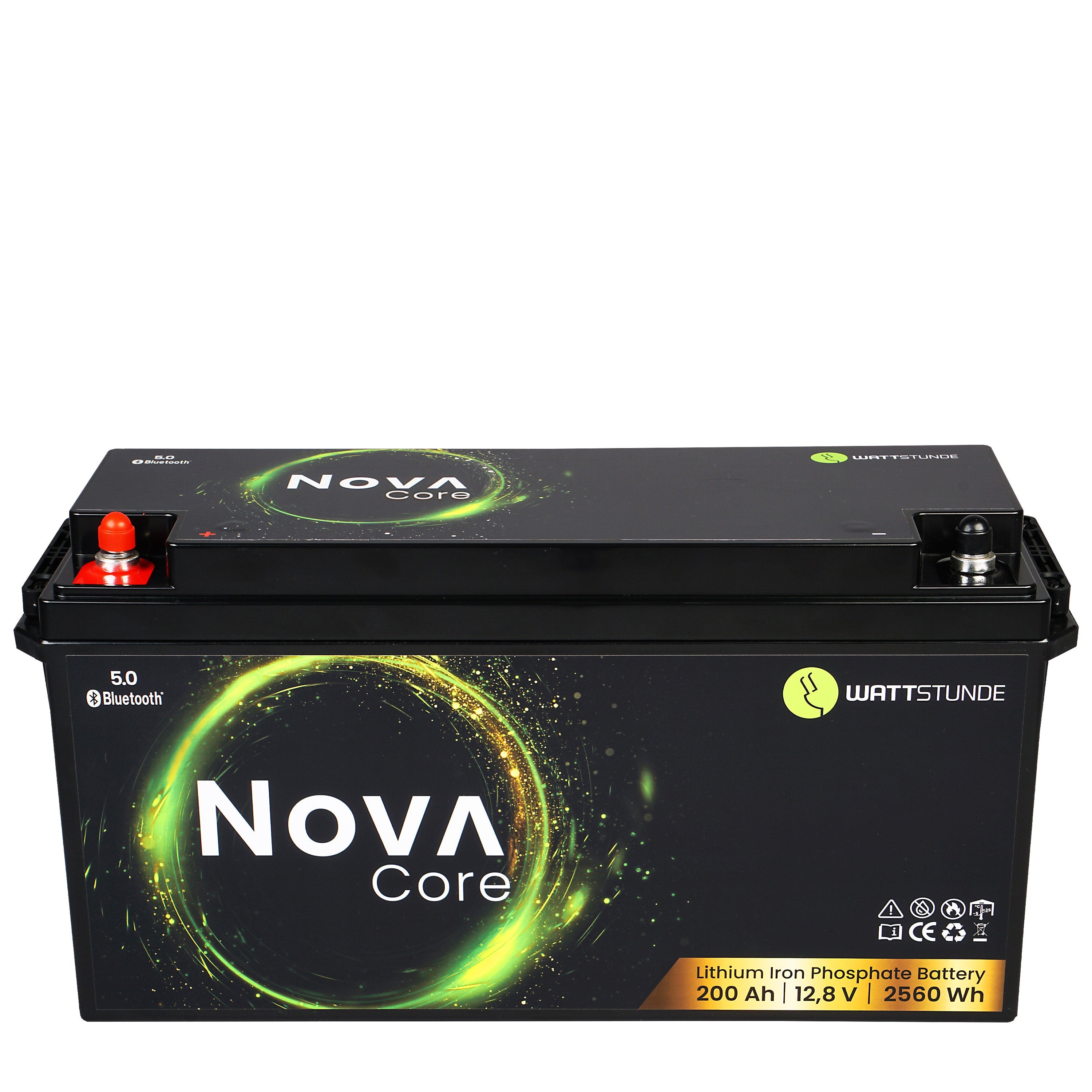

- WATTSTUNDE® NOVA Core 200Ah battery LiFePO4

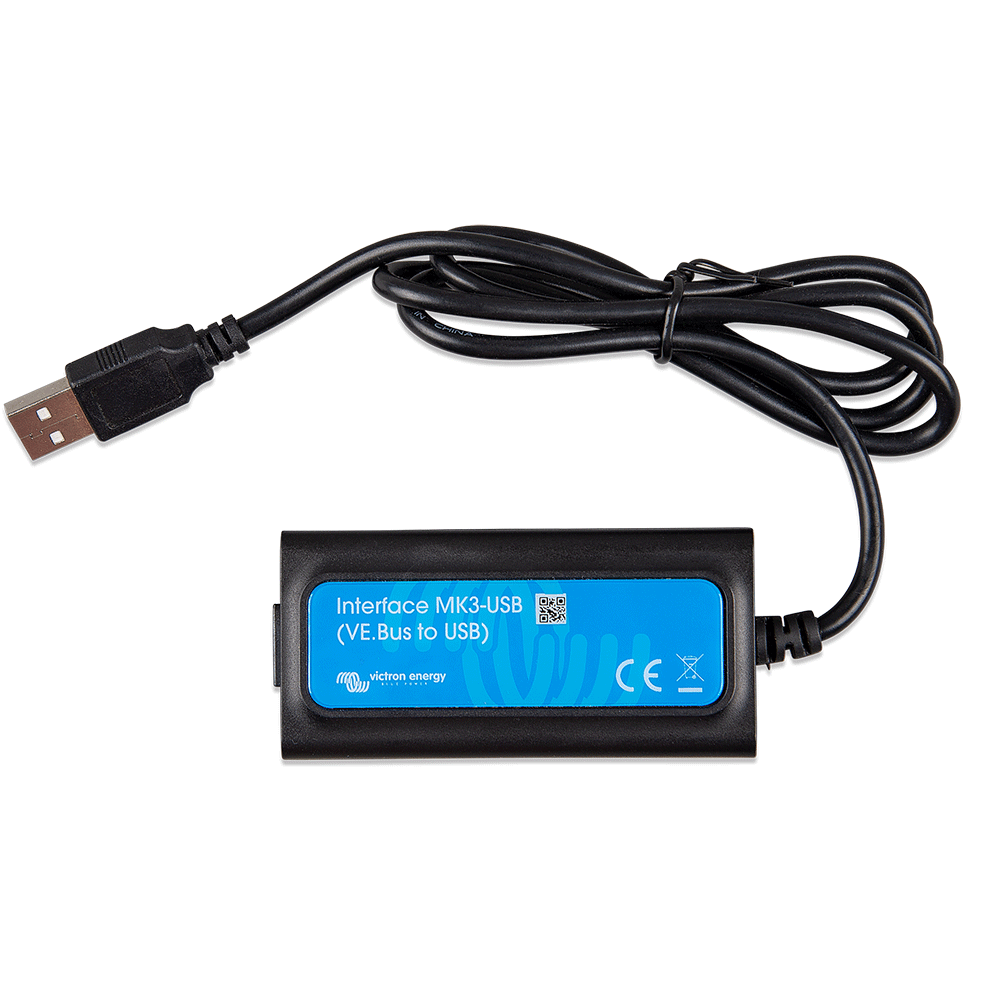

- Victron MK3-USB PC interface (VE.Bus to USB)

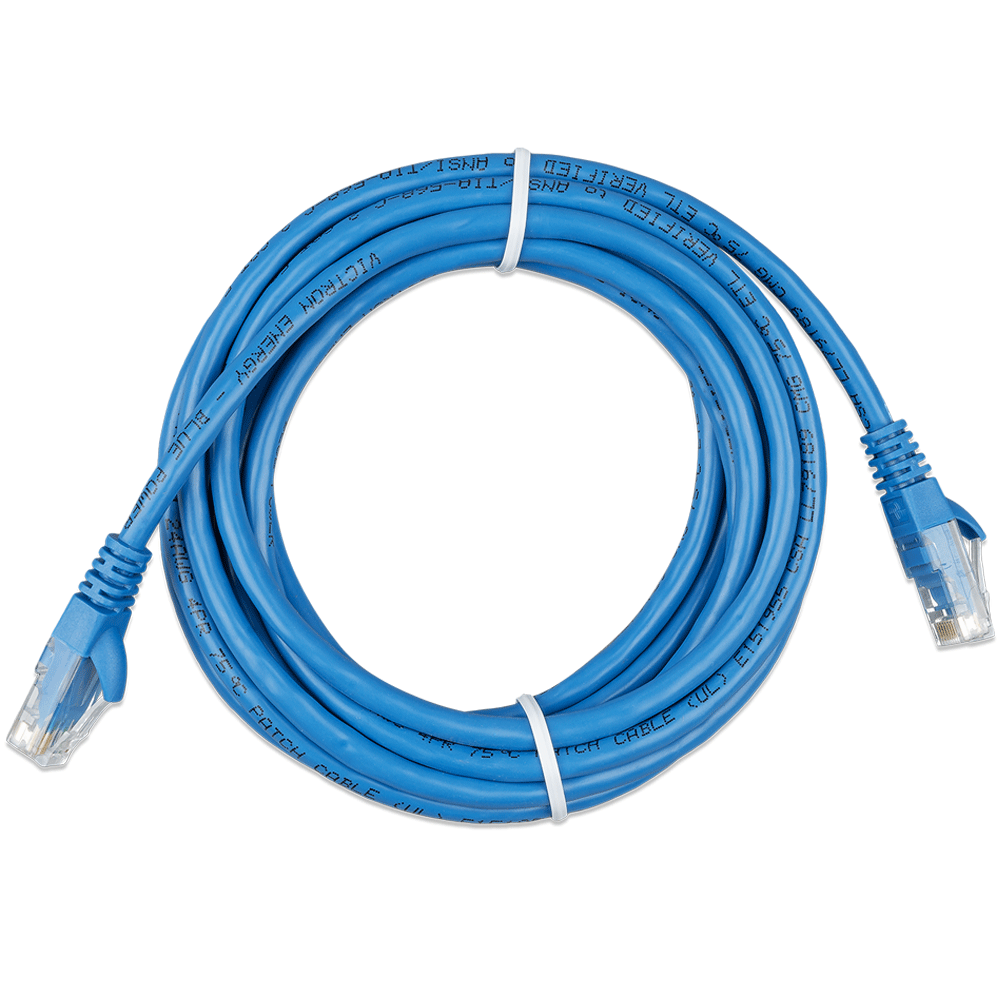

- Victron RJ45 UTP cable for VE.Bus, VE.CAN, VE.Net and VE9bitRS485 ports, 0.9 m

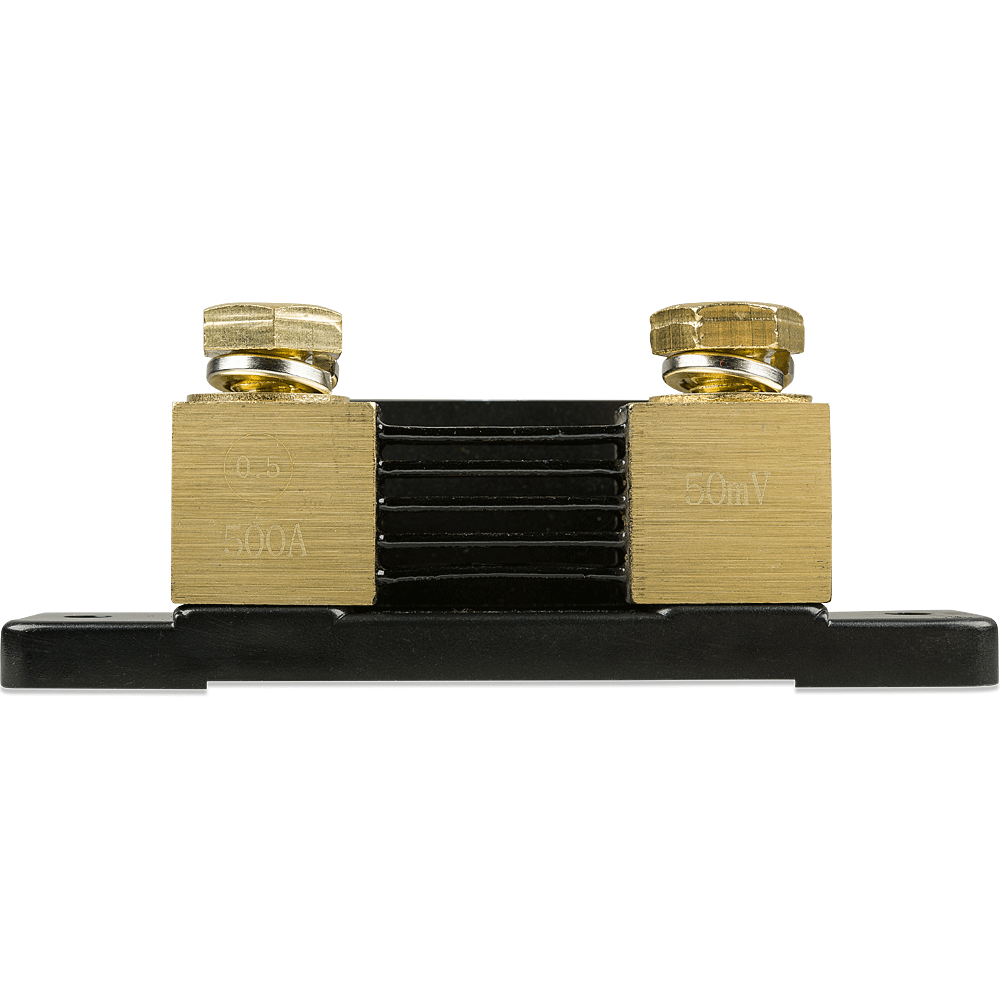

- Victron Smart Shunt 500A battery monitor with Bluetooth

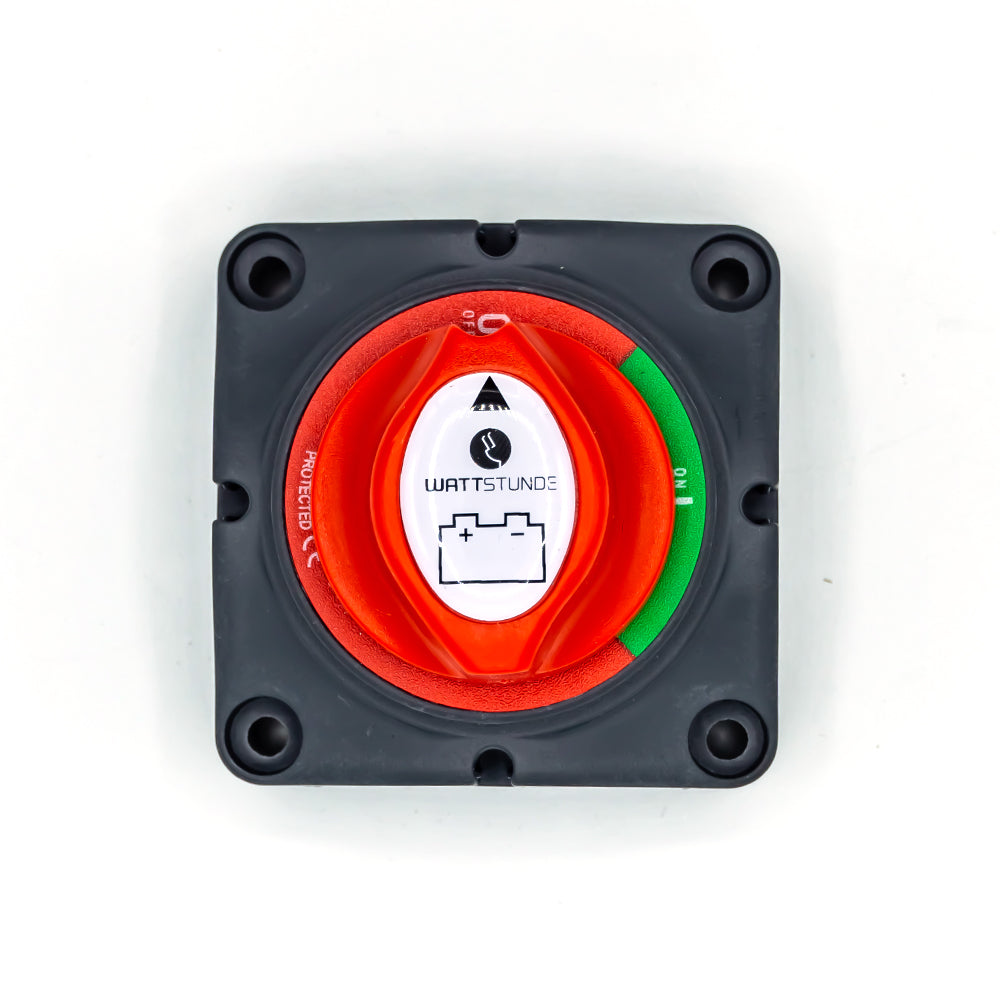

- WATTSTUNDE® Battery Disconnect Switch 1 Battery with Housing

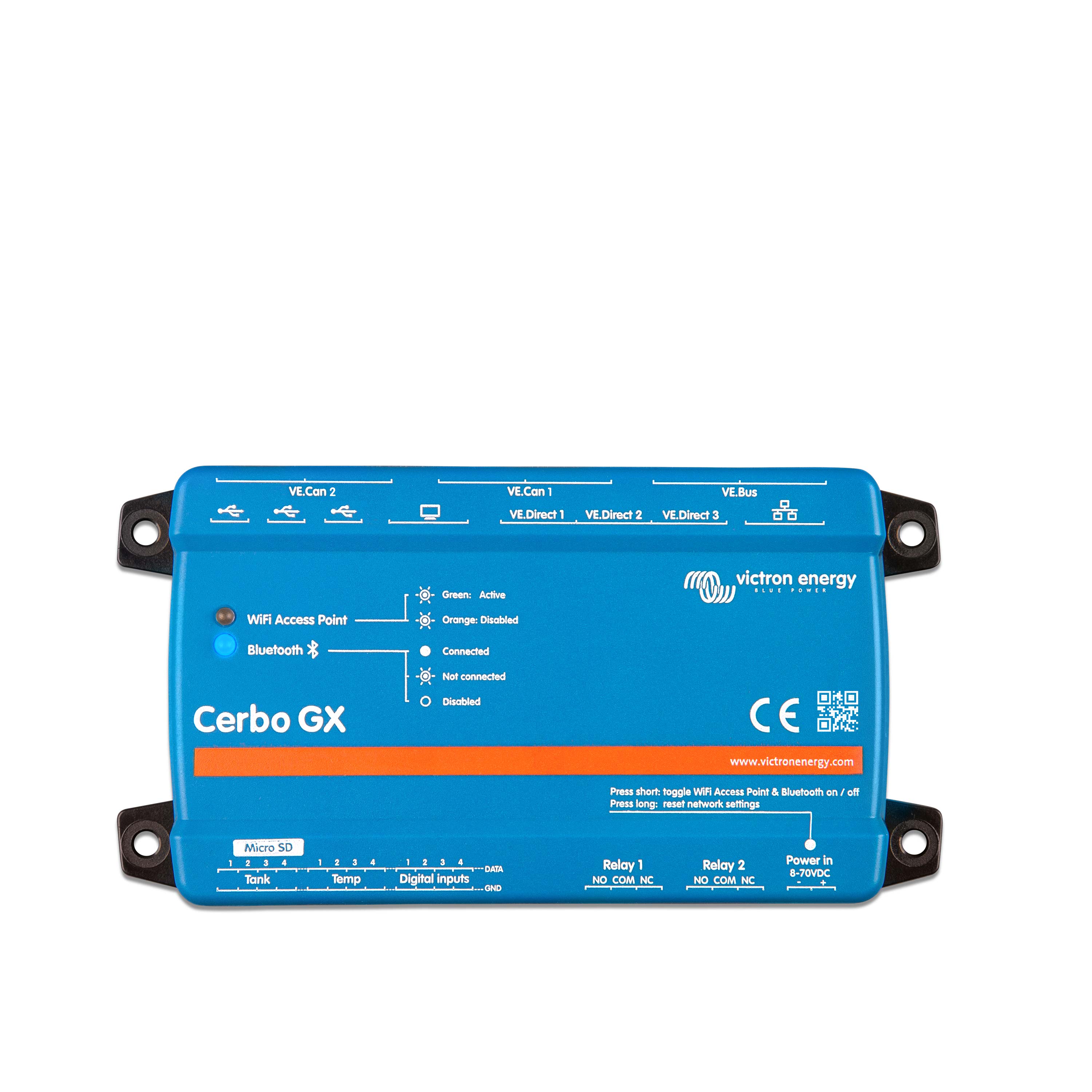

- Victron Cerbo GX MK2

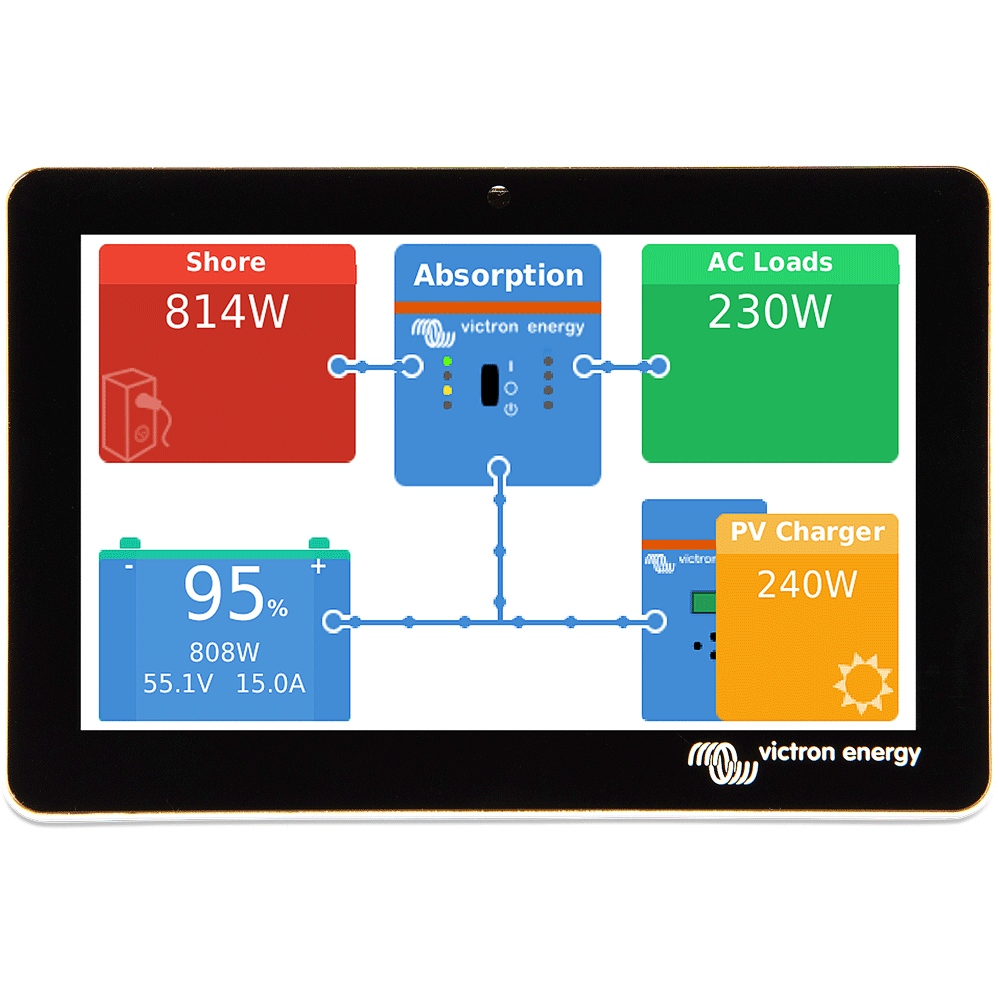

- Victron GX Touch 50 Touchscreen Display for Cerbo GX

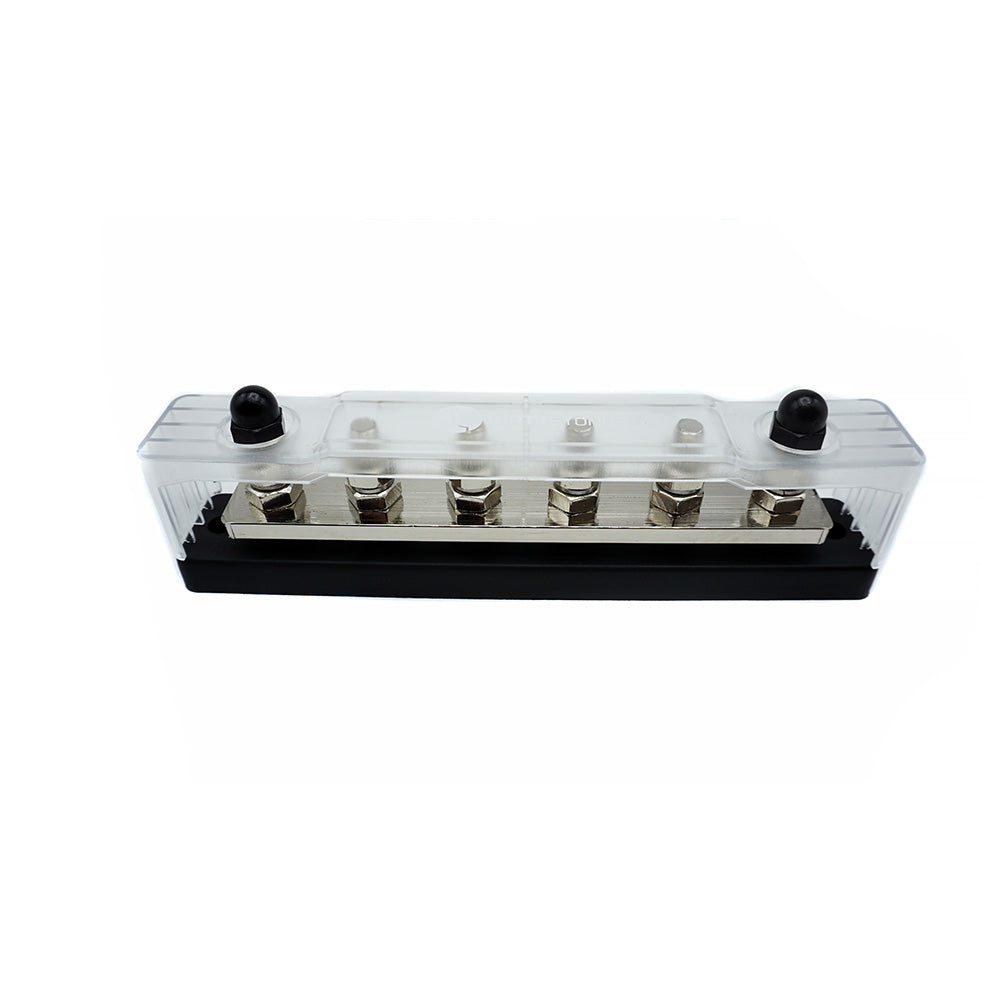

- WATTSTUNDE® Busbar 6xM8 450A / 70V black

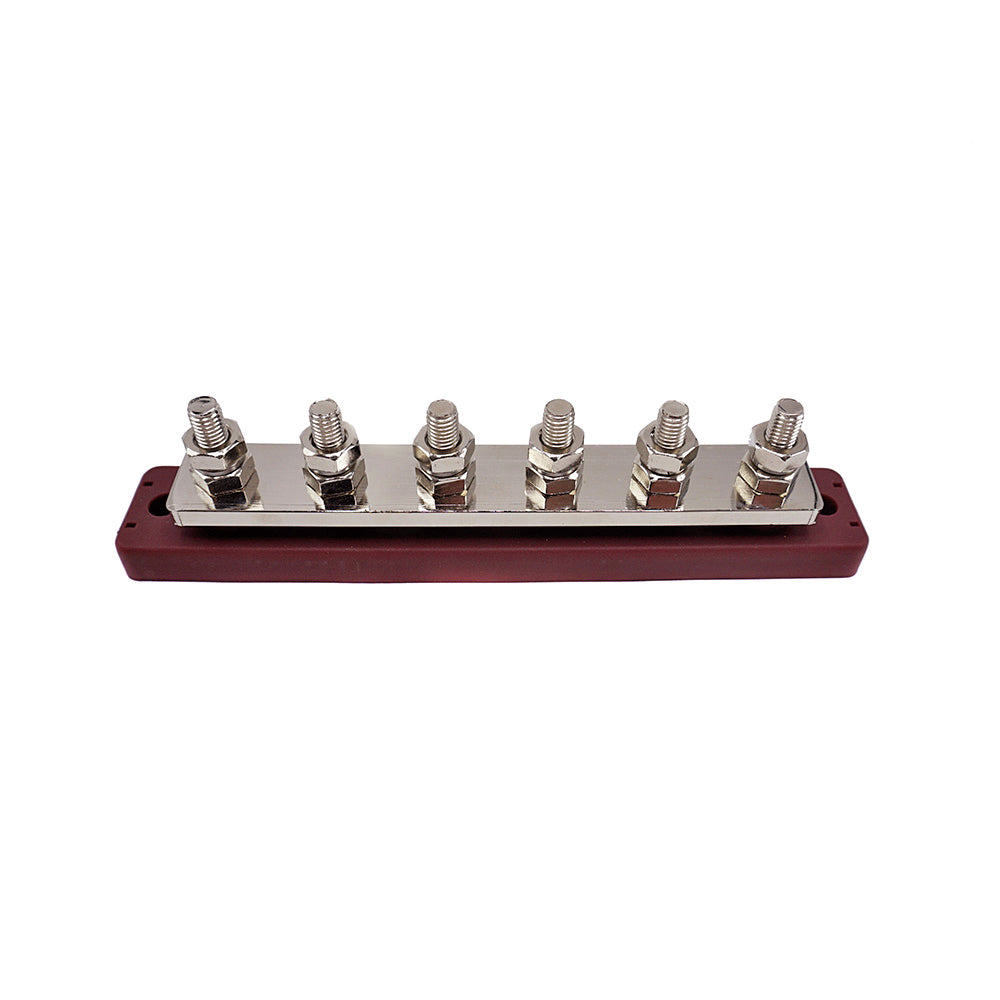

- WATTSTUNDE® Busbar 6xM8 450A / 70V red

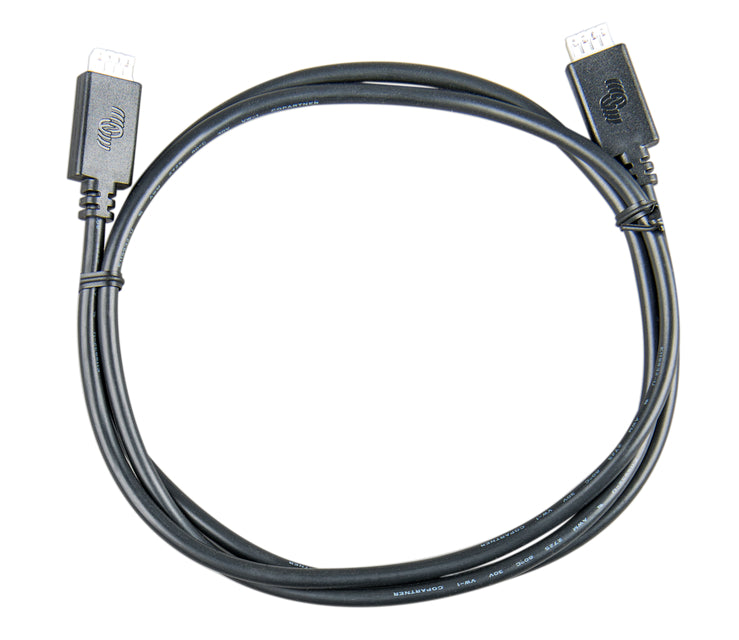

- Victron VE.Direct Cable 0.9 m
- WATTSTUNDE® battery cable 70mm² M8/M10 30cm red

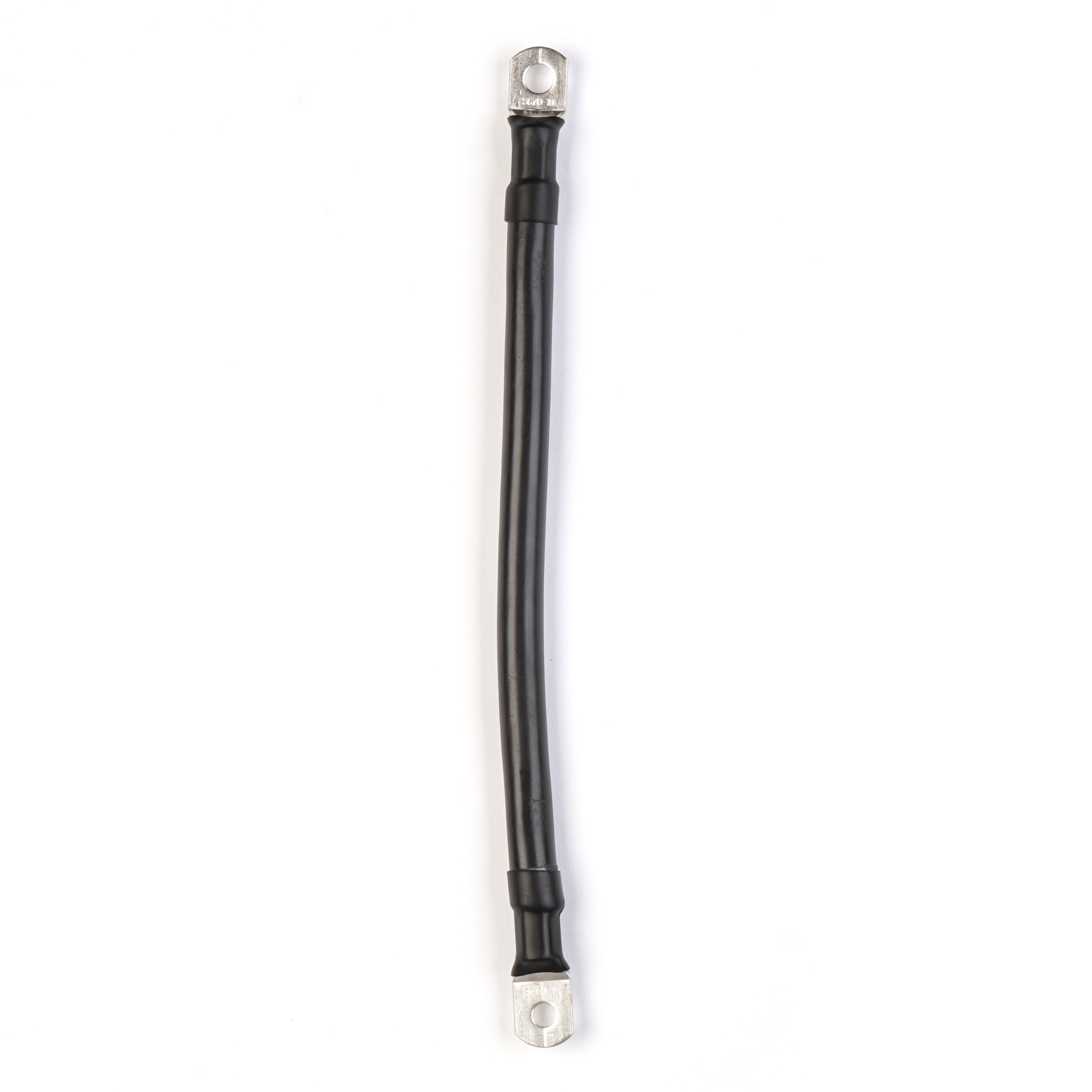

- WATTSTUNDE® Battery Cable 70mm² M8/M10 30cm Black
| Technical data | MultiPlus 12/3000 |
| Transfer switch | 16 A or 50 A |
| Max. DC input voltage range | 9.5-17 V |
| Continuous output power at 25 °C | 2400 W |
| Top performance | 6000 W |
| Maximum efficiency | 93% |
| Maximum battery charging current | 120 A |
| Operating temperature | -40°C to +65°C |
| Weight | approx. 18 kg |
| Mass | 362 mm x 258 mm x 218 mm |
| Technical data | NOVA Core 200 Ah |
| Nominal voltage | 12.8 V |
| Nominal capacity | 200 Ah / 2560 Wh |
| Constant discharge current | 250 A |
| Temperature range (discharge) | -30°C to +60°C |
| Temperature range (charge) | -30°C to +45°C |
| Temperature range (storage) | -5 °C to +35 °C |
| wiring | Parallel / Series (Max. 4 batteries) |
| Weight | 21.9 kg (± 0.1 kg) |
| Mass | 486 x 170 x 240 mm (± 2 mm) |
