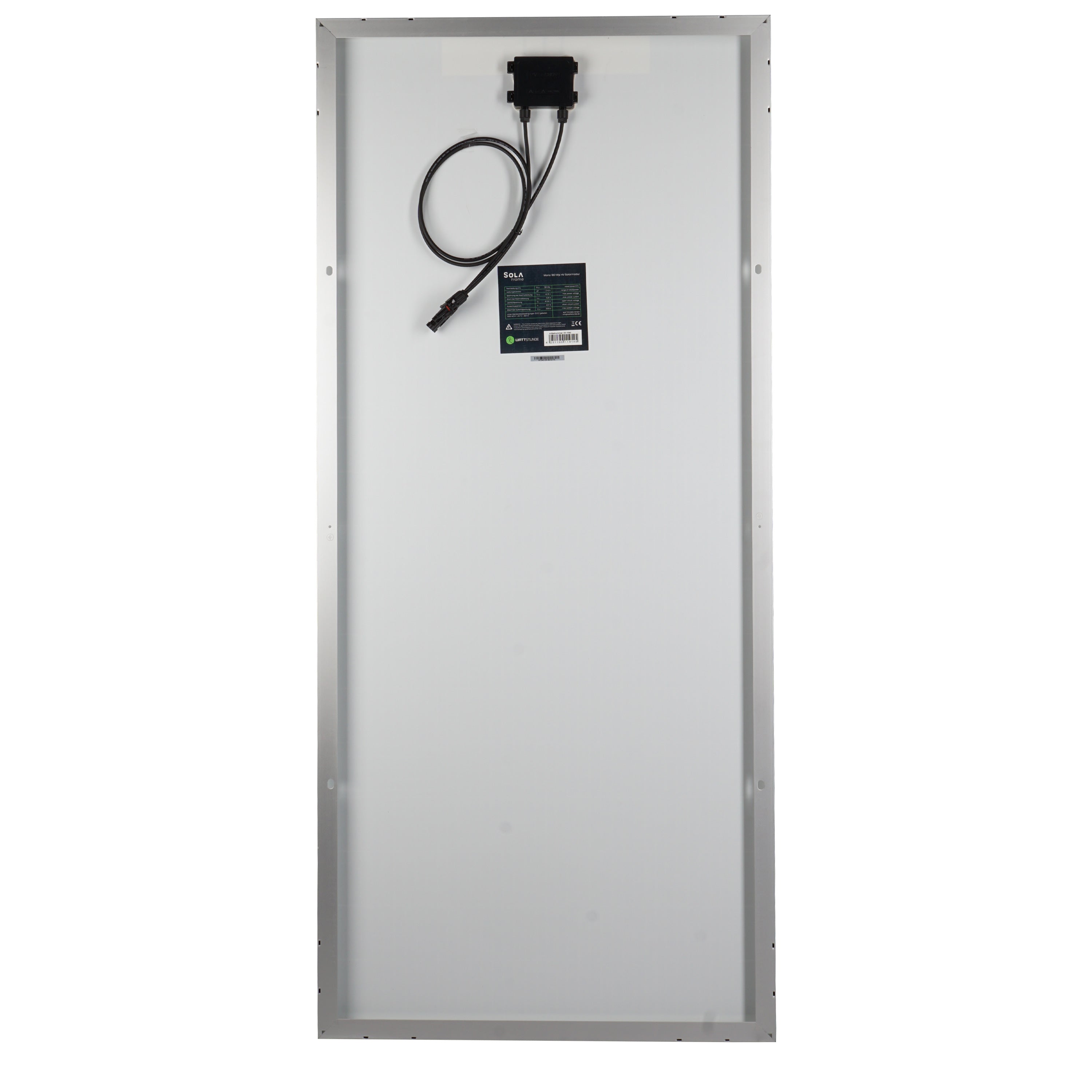

WATTSTUNDE® SOLA Frame Mono 180 Wp HV

  • Leistung: 180 Watt
  • Maße: 1495 x 668 x 35 mm
  • Monokristallin Technologie
  • Gewicht: 10,6 kg

Größe:
180 W HV
Sale price169,00 €

Tax included. Shipping calculated at checkout

SKU: 101-11180

In stock
Versandbereit in: 1 - 3 Werktagen

Product description

Reliability and energy independence with the WATTSTUNDE® SOLA Frame Mono 180 Wp HV solar module

Experience top quality and reliability with the WATTSTUNDE® SOLA Frame Mono 180 Wp HV solar module, perfect for off-grid solar systems in RVs, gardens, or on boats. This high-quality monocrystalline solar module guarantees a self-sufficient energy supply thanks to top-tested solar panels that offer optimal performance.

Product features in detail:

  • Monocrystalline solar module with 180 Wp and a high cell efficiency of 20%.
  • Equipped with MC4-compatible connectors for easy connection of multiple modules.
  • Provides continuous power even in partial shading or low light conditions thanks to integrated bypass diodes.
  • The IP68 protection class of the junction box ensures resistance to all weather conditions.
  • The module comes pre-wired with a 90 cm solar cable and is ready for immediate use.
  • The robust construction with a hollow chamber profile frame offers maximum stability even under extreme conditions.
  • Highly transparent, heat-resistant anti-reflective glass allows for increased light transmission and thus improved energy yields, especially in diffuse light intensity.
  • A 10-year manufacturer's warranty and a 25-year performance guarantee on 80% of the capacity demonstrate the trustworthiness and long-term quality.

Simple installation and quick commissioning make these modules incredibly easy to use. They are ideal for anyone seeking a reliable and efficient solution for their self-sufficient energy supply. Their high voltage minimizes cable losses and maximizes energy yield, even during periods of low sunlight.


Technical data SOLA Frame Mono 180 Wp HV
Rated power 180 W
Maximum daily yield (summer) 720 Wh/d
Voltage (Umpp) 41,766 V
Electricity (Impp) 4.32 A
Open circuit voltage (Voc) 47.52 V
Short-circuit current (Isc) 4.57 A
Cell efficiency ≤ 20%
Cell material Monocrystalline
Bypass diode Integrated
Weight 10.6 kg
Dimensions 1495 x 668 x 35 mm
