180W SOLA Frame Mono Motorhome Complete Set White

WATTSTUNDE

180W SOLA Frame Mono Motorhome Complete Set White

WATTSTUNDE SOLA Frame Mono with MC4-compatible connectors
Victron SmartSolar MPPT with Bluetooth
WATTSTUNDE solar panel mount and roof penetration
Dekalin adhesive kit in white
Connection cable and MC4-compatible connector set
Operating instructions for all devices in German

Modulserie

Neue Modulreihe

Farbe der Halterung

schwarz

weiss

Leistung:

<div class="lv-option-dropdown-options-tpl" style="display:none;">
    <div
      class="lv-option-dropdown-options"

style="--border-width:1px;--border-color:#babfc3;--bg-color:#ffffff;--text-color:#202223;--border-radius:2px;--badge-bg-color:#E83300;--badge-text-color:#fff;--badge-font-size:8px;--badge-font-weight:600;--badge-padding-y:4px;--badge-padding-x:6px;--badge-border-radius:2px;--badge-opacity:100;--dropdown-padding-y:14px;--dropdown-padding-x:14px;--bg-color-normal:#ffffff;--text-color-normal:#202223;--bg-color-active:#eee;--text-color-active:#202020;--price-position:row;--price-space:6px;--text-align:center;--price-font-size:12px;--price-color:#202020;--price-font-weight:200;--swatch-size:24px;--swatch-border-radius:100px;--space-after-swatch:6px;"
    ><ul class="lv-option-dropdown-option-set">

</ul>
    </div>
  </div>

428,27 €

440,49 €

Save 3%

Tax included. Shipping calculated at checkout

SKU: WS22-180100-02

In stock

Versandbereit in: 1 - 3 Werktagen

Quantity:

Your legal guarantee rights

Minimum two-year legal guarantee protection for goods sold in the European Union. Consumers can claim their rights under the legal guarantee of conformity, for example if goods: do not match the description; do not function as intended. Sellers are liable for any lack of conformity which existed when the goods were delivered, and which becomes apparent within the legal guarantee period. Sellers in such a situation are required to offer: free repair or free replacement; in some cases, a price reduction or full reimbursement. Some countries have a longer legal guarantee period. For second-hand goods, a shorter period may apply, but not less than one year. For more information on your rights in a specific country, scan the QR code below or ask the seller.

More information (Your Europe)

Download the official document (PDF)

180W SOLA Frame Mono Motorhome Complete Set White

428,27 €

440,49 €

Product description

Motorhome Solar Set MONO 180W

The MONO motorhome solar set from WATTSTUNDE makes it easy for you to start with an autonomous power supply. Although modern motorhomes are equipped by the manufacturers for limited autonomous use, an upgrade is often necessary for longer independent trips. This complete set offers you everything you need to immediately begin installation on your motorhome roof and ensures a reliable and safe power supply off the public grid with its high-quality components.

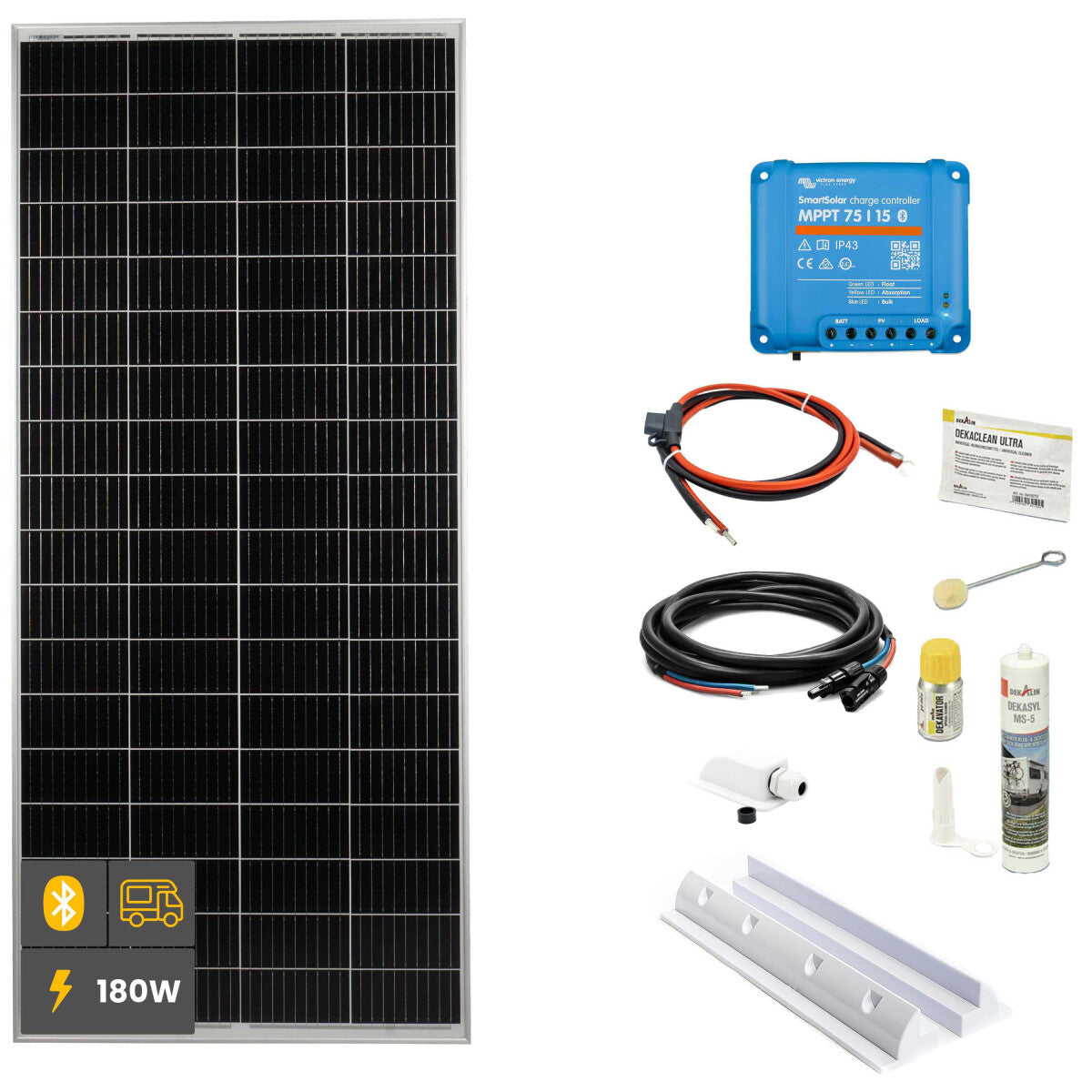

Components of the set

The MONO 180W motorhome solar set includes high-quality and reliable components that are specially optimized for use on the road:

WATTSTUNDE SOLA Frame Mono 180Wp HV with MC4-compatible connectors
Victron SmartSolar MPPT 75/15 Bluetooth integrated

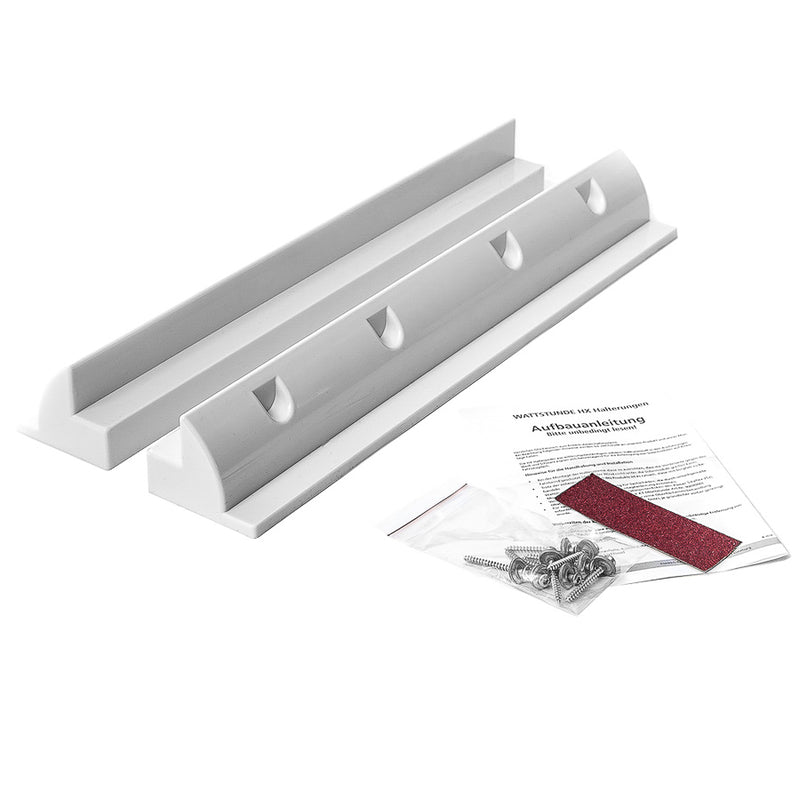

WATTSTUNDE solar panel holder HXH68/W white

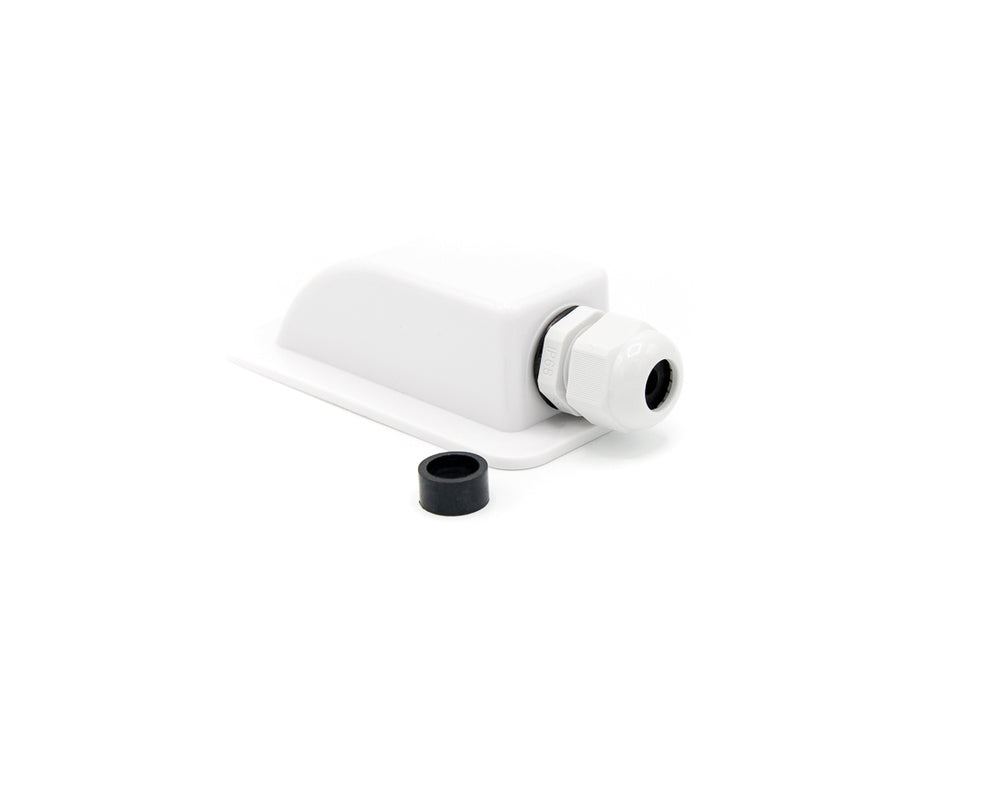

WATTSTUNDE roof penetration DX1/W white

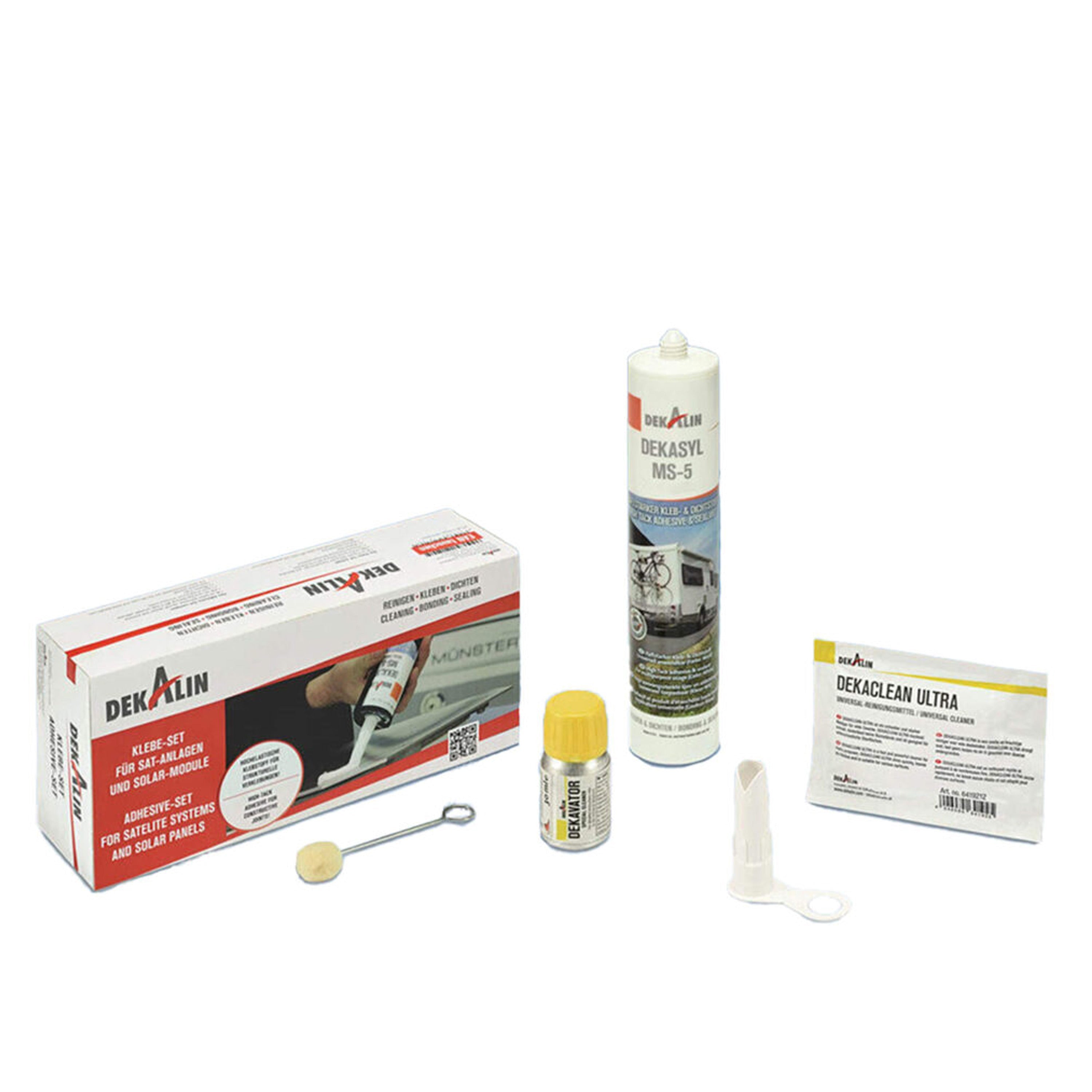

Dekalin adhesive set in white

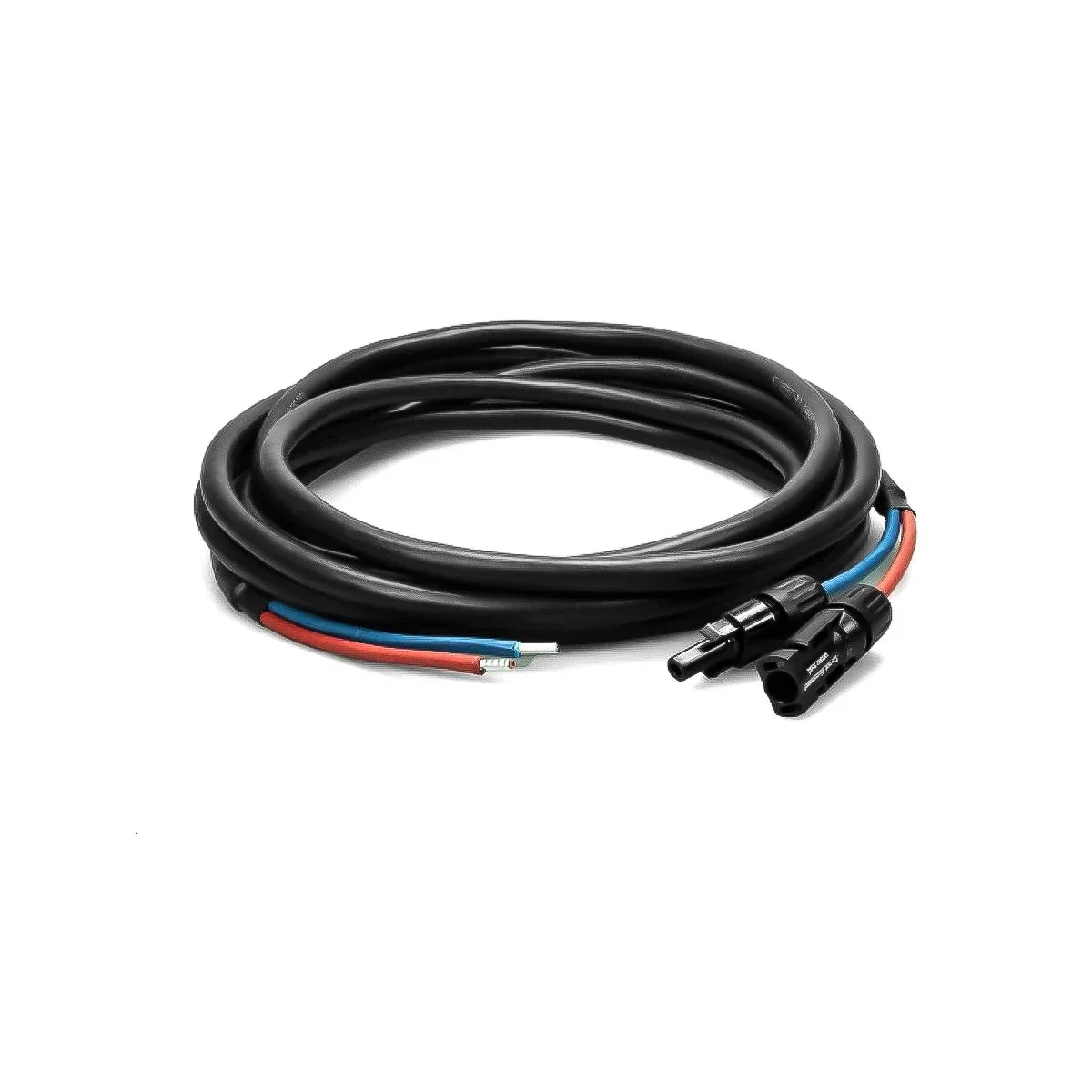

WATTSTUNDE DAC 4.7 connection cable solar panel to charge controller 7 meters 2x4mm²
MC4-compatible connector set (socket + plug) pre-assembled

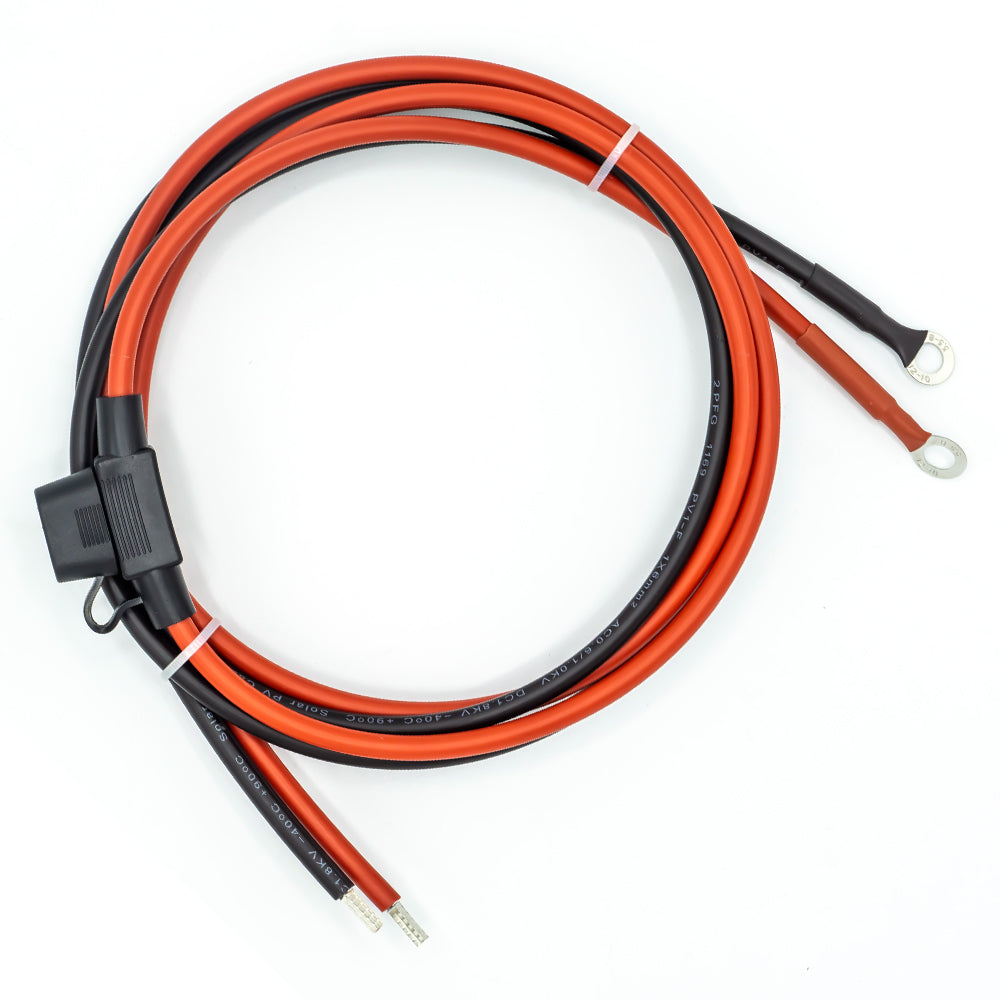

WATTSTUNDE 4mm² battery connection cable BAKA20/BAKA04 with 20A fuse
Operating instructions for all devices in German

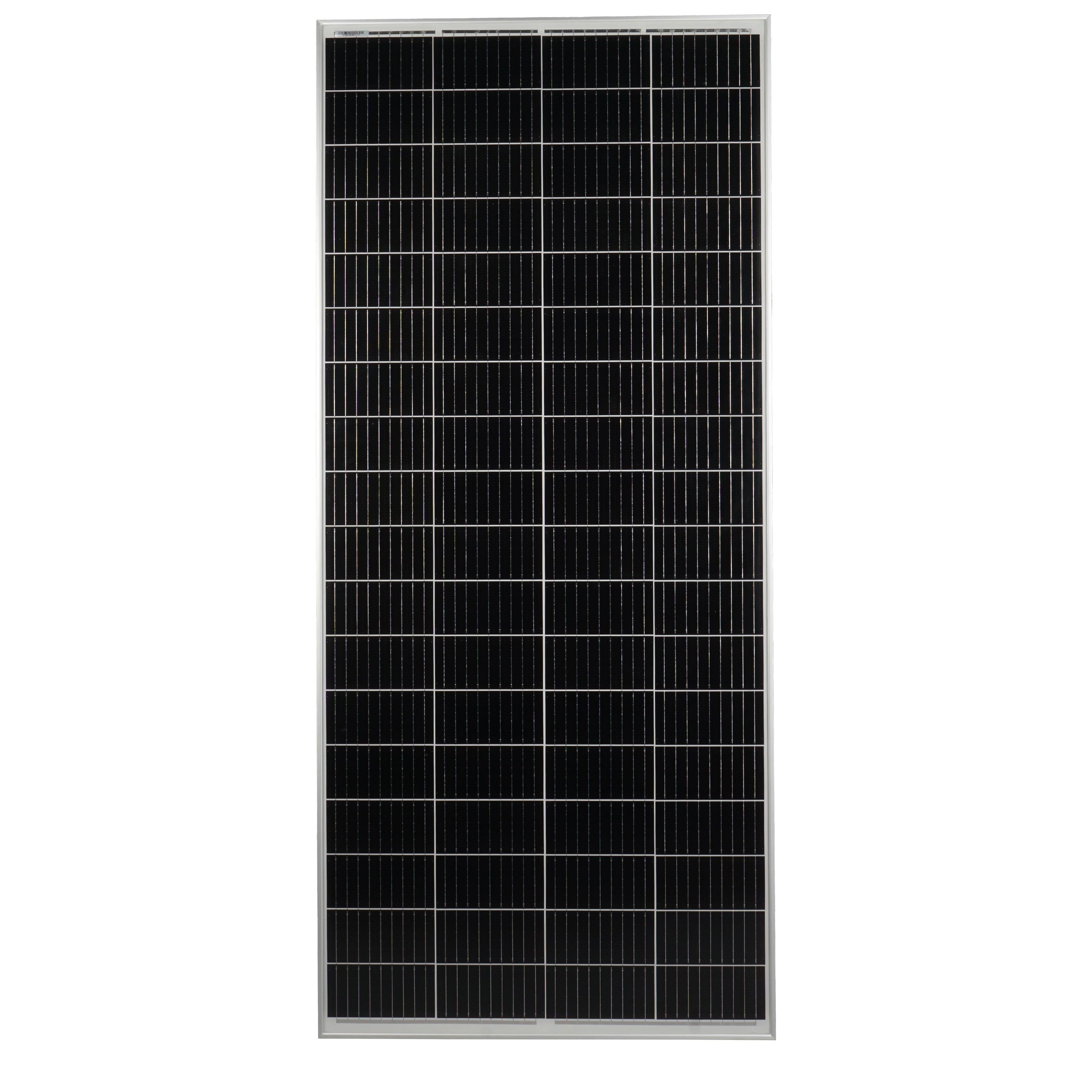

Details on the SOLA Frame Mono 180Wp HV

The solar panels of the Mono series are characterized by the following features:

Highly transparent, heat-resistant anti-reflective glass
Weatherproof junction box (IP68)
Easy connection of multiple panels thanks to MC4 compatibility
Frame made of sturdy hollow chamber profile offers maximum stability even in extreme weather conditions
Higher voltage reduces cable losses and improves yields in diffuse light intensity
Integrated bypass diodes
Manufactured according to an ISO 9001 certified process

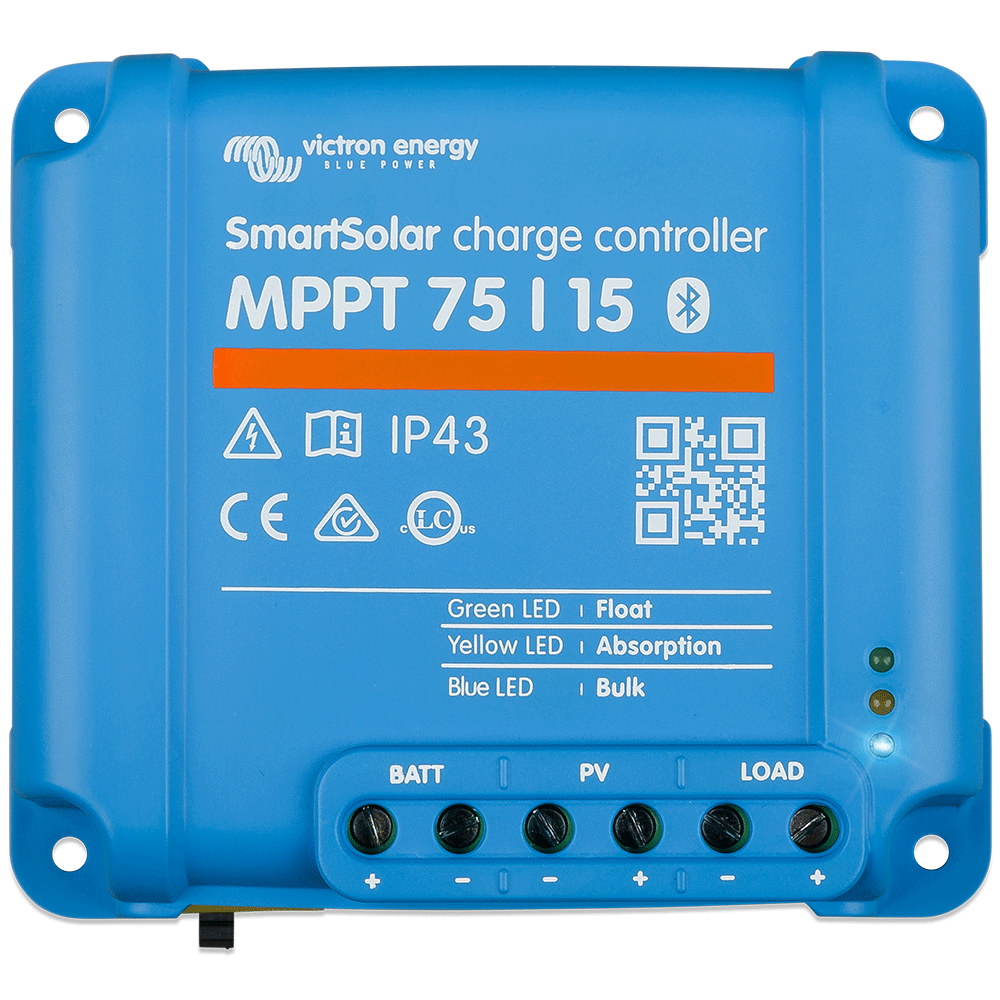

Details on the Victron SmartSolar MPPT 75/15 charge controller

The MPPT charge controller significantly improves energy yield:

Up to 30% more energy yield compared to PWM charge controllers and up to 10% more than slower MPPT controllers
Real-time data display and wireless control via a Bluetooth-enabled smartphone
Already integrated Bluetooth interface, so no additional accessories are required
Compatible with Apple and Android devices for easy setup, monitoring, and updates

Technical Data	SOLA Frame Mono 180 Wp HV
Rated power	180 W
Max. daily yield (summer)	720 Wh/d
Voltage (Umpp)	41.76 V
Current (Impp)	4.32 A
Open-circuit voltage (Voc)	47.52 V
Short-circuit current (Isc)	4.57 A
Cell efficiency	>21.8 %
Cell material	Mono PERC
Bypass diode	2
Weight	10.3 kg
Dimensions	1495 x 668 x 30 mm

Technical Data	SmartSolar MPPT 75 / 15
Battery voltage	12 V / 24 V
Rated charging current	15 A
Rated PV power 12 V	220 W
Rated PV power 24 V	440 W
Max. PV open-circuit voltage	75 V
Max. PV short-circuit current	15 A
Efficiency	98 %
Constant charging voltage	14.4 V / 28.8 V
Float charging voltage	13.8 V / 27.6 V
Operating temperature	- 30 °C - + 60 °C
Weight	0.5 kg
Dimensions	100 x 113 x 40 mm
