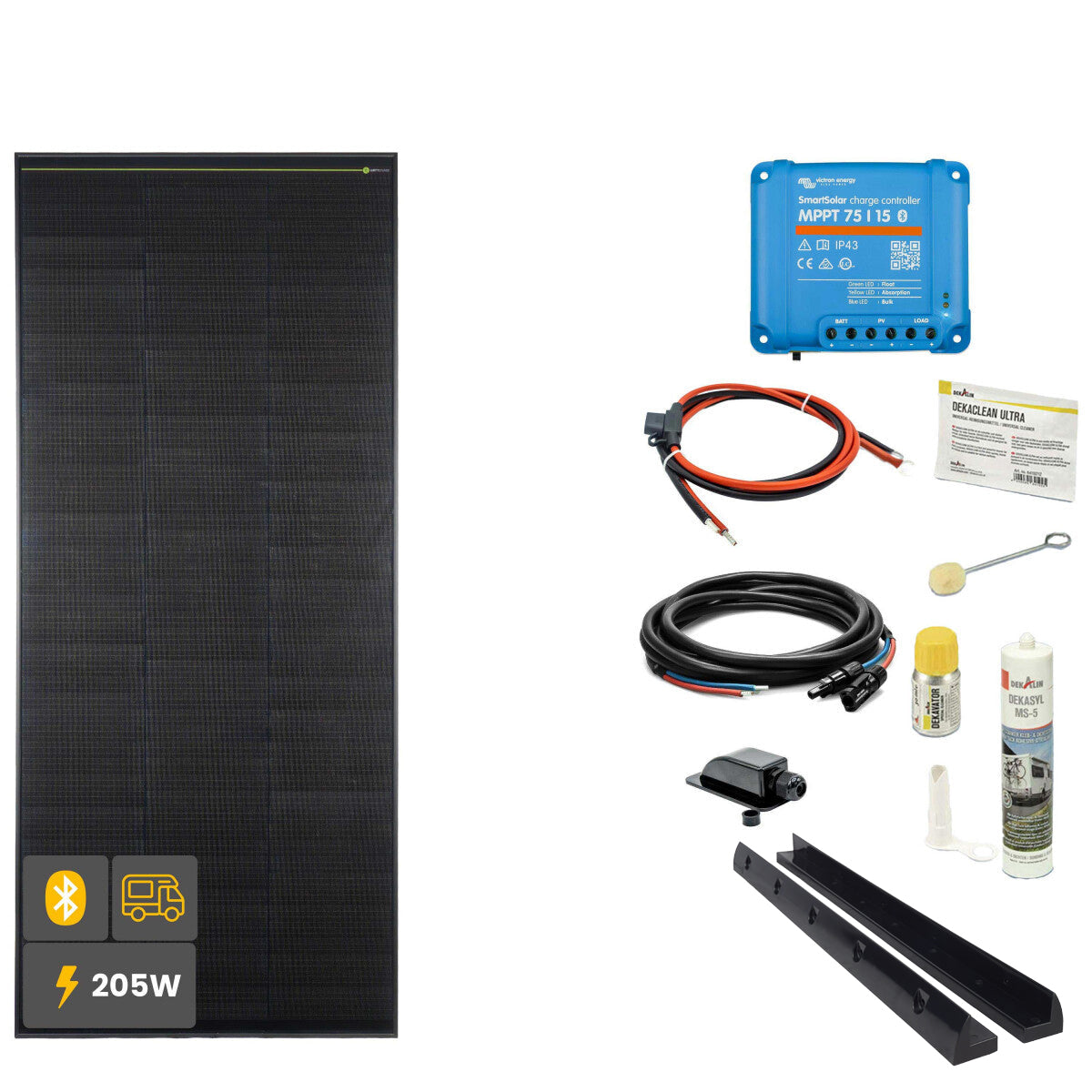

205 W SOLA Frame Black Motorhome Complete Set Black
- WATTSTUNDE SOLA Frame BLACK mit Kabel und MC4-kompatiblen Steckern
- Victron SmartSolar MPPT mit Bluetooth
- WATTSTUNDE Solarmodul Halterung und Dachdurchführung
- Dekalin Klebe-Set in schwarz
- Anschlusskabel und MC4-kompatibles Stecker Set
- Bedienungsanleitung aller Geräte auf Deutsch
Tax included. Shipping calculated at checkout
-
1× WATTSTUNDE® SOLA Frame Black 205Wp
(Inkl. 19 % MwSt.)
-
1× Victron SmartSolar MPPT 75/15 Bluetooth integriert
(Inkl. 19 % MwSt.)
-
1× WATTSTUNDE® Dachdurchführung DX1/S ASA schwarz
(Inkl. 19 % MwSt.)
-
1× WATTSTUNDE® Solarmodul Halterung HXH68/S ASA Kunststoff schwarz
(Inkl. 19 % MwSt.)
-
1× WATTSTUNDE® Anschlusskabel (2x)4mm² Typ-MC4/Aderendhülse 7m schwarz
(Inkl. 19 % MwSt.)
-
1× WATTSTUNDE® Sicherungskabel (mit Sicherung 20A) 2x4mm² M8/Aderendhülse 1,5m rot/schwarz
(Inkl. 19 % MwSt.)
-
1× Dekalin Klebe-Set schwarz
(Inkl. 19 % MwSt.)
Product description
Motorhome solar set BLACK 205W
The BLACK solar kits for motorhomes and caravans from WATTSTUNDE are specifically designed for motorhomes, campers, and caravans, offering outstanding performance even under demanding conditions. Featuring advanced shingled solar cells from the SOLA Frame BLACK series, these systems maximize energy yields in a small footprint and even in poor lighting conditions. Thanks to strict quality guidelines and state-of-the-art technology, these systems are a reliable energy source for mobile applications.
Components of the set
The BLACK 205W motorhome solar kit includes high-quality and reliable components that are specifically optimized for use on the go:
- WATTSTUNDE SOLA Frame BLACK 205Wp with cable and MC4-compatible connectors
- Victron SmartSolar MPPT 75/15 Bluetooth integrated
- WATTSTUNDE solar panel mounting bracket HXH68/S ASA plastic black incl. stainless steel screws
- WATTSTUNDE roof feedthrough DX1/S black
- Dekalin adhesive set in black
- WATTSTUNDE DAC 4.7 Connection cable solar module to charge controller 7 meters 2x4mm²
- MC4-compatible connector set (socket + plug) pre-assembled
- WATTSTUNDE 4mm² battery connection cable BAKA20/BAKA04 with 20A fuse
- Operating instructions for all devices in German
Details on the SOLA Frame BLACK 205Wp
The BLACK series solar modules utilize state-of-the-art shingled cell technology with an efficiency exceeding 22%. The special arrangement of the cell strips ensures minimal hotspot formation and maximum energy yield. Further features include:
- Anti-reflective glass with lotus effect
- Weatherproof junction box (IP67) and MC4 compatibility
- Saltwater-resistant aluminum frame
- 25-year performance guarantee and 10-year manufacturer's warranty
- Production according to ISO 9001 certified procedures
Details about the Victron SmartSolar MPPT 75/15 charge controller
The MPPT charge controller optimizes energy efficiency by up to 30% compared to PWM charge controllers and is even more efficient than slower MPPT controllers. Key features include:
- Real-time data display and wireless control via Bluetooth
- Integrated Bluetooth interface for easy setup and monitoring
- Compatible with Apple and Android devices
| Technical data | SOLA Frame Black 205 Wp |
| Rated power | 205 W |
| Maximum daily yield (summer) | 920 Wh/d |
| Voltage (Umpp) | 25.20 V |
| Electricity (Impp) | 8.14 A |
| Open circuit voltage (Voc) | 28.80 V |
| Short-circuit current (Isc) | 8.63 A |
| Cell efficiency | ≥ 22% |
| Cell material | Mono-shingle cells |
| Bypass diode | Integrated |
| Weight | 10.30 kg |
| Dimensions | 1546 x 658 x 30 mm |
| Technical data | SmartSolar MPPT 75 / 15 |
| Battery voltage | 12V / 24V |
| Nominal charging current | 15 A |
| Nominal PV power 12 V | 220 W |
| Nominal PV power 24 V | 440 W |
| Max. PV - Open-circuit voltage | 75 V |
| Max. PV short-circuit current | 15 A |
| efficiency | 98% |
| Constant charging voltage | 14.4 V / 28.8 V |
| Maintenance charging voltage | 13.8 V / 27.6 V |
| Operating temperature | -30 °C to +60 °C |
| Weight | 0.5 kg |
| Mass | 100 x 113 x 40 mm |
