330 W SOLA Frame Black Motorhome Complete Set Black
- WATTSTUNDE SOLA Frame BLACK mit Kabel und MC4-kompatiblen Steckern
- Victron SmartSolar MPPT mit Bluetooth
- WATTSTUNDE Solarmodul Halterung und Dachdurchführung
- Dekalin Klebe-Set in schwarz
- Anschlusskabel und MC4-kompatibles Stecker Set
- Bedienungsanleitung aller Geräte auf Deutsch
Tax included. Shipping calculated at checkout
-
2× Dekalin Klebe-Set schwarz
(Inkl. 19 % MwSt.)
-
1× Victron SmartSolar MPPT 100/30 Bluetooth integriert
(Inkl. 19 % MwSt.)
-
1× WATTSTUNDE® Anschlusskabel (2x)4mm² Typ-MC4/Aderendhülse 7m schwarz
(Inkl. 19 % MwSt.)
-
1× WATTSTUNDE® Dachdurchführung DX1/S ASA schwarz
(Inkl. 19 % MwSt.)
-
1× WATTSTUNDE MC4.2 Stecker Set
(Inkl. 19 % MwSt.)
-
2× WATTSTUNDE® MOUNT Solarmodul Halterung 53 schwarz
(Inkl. 19 % MwSt.)
-
1× WATTSTUNDE® Sicherungskabel (mit Sicherung 40A) 2x10mm² M8/Aderendhülse 1,5m rot/schwarz
(Inkl. 19 % MwSt.)
-
2× WATTSTUNDE® SOLA Frame Black 165Wp
(Inkl. 19 % MwSt.)
Product description
Motorhome solar set BLACK 330W
The BLACK solar kits for motorhomes and caravans from WATTSTUNDE are specifically designed for motorhomes, campers, and caravans, offering outstanding performance even under demanding conditions. Featuring advanced shingled solar cells from the SOLA Frame BLACK series, these systems maximize energy yields in a small footprint and even in poor lighting conditions. Thanks to strict quality guidelines and state-of-the-art technology, these systems are a reliable energy source for mobile applications.
Components of the set
The BLACK 330W motorhome solar kit includes high-quality and reliable components that are specifically optimized for use on the go:
- 2x WATTSTUNDE SOLA Frame BLACK 165Wp with cable and MC4-compatible connectors
- Victron SmartSolar MPPT 100/30 Bluetooth integrated

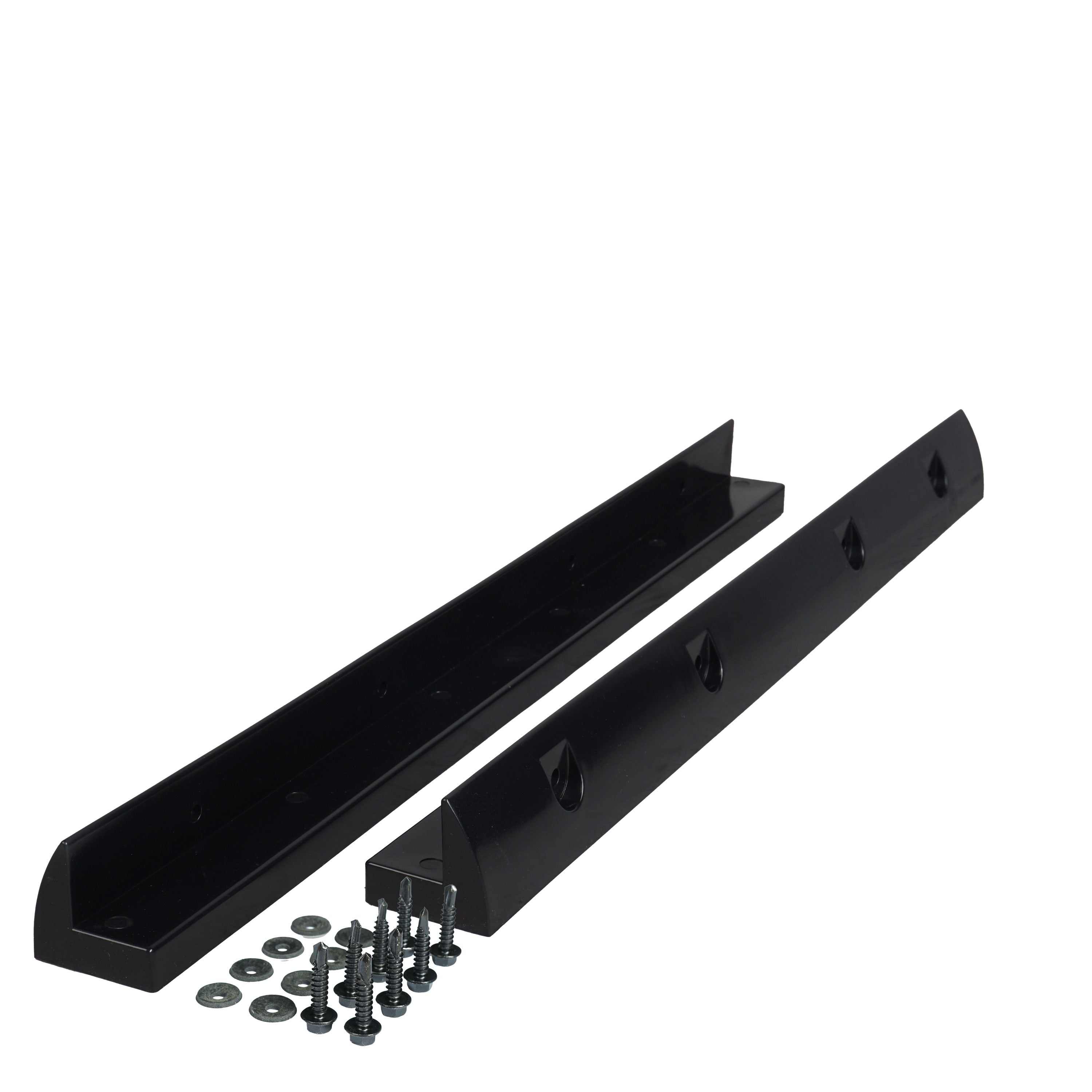

- 2x WATTSTUNDE solar panel mounting bracket MOUNT 53 ASA plastic black incl. stainless steel screws

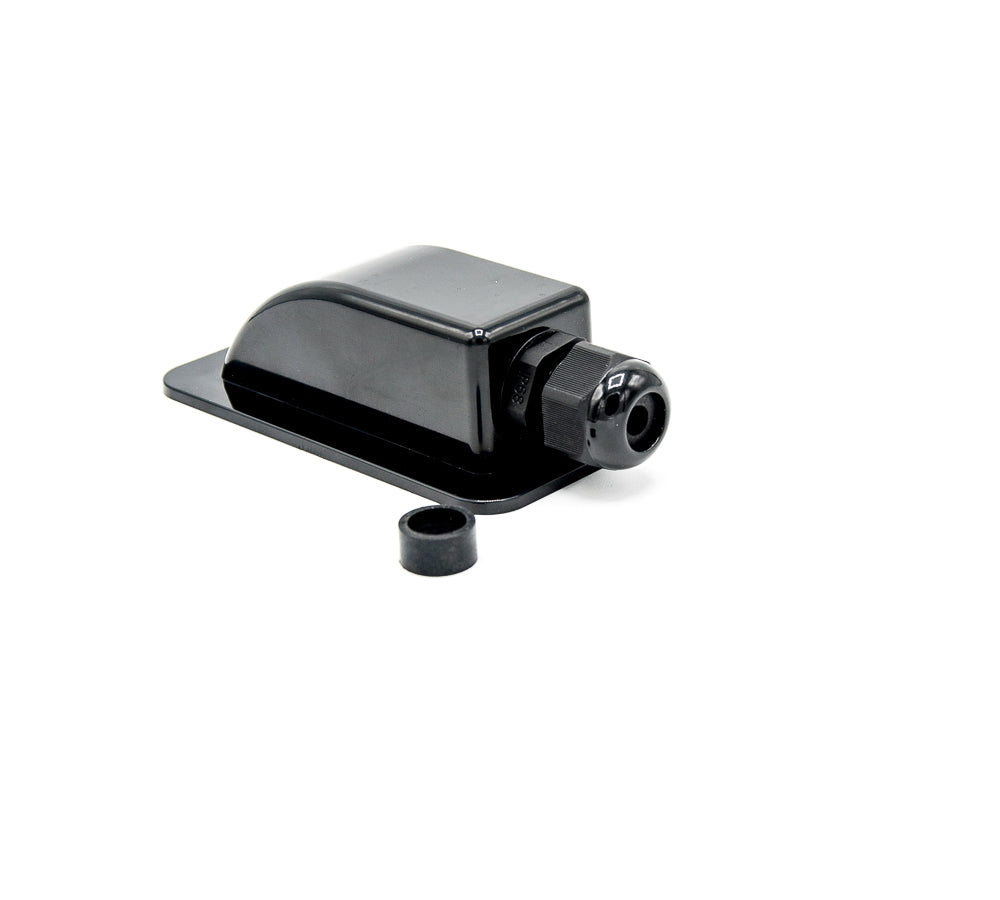

- WATTSTUNDE roof feedthrough DX1/S black

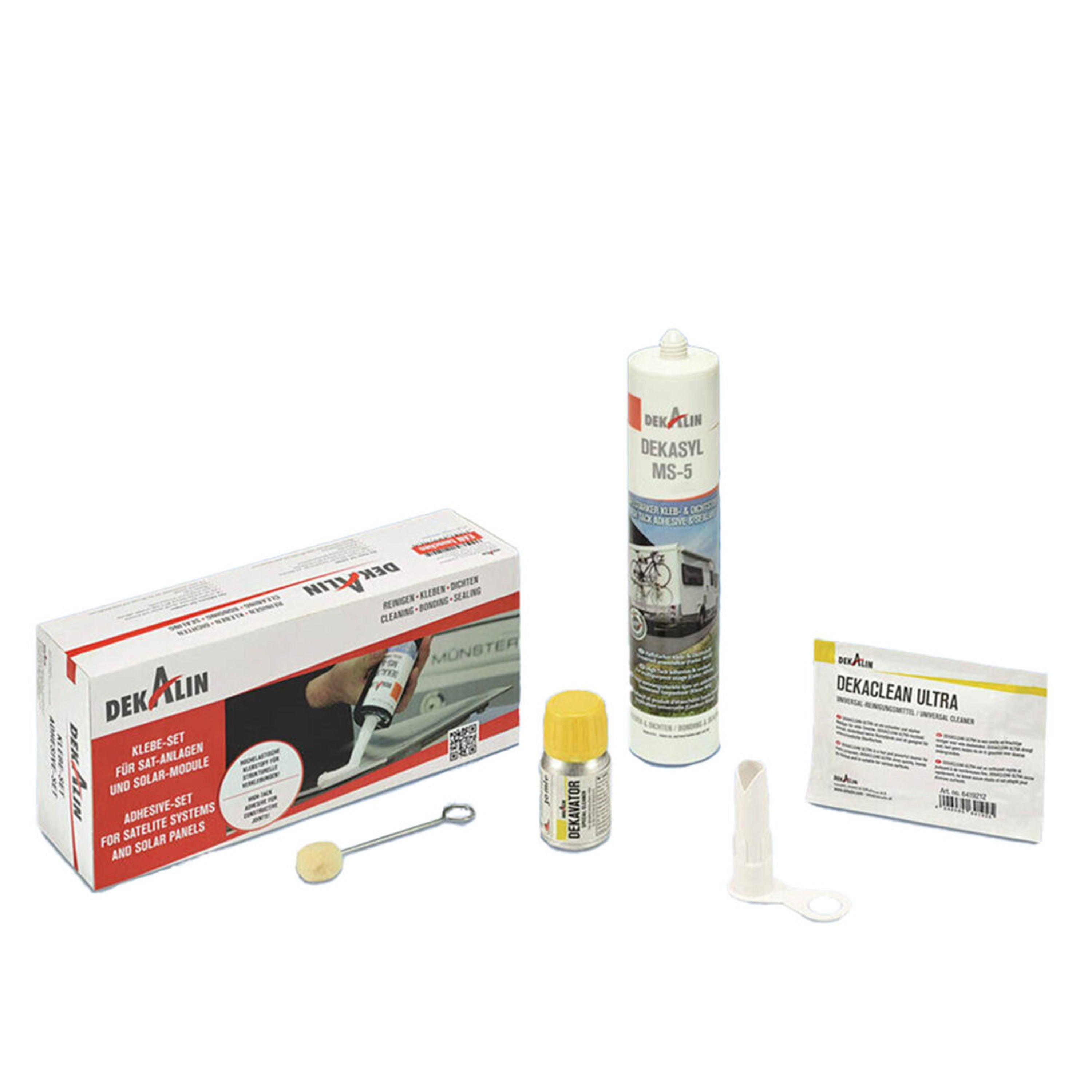

- 2x Dekalin adhesive set in black

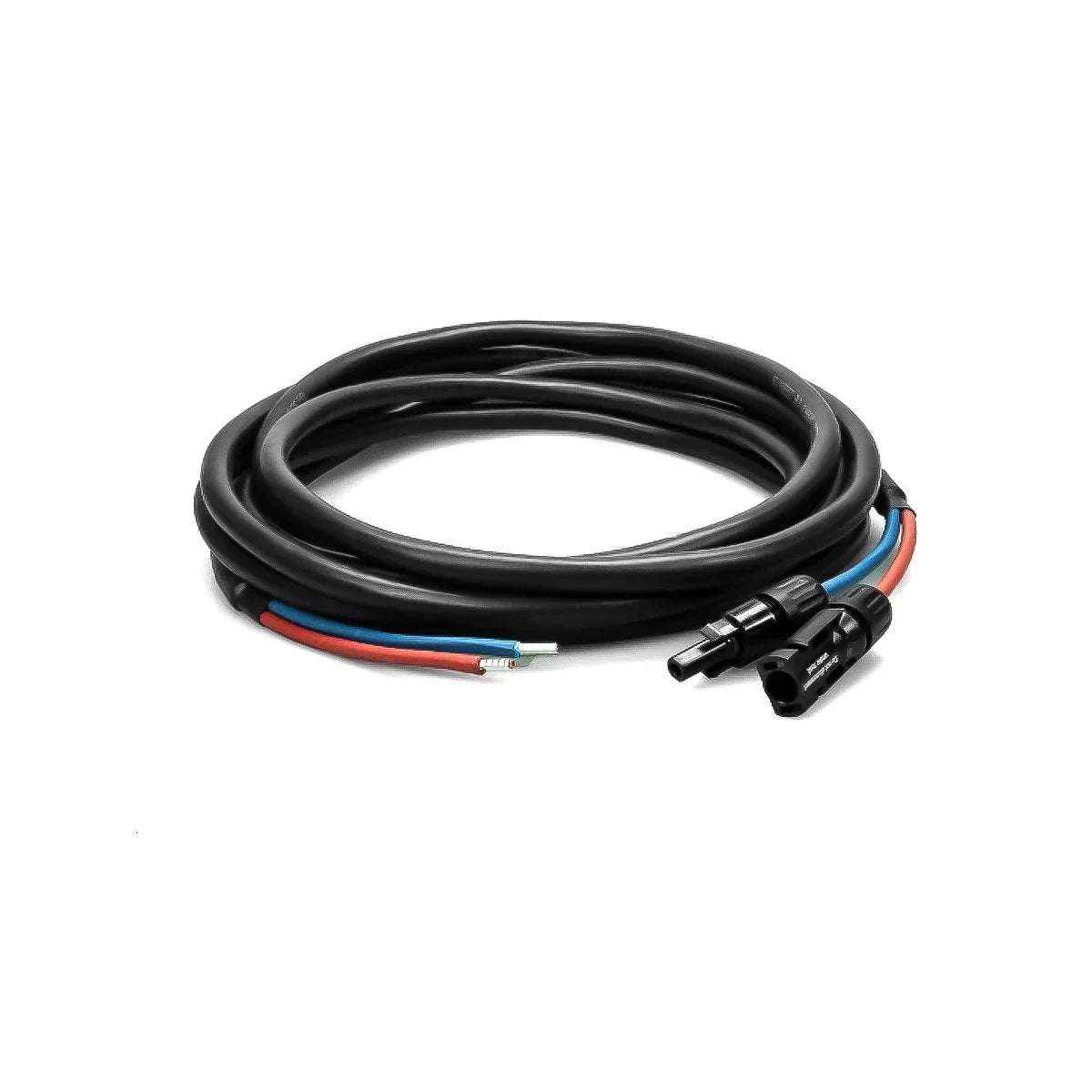

- WATTSTUNDE DAC 4.7 Connection cable solar module to charge controller 7 meters 2x4mm²
- MC4-compatible connector set (socket + plug) pre-assembled

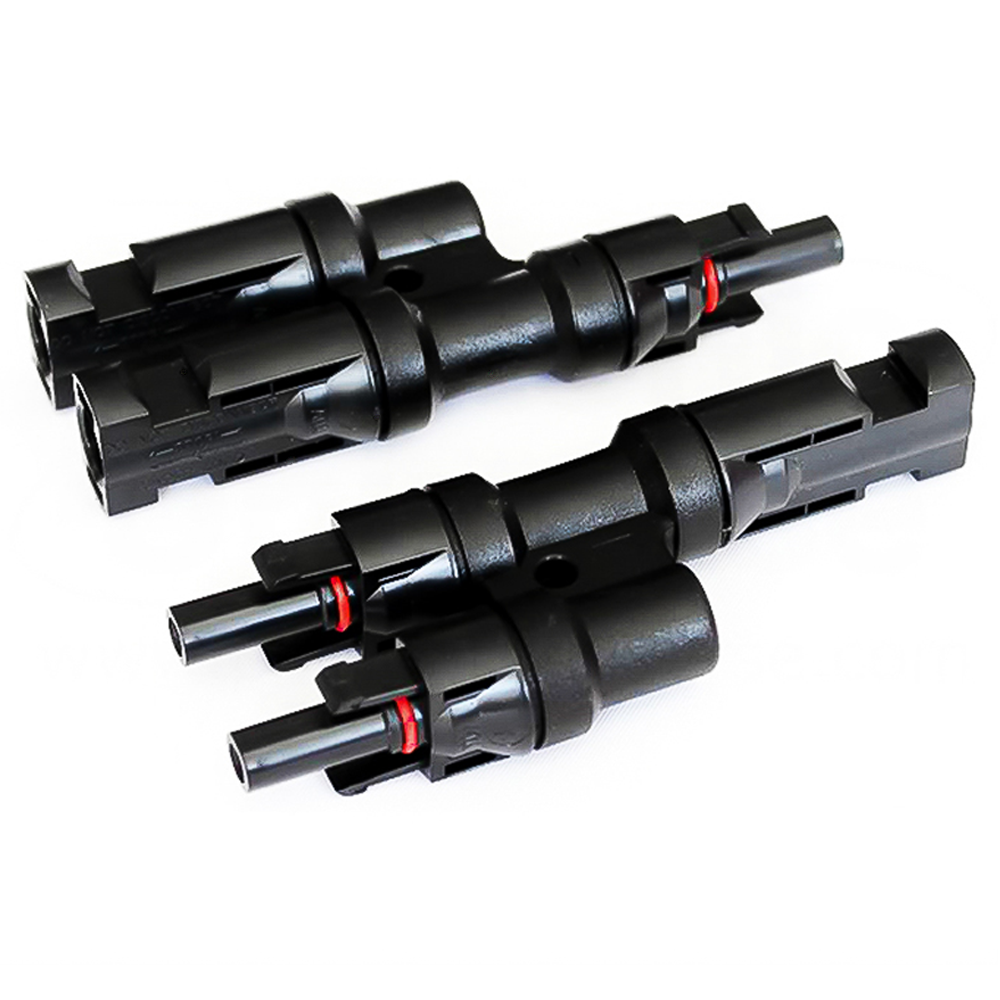

- WATTSTUNDE MC4.2 Connector Set

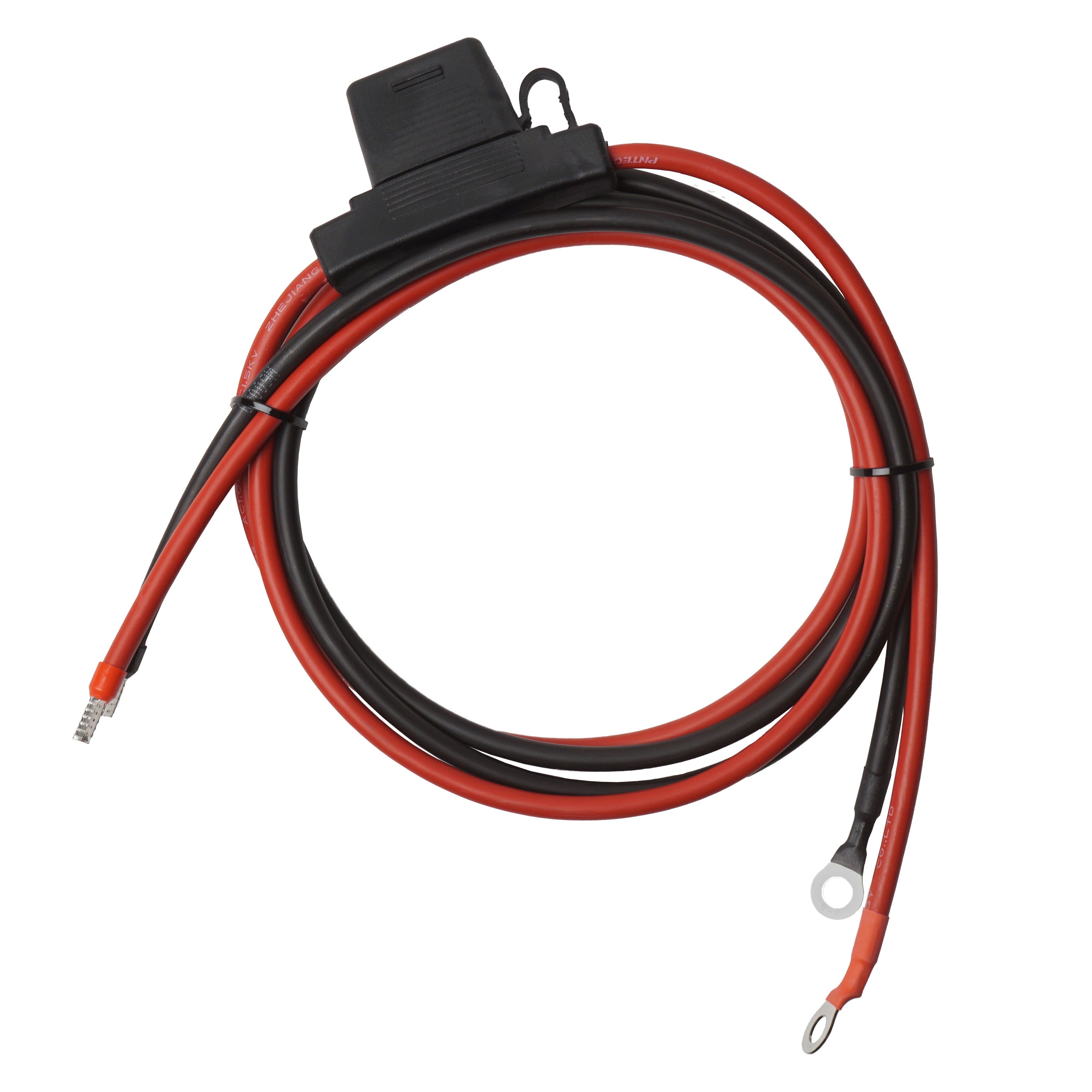

- WATTSTUNDE 10mm² battery connection cable with 40A fuse
- Operating instructions for all devices in German
Details on the SOLA Frame BLACK 165Wp
The BLACK series solar modules utilize state-of-the-art shingled cell technology with an efficiency exceeding 22%. The special arrangement of the cell strips ensures minimal hotspot formation and maximum energy yield. Further features include:
- Anti-reflective glass with lotus effect
- Weatherproof junction box (IP67) and MC4 compatibility
- Saltwater-resistant aluminum frame
- 25-year performance guarantee and 10-year manufacturer's warranty
- Production according to ISO 9001 certified procedures

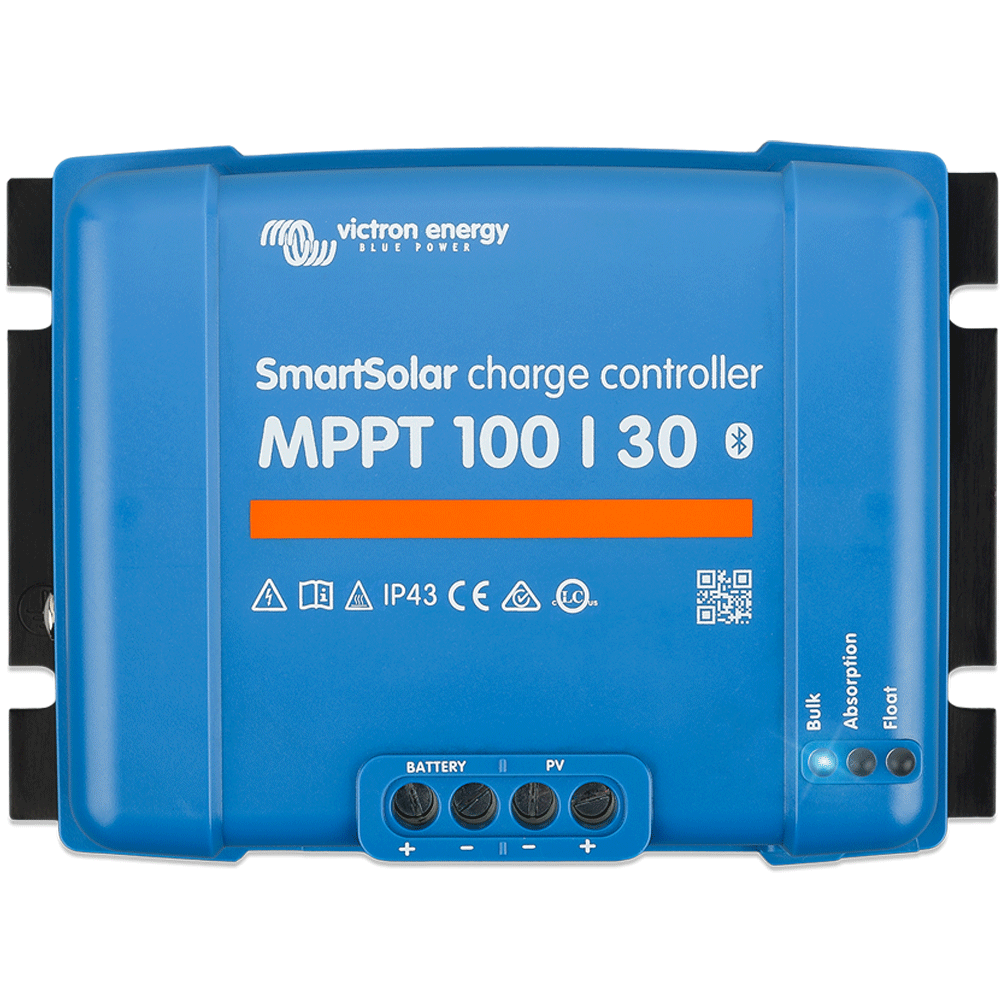

Details about the Victron SmartSolar MPPT 100/30 charge controller
The MPPT charge controller optimizes energy efficiency by up to 30% compared to PWM charge controllers and is even more efficient than slower MPPT controllers. Key features include:
- Real-time data display and wireless control via Bluetooth
- Integrated Bluetooth interface for easy setup and monitoring
- Compatible with Apple and Android devices
| Technical data | SOLA Frame Black 165 Wp |
| Rated power | 165 W |
| Maximum daily yield (summer) | 740 Wh/d |
| Voltage (Umpp) | 25.20 V |
| Electricity (Impp) | 6.55 A |
| Open circuit voltage (Voc) | 28.80 V |
| Short-circuit current (Isc) | 6.95 A |
| Cell efficiency | ≥ 22% |
| Cell material | Mono-shingle cells |
| Bypass diode | Integrated |
| Weight | 8.45 kg |
| Dimensions | 1546 x 530 x 30 mm |
| Technical data | SmartSolar MPPT 100 / 30 |
| Battery voltage | 12V / 24V |
| Nominal charging current | 30 A |
| Nominal PV power 12 V | 440 W |
| Nominal PV power 24 V | 880 W |
| Max. PV - Open-circuit voltage | 100 V |
| Max. PV short-circuit current | 35 A |
| efficiency | 98% |
| Constant charging voltage | 14.4 V / 28.8 V |
| Maintenance charging voltage | 13.8 V / 27.6 V |
| Operating temperature | -30 °C to +60 °C |
| Weight | 1.3 kg |
| Mass | 130 x 186 x 70 mm |
