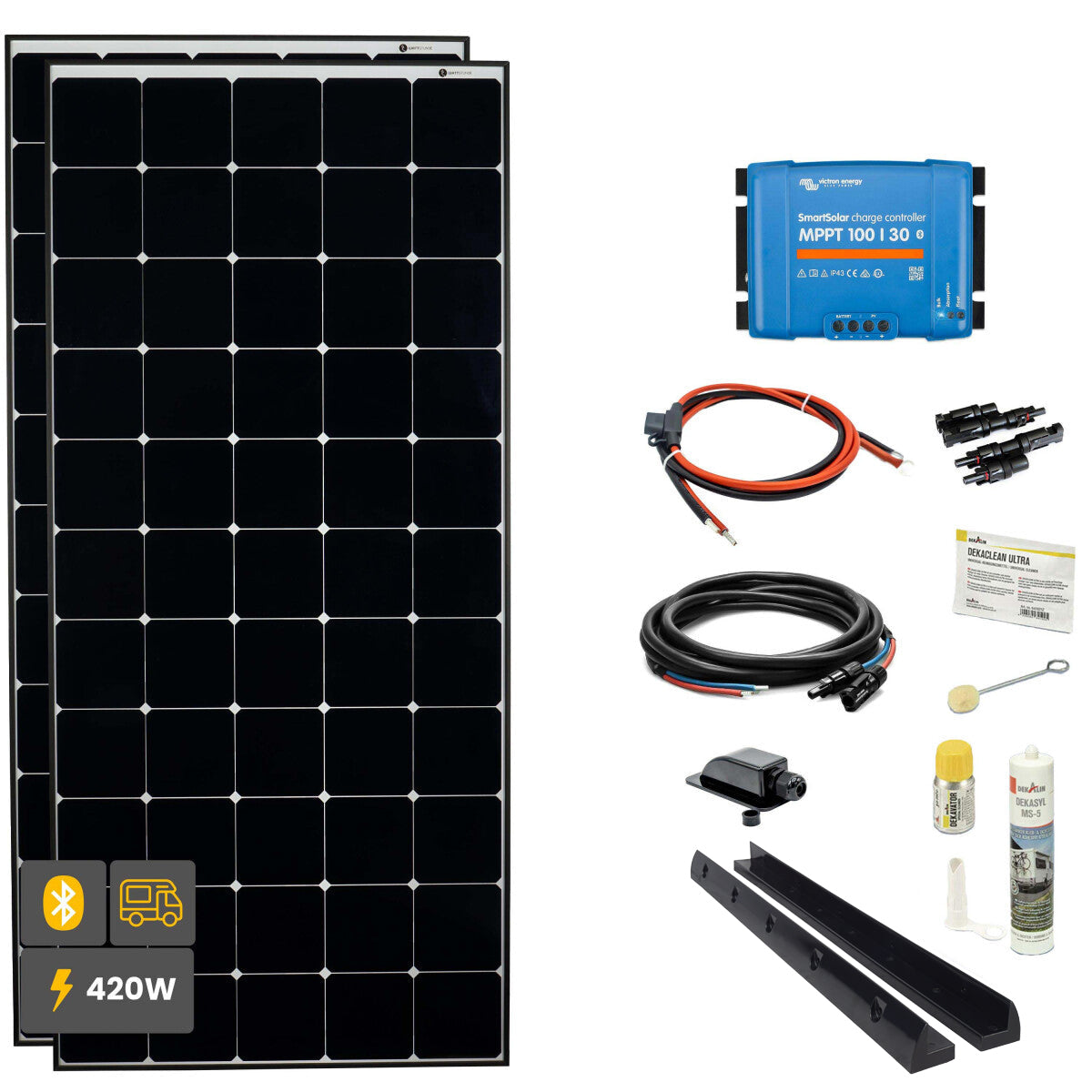

420W Daylight Motorhome Solar System SOLA Frame Black
- WATTSTUNDE SOLA Frame Daylight with cable and MC4-compatible connectors
- Victron SmartSolar MPPT with Bluetooth
- WATTSTUNDE solar panel mount and roof penetration
- Dekalin adhesive set in black
- Connection cable and MC4-compatible connector set
- Operating instructions for all devices in German
Tax included. Shipping calculated at checkout
- 1× WATTSTUNDE® Sicherungskabel (mit Sicherung 40A) 2x10mm² M8/Aderendhülse 1,5m rot/schwarz (Inkl. 19 % MwSt.)
- 1× WATTSTUNDE® MC4.2 Stecker Set (Inkl. 19 % MwSt.)
- 1× Victron SmartSolar MPPT 100/30 Bluetooth integriert (Inkl. 19 % MwSt.)
- 2× WATTSTUNDE® SOLA Frame Daylight 210 Wp (Inkl. 19 % MwSt.)
- 2× Dekalin Klebe-Set schwarz (Inkl. 19 % MwSt.)
- 2× WATTSTUNDE® MOUNT Solarmodul Halterung 67 schwarz (Inkl. 19 % MwSt.)
- 1× WATTSTUNDE® Dachdurchführung DX1/S ASA schwarz (Inkl. 19 % MwSt.)
- 1× WATTSTUNDE® Anschlusskabel (2 x) 4 mm² Typ-MC4/Aderendhülse 7 m schwarz (Inkl. 19 % MwSt.)
Your legal guarantee rights

Product description

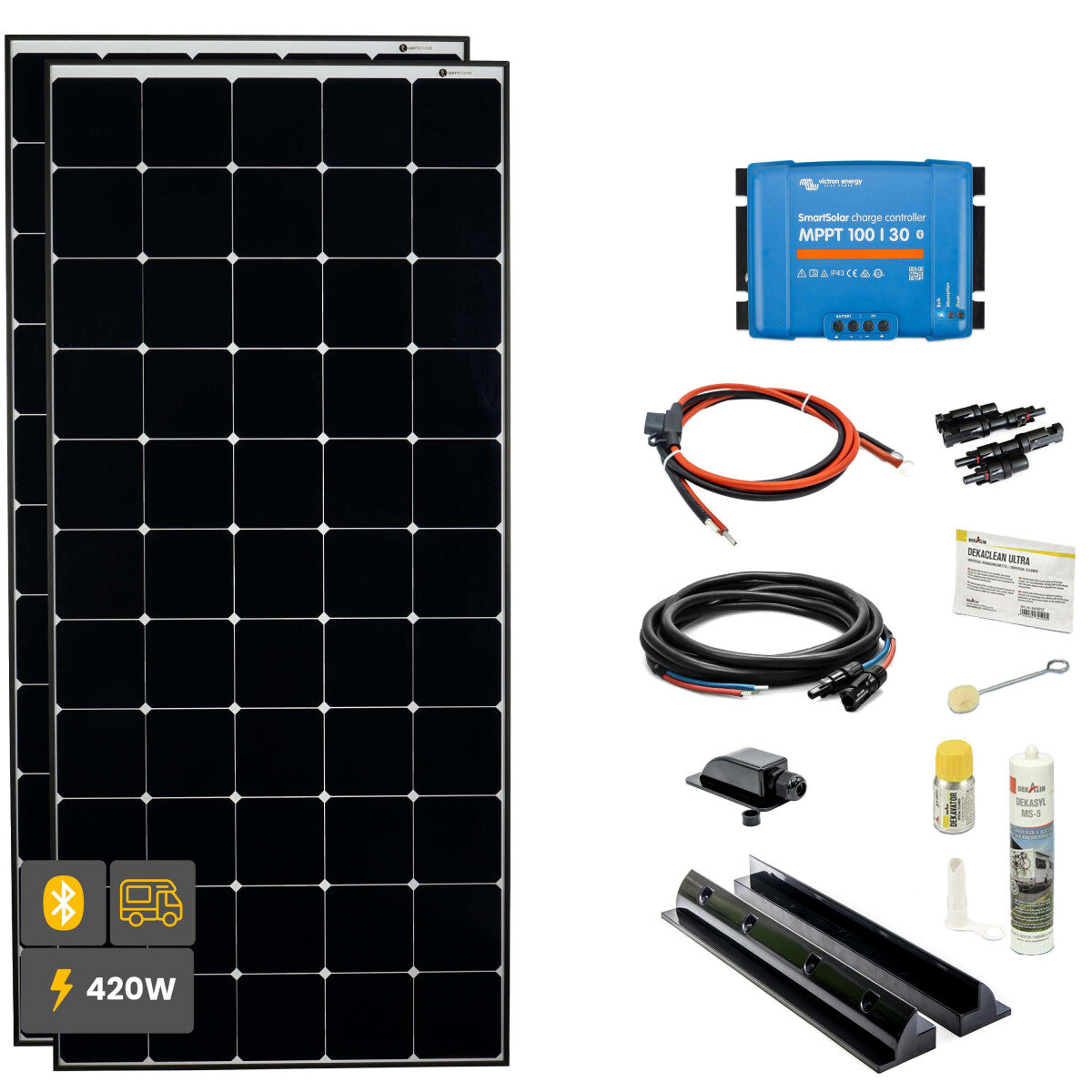

Motorhome Solar Set DAYLIGHT 420W
We developed the DAYLIGHT motorhome solar set by WATTSTUNDE specifically for motorhomes, campers, and caravans, and it offers optimal performance even in poor and diffuse light conditions. The solar panels in the DAYLIGHT series impress with their highest quality and performance, allowing you to achieve maximum energy yields in the smallest possible area, so you can remain independent of the public supply network while on the move.
Set components
The DAYLIGHT 420W motorhome solar set contains exclusively high-quality and reliable components that allow for immediate installation and mounting on your motorhome:
- 2x WATTSTUNDE SOLA Frame Daylight 210Wp with cable and MC4-compatible connectors
- Victron SmartSolar MPPT 100/30 Bluetooth integrated

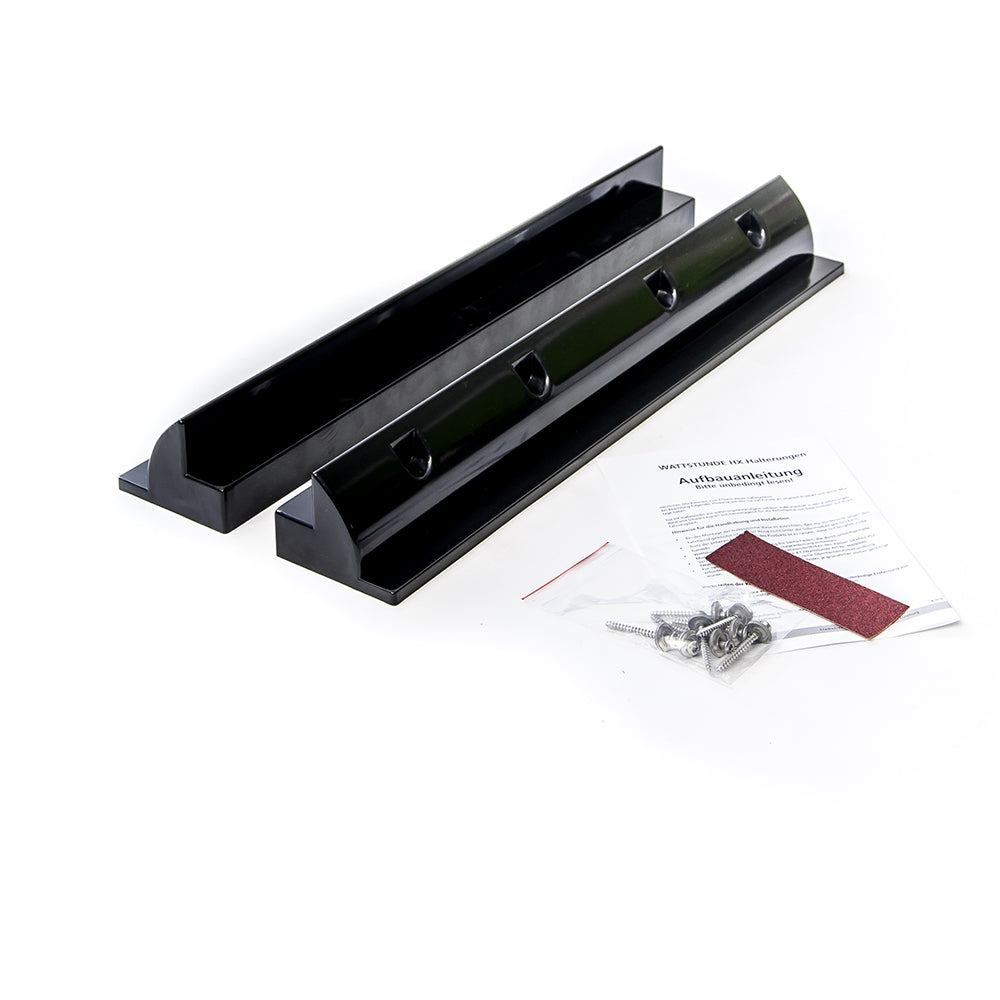

- 2x WATTSTUNDE MOUNT solar panel bracket 67 black incl. stainless steel screws

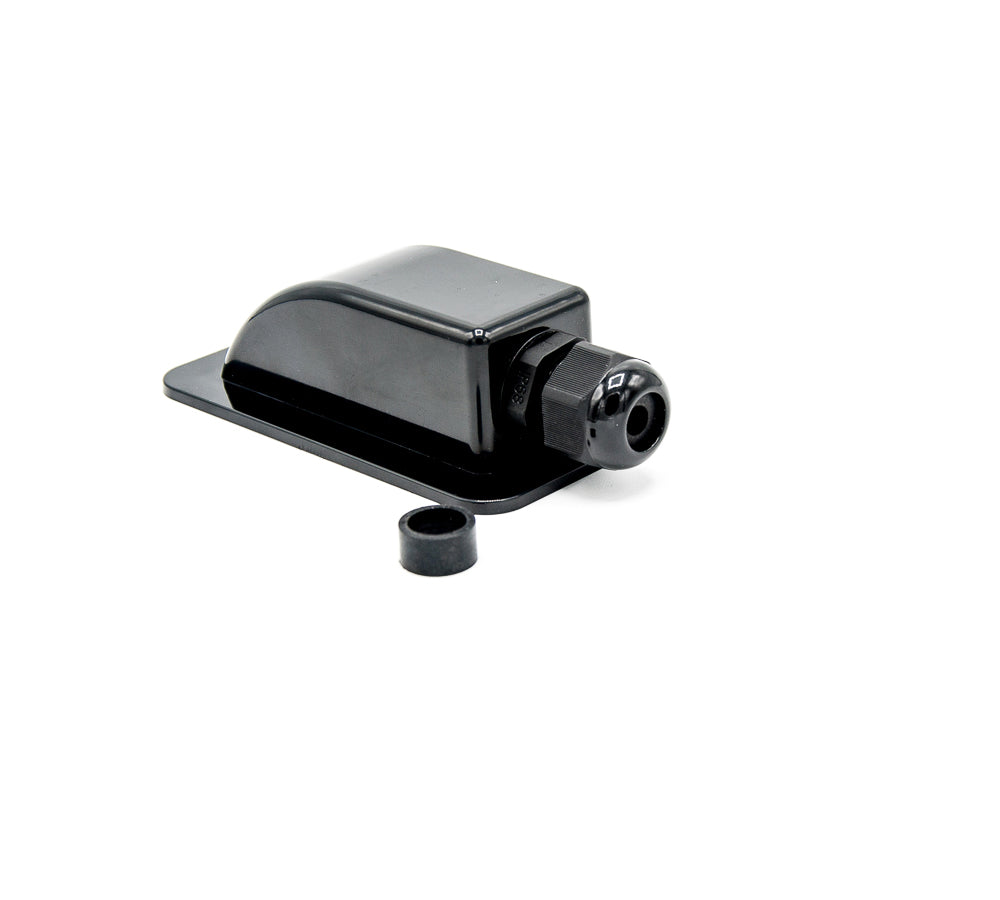

- WATTSTUNDE roof penetration DX1/S black

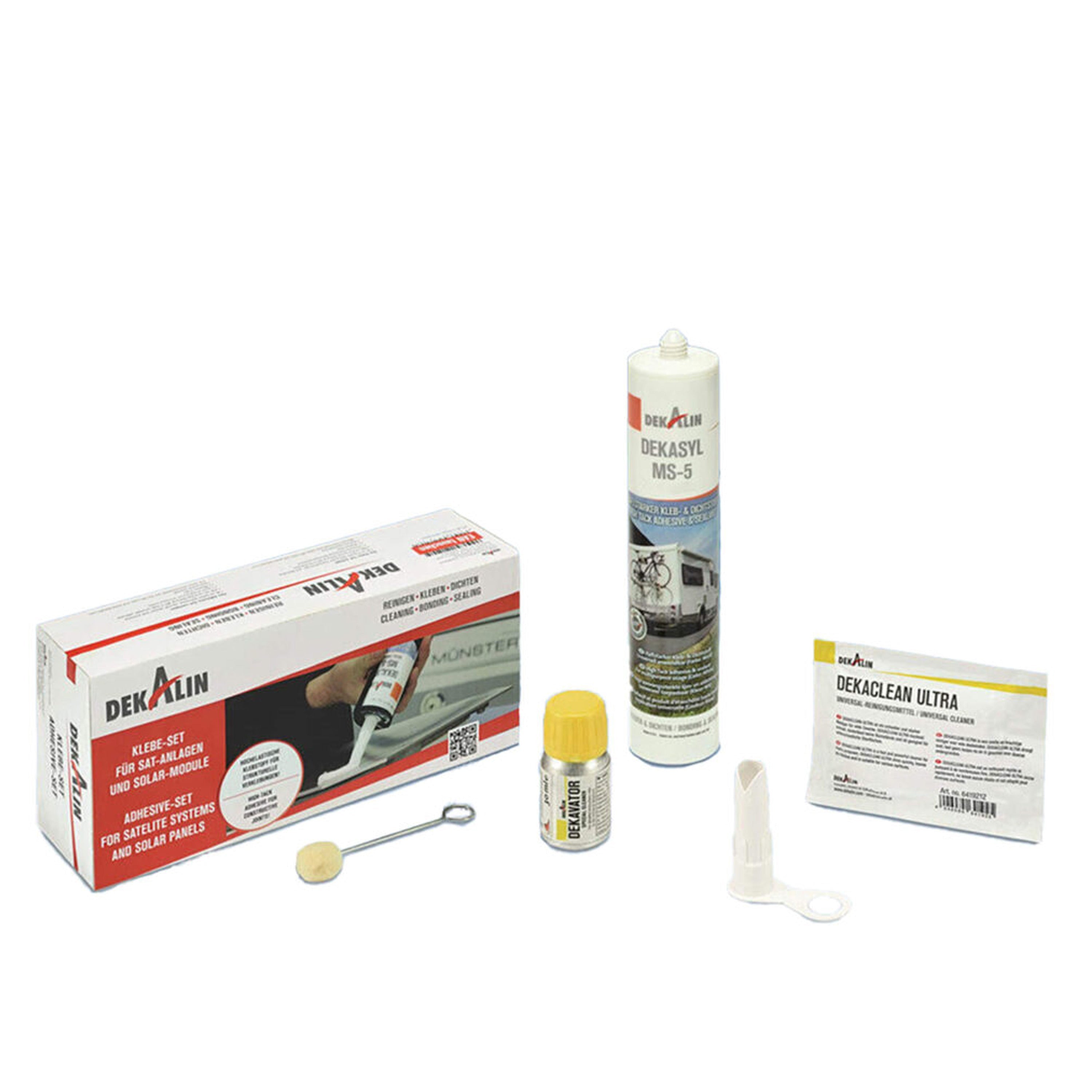

- 2x Dekalin adhesive set in black
- WATTSTUNDE DAC 4.7 connection cable solar panel to charge controller 7 meters 2x4mm²
- MC4-compatible connector set (socket + plug) pre-assembled

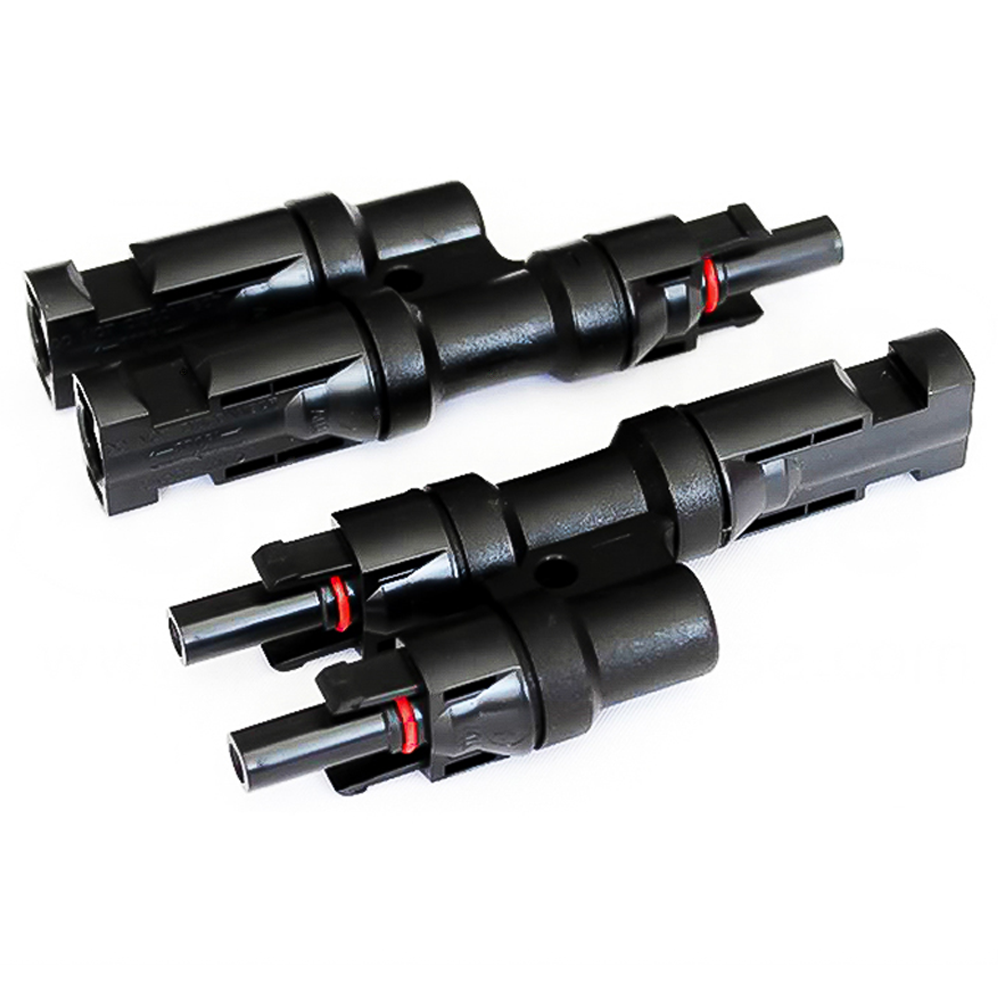

- WATTSTUNDE MC4.2 connector set

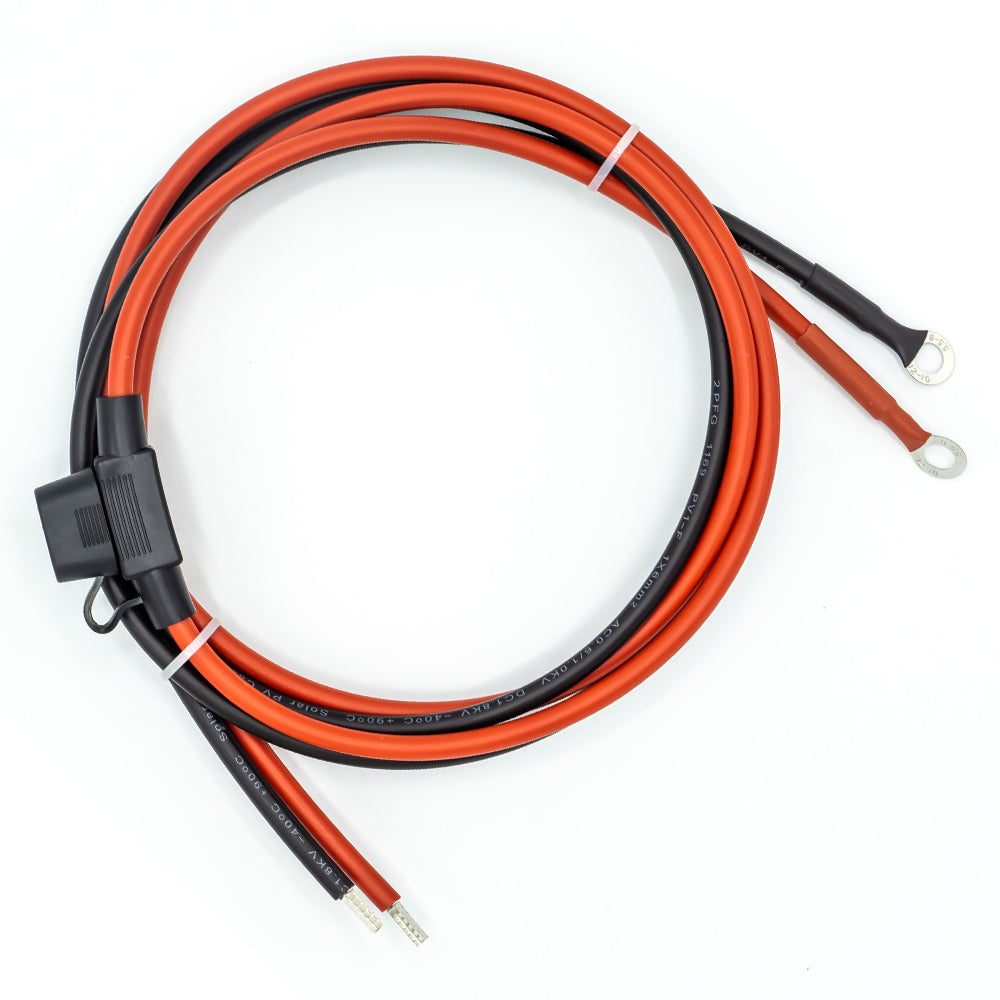

- WATTSTUNDE 10mm² battery connection cable BAKA40 with 40A fuse
- Operating instructions for all devices in German

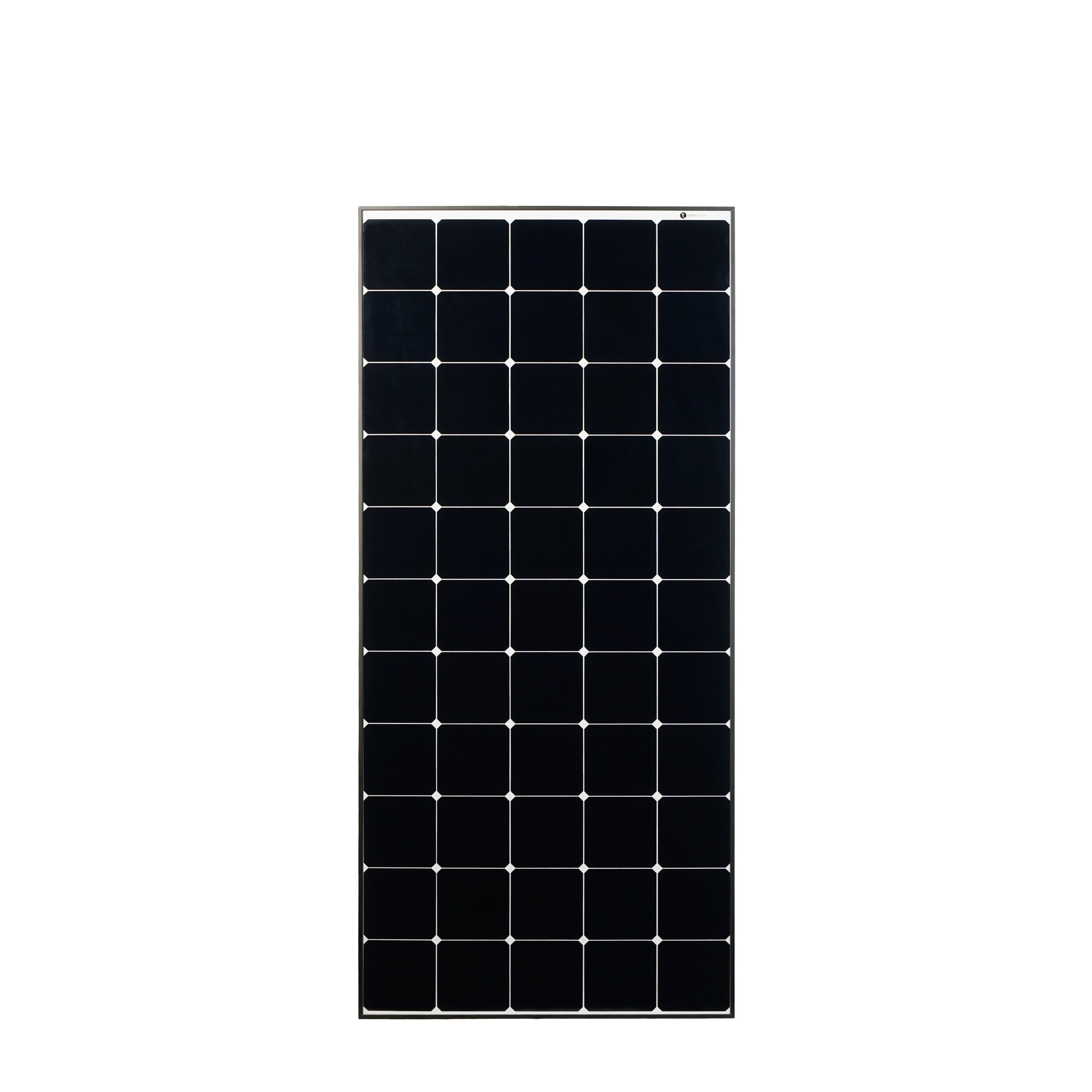

Details on the SOLA Frame DAYLIGHT 210Wp
The solar panels in the DAYLIGHT series use the advanced back-contact technology of SunPower solar cells, which offer an exceptional cell efficiency of over 24%. Additional features include:
- Tempered glass with a lotus effect for optimal light absorption and self-cleaning
- Weatherproof junction box (IP65) and MC4 compatibility for safe and easy installation
- Anodized, scratch-resistant aluminum hollow-chamber profile for increased durability
- Integrated bypass diodes prevent power loss due to shading
- 25-year power warranty and 10-year manufacturer warranty
- Production according to ISO 9001 certified processes

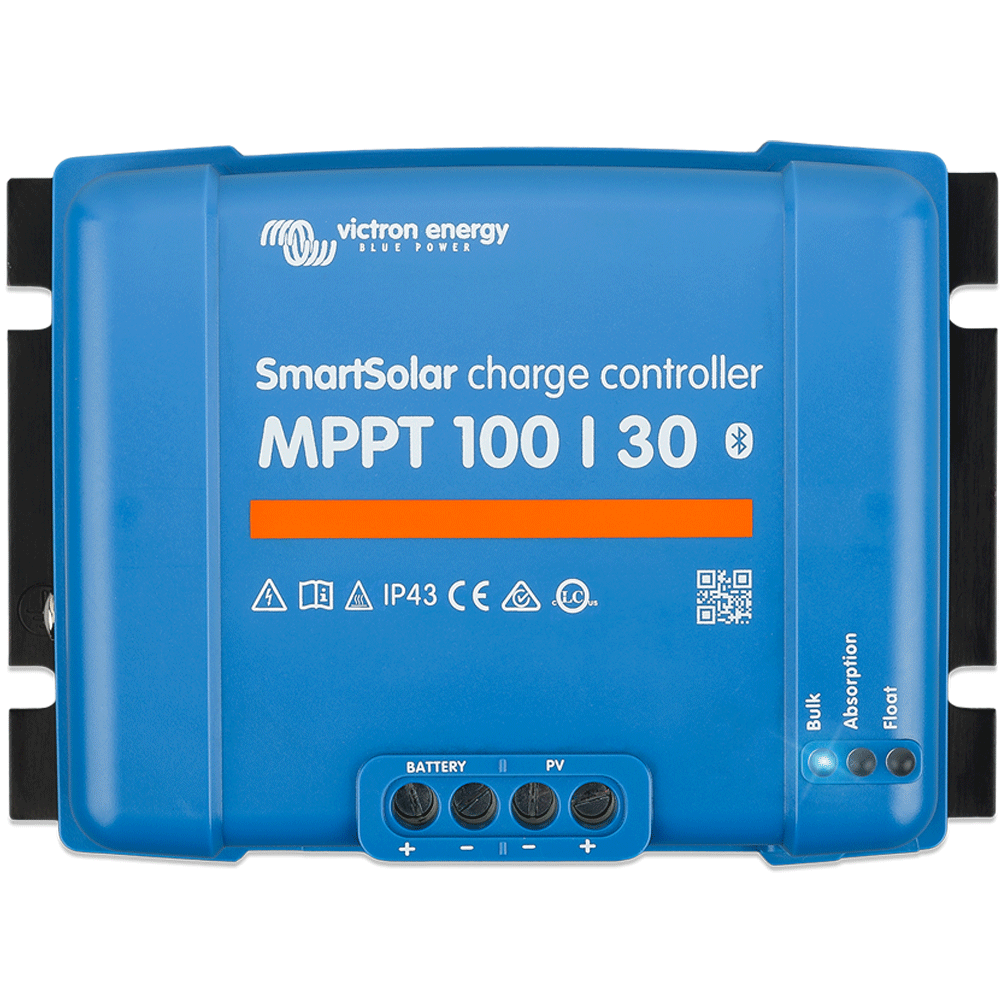

Details on the Victron SmartSolar MPPT 100/30 charge controller
The MPPT charge controller significantly optimizes energy yield in changing light conditions:
- Increases energy yield by up to 30% compared to PWM controllers and by up to 10% compared to slower MPPT controllers
- Real-time display of energy data and wireless control via Bluetooth on Apple and Android devices
- Built-in Bluetooth interface eliminates the need for additional accessories
| Technical data | SOLA Frame Daylight 210 Wp |
| Rated power | 210 W |
| Max. daily yield (summer) | 1050 Wh/d |
| Voltage (Umpp) | 34.00 V |
| Current (Impp) | 6.17 A |
| Open-circuit voltage (Voc) | 39.90 V |
| Short-circuit current (Isc) | 6.52 A |
| Cell efficiency | >24 % |
| Cell material | SunPower Maxeon cells |
| Bypass diode | Integrated |
| Weight | 10.70 kg |
| Dimensions | 1425 x 650 x 35 mm |
| Technical data | SmartSolar MPPT 100 / 30 |
| Battery voltage | 12 V / 24 V |
| Rated charging current | 30 A |
| Rated PV power 12 V | 440 W |
| Rated PV power 24 V | 880 W |
| Max. PV open-circuit voltage | 100 V |
| Max. PV short-circuit current | 35 A |
| Efficiency | 98 % |
| Constant charging voltage | 14.4 V / 28.8 V |
| Float charging voltage | 13.8 V / 27.6 V |
| Operating temperature | - 30 °C - + 60 °C |
| Weight | 1.3 kg |
| Dimensions | 130 x 186 x 70 mm |
