550 W SOLA Frame Black Motorhome Complete Set White
- WATTSTUNDE SOLA Frame BLACK mit Kabel und MC4-kompatiblen Steckern
- Victron SmartSolar MPPT mit Bluetooth
- WATTSTUNDE Solarmodul Halterung und Dachdurchführung
- Dekalin Klebe-Set in weiß
- Anschlusskabel und MC4-kompatibles Stecker Set
- Bedienungsanleitung aller Geräte auf Deutsch
Tax included. Shipping calculated at checkout
-
2× Dekalin Klebe-Set weiß
(Inkl. 19 % MwSt.)
-
1× Kabelverschraubung M20, Weiß, IP68
(Inkl. 19 % MwSt.)
-
1× Victron SmartSolar MPPT 100/50 Bluetooth integriert
(Inkl. 19 % MwSt.)
-
1× WATTSTUNDE® ANM Hochlast-Streifen-Sicherung 2x50 A
(Inkl. 19 % MwSt.)
-
1× WATTSTUNDE® DAC 6.7 Anschlusskabel Solarmodul zu Laderegler 7 Meter 2 x 6 mm²
(Inkl. 19 % MwSt.)
-
1× WATTSTUNDE® Dachdurchführung DX1/W ASA weiß
(Inkl. 19 % MwSt.)
-
1× WATTSTUNDE® MC4.2 Stecker Set
(Inkl. 19 % MwSt.)
-
1× WATTSTUNDE® Sicherungskabel (mit Sicherungshalter) 2 x16 mm² M8/Aderendhülse 1 m rot/schwarz
(Inkl. 19 % MwSt.)
-
2× WATTSTUNDE® SOLA Frame Black 275 Wp
(Inkl. 19 % MwSt.)
-
2× WATTSTUNDE® Solarmodul Halteecken HXE/W ABS Kunststoff weiss
(Inkl. 19 % MwSt.)
Product description
Motorhome Solar Set BLACK 550W
The BLACK solar kits for motorhomes and caravans from WATTSTUNDE are specifically designed for motorhomes, campers, and caravans, offering outstanding performance even under demanding conditions. Featuring advanced shingled solar cells from the SOLA Frame BLACK series, these systems maximize energy yields in a small footprint and even in poor lighting conditions. Thanks to strict quality guidelines and state-of-the-art technology, these systems are a reliable energy source for mobile applications.

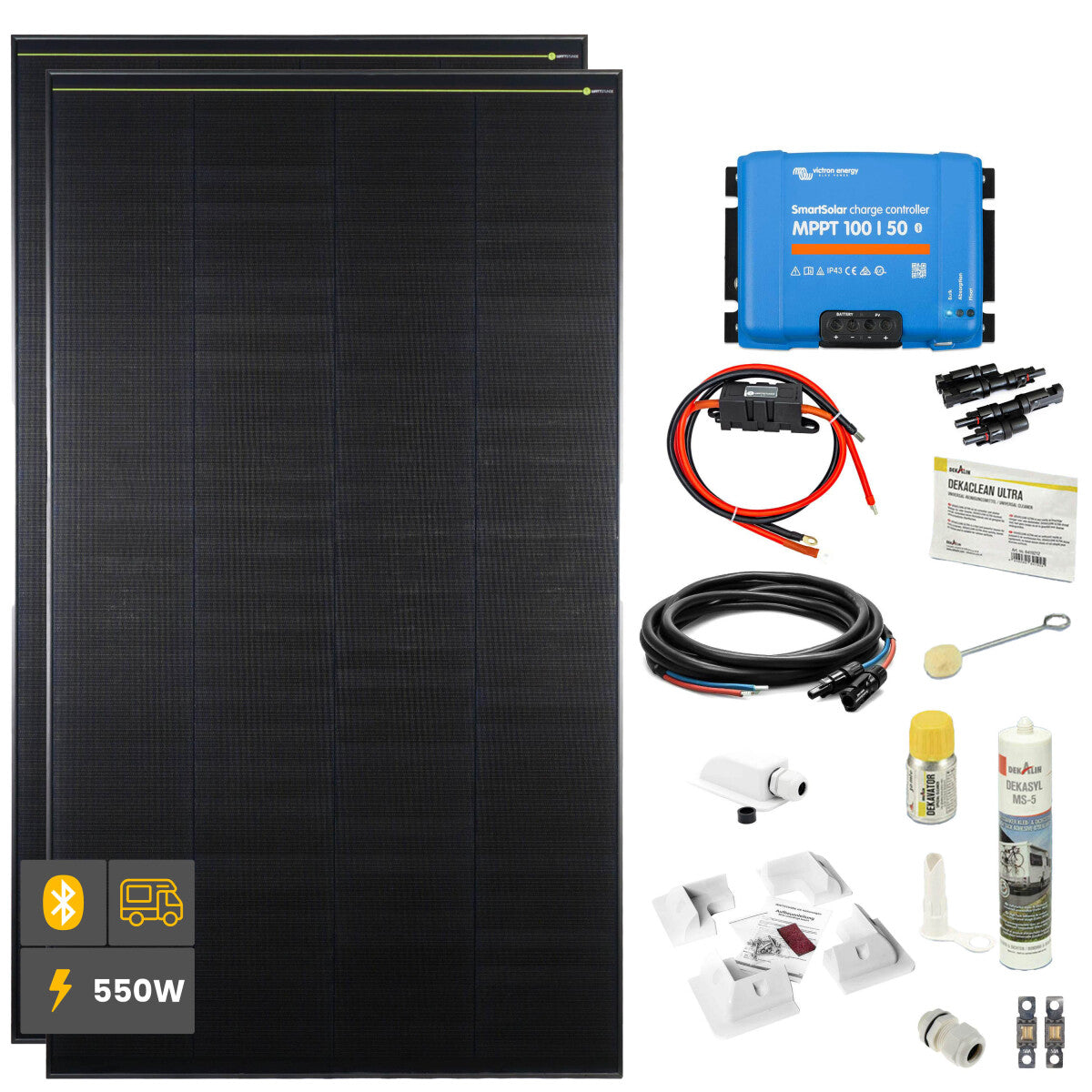

Components of the set
The BLACK 550W motorhome solar kit includes high-quality and reliable components that are specifically optimized for use on the go:
- 2x WATTSTUNDE SOLA Frame BLACK 275Wp with cable and MC4-compatible connectors
- Victron SmartSolar MPPT 100/50 with integrated Bluetooth

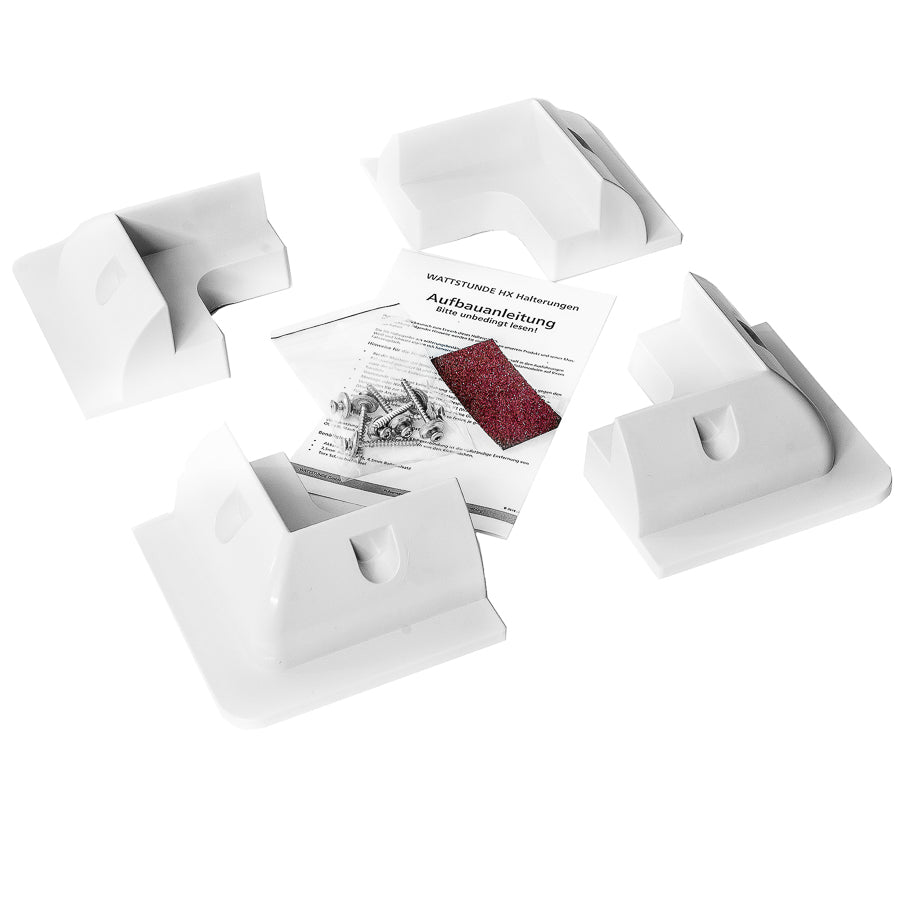

- 2x WATTSTUNDE solar panel mounting corners HXE/W ABS plastic white incl. stainless steel screws

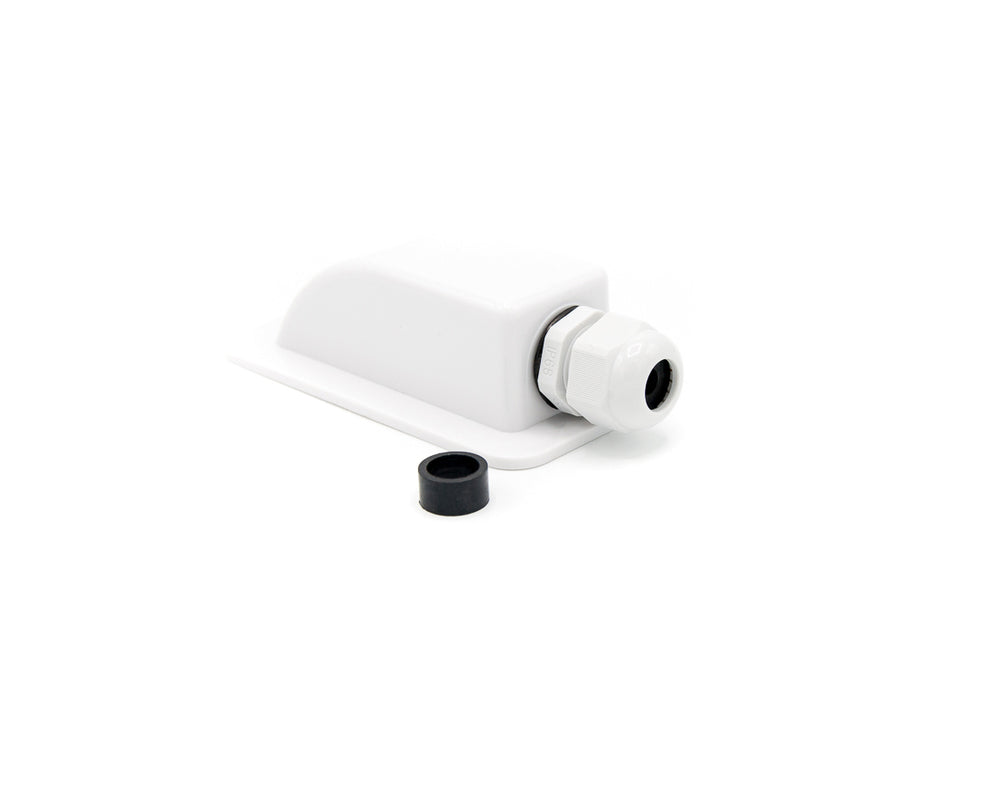

- WATTSTUNDE roof penetration DX1/W white

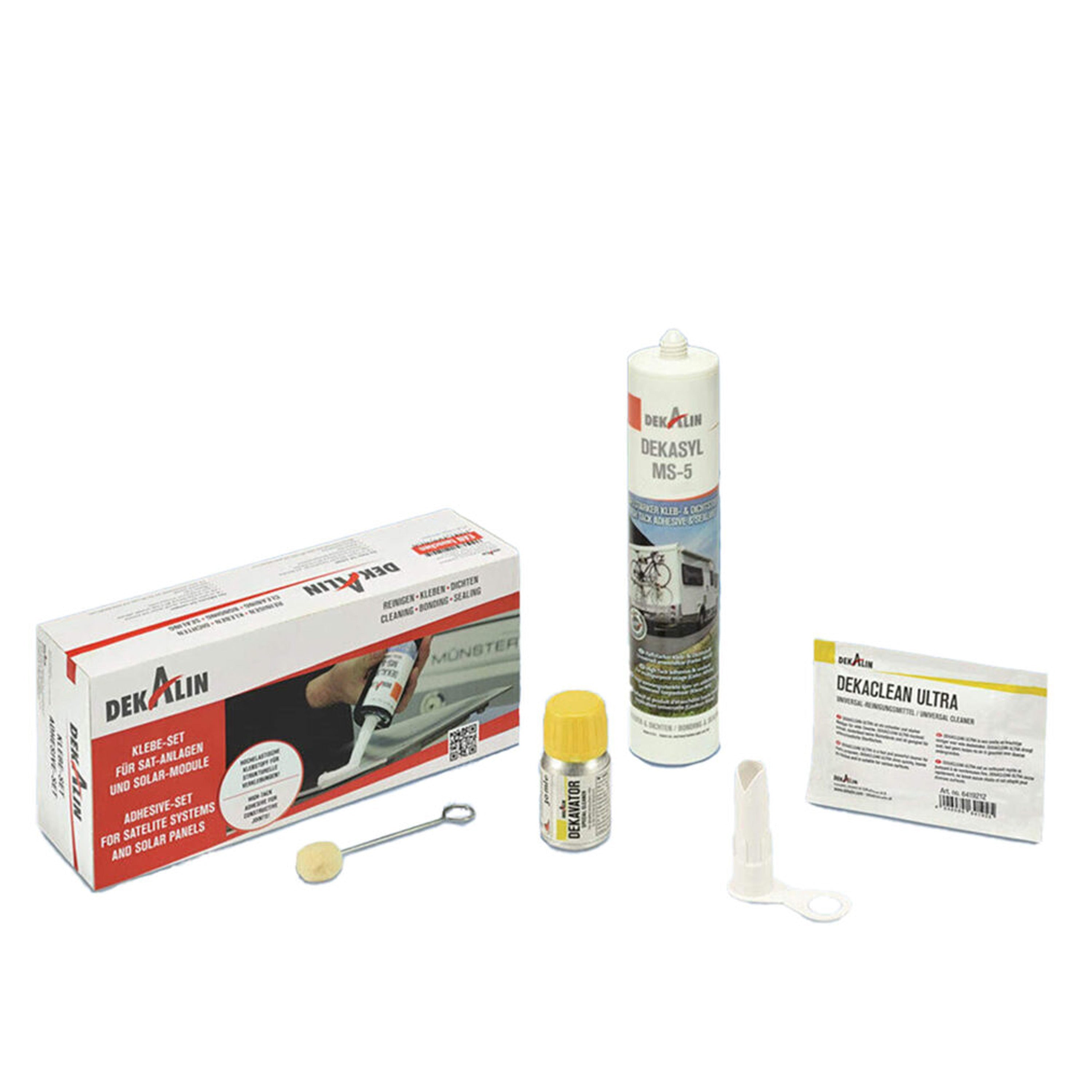

- 2x Dekalin adhesive set in white

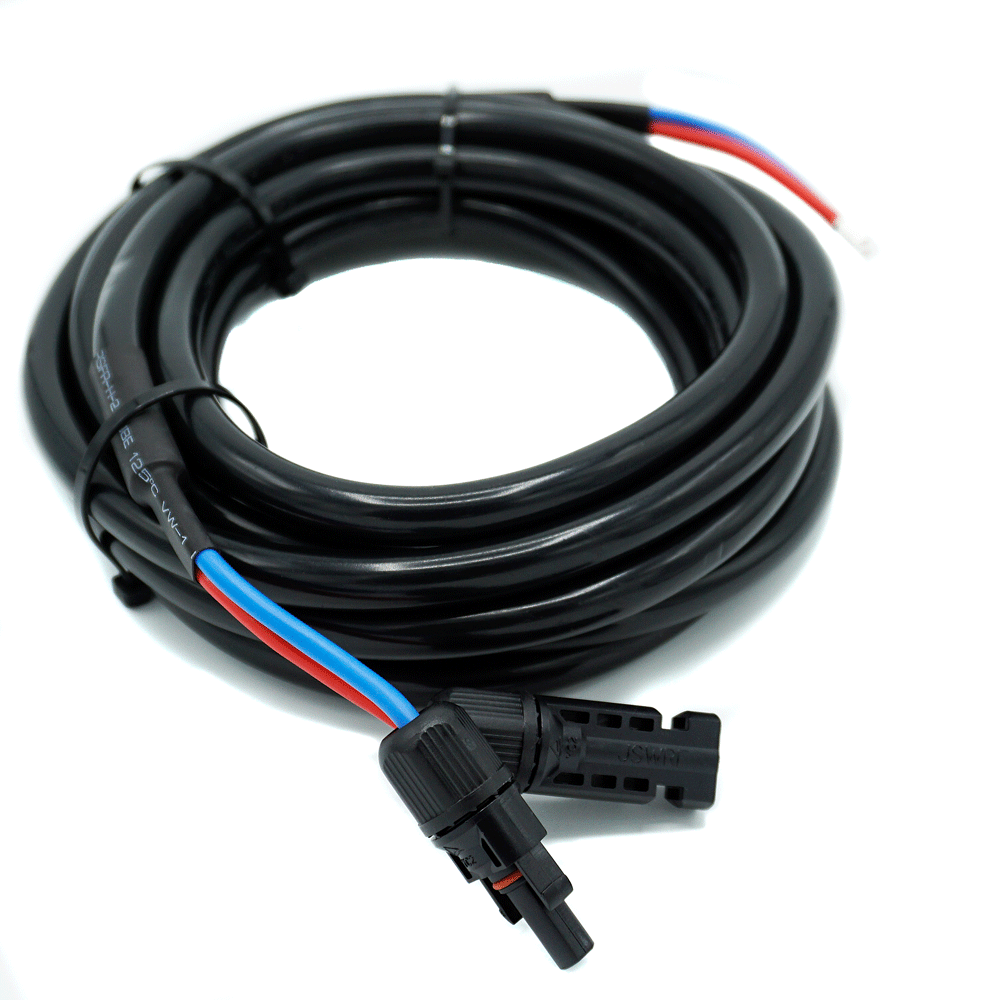

- WATTSTUNDE DAC 6.7 Connection cable solar module to charge controller 7 meters 2x6mm²

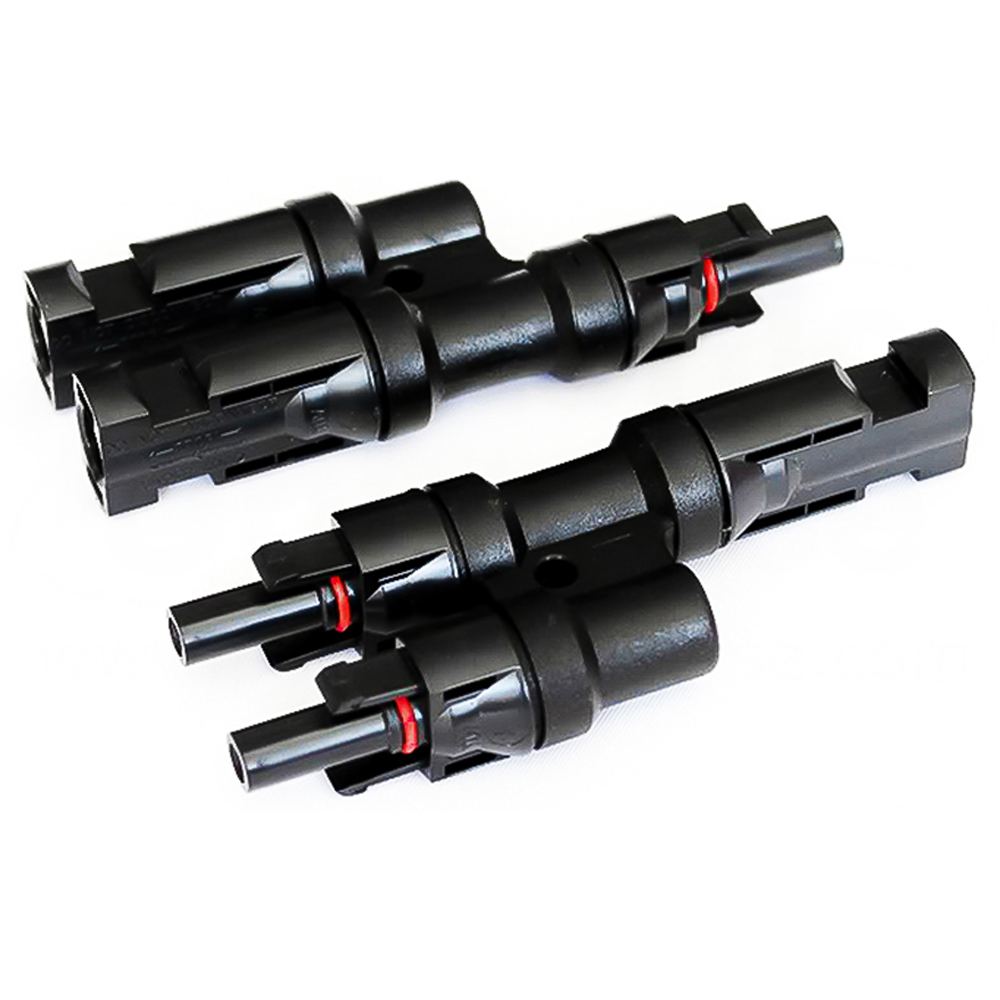

- MC4-compatible connector set (socket + plug) pre-assembled

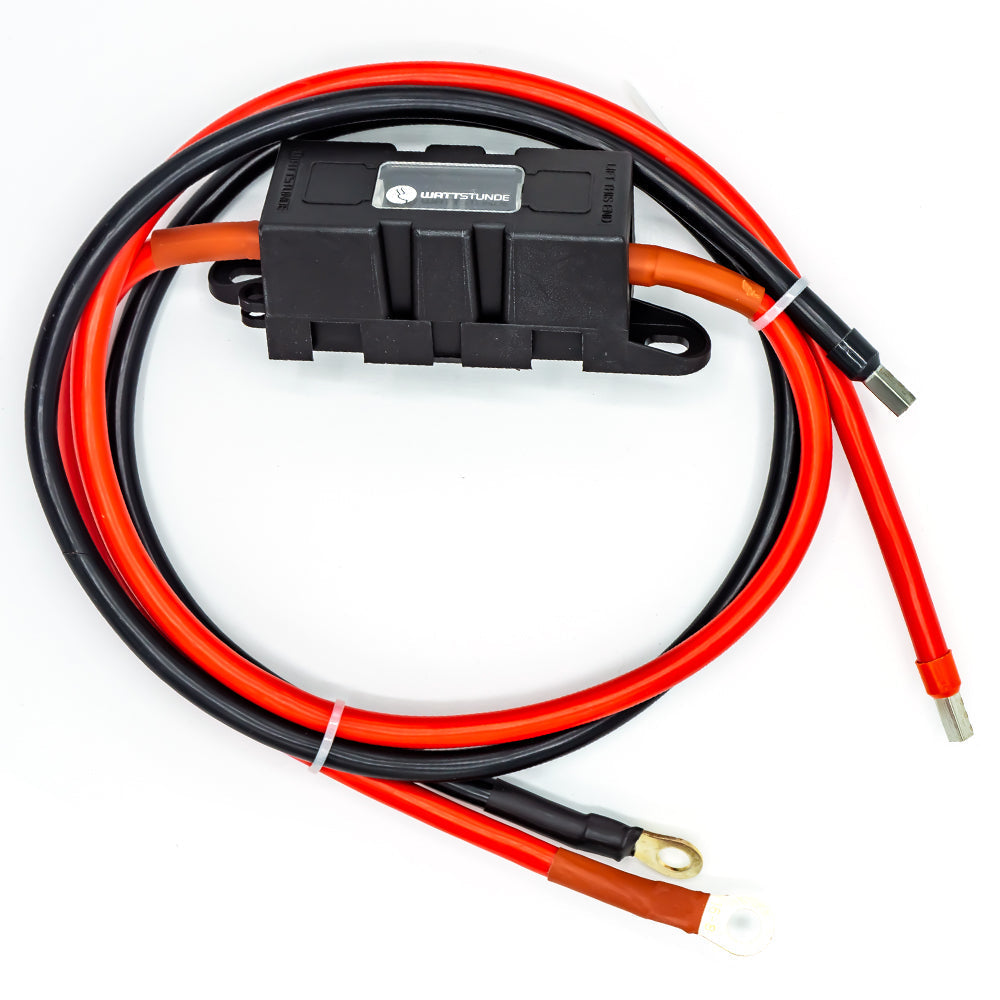

- WATTSTUNDE 16mm² connection cable BAKA16-FH 100cm with ANM high-load fuse holder

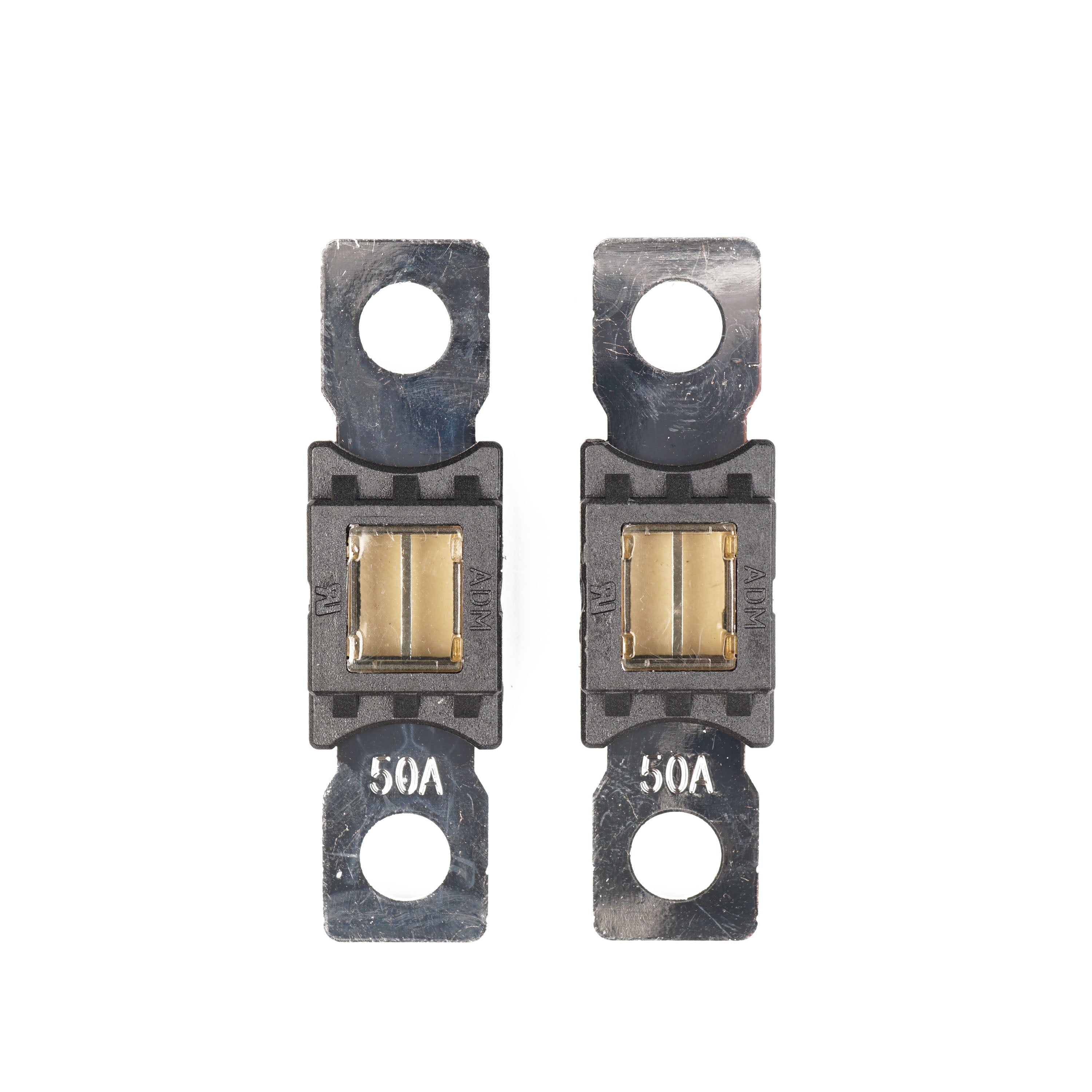

- WATTHOUR ANM High-load strip fuse 2x50A
- Cable gland M20, black, IP68
- Operating instructions for all devices in German

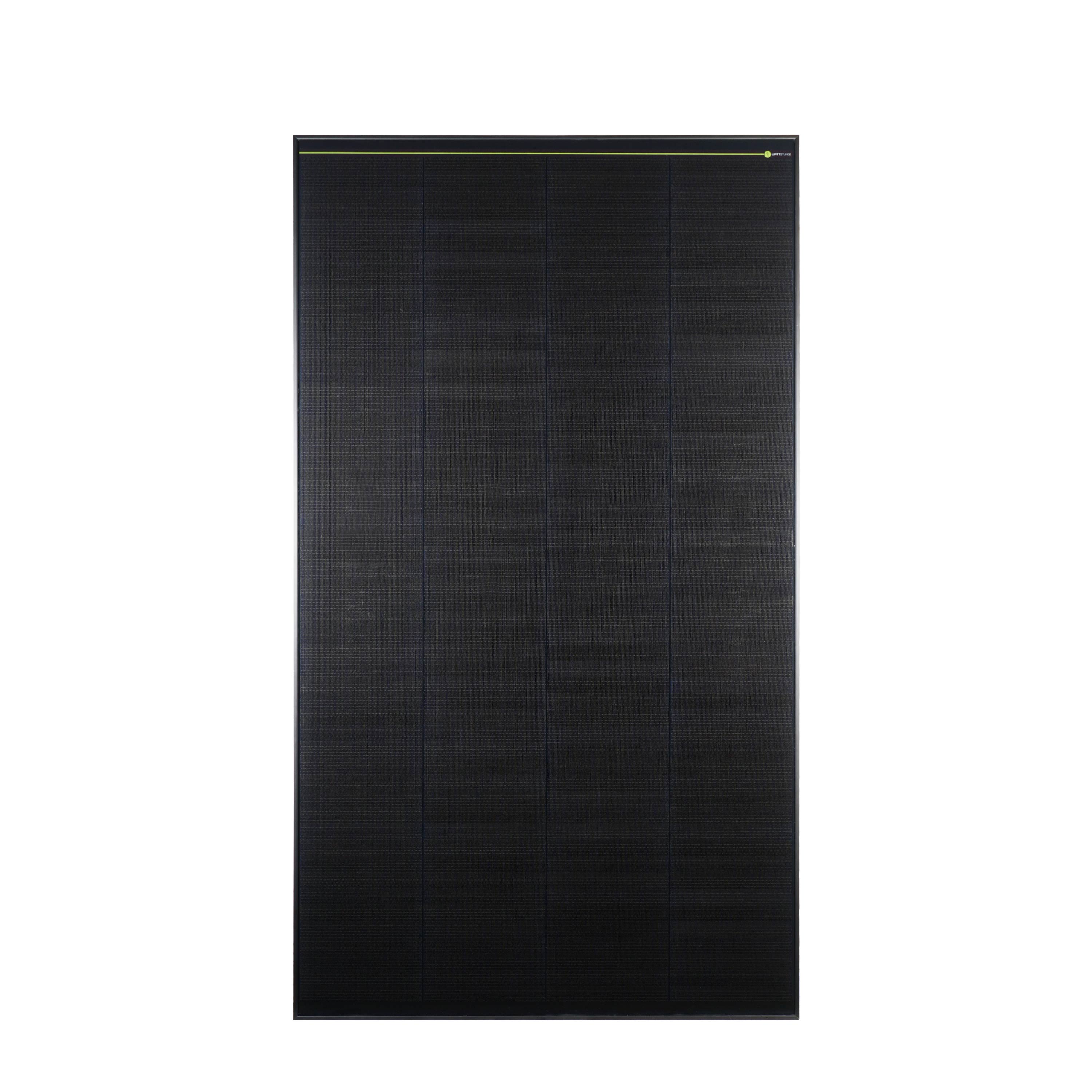

Details on the SOLA Frame BLACK 275Wp
The BLACK series solar modules utilize state-of-the-art shingled cell technology with an efficiency exceeding 22%. The special arrangement of the cell strips ensures minimal hotspot formation and maximum energy yield. Further features include:
- Anti-reflective glass with lotus effect
- Weatherproof junction box (IP67) and MC4 compatibility
- Saltwater-resistant aluminum frame
- 25-year performance guarantee and 10-year manufacturer's warranty
- Production according to ISO 9001 certified procedures

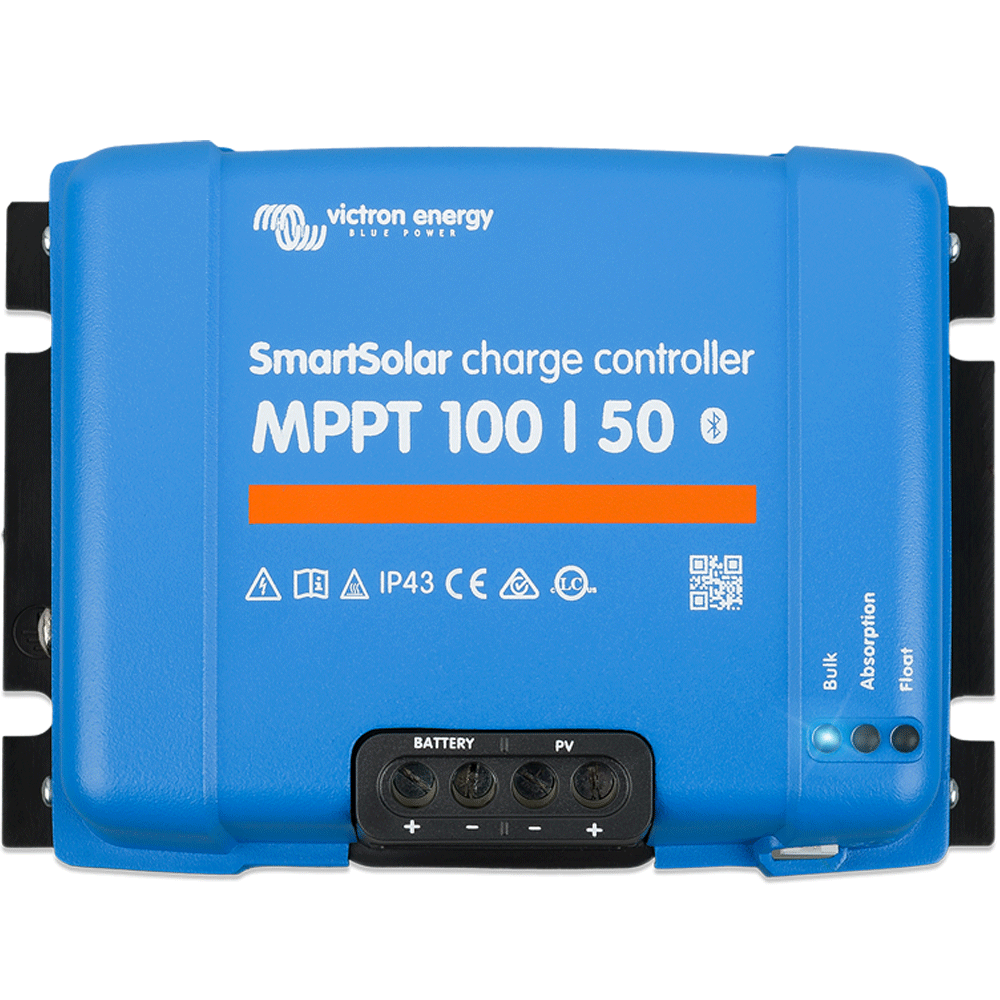

Details about the Victron SmartSolar MPPT 100/50 charge controller
The MPPT charge controller optimizes energy efficiency by up to 30% compared to PWM charge controllers and is even more efficient than slower MPPT controllers. Key features include:
- Real-time data display and wireless control via Bluetooth
- Integrated Bluetooth interface for easy setup and monitoring
- Compatible with Apple and Android devices
| Technical data | SOLA Frame Black 275 Wp |
| Rated power | 275 W |
| Maximum daily yield (summer) | 1240 Wh/d |
| Voltage (Umpp) | 25.20 V |
| Electricity (Impp) | 10.92 A |
| Open circuit voltage (Voc) | 28.80 V |
| Short-circuit current (Isc) | 11.58 A |
| Cell efficiency | ≥ 22% |
| Cell material | Mono-shingle cells |
| Bypass diode | Integrated |
| Weight | 13.35 kg |
| Dimensions | 1546 x 870 x 30 mm |
| Technical data | SmartSolar MPPT 100 / 50 |
| Battery voltage | 12V / 24V |
| Nominal charging current | 50 A |
| Nominal PV power 12 V | 700 W |
| Nominal PV power 24 V | 1400 W |
| Max. PV - Open-circuit voltage | 100 V |
| Max. PV short-circuit current | 60 A |
| efficiency | 98% |
| Constant charging voltage | 14.4 V / 28.8 V |
| Maintenance charging voltage | 13.8 V / 27.6 V |
| Operating temperature | -30°C to +60°C |
| Weight | 1.3 kg |
| Mass | 130 x 186 x 70 mm |
