640W Solar Off-Grid System Kit (4x160W) WATTSTUNDE® 40A 90V MPPT Solar Charge Controller WLR40.90 MPPT
- 4 x 160 W-HV SOLA Frame monocrystalline solar module
- WATTSTUNDE® 40A MPPT charge controller WLR-BT40.90 MPPT
- 2 x 5 m solar connection cable 6mm²
- 1.5 m battery connection cable
Tax included. Shipping calculated at checkout
- 1× WATTSTUNDE® MC4.4 Adapter Set (Inkl. 19 % MwSt.)
- 1× WATTSTUNDE® Sicherungskabel (mit Sicherung 40A) 2x10mm² M8/Aderendhülse 1,5m rot/schwarz (Inkl. 19 % MwSt.)
- 1× WATTSTUNDE® 40 A 90 V MPPT Solar Laderegler WLR-BT 40.90 MPPT 12 / 24 V (Inkl. 19 % MwSt.)
- 4× WATTSTUNDE® SOLA Frame Mono 160 Wp HV (Inkl. 19 % MwSt.)
- 1× WATTSTUNDE® MVK 6.5 Anschlusskabel Solarmodul zu Laderegler 2x 5 Meter 6mm² (Inkl. 19 % MwSt.)
Your legal guarantee rights

Product description
640 W Solar Kit Off-Grid System with WATTSTUNDE WLR-BT40.90 MPPT Charge Controller
The convenient start with your own self-sufficient solar power supply.
Free yourself from the supply networks and gain your first experience with our solar kits and complete sets.
The complete sets of the Beginner series are carefully put together, the high-quality components ensure independence from the public power grid. As a special feature, the charge controller can be freely selected according to your wishes.
Take advantage of the opportunity today to electrify the allotment garden, the holiday home, or the barn - with the 640 W solar kit, a 12 V off-grid system can be built with ease.
Simple installation, quick commissioning and prepared materials make your setup a breeze!
The set consists of:
- 4 x 160 W-HV SOLA Frame monocrystalline solar module with MC4-compatible connectors

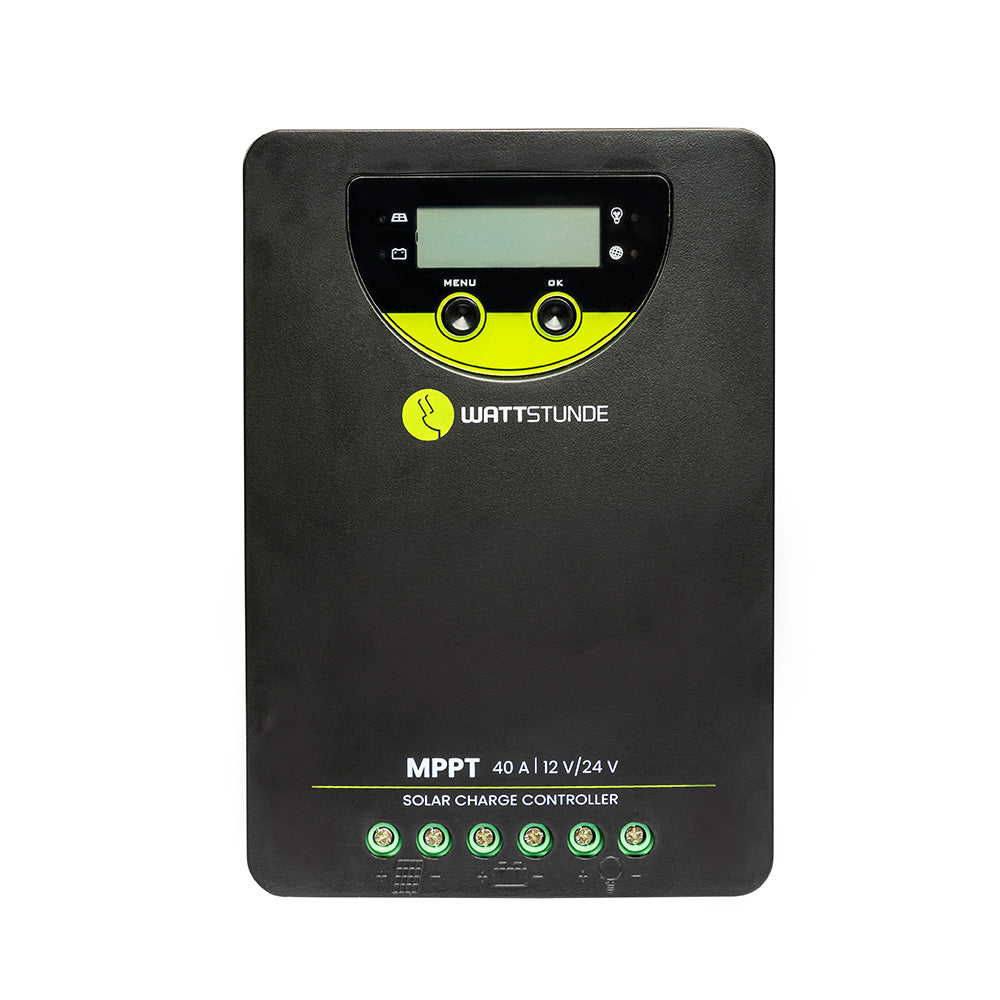

- WATTSTUNDE® 40A MPPT charge controller WLR-BT40.90 MPPT

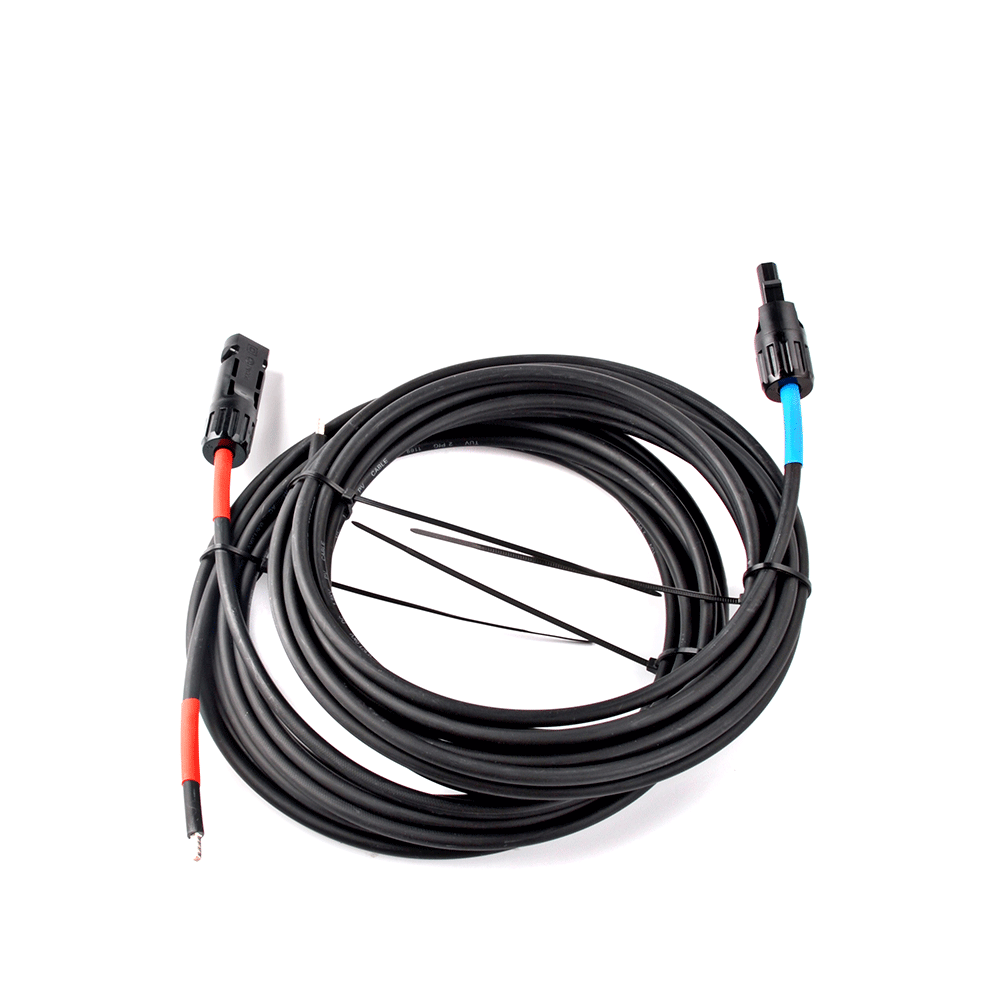

- 2 x 5 m solar connection cable 6mm²
- MC4-compatible connector set (socket + plug) already pre-assembled

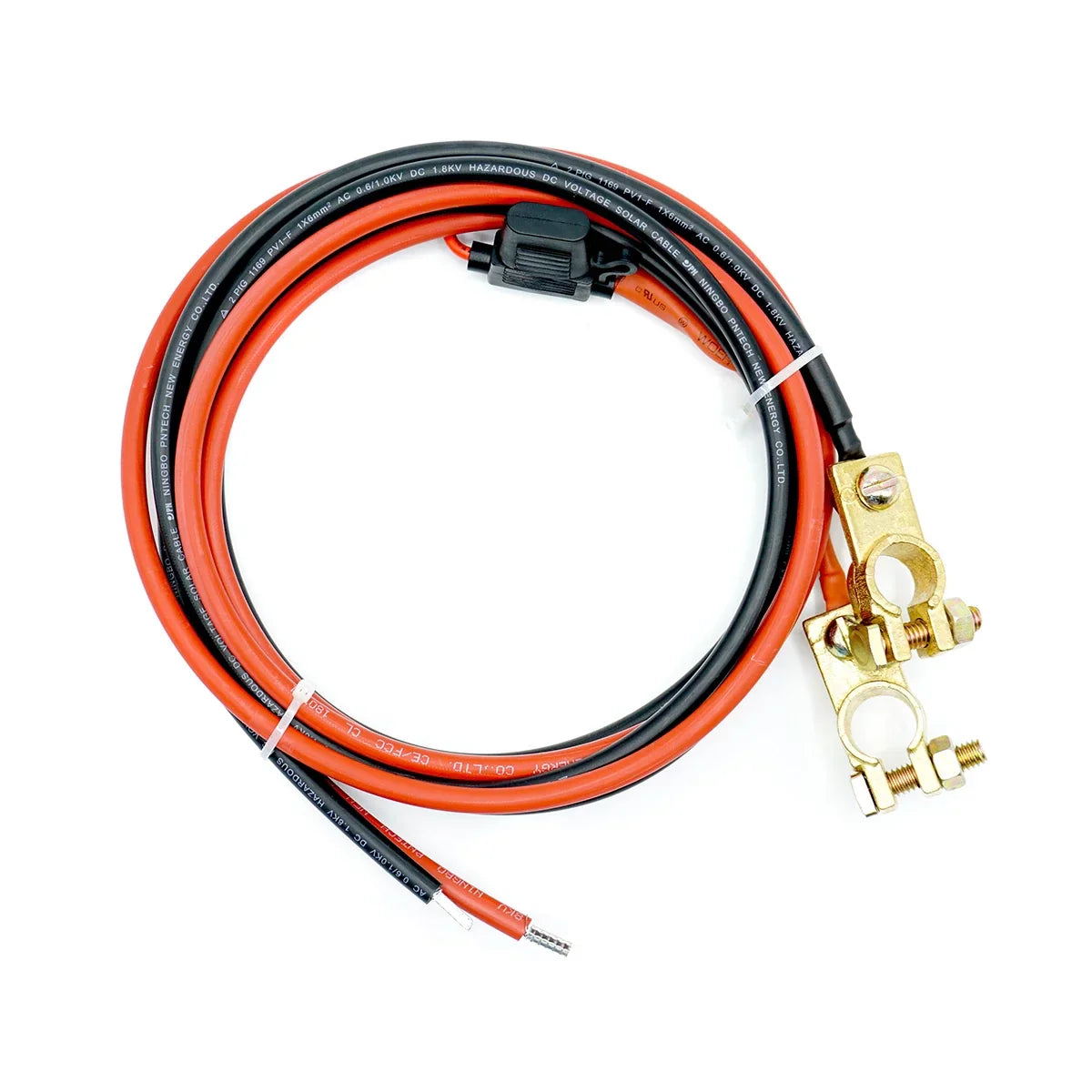

- 1.5 m battery connection cable 10 mm² incl. 40 A flat fuse
- Installation instructions and operating instructions for all devices in German
One set - many application possibilities
The sets are the perfect foundation for your off-grid power supply and offer a solid basis for a variety of applications. For example, allotment gardens, garden sheds, tiny houses, lighting systems, surveillance systems, self-sufficient exhibition facilities, small holiday homes, boat sheds, or other stationary applications can be supplied with energy.
The practical USB charging function allows for convenient charging of mobile phones, tablets, or laptops. All devices with 5 V (USB, max 2 A) or 12 V (controllable load output) can be charged quickly and conveniently off-grid.
Which charge controller is the right one?
Basically, you can distinguish between two charging technologies: PWM or MPPT.
Pulse width modulation (PWM) is a simple and robust way to charge a solar battery safely and quickly. The stored characteristic curve protects the battery from incorrect currents or voltages, depending on the state of charge, the controller implements the appropriate values. The controllers from the LR-ALCD series are therefore a cost-effective, yet reliable solution.
In recent years, the modern Maximum Power Point Tracking (MPPT) method is gaining more and more ground.
Intelligent microprocessor electronics constantly determine the operating point with the maximum energy yield. Higher voltages are also optimally utilized for the charging process. Thus, with the controllers of the WSL MPPT series, additional yields of up to 30% can be generated compared to traditional PWM devices.
It is possible to select an oversized charge controller. This allows you to retrofit identical solar modules later. For example, if energy consumption increases or the system was undersized - no problem, simply install another panel, and the solar system simply grows with it!
All controllers feature an integrated LCD display - the voltages and currents of the system are displayed in real time. This way you can always keep an eye on your power supply.
| Technical Data | SOLA Frame Mono 160 Wp HV |
| Rated power | 160 W |
| Max. daily yield (summer) | 640 Wh/d |
| Voltage (Umpp) | 41.76 V |
| Current (Impp) | 4.32 A |
| Open-circuit voltage (Voc) | 47.52 V |
| Short-circuit current (Isc) | 4.06 A |
| Cell efficiency | >20 % |
| Cell material | Monocrystalline |
| Bypass diode | Integrated |
| Weight | 10.0 kg |
| Dimensions | 1480 x 670 x 35 mm |
| Technical Data | WLR-BT 40.90 MPPT |
| Max. DC input current | 40 A |
| Max. PV open-circuit voltage | 90 V DC (25 °C) |
| Max. solar power | 520 Wp (12V) / 1040 W (24 V) |
| Battery type | AGM, Gel, Lead-acid, Lithium (Lithium only 12 V) |
| Battery nominal voltage | 12/24 V (automatic detection) |
| Charging technology | MPPT |
| Communication | Bluetooth or RS485 |
| Deep discharge protection voltage 12 V / 24 V | 10.8 V - 11.8 V / 21.6 V - 23.6 V |
| Temperature compensation | integrated |
| Display/Operation | LCD display with backlight |
| Weight | 1300 g |
| Dimensions | 196.5 x 136.6 x 97.1 mm |
