140 Wp WATTSTUNDE® Off-Grid Set | NOVA Base² 100 Ah + Victron SmartSolar MPPT 75/15 + Adapter & Fuse Cables

  • 12V off-grid kit: LiFePO4 battery (100 Ah) + 140 Wp folding solar panel + Victron MPPT charge controller
  • Complete & ready to use immediately: incl. connection and fuse cables (20 A) as well as adapter cables for a clean installation
  • Victron SmartSolar MPPT 75/15 with Bluetooth: monitoring, setup & updates conveniently via smartphone
  • Robust SunFolder panel: ETFE surface, SunPower Maxeon cells and stable stand design for on the go
  • Ideal for camping, van & boat: reliable power supply for 12V devices – independent of shore power

Direkt zu den Produktinformationen ↓
Sale price1.064,59 €

Tax included. Shipping calculated at checkout

SKU: WS31-103002

In stock
Versandbereit in: 1 - 3 Werktagen

Product description

Off-grid set for 12 V power supply with (100 Ah LiFePO4, 140 Wp solar panel and MPPT)

This set provides you with a well-thought-out solution for 12 V off-grid power. It combines the WATTSTUNDE® NOVA Base² with 100 Ah, the WATTSTUNDE® SOLA Ease SunFolder with 140 Wp, the Victron SmartSolar MPPT 75/15 with integrated Bluetooth as well as the matching connection and fuse cables. This gives you a neatly assembled solar charging system that is quickly ready to use on the go, can be conveniently monitored via smartphone and reliably stores your energy – ideal for camping, vans, boats or 12 V consumers.

How the set works together

Generate solar power, charge via MPPT, store in LiFePO4. The SOLA Ease SunFolder provides solar energy, the Victron MPPT charge controller efficiently extracts the maximum yield through MPPT tracking and reliably charges your NOVA Base² . The fuse cable with 20 A fuse connects the charge controller and battery, and the adapter cable (4 mm², A50/cable lug, 50 cm) ensures that you can route the SunFolder Anderson connection appropriately to the charge controller.

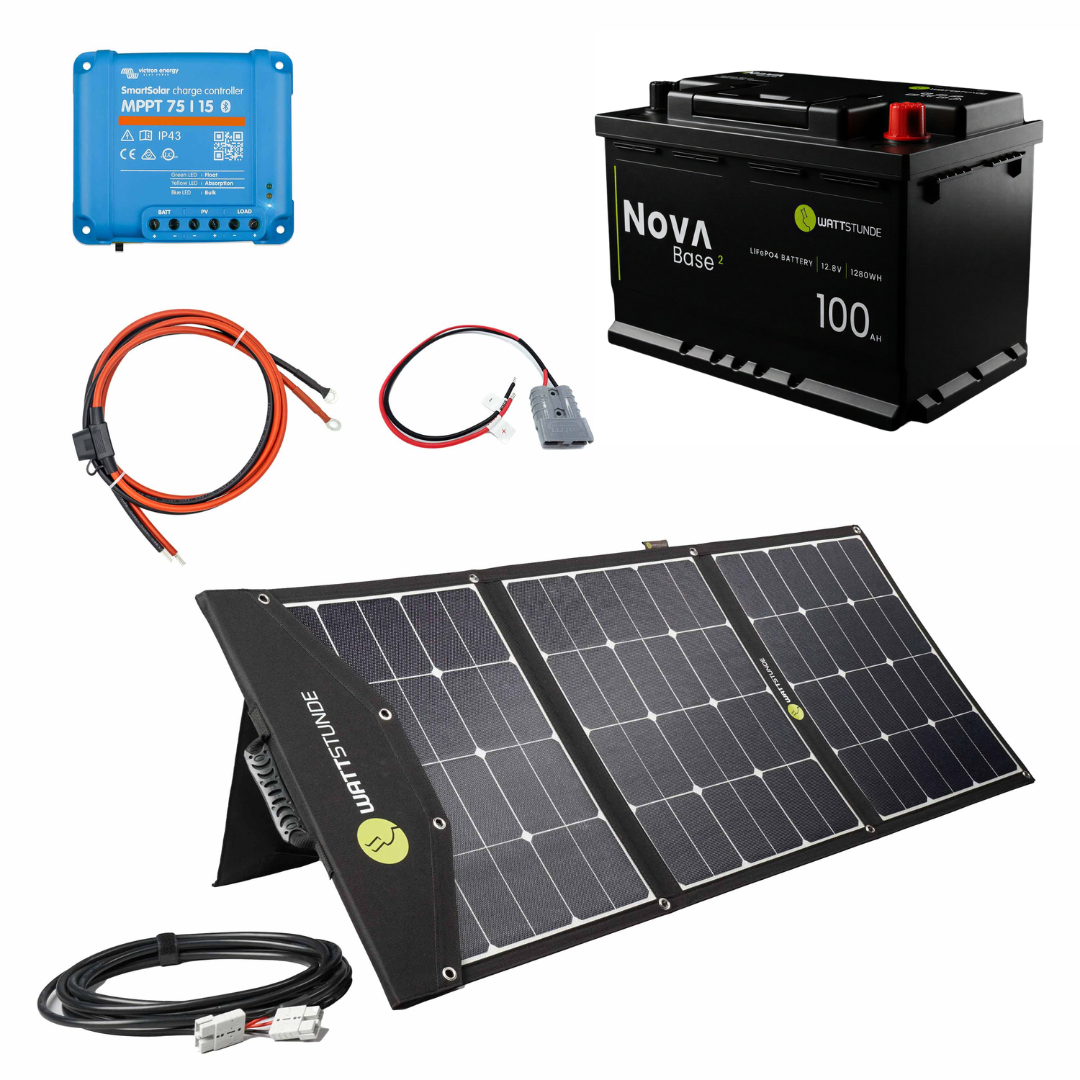

Set contents

  • 1x WATTSTUNDE® NOVA Base² 100 Ah LiFePO4 battery
  • 1x WATTSTUNDE® SOLA Ease 140 Wp SunFolder solar bag
  • 1x Victron SmartSolar MPPT 75/15 (integrated Bluetooth)

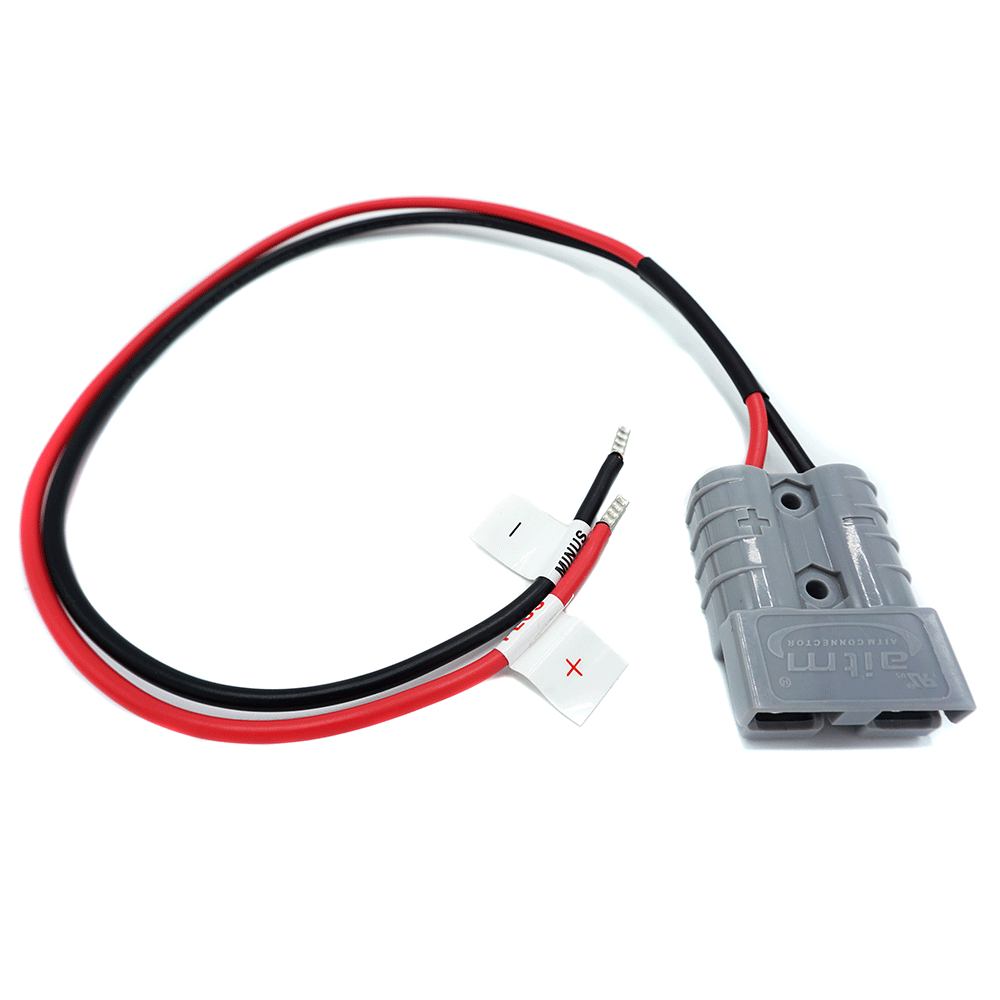

  • 1x WATTSTUNDE® adapter cable 4 mm² A50/cable lug, 50 cm, black

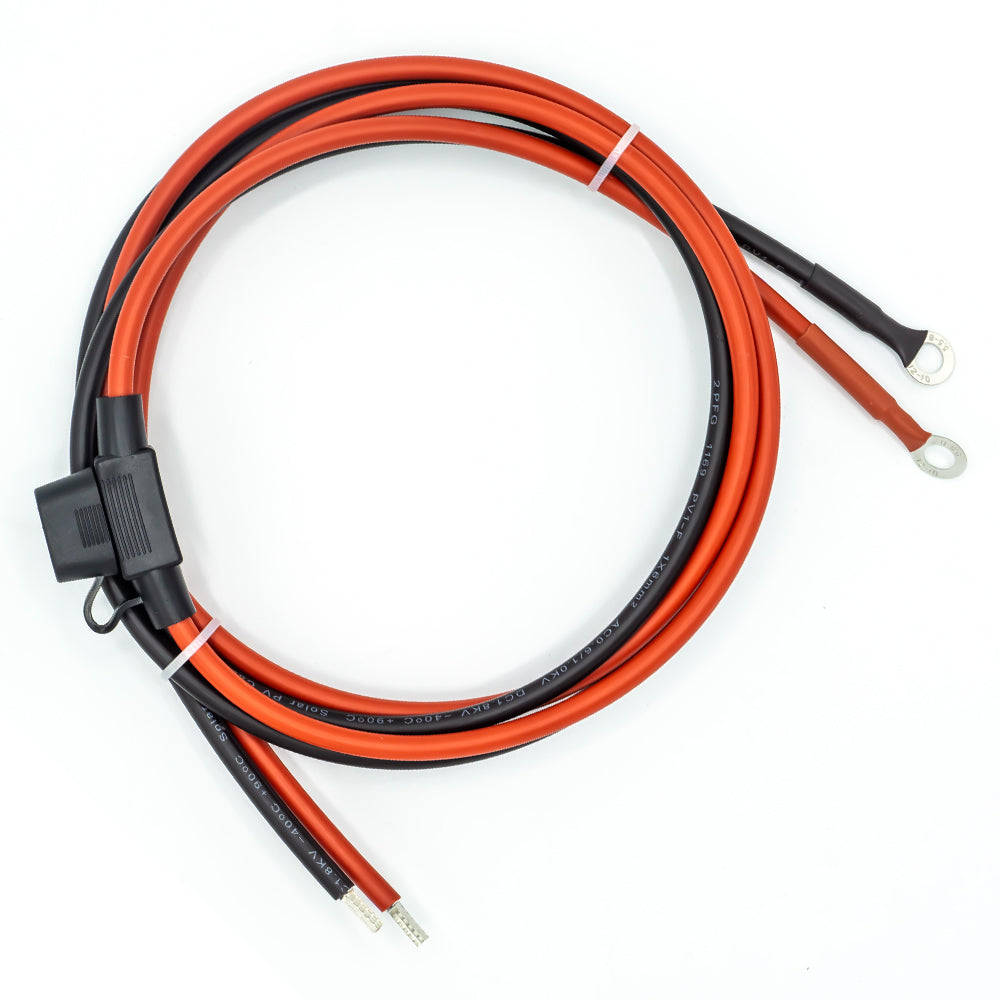

  • 1x WATTSTUNDE® fuse cable with 20 A fuse, 2 × 4 mm², M8/cable lug, 1.5 m, red/black

NOVA Base² 100 Ah LiFePO4: efficient storage with powerful BMS

The NOVA Base² combines 12.8 V nominal voltage and 100 Ah capacity with an optimized BMS (up to 150 A discharge current under 30 min) and comprehensive protection functions. Practical for stationary use: the low self-consumption of approx. 2.5 mA/h. In addition, there are new connection options (DIN & M8) as well as current standards such as ECE R10.7 and a 5-year warranty.

SOLA Ease 140 Wp SunFolder: quick to set up, robustly packaged

The folding solar panel is designed for easy use: unfold, align, connect. The ETFE surface ensures high light transmission and the high-quality SunPower Maxeon cells with 24.40 % cell efficiency deliver solid yields even under demanding conditions. With a particularly wide stand, the panel stands stably and the Cordura fabric protects during transport.

Victron SmartSolar MPPT 75/15 for optimized yields

The SmartSolar MPPT 75/15 operates with ultra-fast MPPT tracking and is particularly advantageous with changing irradiance or partial shading. Via the integrated Bluetooth, you can see important data in real time on your smartphone and perform setup and updates wirelessly. In addition, there are functions such as the BatteryLife algorithm and a short-circuit-proof load output, which can disconnect loads if the battery voltage is too low.

Secure wiring

For a clean connection, the cables in the set are designed for practical use: The WATTSTUNDE® fuse cable (2 × 4 mm², 1.5 m) comes with a replaceable 20 A blade fuse, is splash-proof and ends on the battery side with M8 ring cable lugs as well as on the controller side with cable lugs. In addition, the adapter cable 4 mm² A50/cable lug (50 cm) is included to connect the SunFolder connection appropriately to the charge controller.

With this off-grid set you get a harmonious combination of a folding solar panel, an efficient MPPT charge controller and modern LiFePO4 storage – including matching cables and fuse, so that your 12 V setup is neatly assembled and reliably delivers energy on the go.






Technical data SOLA Ease 140 Wp
Rated power (Pmpp) 140 Wp
Max. daily yield (summer) 840 Wh/d
Voltage (Umpp) 44.60 V
Current (Impp) 3.03 A
Open-circuit voltage (Uoc) 52.50 V
Short-circuit current (Isc) 3.21 A
Bypass diode integrated
Cell efficiency 24.40 %
Connection cable 4.7 meters
Weight 4.7 kg
Dimensions (folded) 560 x 425 x 20 mm
Dimensions (open) 1500 x 560 x 4 mm






Technical data NOVA Base 100 Ah
Nominal voltage 12.8 V
Nominal capacity 100 Ah / 1280 Wh
Constant discharge current 100 A
Temperature range (discharge) - 30 °C to + 60 °C
Temperature range (charging) 0 °C to + 45 °C
Temperature range (storage) - 5 °C to + 35 °C
Wiring Parallel / series (Max. 4 batteries)
Cycle life ≥ 4000 at 80 % DoD
Weight 11.5 kg (± 0.1 kg)
Dimensions 277 x 175 x 189 mm (± 2 mm)






Technical data SmartSolar MPPT 75 / 15
Battery voltage 12 V / 24 V
Rated charging current 15 A
Rated PV - power 12 V 220 W
Rated PV - power 24 V 440 W
Max. PV - open-circuit voltage 75 V
Max. PV - short-circuit current 15 A
Efficiency 98 %
Constant - charging voltage 14.4 V / 28.8 V
Float - charging voltage 13.8 V / 27.6 V
Operating temperature - 30 °C - + 60 °C
Weight 0.5 kg
Dimensions 100 x 113 x 40 mm
