SOLA Frame Daylight 190Wp RV Solar System Victron SmartSolar 75/15

190W SOLA Frame Daylight Solar System for Motorhomes and Campervans

WATTSTUNDE® SOLA Frame Daylight Complete Set with 190W Power and Sunpower Back-Contact Cells

The premium complete solar systems from WATTSTUNDE for motorhomes, campers, and caravans. Powerful solar systems for demanding users. Optimal performance on the smallest area, especially in poor and diffuse lighting conditions. The motorhome solar systems of the SOLA Frame Daylight series are characterized above all by a high level of quality and performance and enable you to achieve the highest possible yields in the mobile area.

WATTSTUNDE solar modules of the SOLA Frame Daylight series are manufactured according to strict quality guidelines and consist of powerful and innovative Back-Contact SunPower® Maxeon cells. Thanks to the Back-Contact cell technology, the cell efficiency is over 24%.

The SOLA Frame Daylight 190W solar set consists of:

• WATTSTUNDE® SOLA Frame Daylight solar module with cable and MC4 connectors
• Victron SmartSolar 75/15 charge controller with Bluetooth

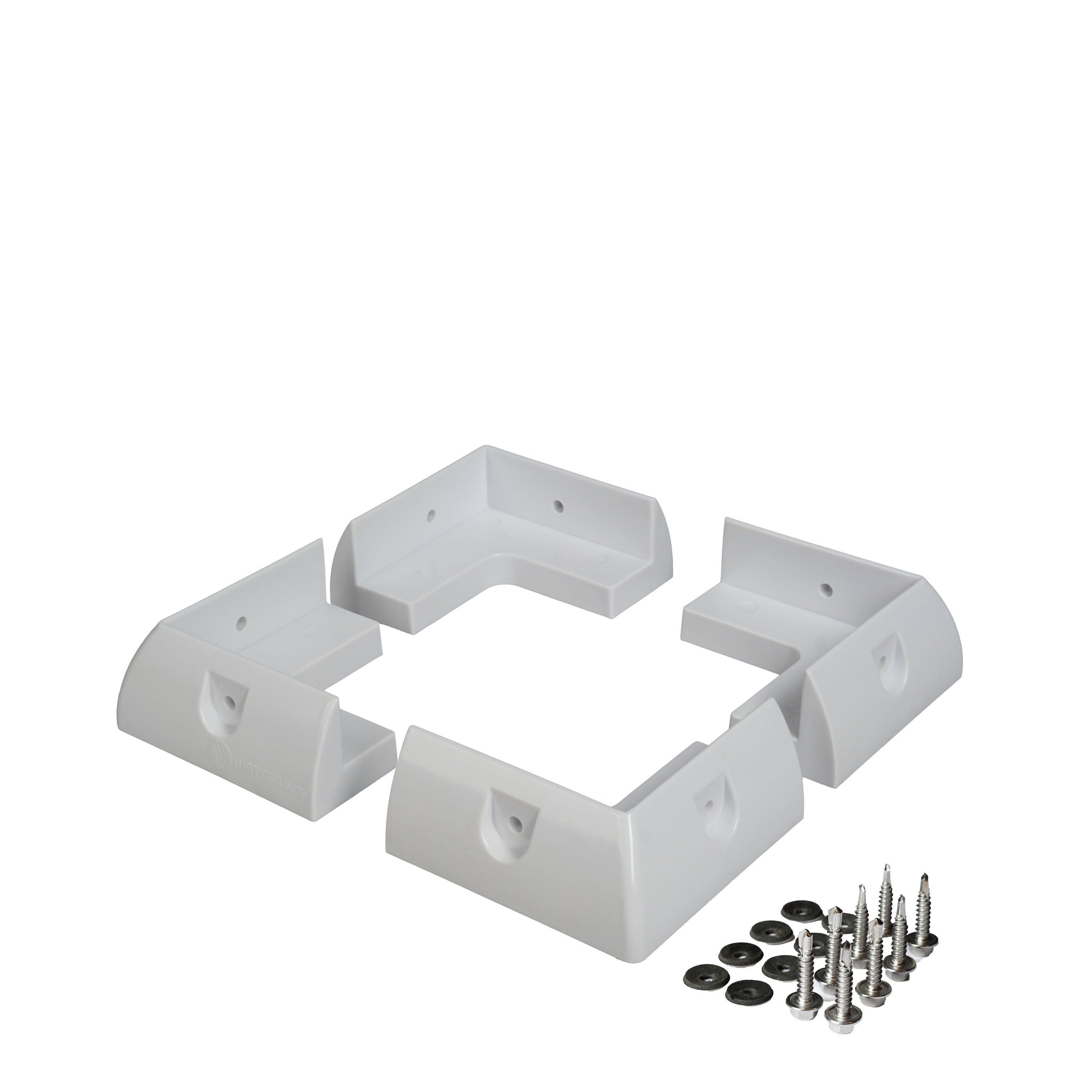

• WATTSTUNDE® HXE mounting corners incl. stainless steel screws
• WATTSTUNDE® DX2 solar roof penetration
• Dekalin adhesive set - white
• 2 x 7m solar connection cable 4mm² incl. compatible MC4 connector system (solar module to charge controller)
• MC4 connector set (socket + plug) already pre-assembled
• 1.5m battery connection cable 4mm² incl. 20A flat fuse
• Operating instructions for all devices in German

The complete sets of the WATTSTUNDE® series are characterized above all by a high level of quality and enable you to have a sense of security and independence from the public supply network in the mobile area. The 190W complete set contains exclusively high-quality and reliable components and everything that is needed to immediately start with the installation and mounting on your motorhome roof.

The WATTSTUNDE DAYLIGHT solar modules are built with Back-Contact SunPower® Maxeon cells, which have a significantly higher cell efficiency, up to over 24%, than normal monocrystalline or polycrystalline solar modules and thus ensure you a higher energy yield! Thanks to the Backcontact technology, the cell can absorb more light and convert the additional absorption into electrical energy.

The included mounting spoilers are made of solid plastic and also prevent any driving noises with their aerodynamic shape.

The construction adhesive included in the set is a one-component elastic adhesive, specially designed for this application.
The special chemistry enables reliable and durable bonding and thus fixes the module reliably and permanently on the vehicle roof.

Ultra-fast MPPT tracking of the Victron SmartSolar MPP 75/15

Especially on cloudy days, when the light intensity is constantly changing, the super-fast MPPT algorithm improves the energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point detection in case of partial shading. In the event of partial shading, there can be two or more points of maximum power (MPP) on the current-voltage curve. Conventional MPPTs tend to set themselves to a local MPP. However, this may not be the optimal MPP.
The innovative algorithm of the SmartSolar device will always maximize the energy yield by setting itself to the optimal MPP.

Highlight: Display of data in real time on the smartphone!

A Bluetooth-enabled smartphone can display a variety of data live. The wireless solution for setting up, monitoring, and updating the controller using Apple and Android smartphones, tablets, or other devices.
Unlike the BlueSolar controllers, the Bluetooth interface is already built-in here, so no additional accessories need to be purchased.

Together with the DAYLIGHT Backcontact solar modules and the MPP charge controller, you receive an efficient premium set with high-quality products for the highest energy yield.

Enjoy freedom with the quality motorhome solar systems from WATTSTUNDE®
