DAYLIGHT Sunpower 380Wp Motorhome Solar System Votronic MPP 360 CI

  • 2 x SOLA Frame Daylight 190Wp solar module with back-contact SunPower® Maxeon cells
  • Votronic MPP360 CI charge controller
  • 2 x HXE mounting brackets incl. stainless steel screws
  • DX2 cable gland

Direkt zu den Produktinformationen ↓
Sale price1.302,61 €
Neues Produkt

Tax included. Shipping calculated at checkout

SKU: WS22-380300-02

In stock
Versandbereit in: 1 - 3 Werktagen

Product description

380W Solar System for Motorhomes and Campervans

The premium complete solar systems from WATTSTUNDE for motorhomes, campers and caravans. Powerful solar systems for demanding users. Optimal performance on the smallest area, especially in poor and diffuse light conditions. The motorhome solar systems of the SOLA Frame Daylight series are characterized above all by a high degree of quality and performance and enable you to achieve the highest possible yields in the mobile area.

WATTSTUNDE solar modules of the DAYLIGHT series are manufactured according to strict quality guidelines and consist of powerful and innovative Back-Contact SunPower® Maxeon cells. Due to the Back-Contact cell technology, the cell efficiency is well over 24%.

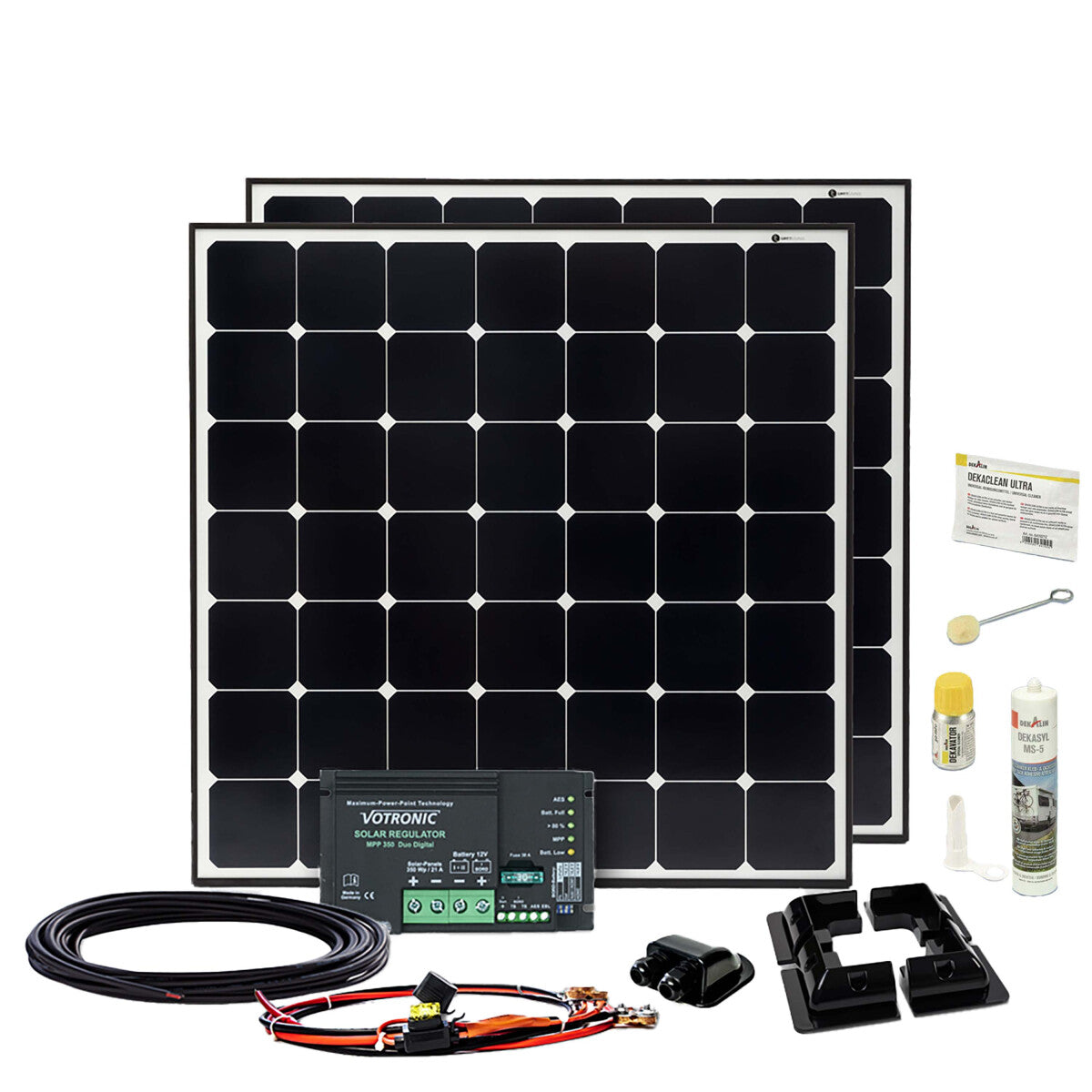

The 380Wp SOLA Frame Daylight solar set consists of:

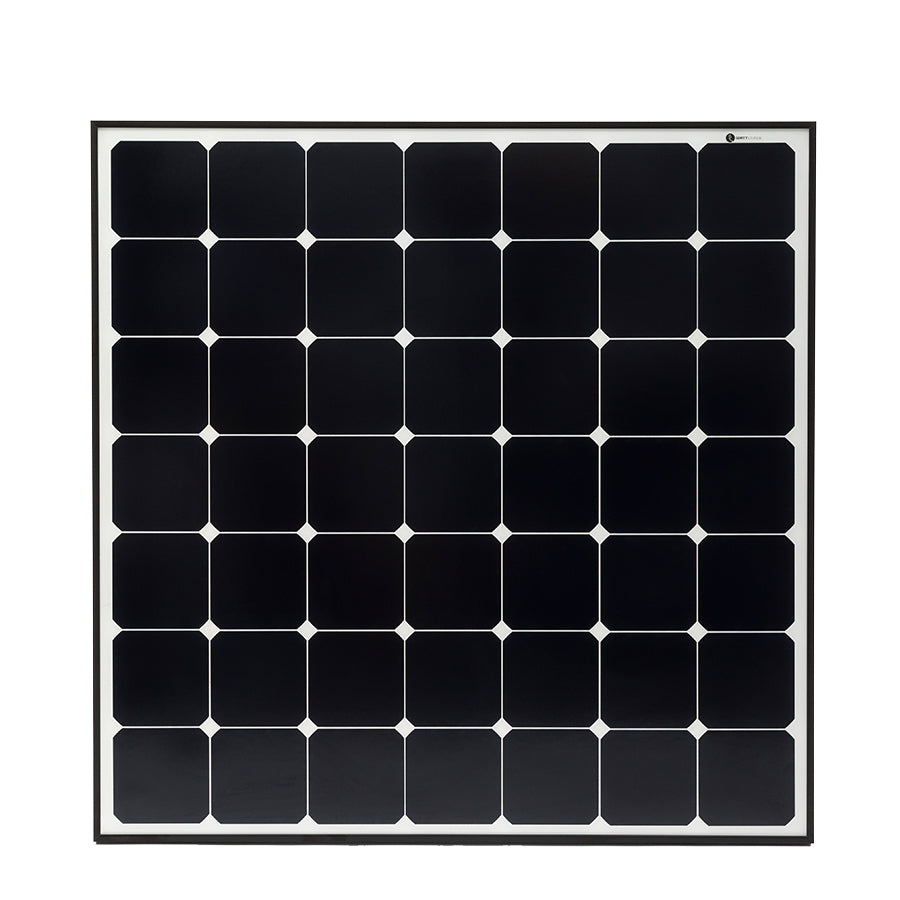

  • 2 x WATTSTUNDE® SOLA Frame Daylight 190W solar module with cable and MC4 connectors

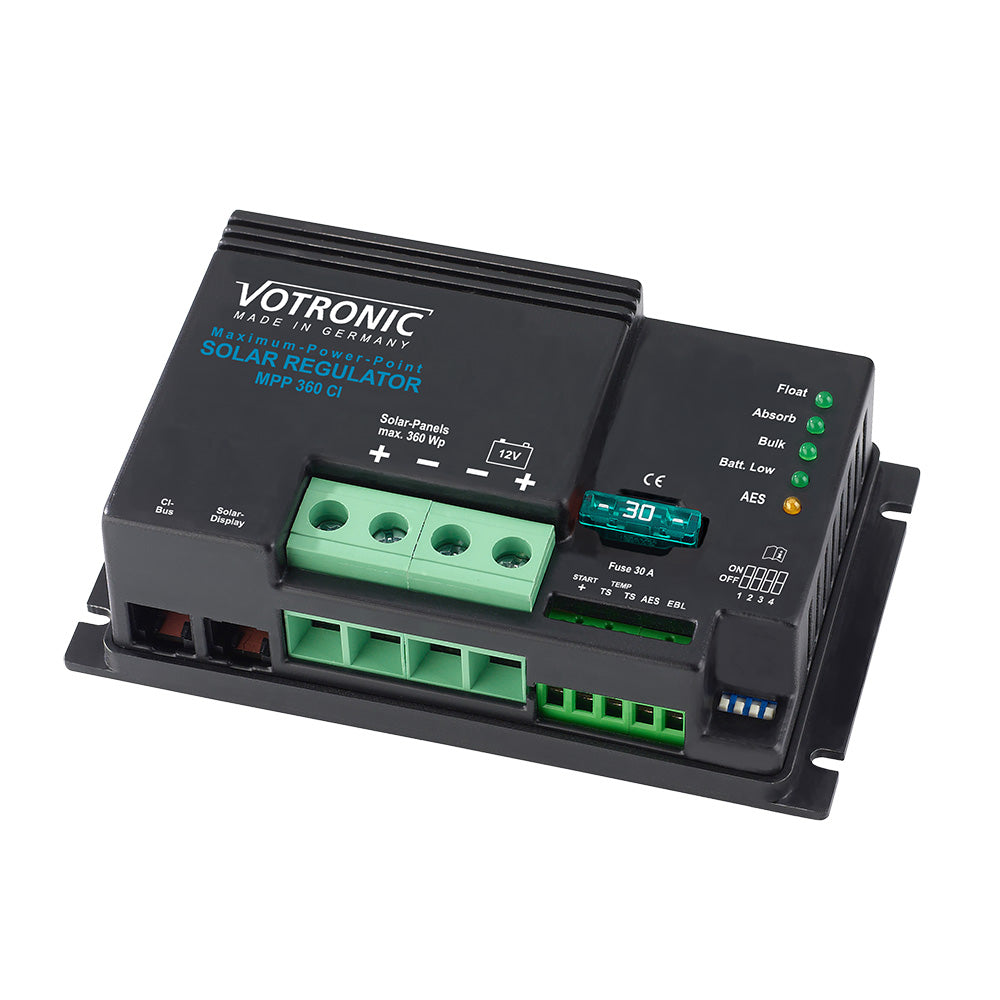

  • Votronic MPP360 CI charge controller

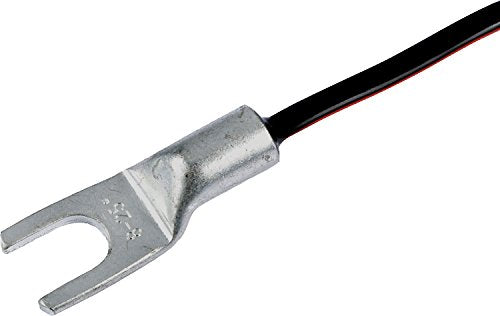

  • Votronic temperature sensor

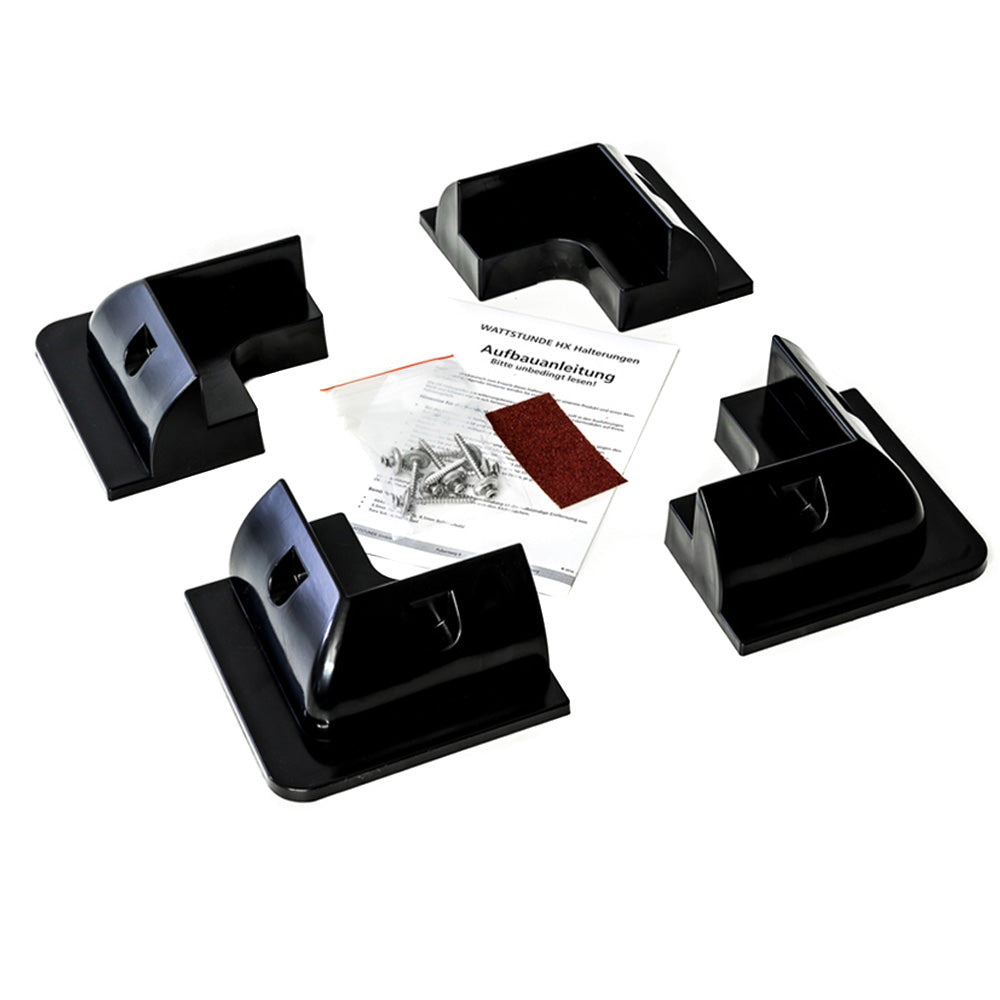

  • 2 x WATTSTUNDE® HXE mounting corners incl. stainless steel screws

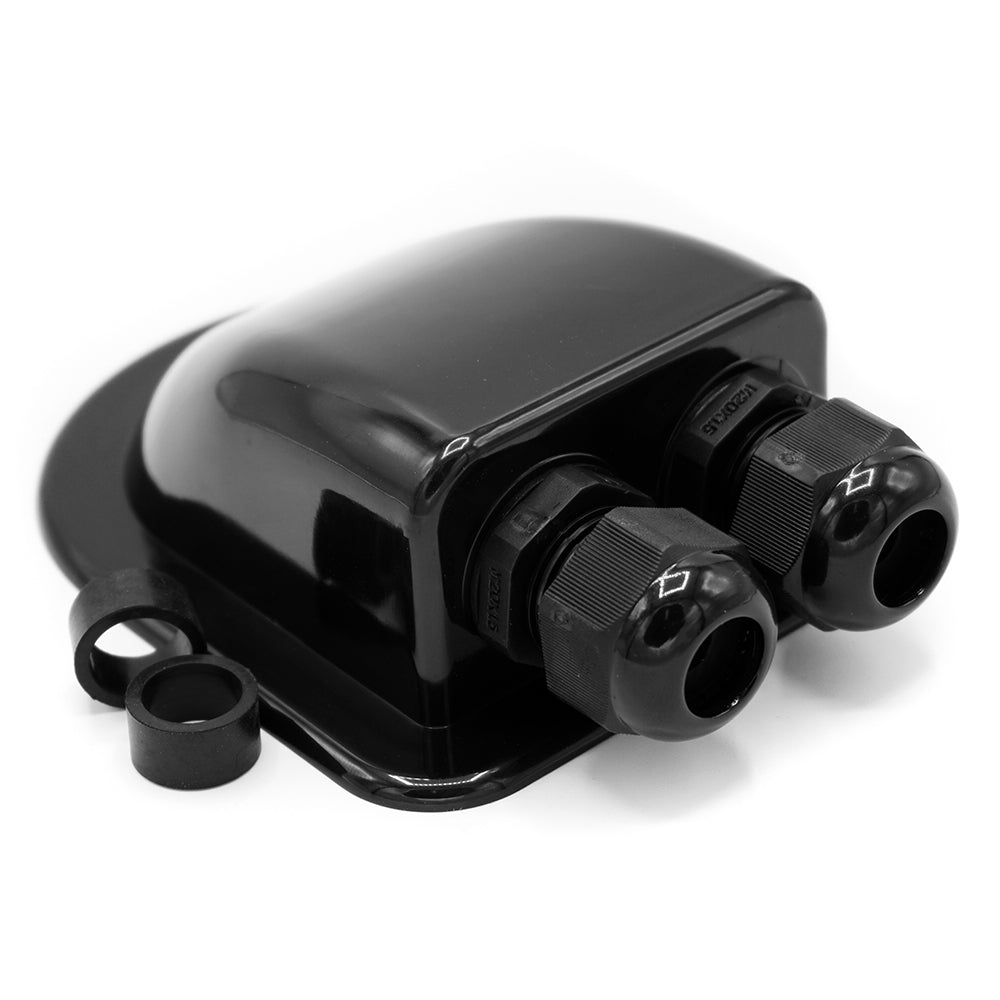

  • WATTSTUNDE® DX2 solar roof penetration

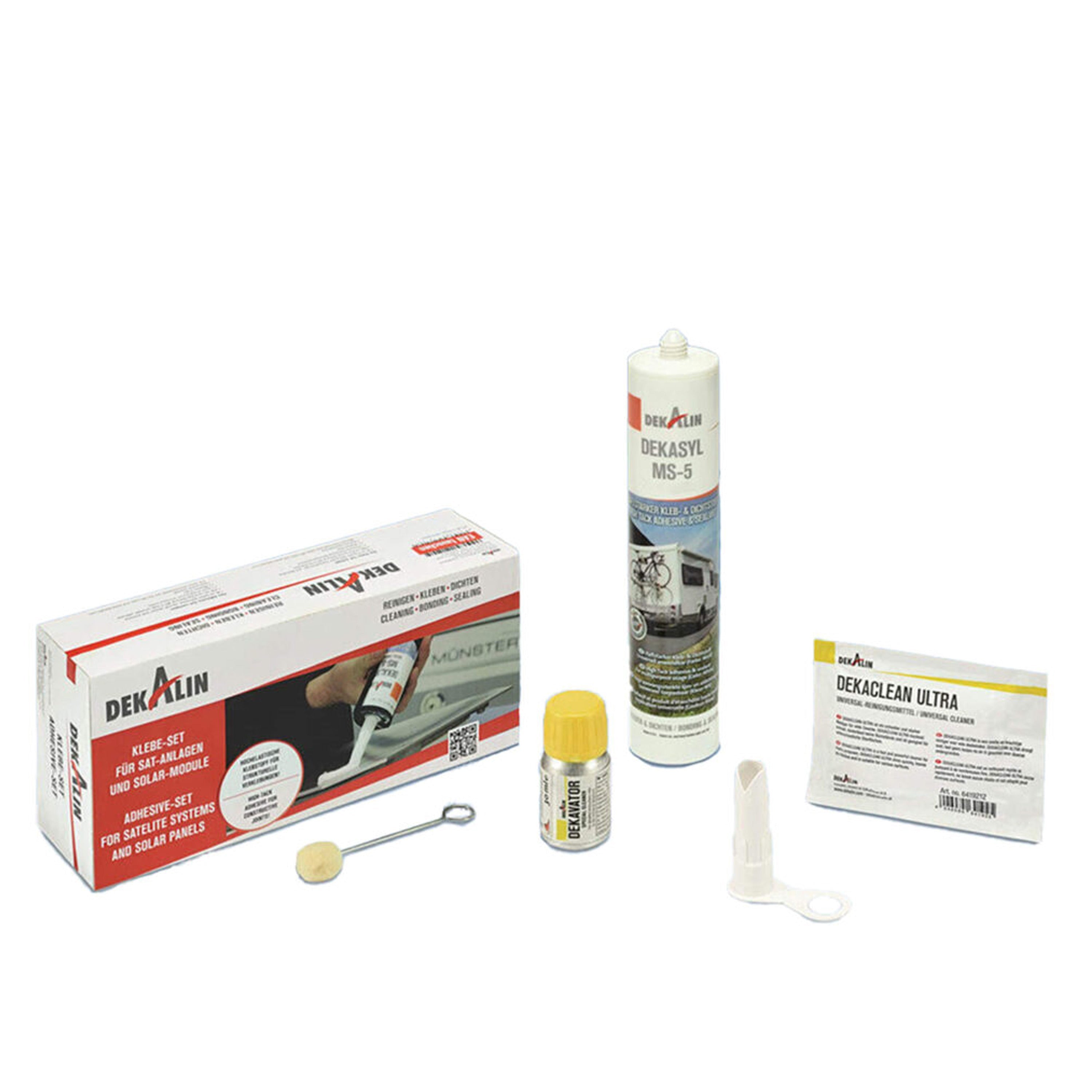

  • 2 x Dekalin adhesive set - black

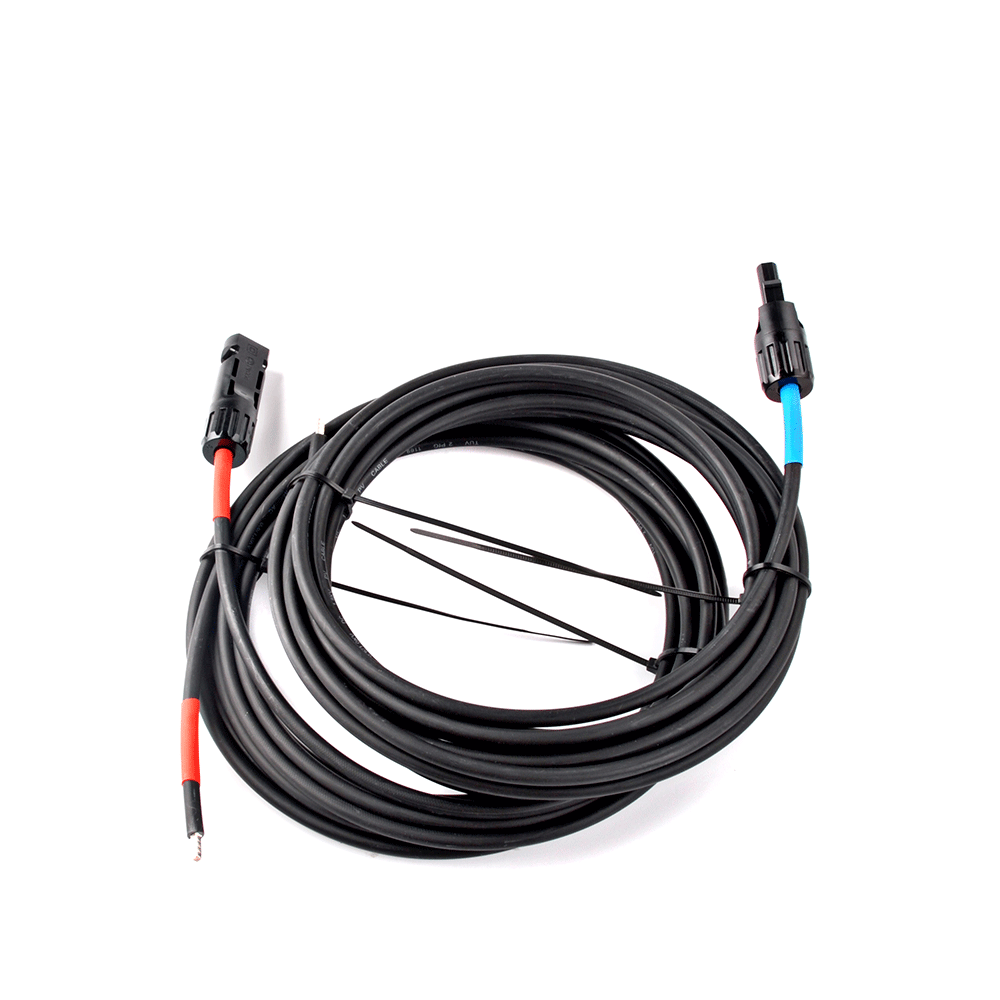

  • 2 x 7m solar connection cable 6mm² incl. compatible MC4 connector system (solar module to charge controller)
  • MC4 connector set (socket + plug) already pre-assembled

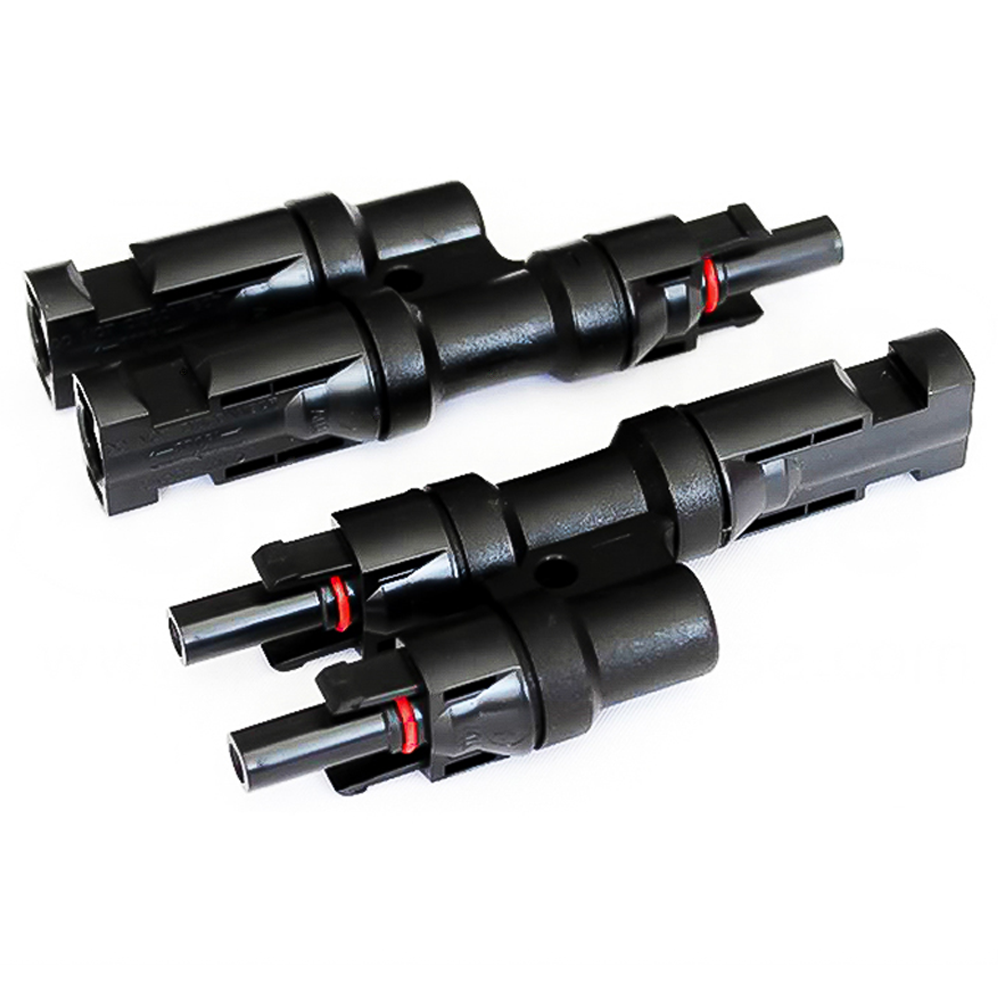

  • MC4 Y connector set for parallel connection of the solar modules
  • 1.5m battery connection cable 10mm² incl. 40A flat fuse
  • Operating instructions for all devices in German

The complete sets of the WATTSTUNDE® series are characterized above all by a high degree of quality and enable you to have a sense of security and independence from the public supply network in the mobile area. The 380W complete set contains exclusively high-quality and reliable components and everything that is needed to immediately start with the installation and mounting on the motorhome roof.

The WATTSTUNDE DAYLIGHT solar modules are equipped with Back-Contact SunPower® Maxeon cells, which have a significantly higher cell efficiency, up to over 24%, than normal monocrystalline or polycrystalline solar modules and thus ensure you a higher energy yield! Due to the Backcontact technology, the cell can absorb more light and convert the additional intake into electrical energy.

The included mounting spoilers are made of solid plastic and also prevent any driving noises with their aerodynamic shape.
The construction adhesive included in the set is a one-component elastic adhesive, specially designed for this application.
The special chemistry enables reliable and durable bonding and thus fixes the module reliably and permanently on the vehicle roof.

The Votronic MPP charge controllers are manufactured in Germany and are among the most powerful and reliable charge controllers on the market. The MPP series from Votronic works with the Maximum Power Point Tracking principle. In the MPP technology, the controller continuously automatically determines the maximum power yield of the solar modules several times per second. It then transforms the excess voltage of the solar panel into a higher charging current for the battery (realized through high-frequency switching regulator technology with high efficiency). This charging current gain ensures shorter charging times and the best possible performance utilization of the solar system.




Technical Data SOLA Frame Daylight 190 Wp
Rated power 190 W
Max. daily yield (summer) 950 Wh/d
Voltage (Umpp) 30.10 V
Current (Impp) 6.31 A
Open-circuit voltage (Voc) 35.30 V
Short-circuit current (Isc) 6.68 A
Cell efficiency ≥ 24 %
Cell material SunPower Maxeon cells
Bypass diode Integrated
Weight 9.0 kg
Dimensions 920 x 920 x 30 mm






Technical Data Votronic MPPT 360 CI
Battery voltage Lead / LiFePO4 12 V / 12 - 13.3 V
Max. solar module power 50 - 360 Wp
Max. solar module current 21 A
Max. solar module voltage 60 V
Max. charging current onboard battery 26 A
Max. charging current starter battery 1 A
Weight 285 g
Dimensions 77 x 131 x 40 mm
