380Wp SOLA Frame Daylight Sunpower RV Solar System WLR 40.90 MPPT

  • 2 x WATTSTUNDE® SOLA Frame Daylight 190Wp solar module with SunPower Maxeon solar cells
  • WATTSTUNDE WSL40.90 MPPT charge controller with LCD display
  • 2 x HXE mounting brackets incl. stainless steel screws
  • DX2 cable gland

Direkt zu den Produktinformationen ↓
Sale price1.228,51 € Regular price1.243,80 €
Neues Produkt

Tax included. Shipping calculated at checkout

SKU: WS22-380300-01

In stock
Versandbereit in: 1 - 3 Werktagen

Product description

380W solar system for motorhomes and campervans

WATTSTUNDE® SOLA Frame Daylight complete set with 380W power and Sunpower Back-Contact cells

The premium solar complete systems from WATTSTUNDE for motorhomes, campers and caravans. Powerful solar systems for the demanding user. Optimal performance on the smallest area, especially in poor and diffuse light conditions. The motorhome solar systems of the SOLA Frame Daylight series are characterized above all by a high level of quality and performance and enable you to achieve the highest possible yields in the mobile area.

WATTSTUNDE solar modules of the SOLA Frame Daylight series are manufactured according to strict quality guidelines and consist of powerful and innovative Back-Contact SunPower® Maxeon cells. Due to the innovative Back-Contact cell technology, the cell efficiency is well over 24%.

The 380Wp SOLA Frame Daylight solar set consists of:

  • 2 x WATTSTUNDE® SOLA Frame Daylight 190W solar module with cable and MC4 connectors
  • WATTSTUNDE WLR40.90 MPPT charge controller with LCD display

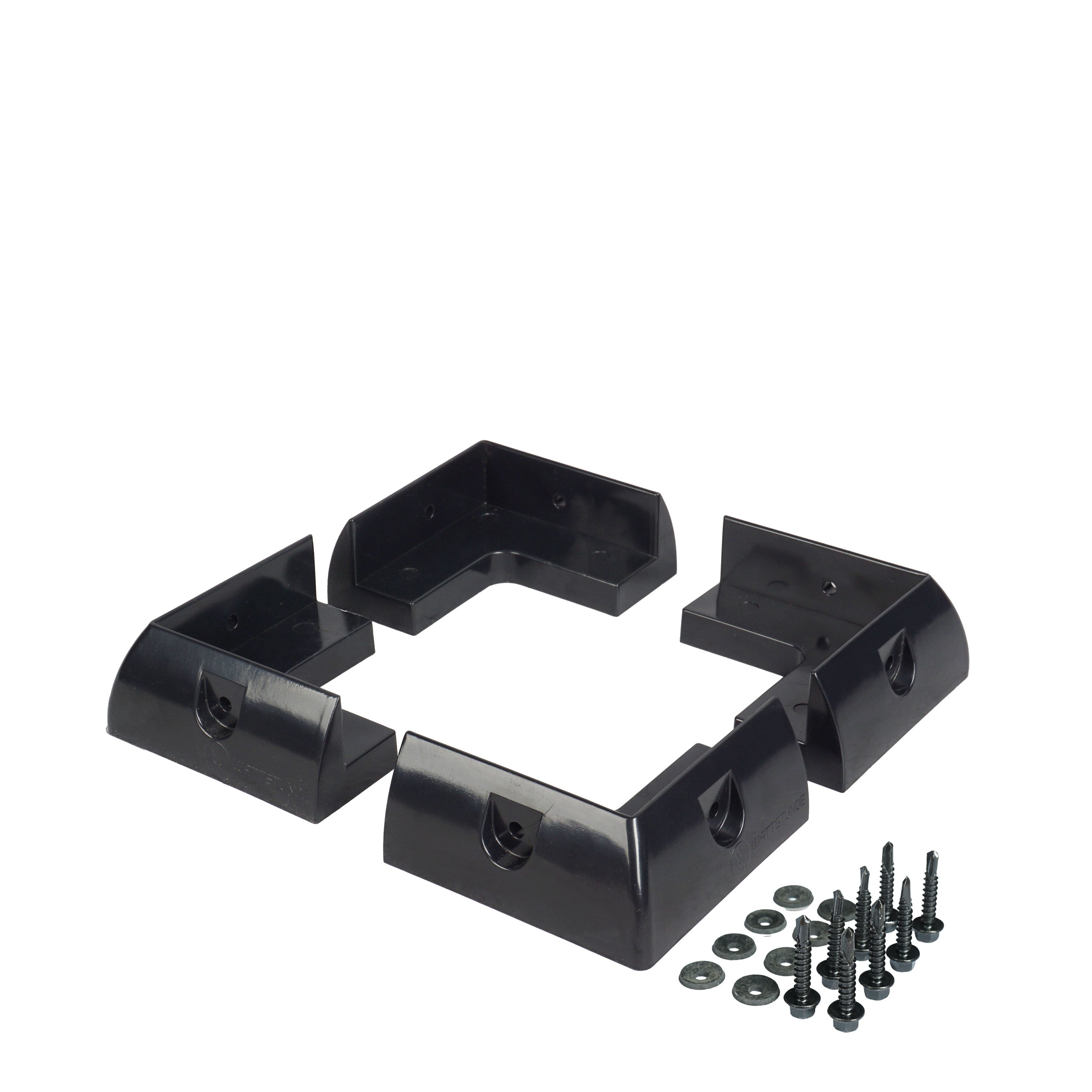

  • 2 x WATTSTUNDE® HXE mounting corners incl. stainless steel screws
  • WATTSTUNDE® DX2 solar roof penetration
  • 2 x Dekalin adhesive set - black
  • 2 x 7m solar connection cable 6mm² incl. compatible MC4 connector system (solar module to charge controller)
  • MC4 connector set (socket + plug) already pre-assembled
  • MC4 Y connector set for parallel connection of the solar modules
  • 1.5m battery connection cable 10mm² incl. 40A flat fuse
  • Operating instructions for all devices in German


The complete sets of the WATTSTUNDE® series are characterized above all by a high level of quality and enable you to have a sense of security and independence from the public supply network in the mobile area. The 380W complete set contains exclusively high-quality and reliable components and everything that is needed to immediately start with the installation and mounting on the motorhome roof.

The WATTSTUNDE SOLA Frame Daylight solar modules are equipped with Back-Contact SunPower® Maxeon cells, which have a significantly higher cell efficiency, up to over 24%, than normal monocrystalline or polycrystalline solar modules and thus ensure you a higher energy yield! Through the Backcontact technology, the cell can absorb more light and convert the additional intake into electrical energy.

The included mounting spoilers are made of solid plastic and also prevent any driving noises with their aerodynamic shape.
The construction adhesive included in the set is a one-component elastic adhesive, specially designed for this application.
The special chemistry enables reliable and durable bonding and thus fixes the module reliably and permanently on the vehicle roof.

Maximum yields thanks to intelligent MPPT technology

The new WSL-MPP series from WATTSTUNDE® works with the Maximum Power Point Tracking principle.
In the MPP technology, the controller determines the optimal operating point of the solar modules multiple times per second.
It can thus transform the excess voltage of the solar modules into an increased charging current for the battery. This charging current gain ensures shorter charging times and the best possible power utilization of the solar system.
Compared to simple PWM charge controllers, this makes additional yields of up to 30% possible, especially with cloudy skies or other unfavorable light conditions (high diffuse light component), this effect comes into play.
The integrated LCD display allows you to keep an eye on the system at all times.

Together with the DAYLIGHT Backcontact solar modules and the MPP charge controller, you receive an efficient premium set with high-quality products for the highest energy yield.






Technical data SOLA Frame Daylight 190 Wp
Rated power 190 W
Max. daily yield (summer) 950 Wh/d
Voltage (Umpp) 30.10 V
Current (Impp) 6.31 A
Open-circuit voltage (Voc) 35.30 V
Short-circuit current (Isc) 6.68 A
Cell efficiency ≥ 24 %
Cell material SunPower Maxeon cells
Bypass diode Integrated
Weight 9.0 kg
Dimensions 920 x 920 x 30 mm






Technical data WLR-BT 40.90 MPPT
Max. DC input current 40 A
Max. PV open-circuit voltage 90 V DC (25 °C)
Max. solar power 520 Wp (12V) / 1040 W (24 V)
Battery type AGM, Gel, Lead-acid, Lithium (Lithium only 12 V)
Battery nominal voltage 12/24 V (automatic detection)
Charging technology MPPT
Communication Bluetooth or RS485
Deep discharge protection voltage 12 V / 24 V 10.8 V - 11.8 V / 21.6 V - 23.6 V
Temperature compensation integrated
Display/Operation LCD display with backlight
Weight 1300 g
Dimensions 196.5 x 136.6 x 97.1 mm
