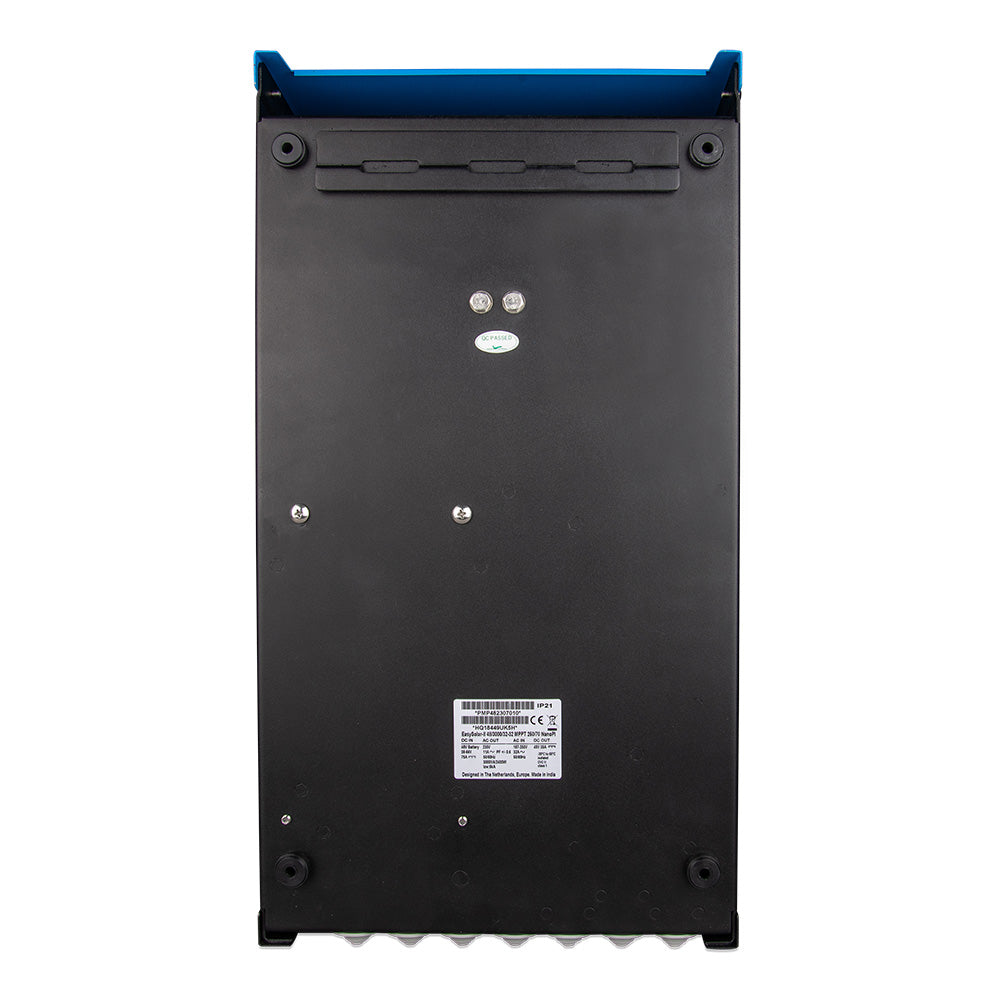

Victron EasySolar II 24/3000/70-32 MPPT 250/70 GX

EasySolar-II GX Multifunction device: charge controller, inverter and battery charger combined.

The EasySolar-II GX combines an MPPT solar charge controller, an inverter/battery charger and a control unit in one enclosure. The product is easy to install, with a minimum amount of wiring.

The solar charge controller: SmartSolar MPPT 250/70-Tr

The integrated charge controller comes from Victron's SmartSolar range and guarantees maximum yields with the ultra-fast MPPT process. Especially on cloudy days, when the light intensity is constantly changing, an extremely fast MPPT controller improves the energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Critical partial shading of the solar panels is detected by the MPP controller and a new operating point is sought, so that even under the most unfavorable circumstances high yields can still be achieved. The DC output of the SmartSolar MPPT is connected in parallel to the DC connection of the MultiPlus-II inverter/charger.
The on/off mechanism of the MultiPlus-II also controls the SmartSolar.

MultiPlus II 24/3000/70 inverter and battery charger

The Multiplus 24/3000/70 from Victron is a device combination of a 2400W pure sine inverter and battery charger. The smartly integrated battery charger delivers an impressive 70A so that the batteries can be charged extremely quickly when land/mains power is available. The pure sine voltage converter integrated in the Multiplus transforms the 24V DC from the battery into a 230 V AC voltage. Thanks to the true sine wave, the quality of the voltage is also perfectly suitable for sensitive electronic devices.

GX device

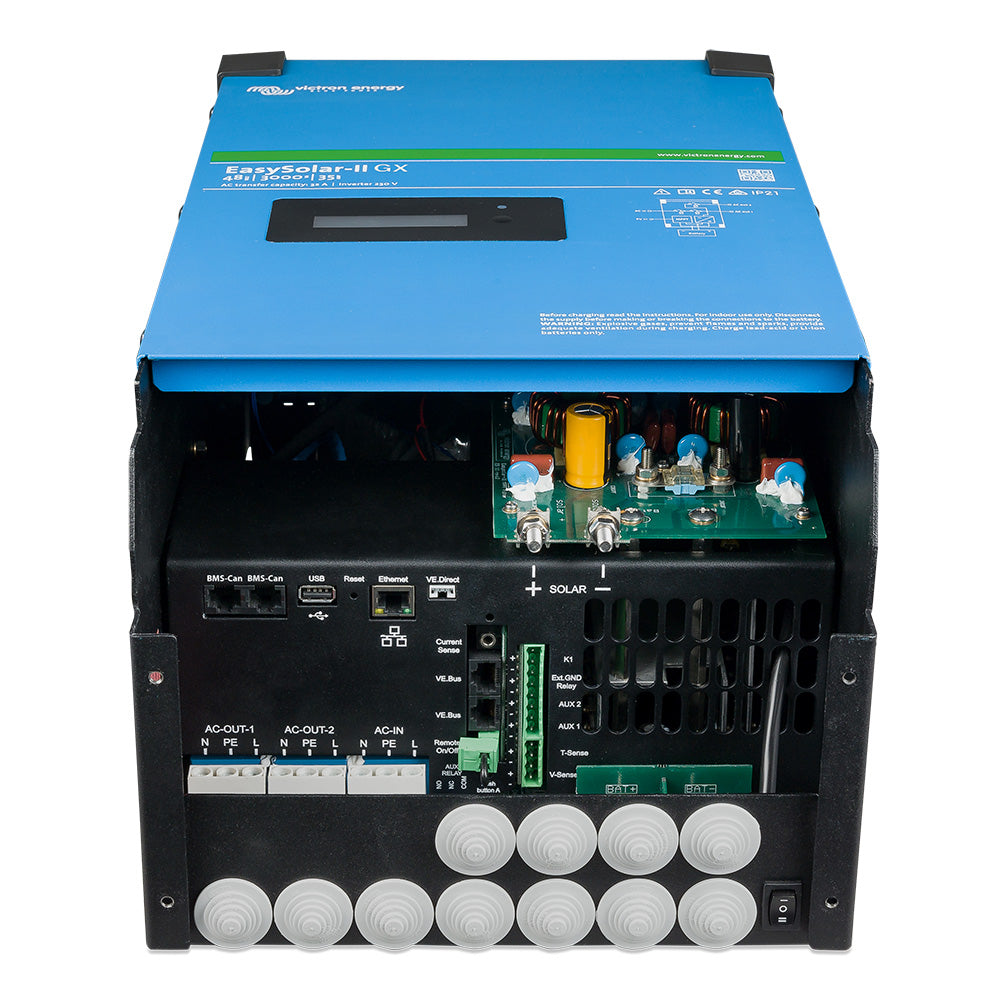

The integrated GX device includes:

• A BMS-Can interface. This can be used to connect to a compatible battery managed via the CANbus. Please note that this is not a VE.Can-compatible connection.
• A USB port
• An Ethernet port
• A VE.Direct connection

The GX device controls the MultiPlus-II and the SmartSolar MPPT with a VE.Bus and a
VE.Direct connection respectively.

Display and WiFi

The display shows parameters for the battery, inverter and solar charge controller. The parameters can be accessed with a smartphone or another Wi-Fi-enabled device. Wi-Fi can also be used to set up the system and change settings.

The following features characterize the high-end device:

• 2400 W continuous AC power, 5500 W peak power
• 24 V battery system voltage
• Pure sine inverter, suitable as a UPS
• max. 2000 W PV power
• Charging the main battery with up to 70 A
• Transfer switch with 32 A
• Color Control Display for settings and display of system information
