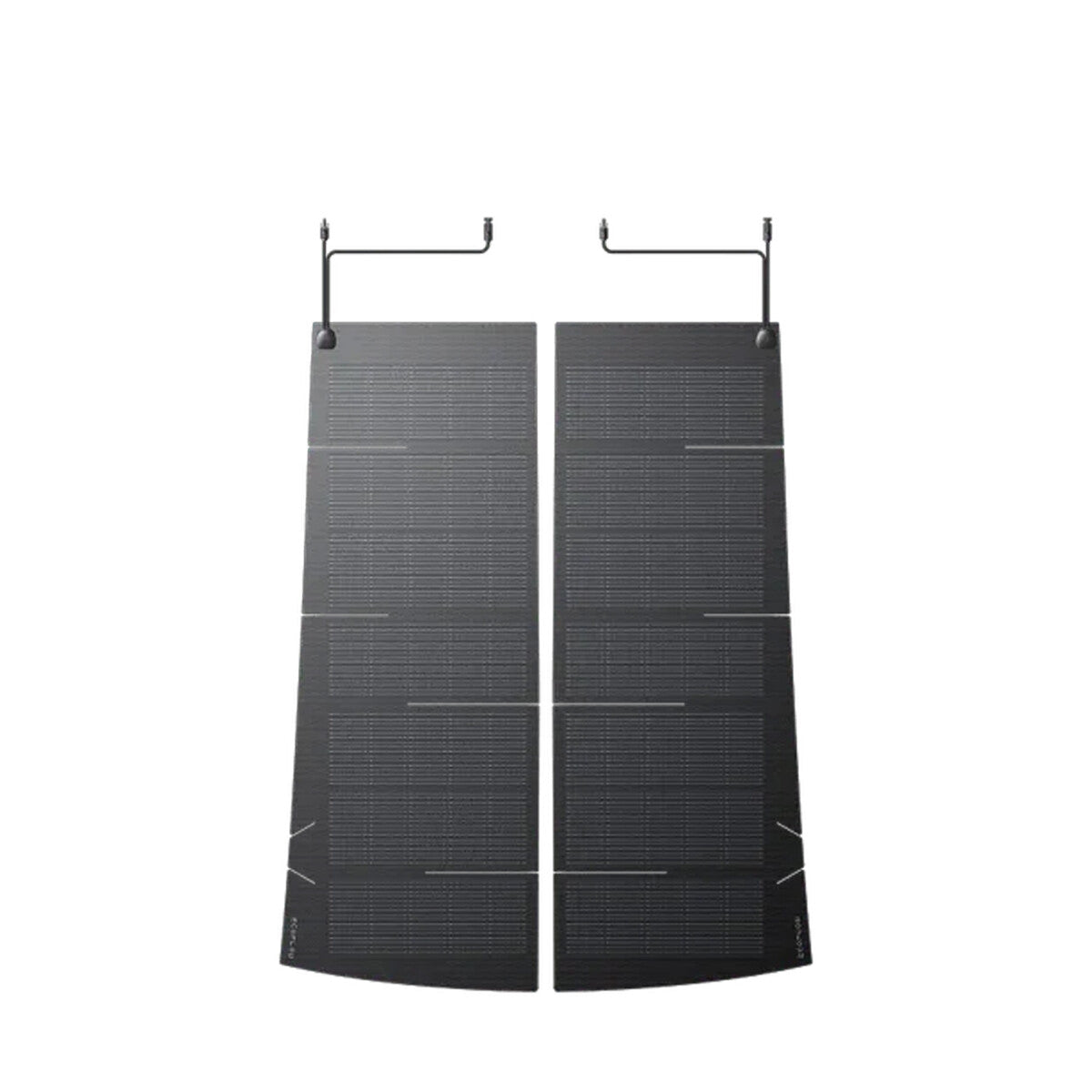

EcoFlow HeatGuard Solar Film (For Model Y)

EcoFlow HeatGuard Solar Film – Custom-Made Solar Solution for Tesla Model Y

The EcoFlow HeatGuard Solar Film for the Tesla Model Y combines highly efficient solar power generation with intelligent thermal insulation. The integrated design blends seamlessly into the vehicle roof – for maximum energy yield without additional aerodynamic losses. With 290 W power and state-of-the-art N-type TOPCon cell technology, the film produces up to 1.5 kWh of solar energy per day – ideal for charging portable power stations such as the EcoFlow DELTA 2 or 3.

Efficient energy directly from the vehicle roof

• Charges a 1 kWh power station in approx. 4 hours
• Optimal solution for off-grid travel & camping
• Ideal in combination with EcoFlow power stations
• *Not suitable for charging the Tesla main battery

Thermal comfort & energy savings

• Reduces the interior temperature by over 10 °C
• Reduces the load on the air conditioning
• Air Gap technology provides additional insulation

State-of-the-art cell technology

• N-type TOPCon cells with over 24.8% efficiency

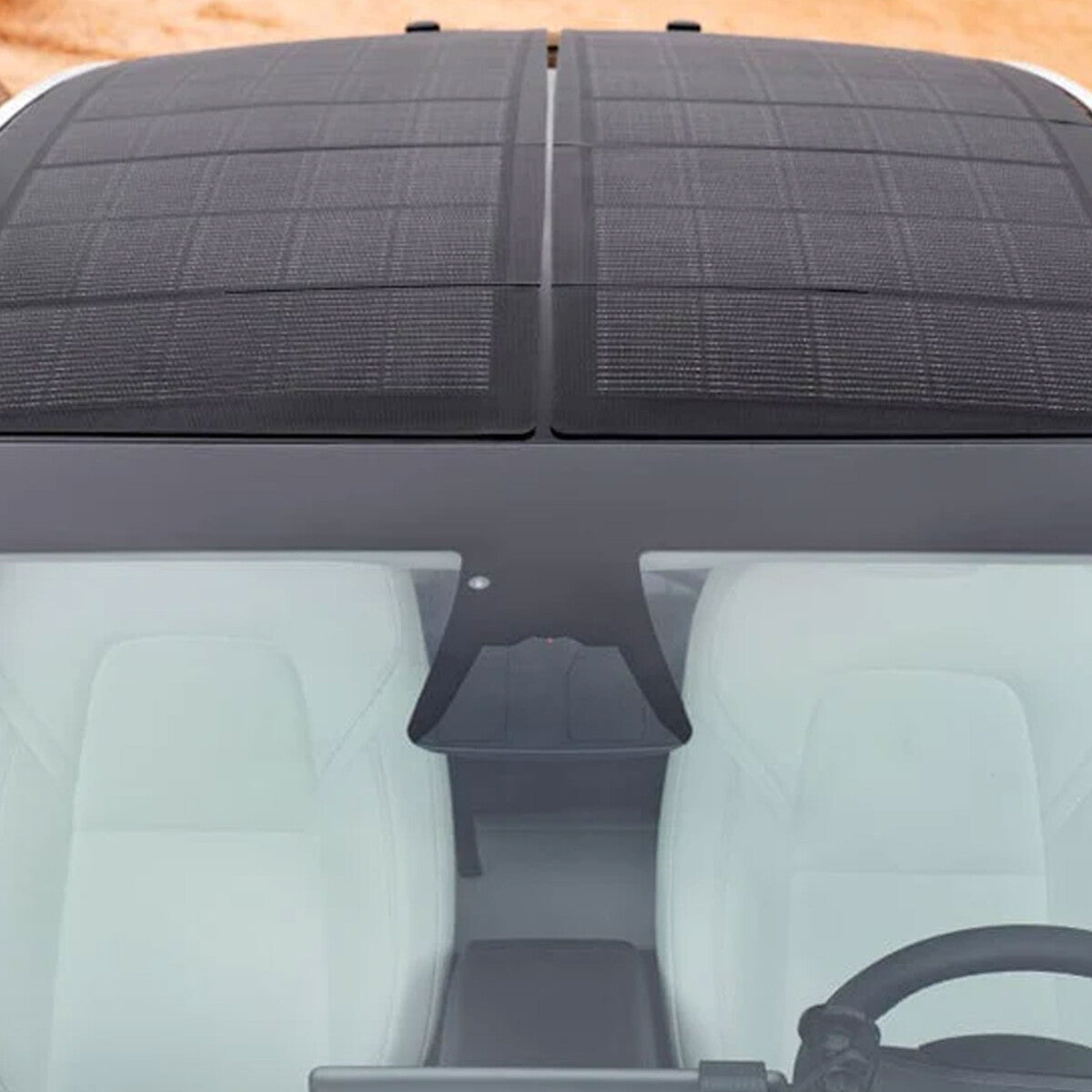

• Flush-mount design – no impact on aerodynamics
• Zero Drag: No range losses while driving

Safe, weather-resistant and easy to install

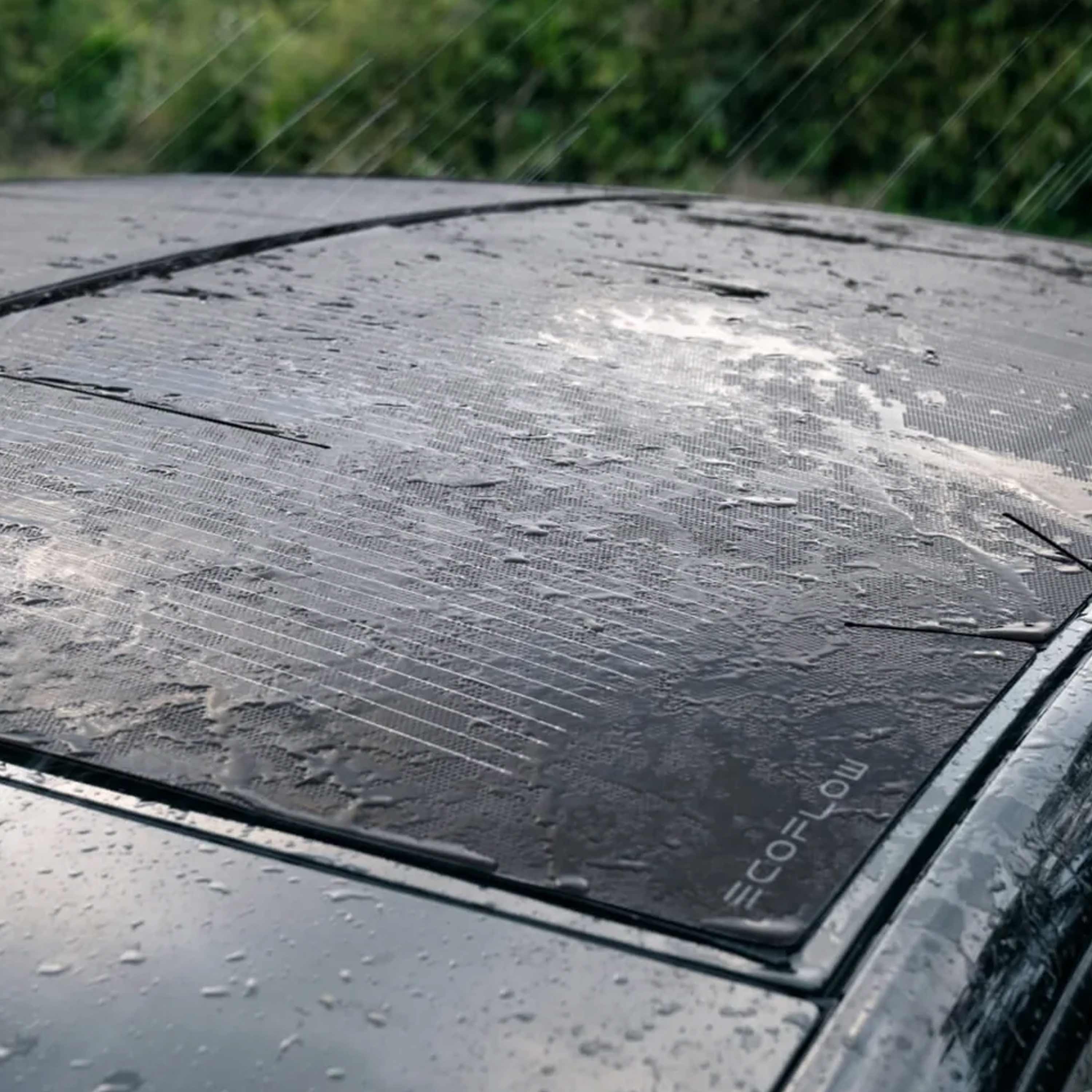

• IP68 certified – water-, dust- and sand-resistant
• Ultra-flat FlatLink MC4 cable: 1.5 mm thick, 8 mm wide
• Installation with residue-free 3M™ VHB™ adhesive tape

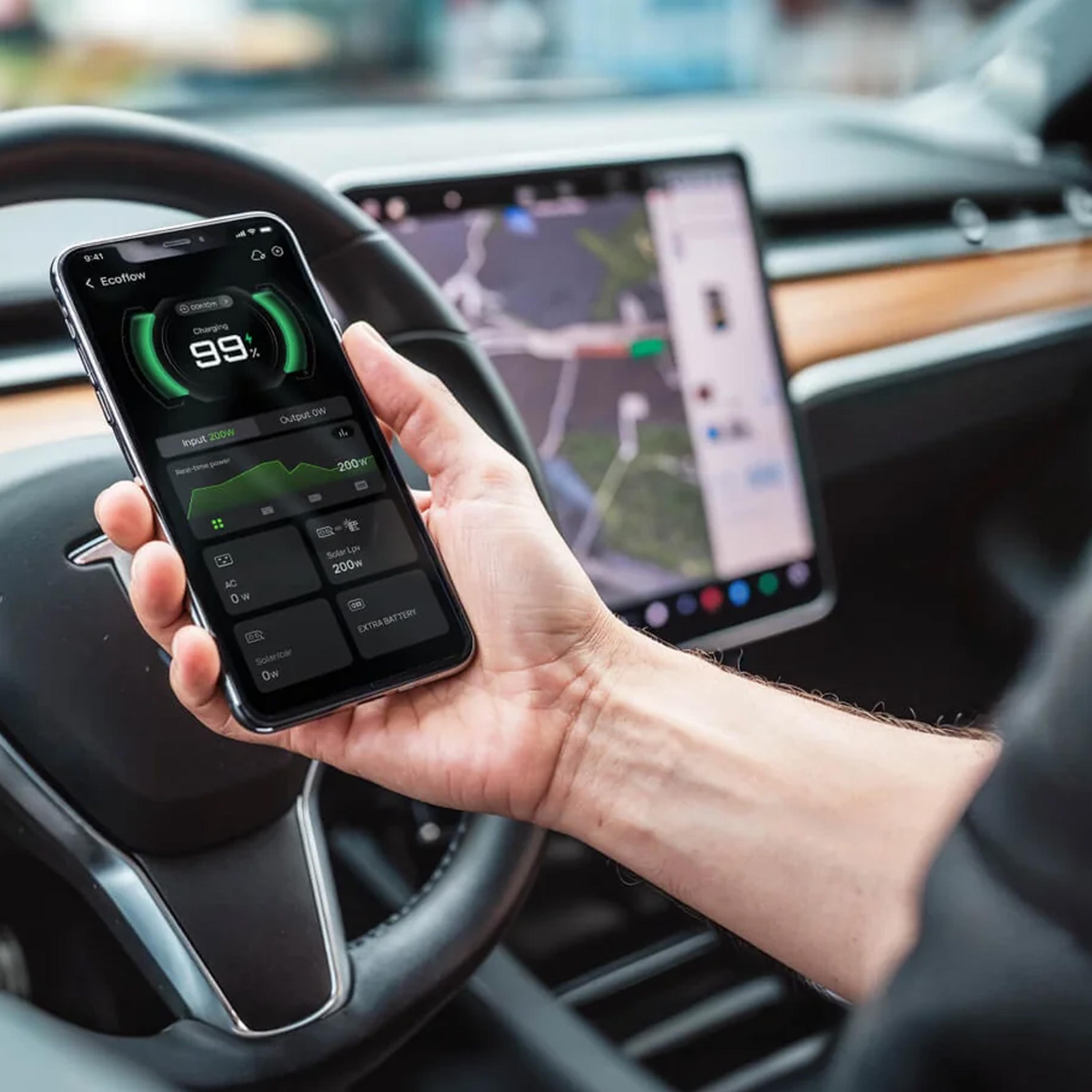

Intelligent app control

• Remote monitoring of energy generation via the EcoFlow app*
• Integrable into the EcoFlow Oasis system

Technical specifications (Model Y version):

• Rated power: 290 W (±5 W)
• Open-circuit voltage: 28.5 V / Operating voltage: 24.4 V
• Operating current: 11.9 A / Short-circuit current: 12.4 A
• Efficiency: ≥ 24.8%
• Cell type: TOPCon monocrystalline silicon
• Dimensions: 620 × 1640 × 18 mm
• Weight: approx. 5.0 kg
• Connector type: XT60
• Max. system voltage: 600 V DC (IEC/UL)
• Service life: 5 years / Warranty: 2 years

With the EcoFlow HeatGuard Solar Film, you turn your Tesla Model Y into a mobile power source – efficient, elegant and ready for use at all times.
