EcoFlow Power Kit Distribution Panel

Intelligent power distribution with a system – EcoFlow Power Kit Distribution Panel

Optimal energy management for self-sufficient power systems

The EcoFlow AC/DC Smart Distribution Panel is the central interface for structured, secure, and flexible power distribution in your self-sufficient energy system—whether in a camper van, tiny house, or stationary off-grid solutions. The combination of simple installation, sophisticated technology, and smart control makes it the ideal solution for demanding energy projects.

Flexible installation for maximum adaptability

You can choose between two mounting methods: inline or directly on the wall. Thanks to clearly labeled connectors and tool-friendly wiring, installation is straightforward. LED indicators provide visual feedback on the system status at any time and facilitate monitoring.

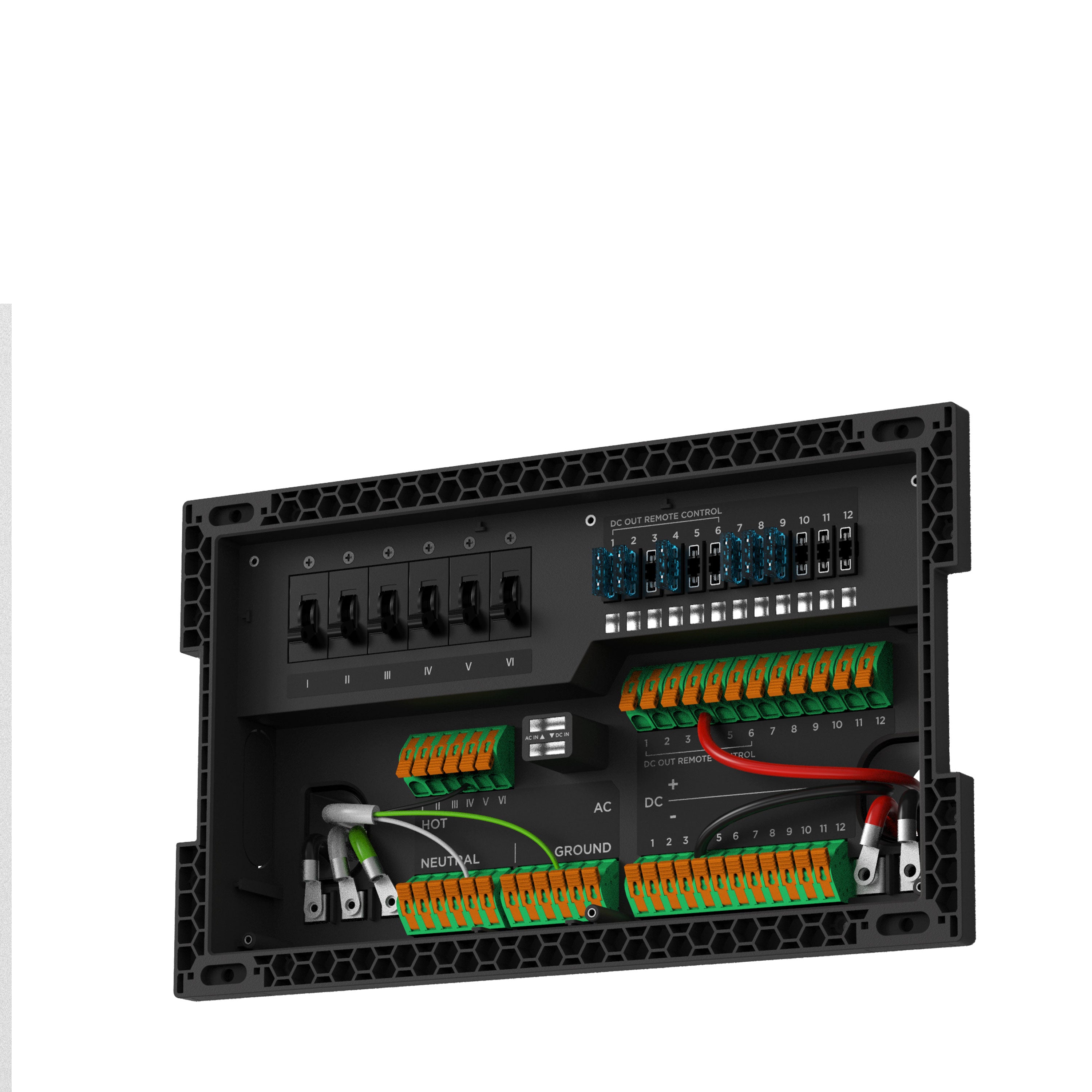

Powerful connectors for AC and DC circuits

• AC input: 220–240 V, 50 Hz, max. 30 A
• DC input: 10–30 V DC, max. 70 A
• AC outputs: 6 ports with up to 10 A each
• DC outputs: 12 fused connections – 6 of which can be controlled via the Power Kit console and app

Robust, compact and designed for mobile use

With an IP21 protection rating and a wide operating temperature range of -25°C to 60°C, the panel is ideally suited for demanding environments. Its compact design saves space and allows for flexible integration into a variety of installation environments.

Scope of delivery:

• 1× AC/DC Smart Distribution Panel
• 2× wall mounting brackets

Technical data:

• Dimensions: 354 × 210 × 98 mm (H × W × D)
• Weight: 2.6 kg
• Protection class: IP21

With the EcoFlow Distribution Panel, you have full control over your energy flows – reliable, efficient, and future-proof.
