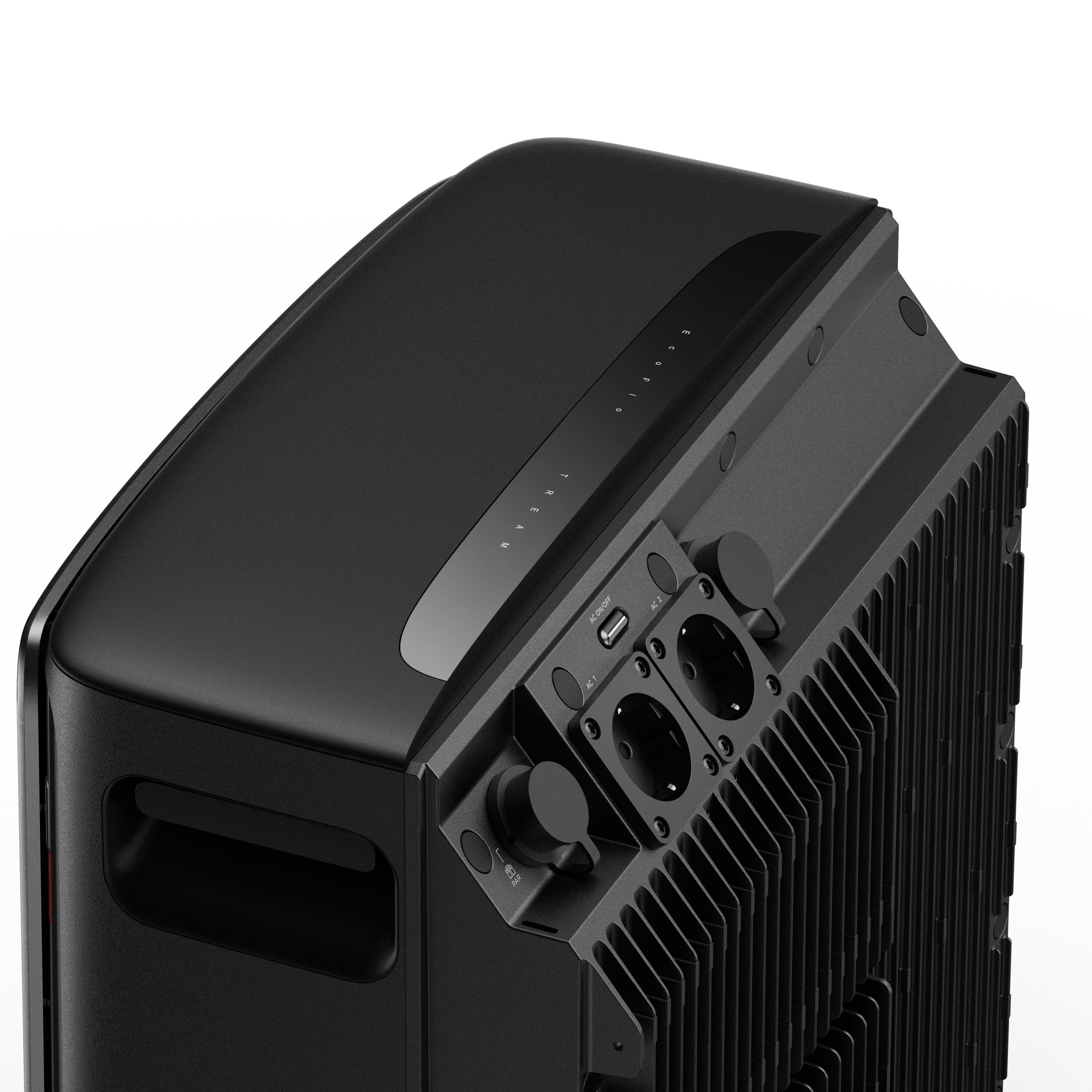

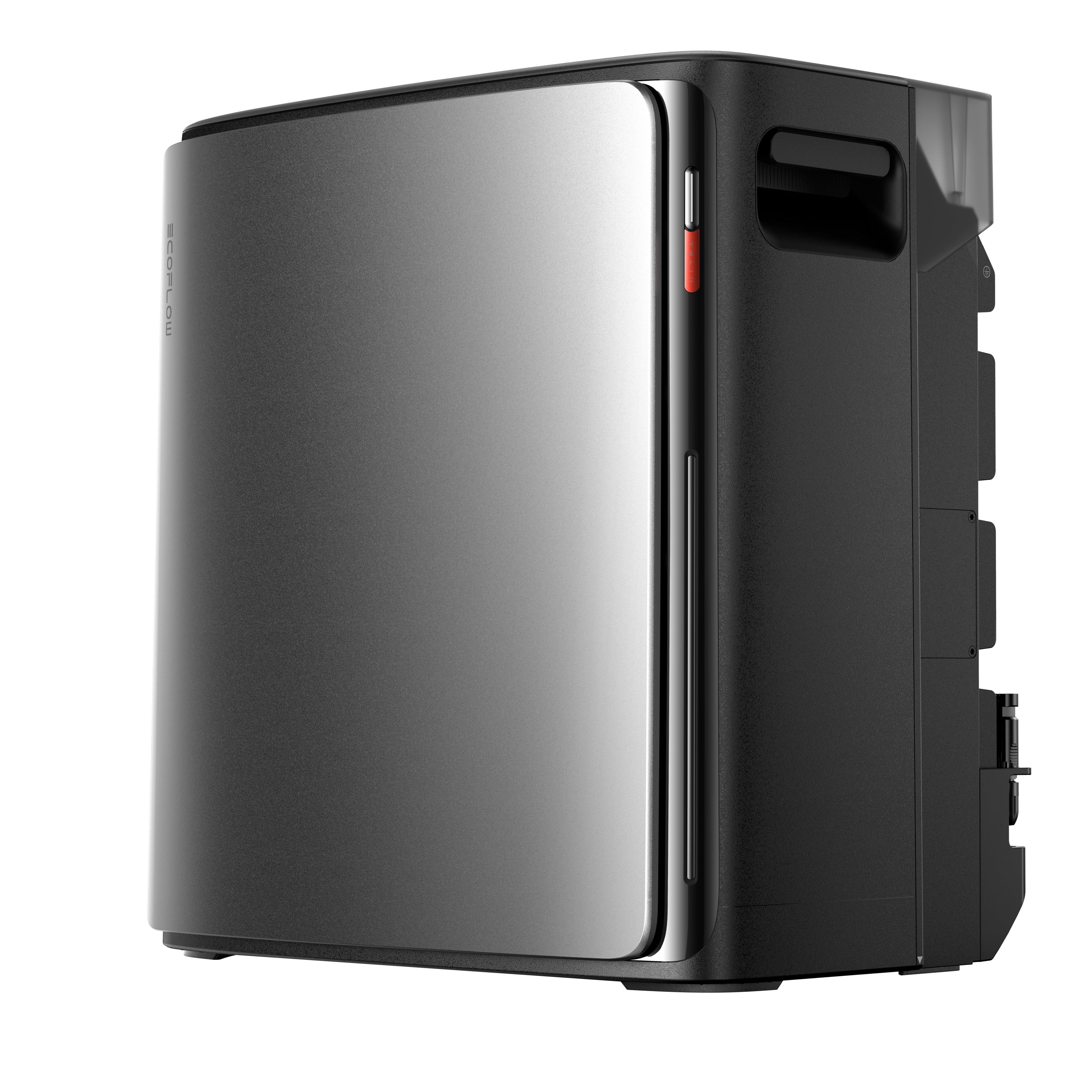

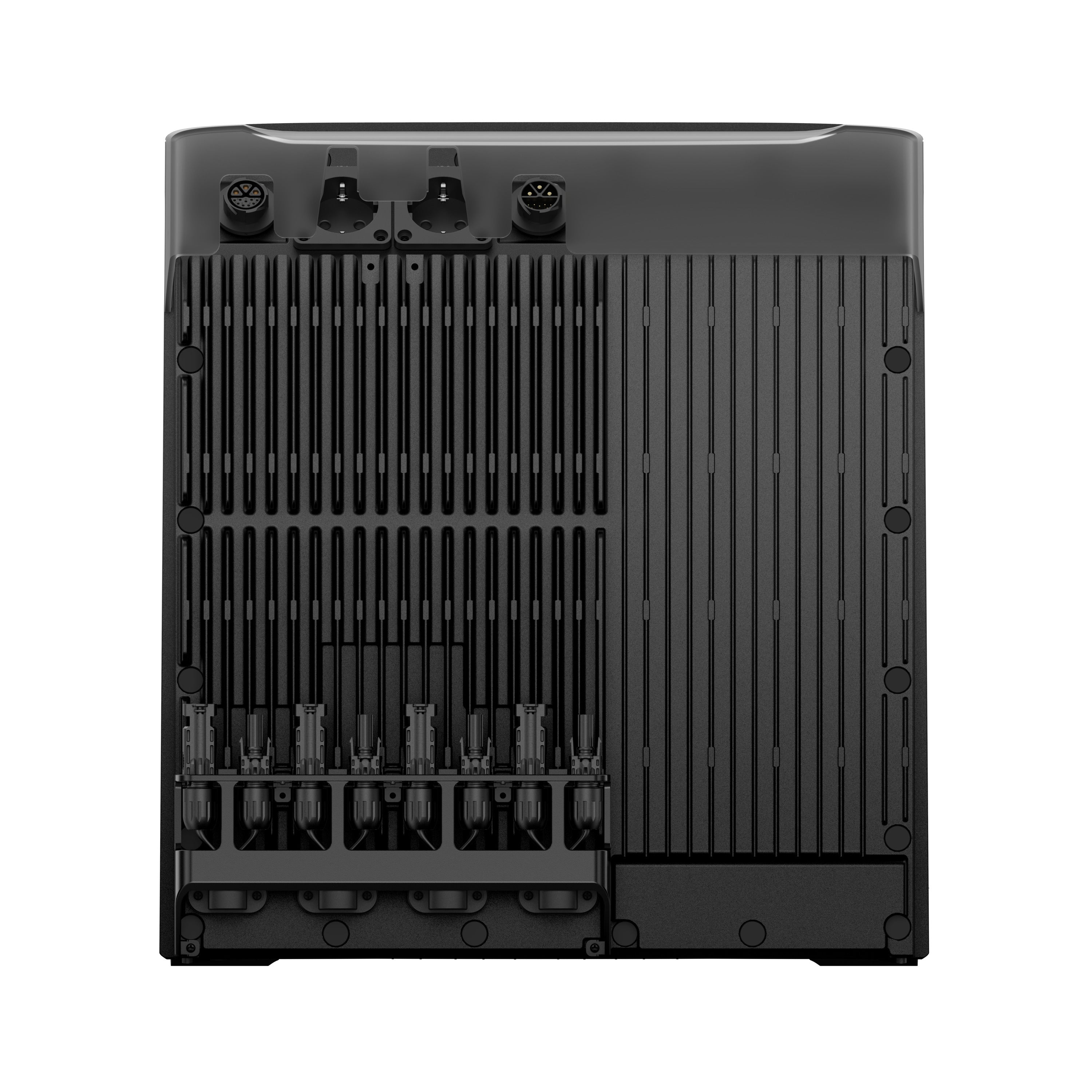

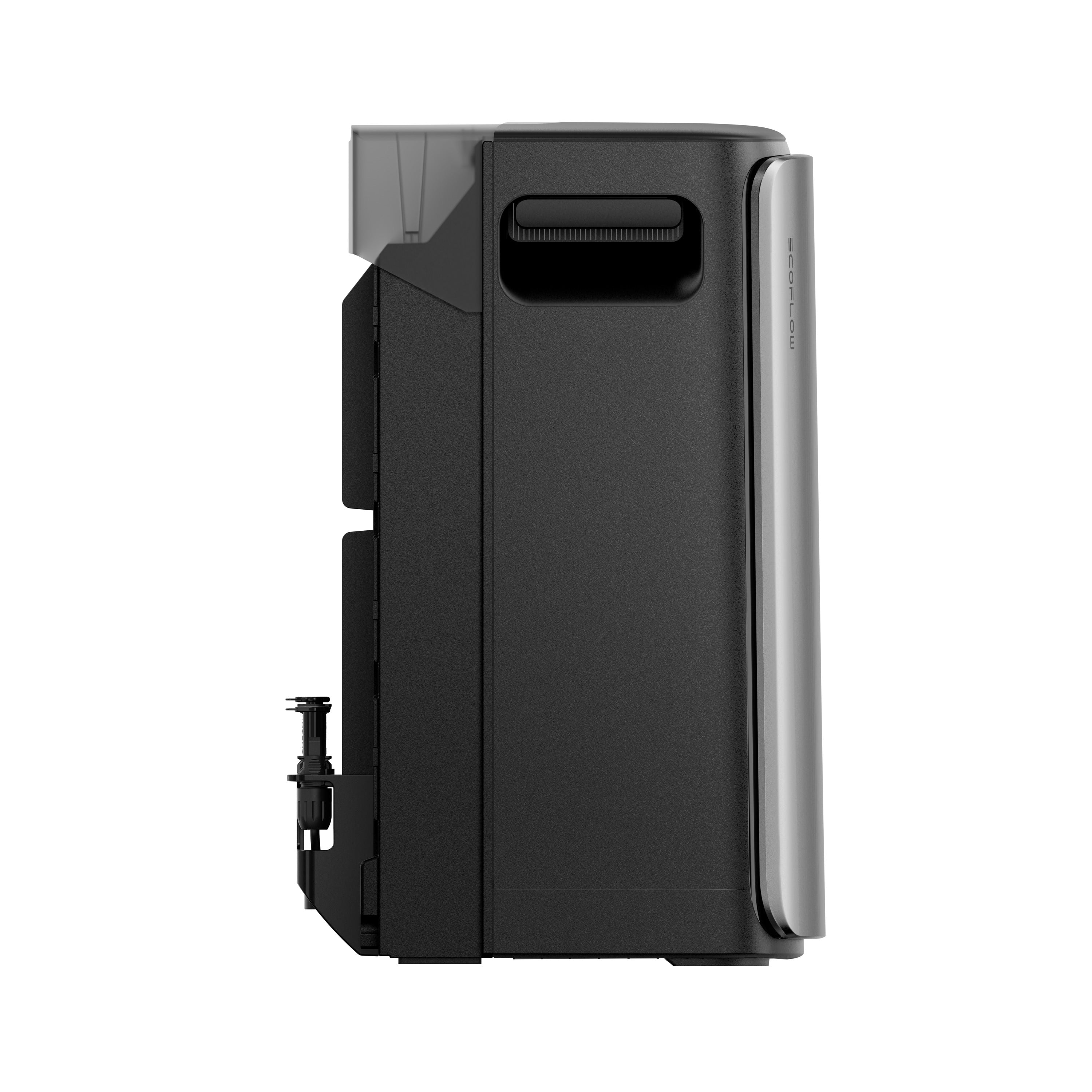

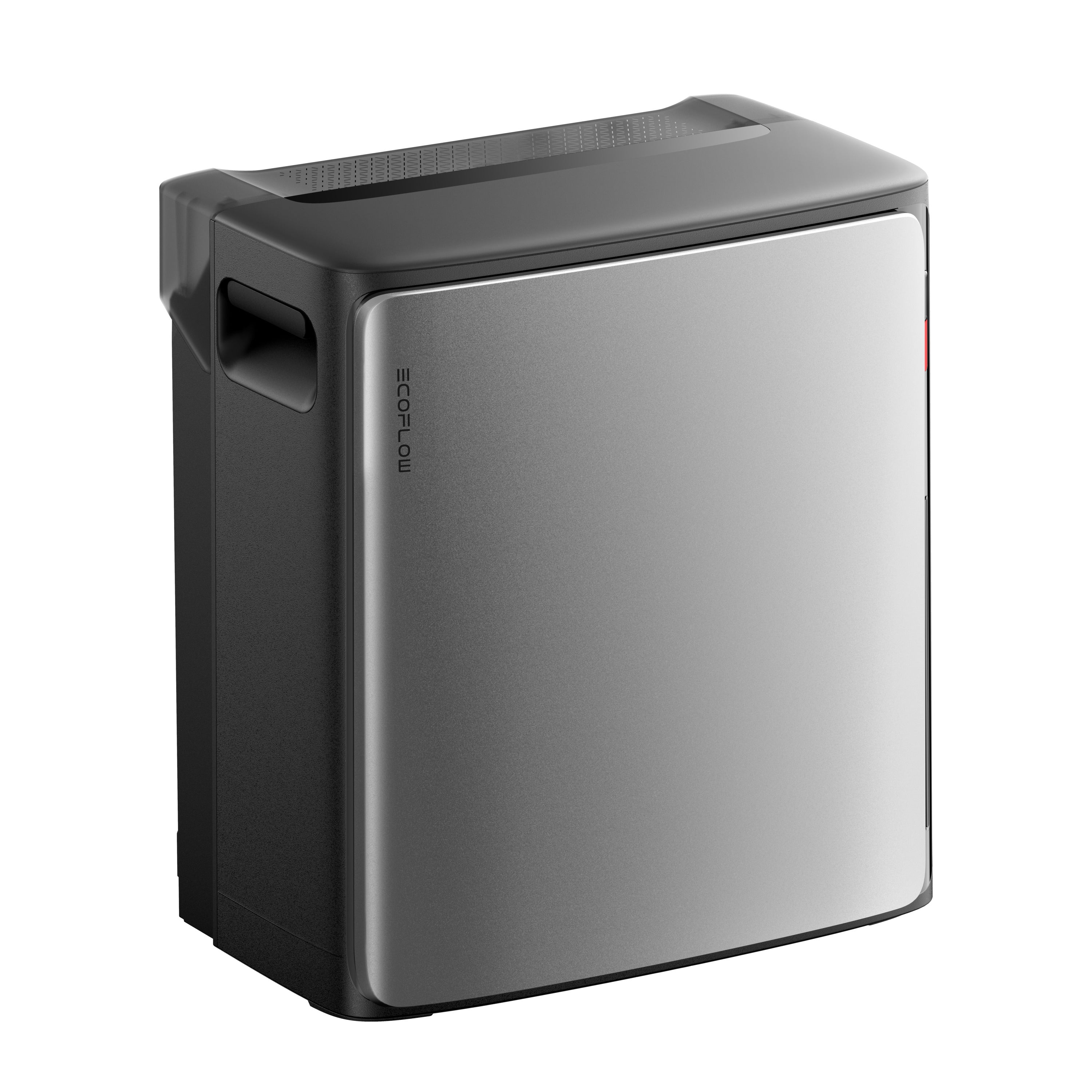

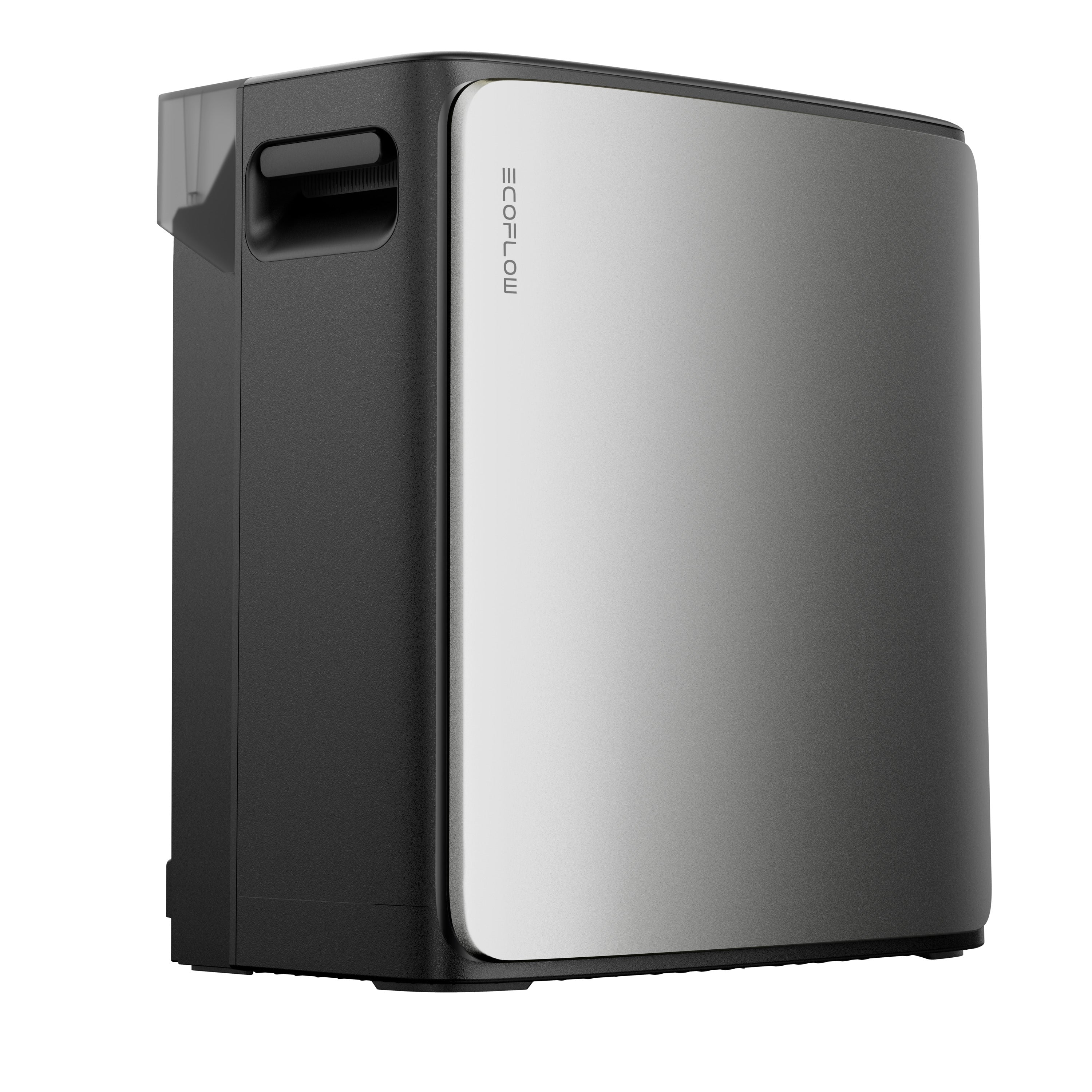

EcoFlow STREAM Ultra X
- Capacity: 3.84 kWh
- AC input: 1200 W
- Grid-tied AC output: 800 W
- Number of MPPTs: 4
- Wi-Fi and Bluetooth enabled
- IP65 protection rating
Tax included.
Your legal guarantee rights

Product description
EcoFlow STREAM Ultra X – Intelligent Energy Storage for Maximum Independence
With the EcoFlow STREAM Ultra X, you can take your balcony solar system to the next level. This powerful AC-coupled energy storage system combines high capacity, flexible expandability, and intelligent control – for a sustainable and reliable power supply right at home.
Maximum solar yield with 2000 W across four MPPT inputs
The STREAM Ultra X is equipped with four independently operating 500 W MPPT inputs. This allows you to harness the full potential of your photovoltaic system – even with partial shading or changing light conditions.
3.84 kWh storage capacity for continuous power supply
The long-lasting 3840 Wh LFP battery provides you with reliable energy even in the evening or during power outages. Ideal for households with higher consumption or for covering several days with little sunlight.
Easy integration into existing systems
Thanks to AC coupling, the STREAM Ultra X can be integrated into your existing balcony solar system without any structural modifications. It is easy to set up via the socket – Plug & Play.
Modularly expandable – individually customizable
Flexibly expand your setup with up to six additional STREAM or AC storage units. The integrated energy management system automatically coordinates all units – for maximum efficiency and scalability.
Power for high-consumption appliances
In combination with the EcoFlow AC Pro, you can easily operate high-performance devices with up to 2300 W – from washing machines to power tools.
Intelligent control with EcoFlow OASIS
Keep track of your energy usage and optimize self-consumption with the EcoFlow OASIS app. Features such as TOU mode allow you to charge at cost-effective times, while smart meter integration enables precise real-time consumption control.
Compatible with common smart meters
For precise consumption analysis, the STREAM Ultra X can be connected to the EcoFlow Smart Meter or the Shelly 3EM. This helps you reduce your energy costs sustainably and increase transparency regarding your electricity consumption.
The EcoFlow STREAM Ultra X is more than just a solar storage system – it is the central element for an independent, scalable, and future-proof power supply for residential use.
| Technical Specifications | EcoFlow STREAM Ultra X |
| Battery | Lithium iron phosphate (LiFePO4) |
| Battery capacity | 3.84 kWh |
| AC charging input | 1200 W |
| AC output | 1200 W |
| AC grid-tied output | 800 W |
| AC charging input | 10 A |
| Bypass output | 2300 W (10 A) |
| Life cycles | 6000 to 70% |
| MPPT | 4 |
| PV input power | 2000 W (4 x 500 W, max. 60V DC) |
| Connectivity | Wi-Fi / Bluetooth |
| Protection rating | IP65 |
| Operating temperature | - 20 °C to + 55 °C |
| Weight | 38.8 kg |
| Dimensions | 420 mm x 294 mm x 460 mm |
