Simarine PICO Blue Set Rev2 - Battery monitor, tank electrode and 2 x shunts, black - with mounting frame

PICO Blue package in black with mounting frame

SIMARINE's innovative PICO Blue package is the complete battery and tank monitoring solution for discerning yacht and caravan owners, featuring a service battery bank with up to 500 A at 12 V, 24 V, 48 V, 60 V and 72 V, up to four engine/spare battery banks and up to 4 tanks.
Precise monitoring of solar panels, wind turbines, hydroelectric generators, shore power chargers, or the power consumption of individual appliances such as refrigerators is also possible. A great tool for detecting malfunctions in generators and other equipment.

• 1x PICO display unit
• 1x shunt resistor SC503 500 A
• 1x Tank and voltage module ST107
• 1x SCQ25 Quattro shunt resistor module 4x25 A

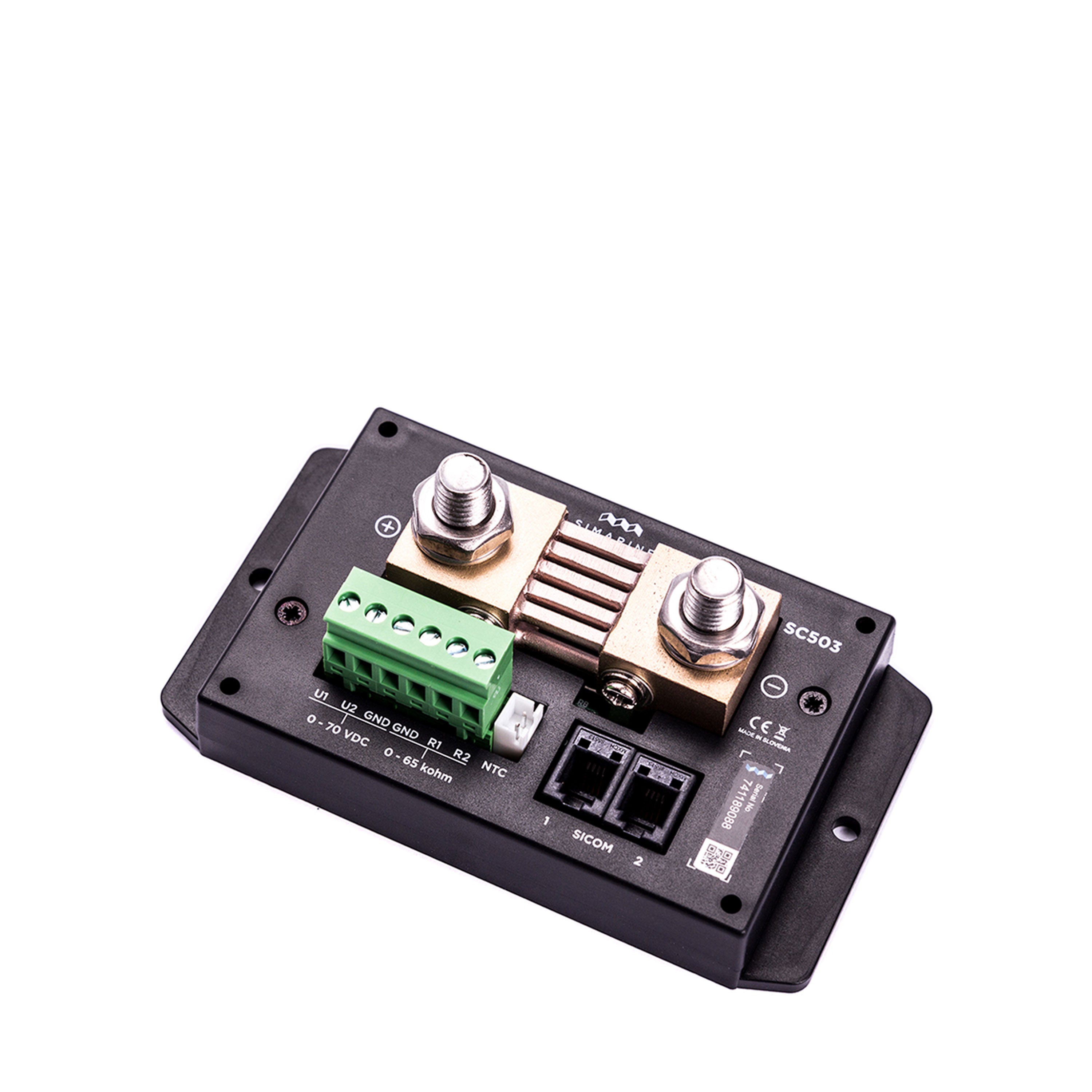

SC503 is an innovative combination of a shunt resistor and a tank level module.

The SC503 active combined shunt resistor provides precise monitoring of battery voltage in 12 V, 24 V, 48 V, 60 V, and 72 V systems, as well as battery temperature and continuous currents up to 500 A (700 A peak). It is suitable for a maximum power of 6000 W at 12 V or 12000 W at 24 V. It features an additional battery voltage input (2 in total).

The integrated tank level sensor has two resistance inputs for monitoring the tank level or temperature, and an additional JST connector for a temperature sensor with a JST connection. Furthermore, the SC503 module can also be used to monitor the power consumption of high-power devices such as inverters, bow and stern thrusters, anchor winches, and generators such as shore power chargers, solar panels, and water and wind generators.

The innovative, protected architecture of the SC503 allows connection to either the negative side (up to 72 V) or the positive side (up to 24 V).

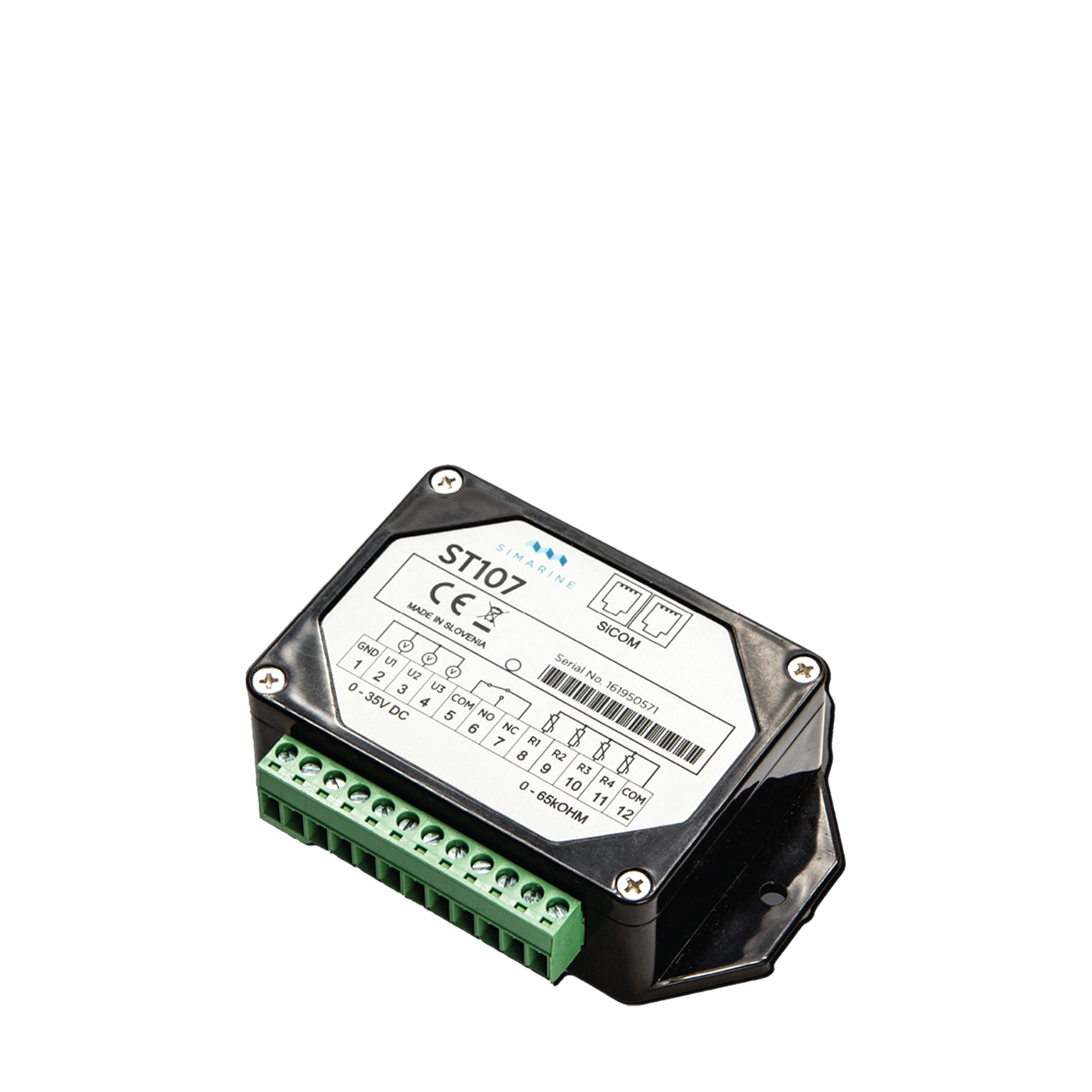

Tank module ST107

The ST107 is a versatile module for monitoring tank and temperature sensors as well as battery voltage. Equipped with four resistance inputs for tank level or temperature resistance sensors and three voltage inputs for tank and battery voltage sensors, it offers a wide range of connection options.
The tank module is the latest digital module with extensive connection (and monitoring) options. It allows monitoring of up to 7 tank levels, 3 battery voltages, and 4 temperatures.

Suitable tank sensors : Basically all resistance-based level indicators, such as:

• Wema S3 water and fuel level sensor
• Schaudt tank probe (an adapter cable may be required)


All monitoring functions of the PICO Blue package

1x Battery bank with Real-Time Battery Health™ (monitoring of current, voltage and temperature)
4x battery voltage only
4x tank levels or temperatures
4x individual consumer or generator power channels

Barograph function included

Compatible and expandable with all SIMARINE shunt resistors and modules.
