Simarine PICO Standard Set Rev23 - Black with Mounting Frame

Simarine PICO Standard Set Battery Monitor, Tank Electrode and Shunt
  • 1 x PICO Display Unit - high-resolution 3.5“ LCD TFT with Gorilla Glass
  • 1 x SC303 shunt unit
  • 1 x ST107 tank module
  • Color: black
  • Mounting frame included

Sale price462,26 €

Tax included. Shipping calculated at checkout

SKU: 306-1113

In stock
Versandbereit in: 1 - 3 Werktagen

Product description

The PICO STANDARD Package in Black

The PICO STANDARD Package offers an excellent monitoring solution for batteries and tanks, ideal for use on yachts and caravans. It can handle one main battery (300 A at 12 V, 24 V, 48 V, 60 V, and 72 V) and up to four auxiliary batteries (voltage measurement only), as well as up to six tanks. The package includes:

  • 1x PICO One display unit
  • 1x SC303 300 A shunt
  • 1x ST107 tank module

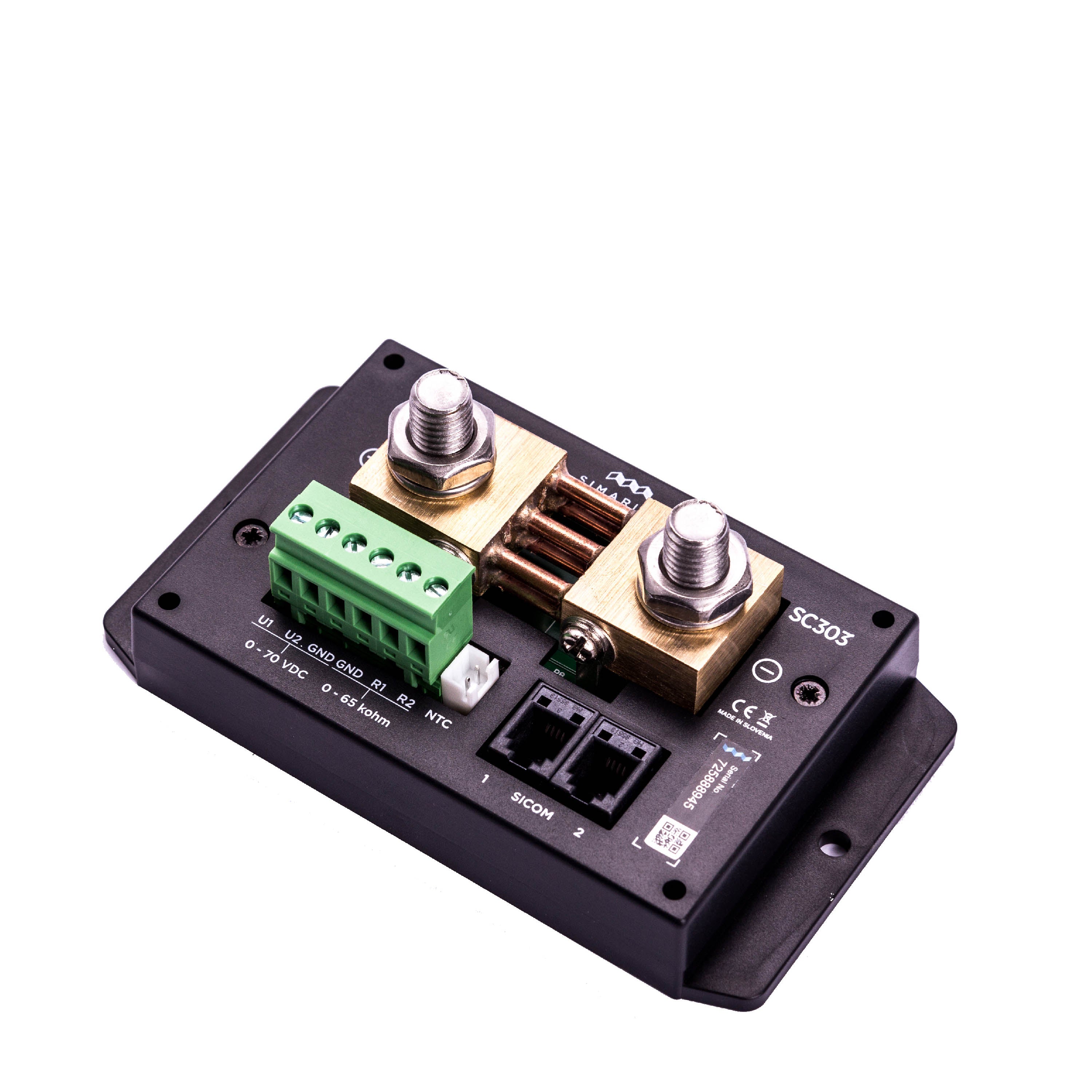

SC303 – Your innovative monitoring tool

The SC303 combines a shunt with a tank level module and offers precise measurements of battery voltage, battery temperature, and continuous currents of up to 300 A (peak currents up to 400 A) for systems from 12 V to 72 V. For a power output of up to 3600 W at 12 V or 7200 W at 24 V, the SC303 has two battery voltage inputs and can also monitor the power consumption of major consumers such as inverters or generators. Its innovative architecture allows connection on both the negative and positive side (up to 24 V).

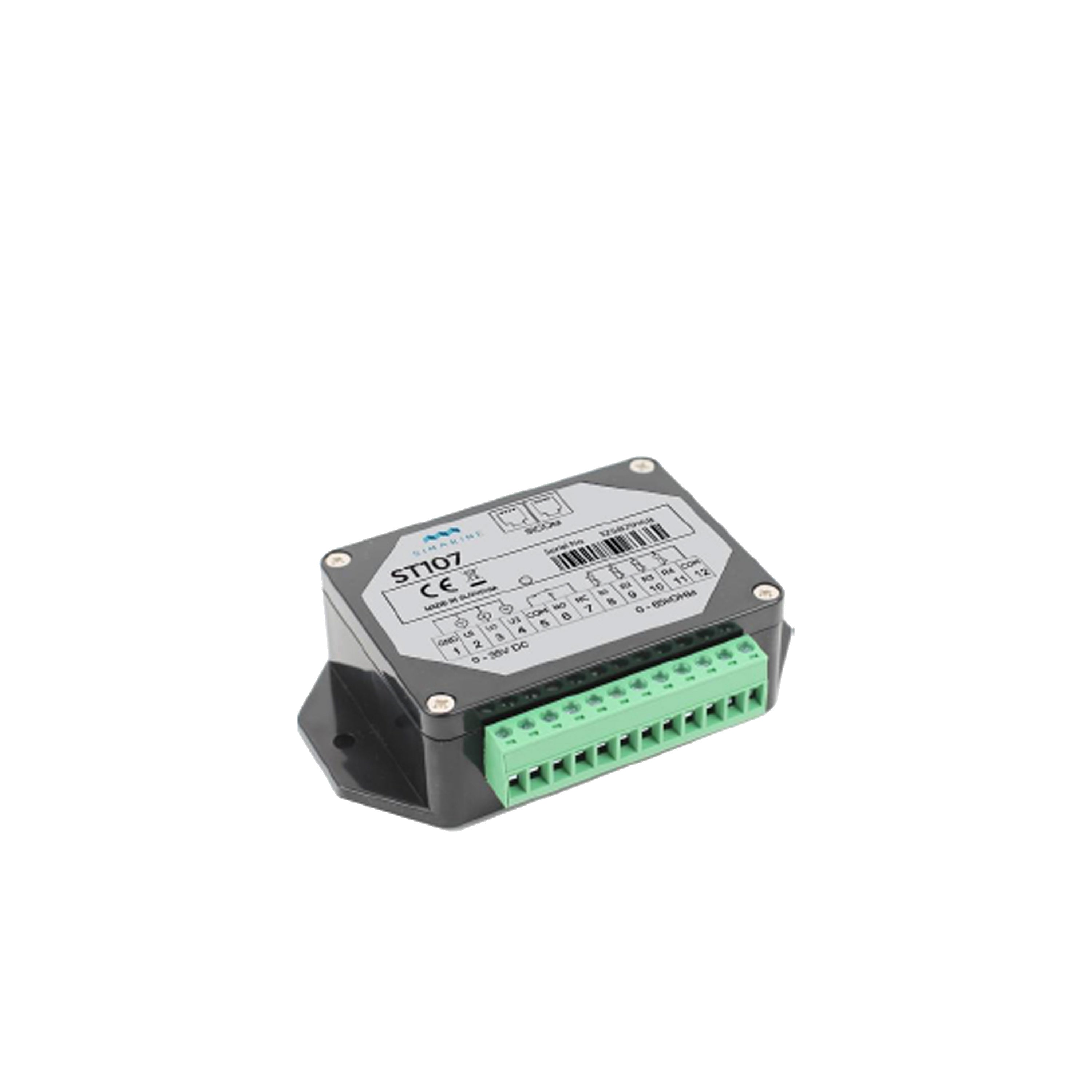

ST107 tank module – Comprehensive monitoring functions

The ST107 is a multifunctional module that can monitor tank and temperature sensors as well as battery voltage. It offers four resistance inputs for tank level or temperature sensors and three voltage inputs for monitoring tank and battery voltage. With the ST107, you can monitor up to seven tank levels, three battery voltages, and four temperatures. Experience the freedom and security of comprehensively monitoring your systems on board your caravan or yacht with the PICO STANDARD Package in Black.

Further recommendations

In addition to the PICO STANDARD Package, we recommend using a suitable charge controller for optimal power supply. Also discover our complete solar sets, which include all necessary installation materials and are perfectly tailored to your needs.



Technical data Simarine Pico
Voltage range 6 - 35 V
Power consumption (operation) 0.8 mA
Max. current 300 A
Max. peak current 400 A
Voltage range 0 - 75 V
Sampling rate 100 ms
Temperature range -20°C to 70°C
Dimensions 108.5 x 94 x 10 cm
