Simarine PICO Standard Set Rev23 - Silver with Mounting Frame

Simarine PICO Standard Set Battery Monitor, Tank Electrode and Shunt
  • 1 x PICO Display Unit - high-resolution 3.5“ LCD TFT with Gorilla Glass
  • 1 x SC303 Auxiliary Resistance Unit
  • 1 x ST107 Tank Module
  • Color: silver
  • Mounting frame included

Sale price462,26 €

Tax included. Shipping calculated at checkout

SKU: 306-1114

In stock
Versandbereit in: 1 - 3 Werktagen

Product description

The PICO STANDARD Package in Black

The PICO STANDARD package is the ideal solution for battery and tank monitoring on yachts and caravans. It supports 1 main battery (300 A at 12 V, 24 V, 48 V, 60 V, and 72 V), up to 4 auxiliary batteries (voltage display only), and up to 6 tanks. The package includes:

  • 1x PICO one display unit
  • 1x SC303 300 A shunt
  • 1 x ST107 tank module

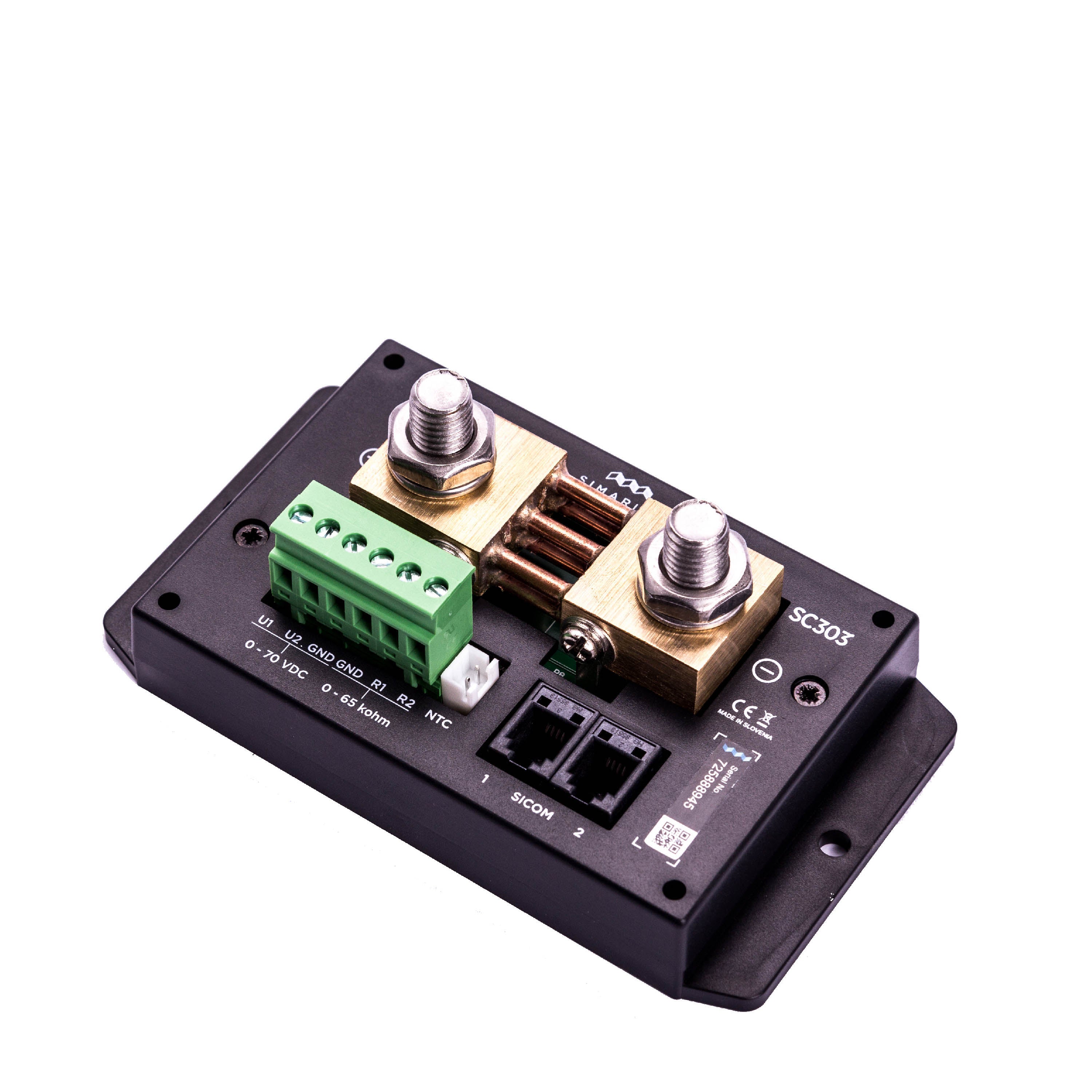

SC303 - Your Innovative Monitoring Solution

The SC303 combines a shunt with a tank level module. It provides precise monitoring of battery voltage, battery temperature, and continuous currents of up to 300 A (400 A peak) for systems from 12 V to 72 V. Suitable for up to 3600 W at 12 V or 7200 W at 24 V, the SC303 features two battery voltage inputs and can also monitor the power consumption of high-power consumers such as inverters or generators. The innovative design of the SC303 allows it to be connected to either the negative or positive side (up to 24 V).

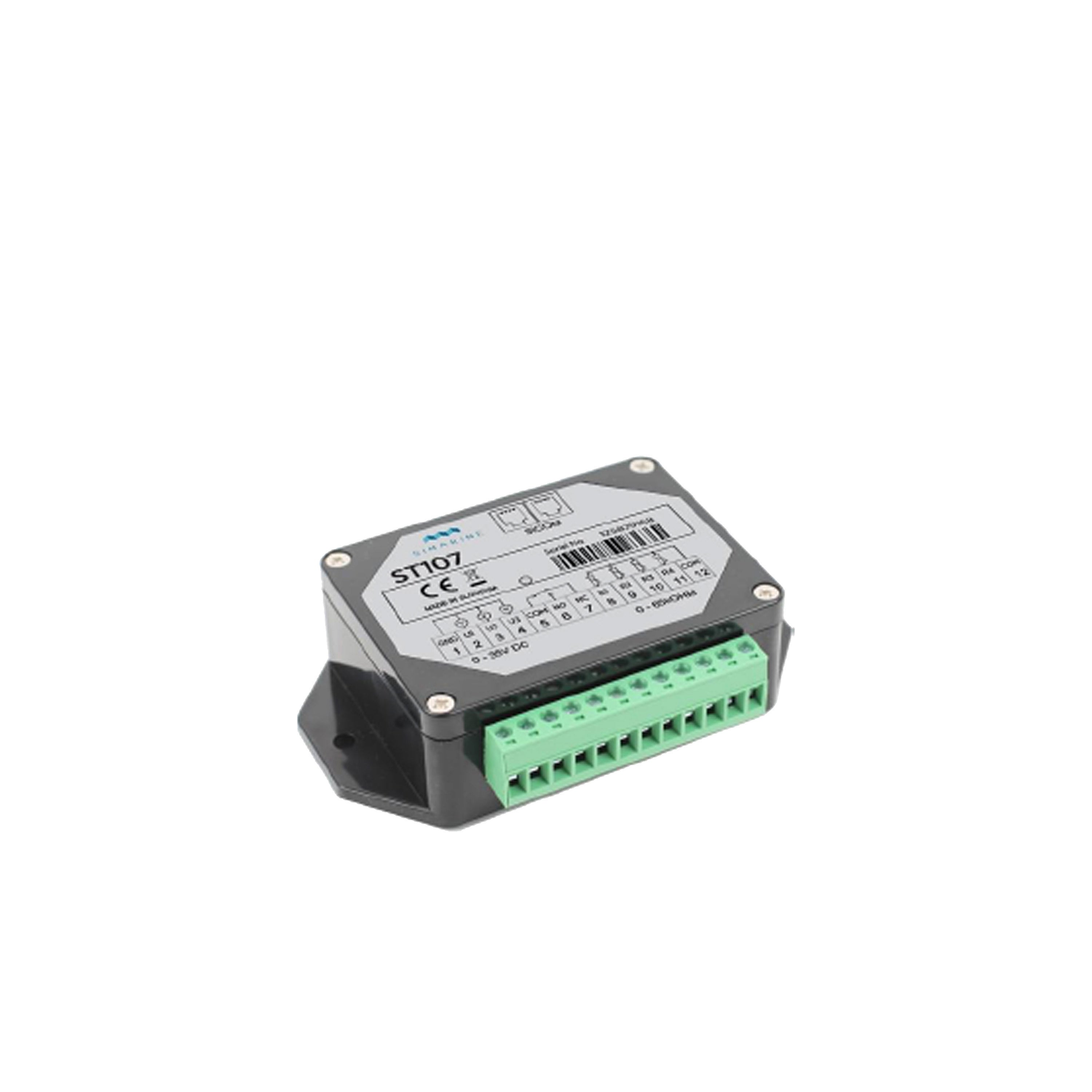

ST107 Tank Module - Versatile Monitoring Options

The ST107 is a versatile module for monitoring tank and temperature sensors, as well as battery voltage. It offers four resistance inputs for tank level or temperature sensors and three voltage inputs for tank and battery voltage sensors. With the ST107, you can monitor up to 7 tank levels, 3 battery voltages, and 4 temperatures. Enjoy the freedom and security of comprehensive system monitoring aboard your caravan or yacht with the PICO STANDARD package in black.



Additional Information:

In addition to the PICO STANDARD package, we also recommend using a suitable charge controller for optimal power supply. You can also discover our complete solar sets, which include all the necessary installation materials and are perfectly tailored to your needs.



Technical Data Simarine Pico
Voltage range 6 - 35 V
Current consumption (operation) 0.8 mA
Max. current 300 A
Max. peak current 400 A
Voltage range 0 - 75 V
Sampling rate 100 ms
Temperature range -20°C to 70°C
Dimensions 108.5 x 94 x 10 cm
