SOLARA S-Series - S760M36 solar module 190Wp
190-watt high-performance monocrystalline solar panel
Robust and reliable for mobile use
- Power output: 190 watts
- Dimensions: 1500 x 680 x 35 mm
- Designed and manufactured for continuous use on water and land
- Robust, seawater-resistant, torsion-resistant aluminum profile frame
- Drainage holes in the frame to prevent frost damage
- Large, waterproof junction box with connection cable, MC4 compatible
- Manufactured exclusively in Germany
Tax included. Shipping calculated at checkout
Your legal guarantee rights
Product description
Monocrystalline High-Performance Module - Even More Effective Power Solar Cells
These SOLARA modules are ideal for mobile use on motorhomes, as they are significantly smaller and lighter than conventional poly- or monocrystalline solar modules. The modules are also suitable for use in garden sheds and all other 12V off-grid solar systems.
Key Features at a Glance:
- 190-watt monocrystalline solar module
- Higher cell efficiency of over 20%
- Anodized hollow-chamber profile frame in silver
- Lighter and requiring less space than conventional solar modules
- Tempered ESG anti-reflective glass
- Integrated bypass diodes
- IP65 junction box
- Pre-wired with MC4 connectors (+ / -)
- Easy connection of multiple modules thanks to MC4 connectors
- 20-year power guarantee
Easy installation, quick commissioning, and pre-prepared materials make your setup a breeze! The modules are enclosed in a sturdy hollow-chamber profile frame and promise maximum stability, especially in extreme conditions.
Thanks to the anti-reflective glass, the modules let significantly more light through and therefore provide higher transmission than other modules. The cell efficiency of the monocrystalline SunPower solar modules is 21%. The modules come from the factory equipped with a cable connection and MC4 connectors to simplify the connection of multiple modules.
Further Information
In addition to a 12V battery, you also need a charge controller to regulate the power supply and thus prevent overcharging or potentially deep discharging the battery. It also ensures an optimal charging voltage and provides the necessary reverse current protection at night.
Feel free to visit our category for charge controllers.
Furthermore, the question of suitable mounting for the new solar panel often arises. Here we have various brackets, mounting systems, and support spoilers for installation on motorhomes, house walls, and many other options.
Feel free to take a look at our category mounting systems.
Of course, we have already put together complete solar sets for a wide range of requirements. In addition to the modules and brackets, these sets contain all the materials necessary for installation, such as connection cables, adhesive, sealant, and roof penetrations.
Further information can be found in the category complete solar sets.
Technical Data S760M36
| Rated power | 190 W |
| Voltage | 20.13 V |
| Current | 9.44 A |
| Open-circuit voltage | 24.14 V |
| Short-circuit current | 10.09 A |
| Number of cells | 36 |
| Weight | 12.1 kg |

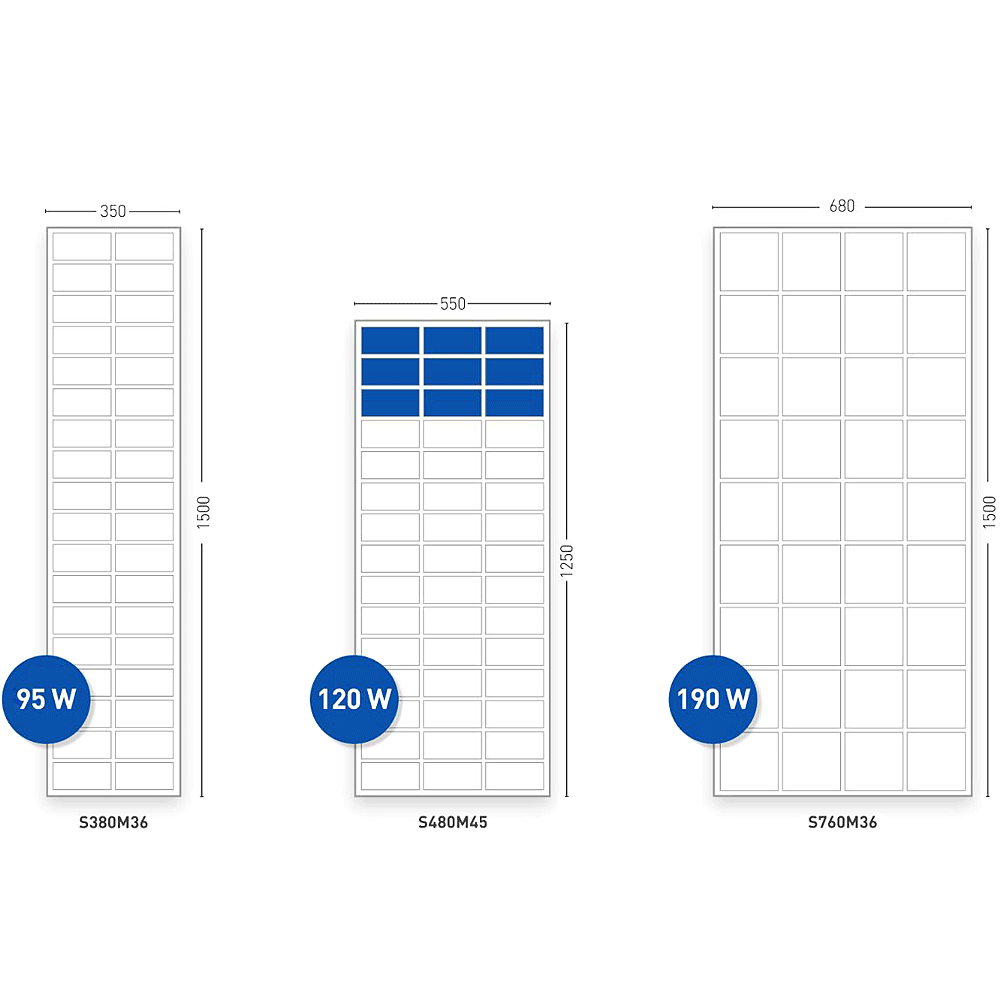

| Dimensions | 1500 x 680 x 35 mm |
