SunWare SW 20144 white, 22 Wp

  • Power: 22 watts
  • Cable length: 3 m
  • Weight: 1.2 kg
  • 100% waterproof and resistant to salt water

Sale price277,20 €
Vorbestellbar

Tax included. Shipping calculated at checkout

SKU: 104-1017

Re-stocking soon
Versandbereit in: 9 - 11 Werktagen

Product description

SunWare SW Solar Module Series 20 white 22Wp 12V: High-performance energy solutions for marine applications

Product introduction: Experience maximum energy efficiency at sea with the Series 20 marine solar modules, designed for walkable installation directly on deck. These modules, manufactured in Germany, are not only extremely robust and salt-water resistant, but also ideal for direct bonding or screwing to the deck, with no rear ventilation required. Equipped with only one connection cable at the front, these modules allow for easy installation.

Performance and flexibility: The Series 20 marine solar modules are characterized by their high performance even in diffuse light, thanks to the exclusive use of top-class solar cells. Their semi-flexible design adapts perfectly to deck curves and allows for a maximum flexibility of 3%. Thanks to the special laminate construction, the modules are 100% sea- and salt-water resistant, making them ideal for use in harsh marine environments.

Design features: These modules are not only lightweight and compact, but also offer outstanding power output thanks to the built-in monocrystalline PERC high-performance solar cells, protected by EVA laminate and ETFE top layers. The Series 20 marine solar modules can be securely mounted using screws, bonding, or SunWare clips, and are walkable even when permanently installed with boat shoes.

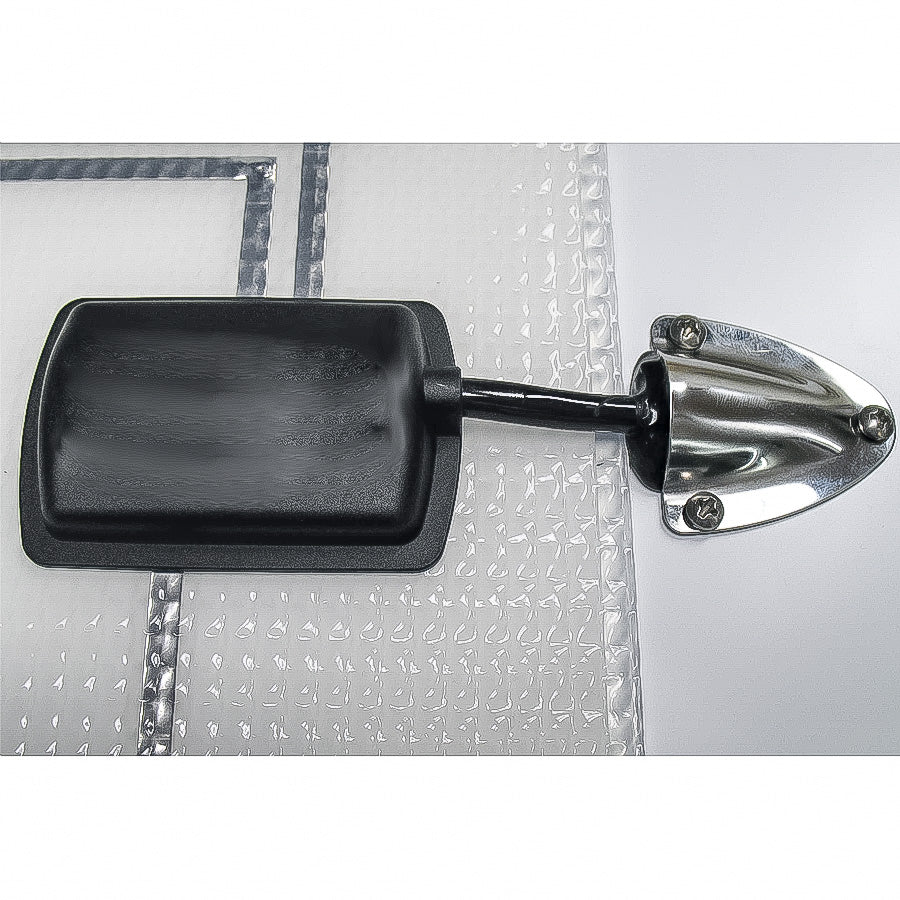

Installation flexibility: The included 3-meter connection cable and the option to route the cable through the deck increase installation flexibility.

Application and reliability: Series 20 marine solar modules are a reliable power source specially developed for demanding sea and salt-water applications. They are the ideal choice for discerning boat owners seeking high functionality and long-lasting durability in an aesthetically pleasing design.






Technical data SunWare SW 20144
Rated power 22 W
Max. daily yield (summer) 132 W
Voltage (Vmpp) 21.36 V
Current (Impp) 1.03 A
Open-circuit voltage (Voc) 27.2 V
Short-circuit current (Isc) 1.11 A
Number of cells 40
Backing plate Aluminum sandwich
Cable outlet Front side
Weight 1.2 kg
Dimensions 634 x 273 mm
