Victron EasySolar-II 48/4k5/55-32 MPPT 250/70 GX
- Inverter with 4 kW continuous output power
- Battery charger with 55 A
- Solar charge controller for up to 4000 W PV power
- compact combination unit as an elegant complete solution
Tax included. Shipping calculated at checkout
Your legal guarantee rights

Product description

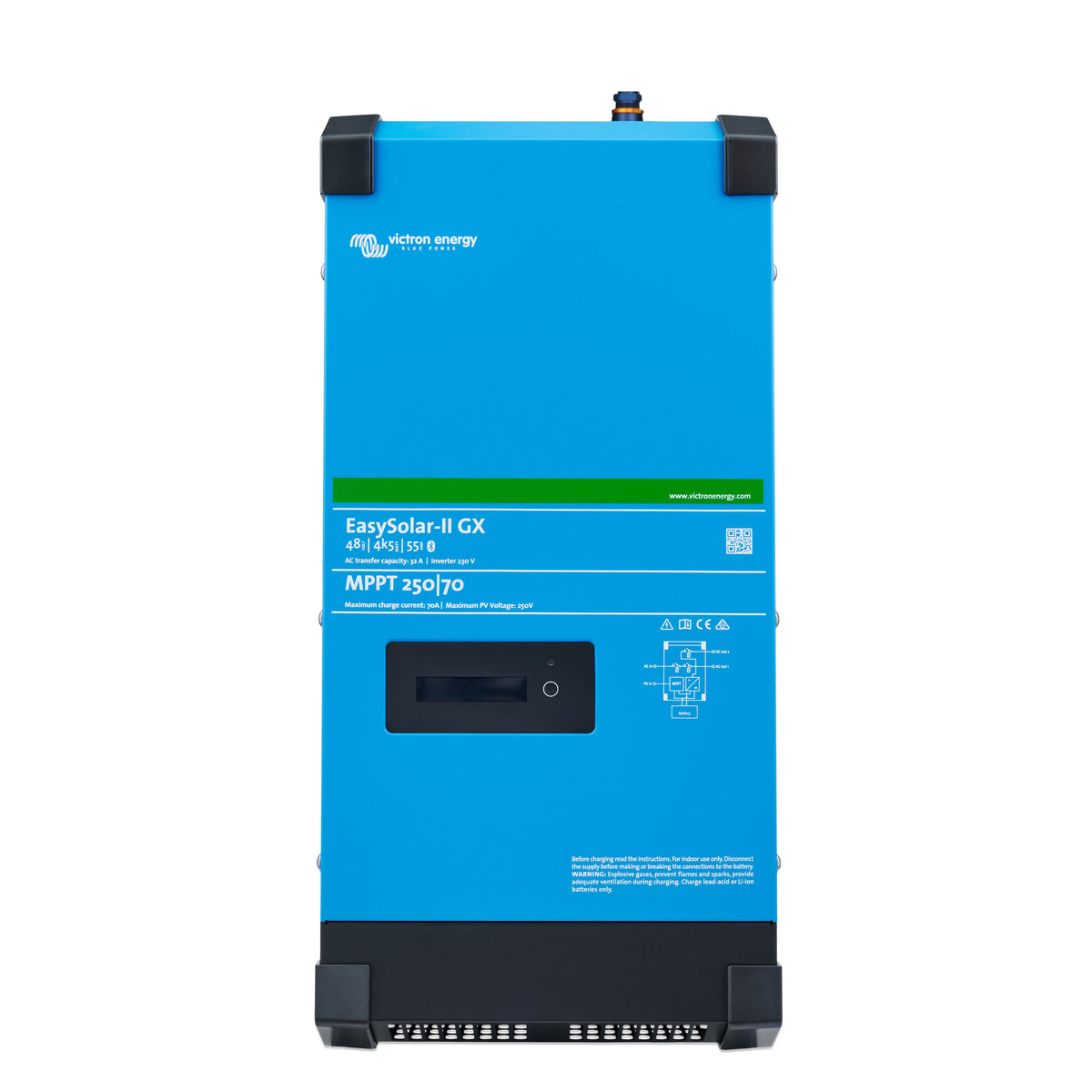

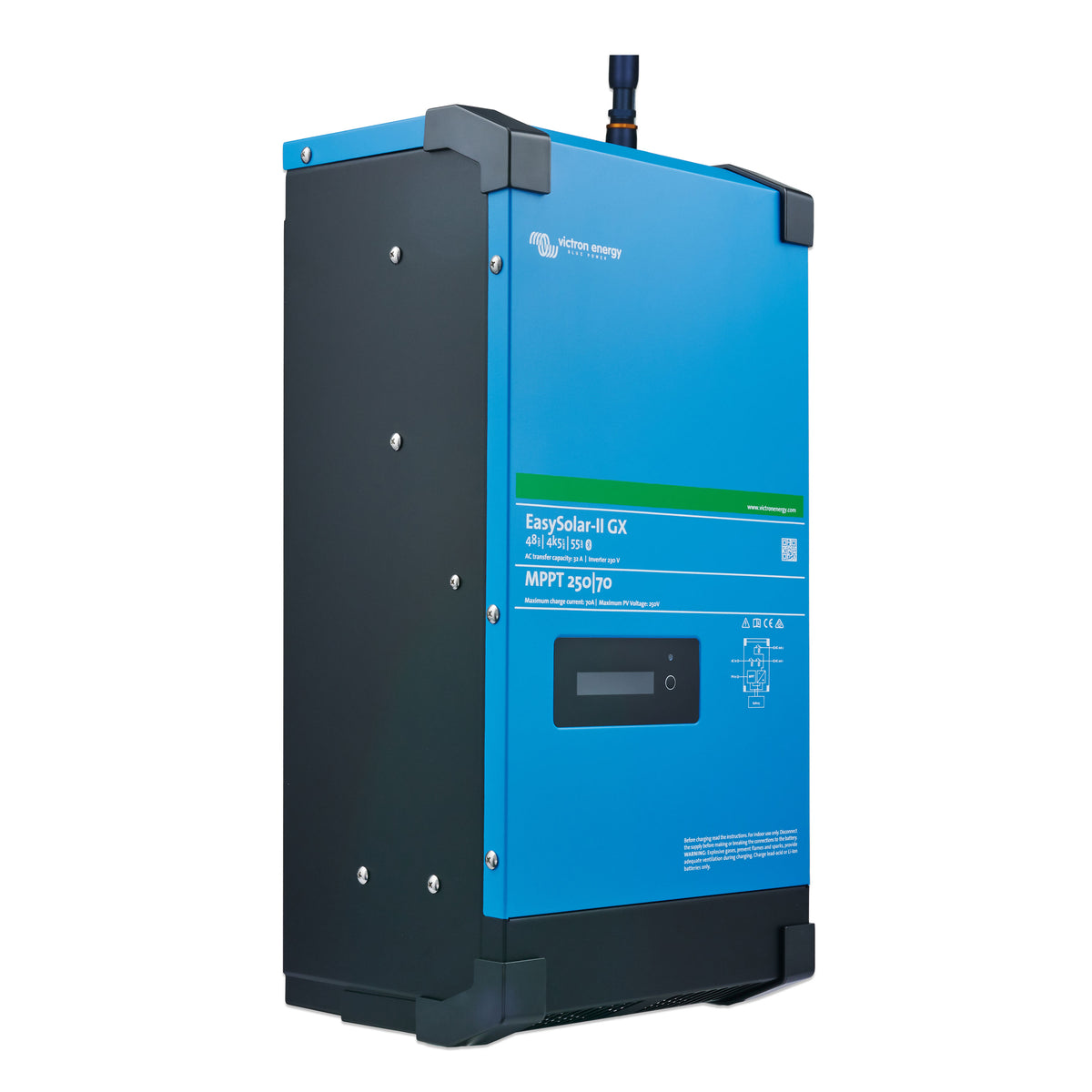

Victron EasySolar-II 48/4k5/55-32 MPPT 250/70 GX – All-in-one for 48 V with inverter/charger, MPPT and GX
The Victron EasySolar-II 48/4k5/55-32 MPPT 250/70 GX is a compact all-in-one solution for 48‑V systems: You get an inverter/charger, MPPT solar charge controller, and a GX communication hub in a single device. This makes the system suitable for off-grid applications, vehicles, boats, and stationary energy systems where solar power, batteries, and 230‑V supply are to work together seamlessly – including monitoring and future expandability.
In everyday use, the EasySolar-II helps you store solar energy, reliably supply consumers, and intelligently manage grid or generator power. Particularly convenient: Thanks to the ESS functionality and integration into Victron's monitoring world (GX/VRM), the setup remains transparent and controllable.
PowerControl & PowerAssist: Intelligently relieve the grid or generator
With PowerControl, you can set a maximum grid or generator current. The device then takes other AC loads into account and uses only the remaining "free" power to charge the battery – thus avoiding overloading the connection. PowerAssist automatically supplements short-term load peaks from the battery if the grid or generator is currently too weak. As soon as the load drops, more energy can flow into charging again.
Use solar power even during a power outage
The system can be used in grid-connected and off-grid PV systems and is designed so that you can continue to be supplied even during a grid/land-based power outage (depending on the system configuration). It can be combined with both solar charge controllers and grid-tied inverters.
Two AC outputs for sensible load separation
- Main output: ensures uninterrupted supply; in the event of a power outage, the device takes over the supply of the loads. The switchover occurs in under 20 ms, so many devices can continue to run.
- Second output: only supplies power when AC is available at the input – ideal for consumers that should not discharge the battery (e.g. boilers). These loads are taken into account in PowerControl/PowerAssist.
Scalable: parallel and three-phase
If your power requirements grow, the system can be expanded: up to six devices can be connected in parallel. In addition, three-phase operation is possible (three units of the same model), and a combination of parallel and three-phase operation is also feasible (depending on the design).
On-site & remote monitoring
On-site, you can adjust settings via VEConfigure (with a computer/laptop and MK3-USB). Various options are available for monitoring and control – from GX devices to remote monitoring via the VRM portal (with an internet connection), including data view and remote access.
Your benefits at a glance
- All-in-one: MultiPlus-II + MPPT (250/70) + GX in one device
- ESS-capable: ideal for modern storage and self-consumption setups
- PowerControl & PowerAssist: protects grid/generator and handles load peaks
- Two AC outputs for clean load separation (UPS-like switchover < 20 ms on the main output)
- Suitable for off-grid, vehicles, boats, and stationary systems
- Expandable: parallel operation (up to 6) and three-phase operation possible
- Local and remote monitoring via GX/VRM (depending on configuration)
If you want to build a 48‑V system that bundles solar, battery, and 230‑V supply in one device while remaining "Victron-typical" expandable from the start, the EasySolar-II 48/4k5/55-32 MPPT 250/70 GX is a very well-rounded solution.
| Technical data | Victron EasySolar II 48/4k5 |
| Inverter input voltage range | 38 - 60 V |
| Cont. output power (25 °C) | 4 kW |
| Peak power | 7 kW |
| Max. efficiency | 95 % |
| Cont. charging voltage | 57.6 V |
| Max. battery charging current | 55 A |
| Max. PV power | 4000 W |
| Weight | 27 kg |
| Dimensions | 591 x 275 x 254 mm |
