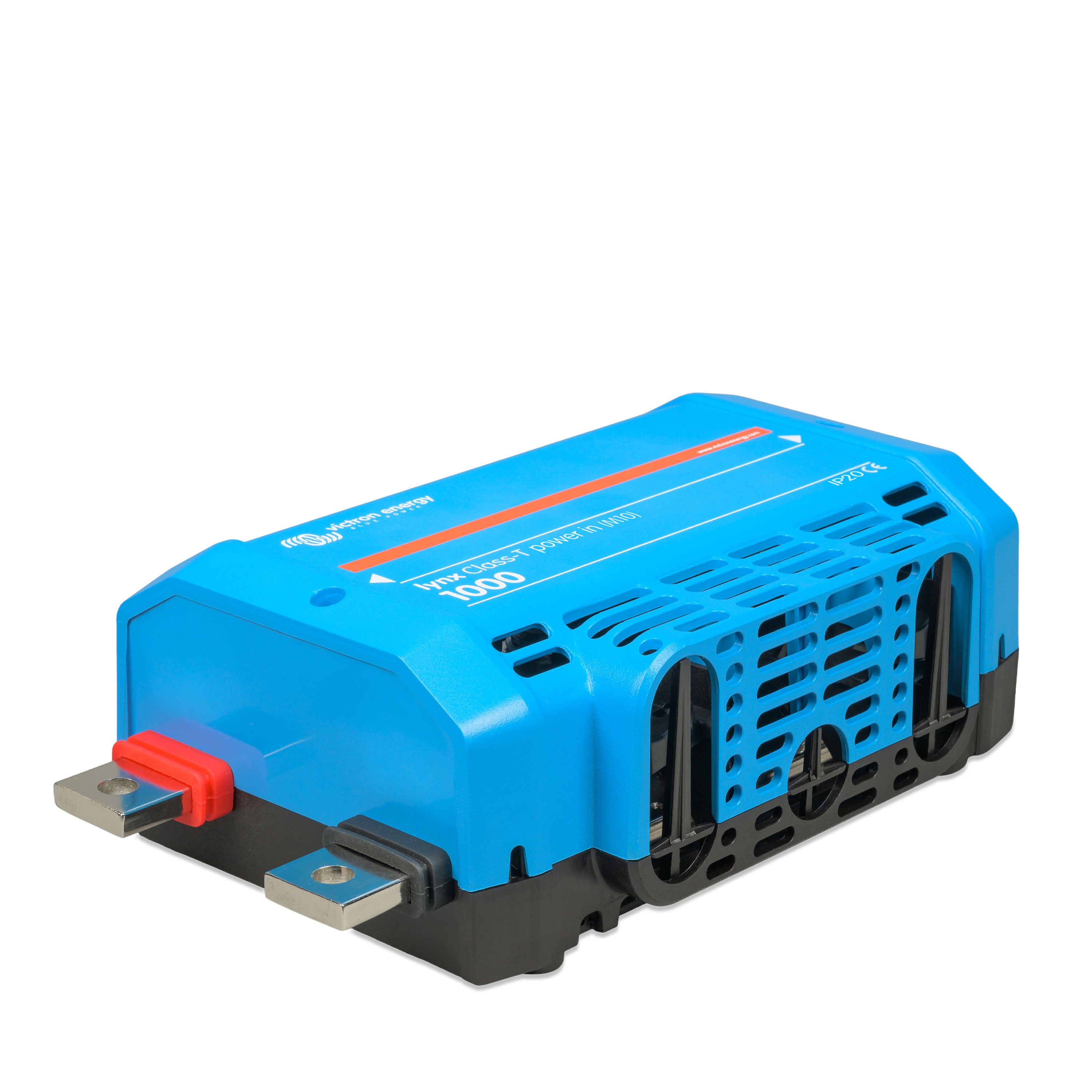

Victron Lynx Class-T Power In M10
- For the secure connection and protection of up to two lithium battery strings
- High performance with a rated current of up to 1000 A at 9–60 V
- Integrated connections for two Class-T fuses for reliable system protection
- Compatible with all M10 Lynx products and flexibly expandable
- With a ground connection for a safe and organized DC installation
Tax included. Shipping calculated at checkout
Your legal guarantee rights
Product description
Lynx Class-T Power In – Safe and efficient for lithium battery installations
The Lynx Class-T Power In is the ideal solution for safely connecting and protecting up to two strings of lithium batteries in your system. With a positive and negative busbar as well as connections for two Class-T fuses, the module ensures reliable power distribution and protection. It also features a connection for grounding the DC system. The Class-T fuses (225 A, 250 A, 350 A and 400 A) are available separately and offer flexibility for various requirements.
Applications
The Lynx Class-T Power In is ideal for:
- Connecting and protecting up to two strings of lithium batteries
- Installations requiring reliable protection and grounding
- Integration into existing Lynx distribution systems for uniform power management
Expandable for larger installations
For installations with three or more strings of lithium batteries, you can use multiple Lynx Class-T Power In modules. Thanks to seamless integration with other M10 Lynx products, your power distribution system remains flexible and expandable.
Special features

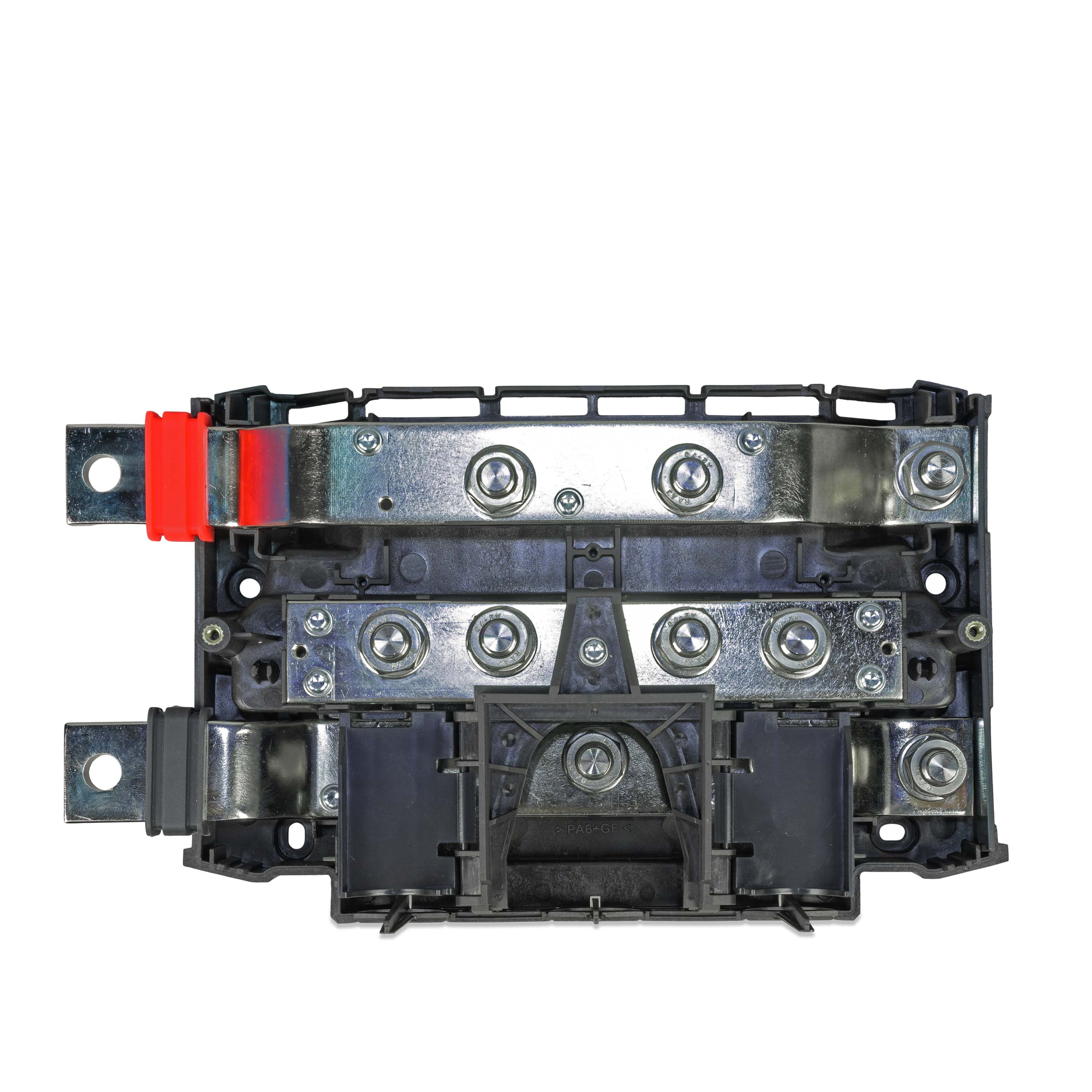

- Positive and negative busbar for safe power distribution

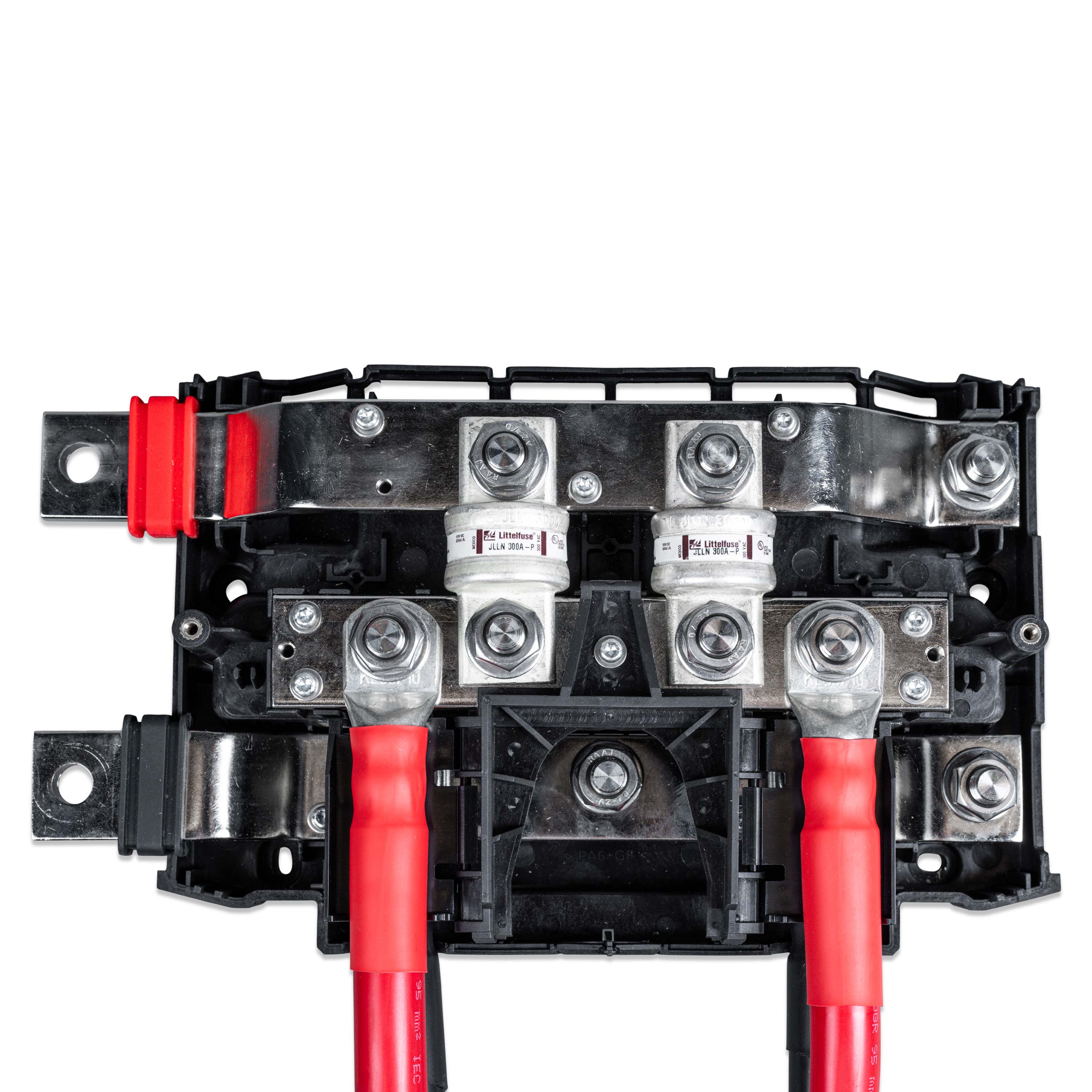

- Connections for two Class-T fuses (available separately)
- Connection for grounding the DC system
- Compatible with all other M10 Lynx products
- Expandable for larger installations
With the Lynx Class-T Power In, you are choosing safety, flexibility and compatibility for your power distribution system!
| Technical specifications | Victron Lynx Class-T Power In M10 |
| Voltage range | 9 - 60 V |
| Rated current | 1000 A |
| Protection rating | IP20 |
| Operating temperature | - 40 °C to + 60 °C |
| Weight | 2.1 kg |
| Dimensions | 279 x 169 x 97 mm |
