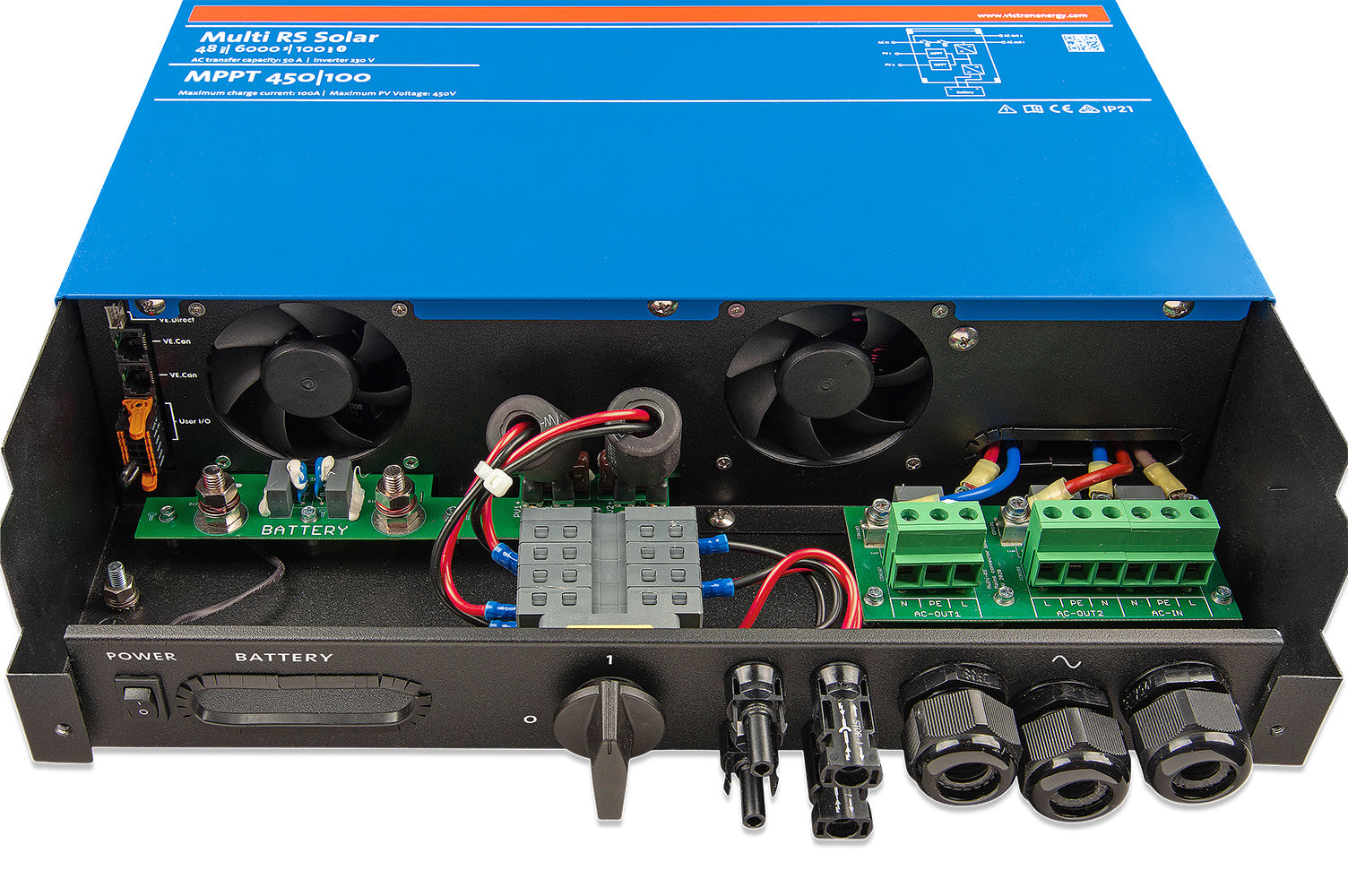

Victron Multi RS Solar 48/6000/100-450/100

Victron Multi RS Solar 48/6000/100-450/810 230V

Hybrid inverter/charger
The Multi RS Solar 48/6000 is an inverter/charger for 48 V & 6 kVA with a 450 VDC 4 kWp PV input.

Combination of inverter, AC charger and solar MPPT
The inverter produces a perfect sine wave, which is capable of powering high-performance devices. It also works bidirectionally, i.e. it charges the battery with excess solar power or AC power or converts it when needed.

Large MPPT voltage range
80 - 450 VDC, with a PV start-up voltage of 120 VDC.

Lightweight, efficient and quiet
Thanks to high-frequency technology and a new design, this powerful inverter weighs only 11 kg. In addition, it has an excellent efficiency, low standby power and a very quiet operation.

Display, Bluetooth and VictronConnect app
The display reads the battery, inverter and solar parameters. The same parameters can be accessed with a smartphone or another Bluetooth-enabled device via the VictronConnect app.

Expandable PV capacity, coupled with both AC and DC
The integrated PV capacity of 4 kWp can be expanded by adding solar chargers to the system, for example our Smart Solar chargers, including the Smart Solar RS models. When connected to a VE.Can network, all battery charging is carried out simultaneously and in a coordinated manner.
Alternatively, the PV capacity can be expanded by installing PV inverters, whose output power is automatically controlled by the integrated frequency shift control.

Interfaces
Ve.Can connection to a GX device for system monitoring, data logging and remote firmware updates. VE.Direct connection to a GlobalLink 520 for remote data monitoring.

I/O connections
Programmable relay, temperature sensor and voltage sensor connections. The remote input can also be configured to accept the Victron smallBMS.
