Victron Multi RS19 Solar 48/6000/100-450/100
- Combination of inverter and charger
- Pure sine wave 230 V AC
- Two AC outputs
- PowerControl and PowerAssist functions
- Parallel and three-phase operation possible
Tax included. Shipping calculated at checkout
Your legal guarantee rights

Product description

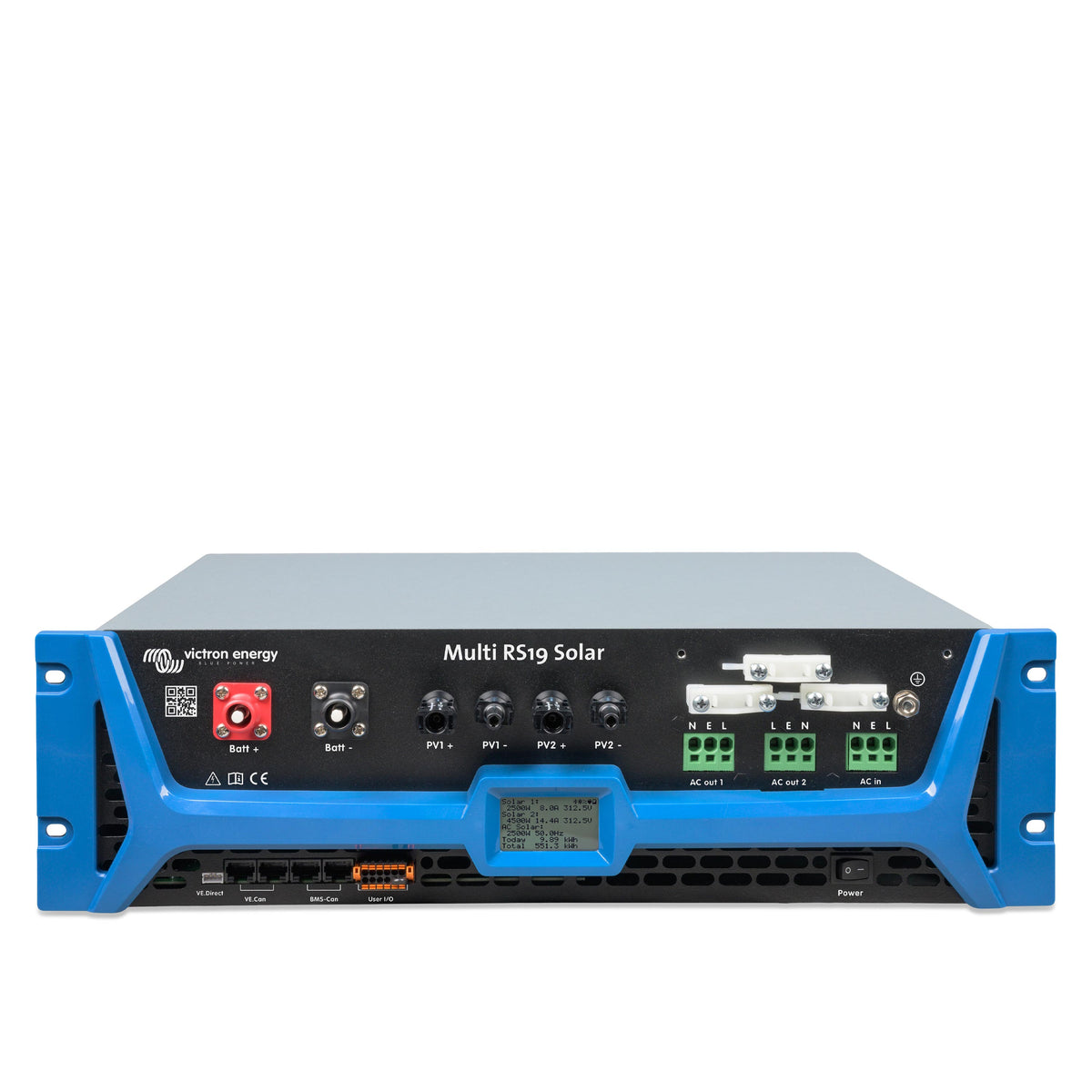

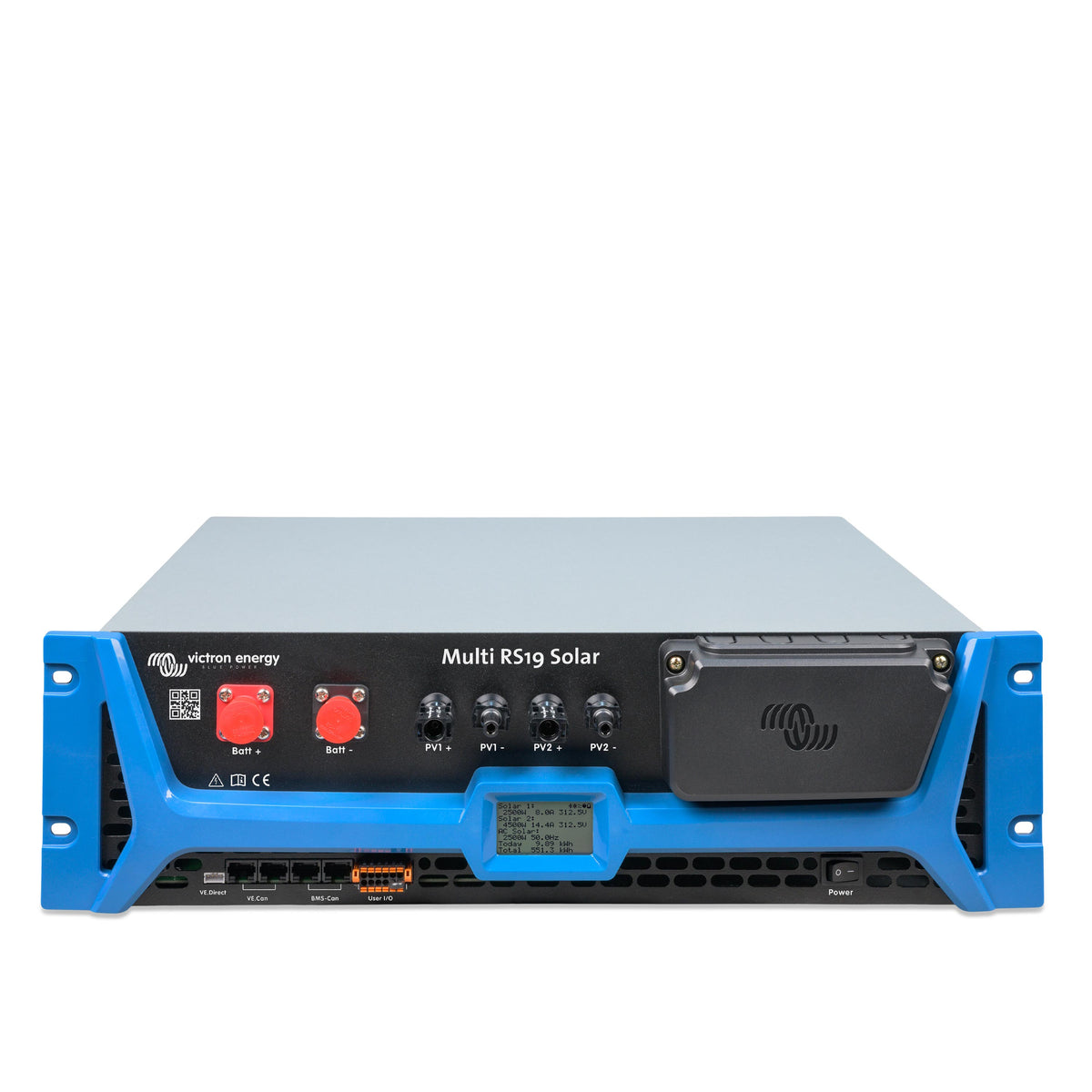

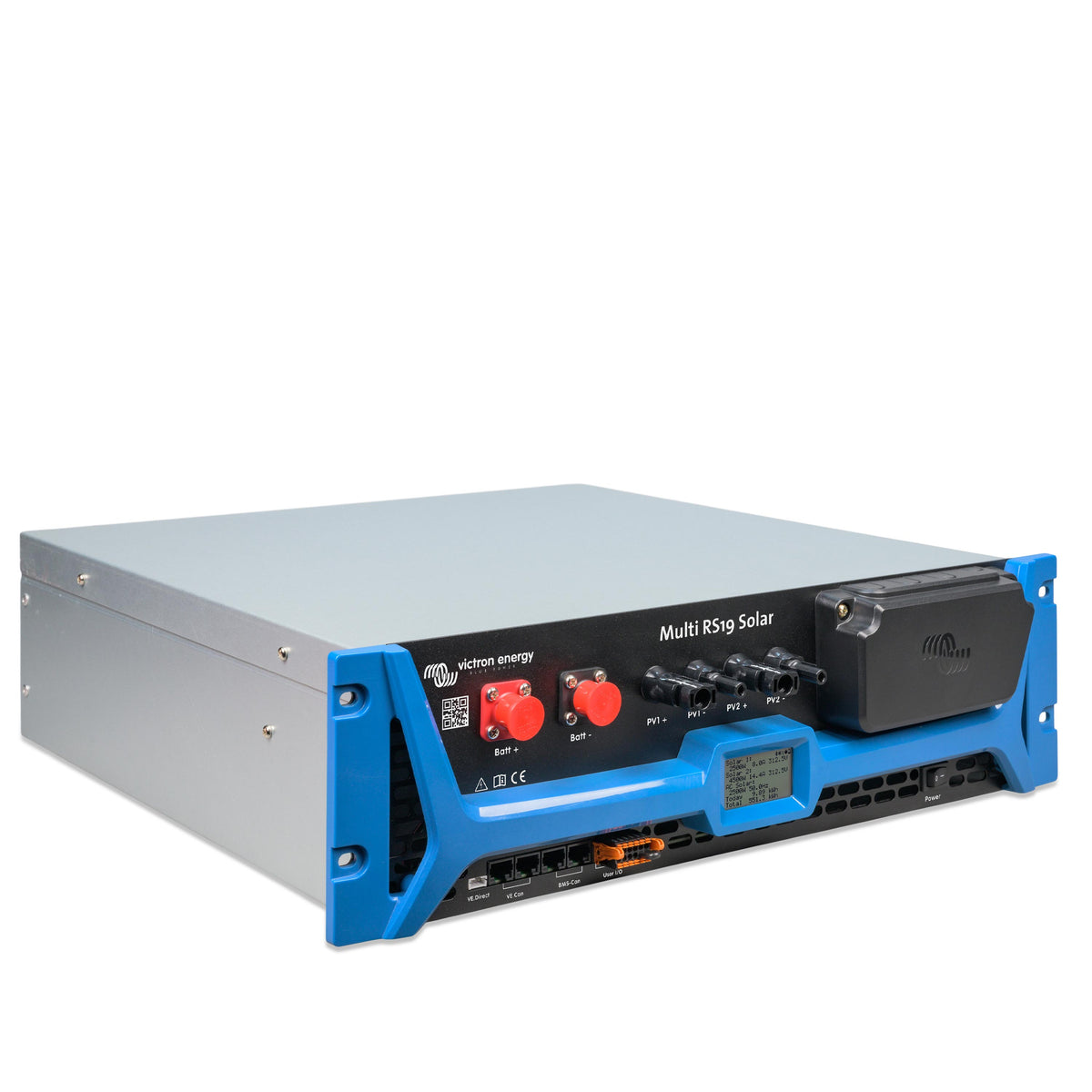

Victron Multi RS19 Solar 48/6000/100-450/100 – Hybrid Inverter with Dual MPPT for 48-V Systems
The Victron Multi RS19 Solar combines several core components in one device: a powerful 48-V inverter, a battery charger, and an integrated dual MPPT solar charge controller. This makes it a strong foundation for flexible 48-V hybrid systems – whether you want to optimize self-consumption, build a partially autonomous system, or create a reliable backup power supply.
The combination of DC-coupled PV charging (via MPPT) and classic 230-V power supply allows the system to operate both grid-connected and off-grid. Monitoring is conveniently handled via display and VictronConnect via Bluetooth; additionally, VE.Can, VE.Direct, and BMS-Can are available for integration into Victron systems (GX devices, Energy Meter, Monitoring).
Four operating modes: suitable for your application
- Hybrid mode: solar surpluses are stored in the battery and used later
- Backup mode: automatic switchover in the event of a grid failure
- Off-grid mode: grid-independent operation
- Generator mode: optimizes the use of a generator and can reduce operating times
PowerControl & PowerAssist: handle load peaks without overload
With PowerControl, you can define a maximum grid or generator current to prevent overloads. PowerAssist supplements short-term load peaks with battery power – and ensures that the battery is recharged afterwards. This is particularly helpful when the available grid or generator power is limited, but you still want to briefly operate high-power consumers.
Integrated dual MPPT: up to 2 PV trackers for direct battery charging
The integrated solar charge controller operates with two PV trackers. Each tracker supports up to 3 kW (voltage range 65–450 V), meaning a total of up to 6 kWp of DC-coupled PV power. If you want to expand your PV array later, you can additionally increase the PV capacity via additional solar charge controllers or AC-coupled PV inverters.
Robust, efficient, and built for demanding environments
The Multi RS19 Solar is designed for continuous operation: with an efficiency of up to 96.5%, fan-assisted cooling, a wide temperature range of -40 to +65 °C, and a robust steel enclosure (IP20). A programmable relay as well as a temperature and voltage sensor round off the system.
Your benefits at a glance
- 3-in-1: Inverter + battery charger + dual MPPT in one device
- For 48-V hybrid systems: grid-connected or off-grid
- Four operating modes (Hybrid, Backup, Off-Grid, Generator) for flexible use
- PowerControl & PowerAssist: protects against overload and supports load peaks
- Dual MPPT: 2 trackers, each up to 3 kW (65–450 V), total up to 6 kWp DC-coupled
- Monitoring & Integration: Bluetooth/VictronConnect, display, VE.Can/VE.Direct/BMS-Can
- Efficient & robust: up to 96.5% efficiency, IP20 steel enclosure, -40 to +65 °C
If you are looking for a powerful, integrated centerpiece for a 48-V system – with direct PV connection via two MPPTs and typical Victron system integration – the Victron Multi RS19 Solar is a very compelling solution.
| Technical data | Victron Multi RS 19 Solar 48/6000 |
| DC input voltage range | 38 - 62 V |
| AC output | 230 V |
| cont. output power 46 V / 52 V | 4800 W / 5300 W |
| Peak power | 9 kW 3 sec. / 7 kW 4 min. |
| Short-circuit output current | 45 A |
| Temperature range | - 40 °C to + 65 °C |
| Protection class | IP 20 |
| Weight | 12.2 kg |
| Dimensions | 133 x 483 x 430 mm |
