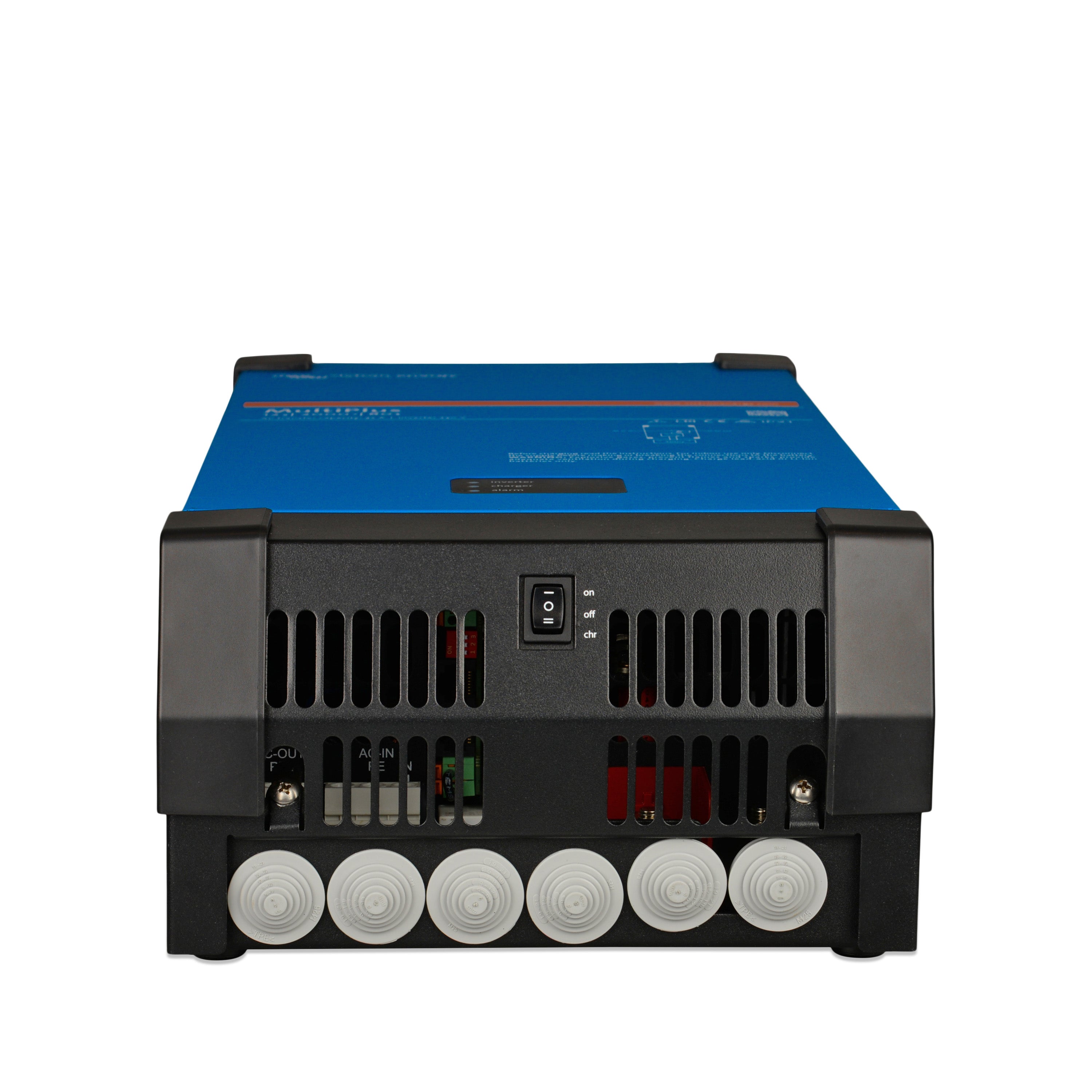

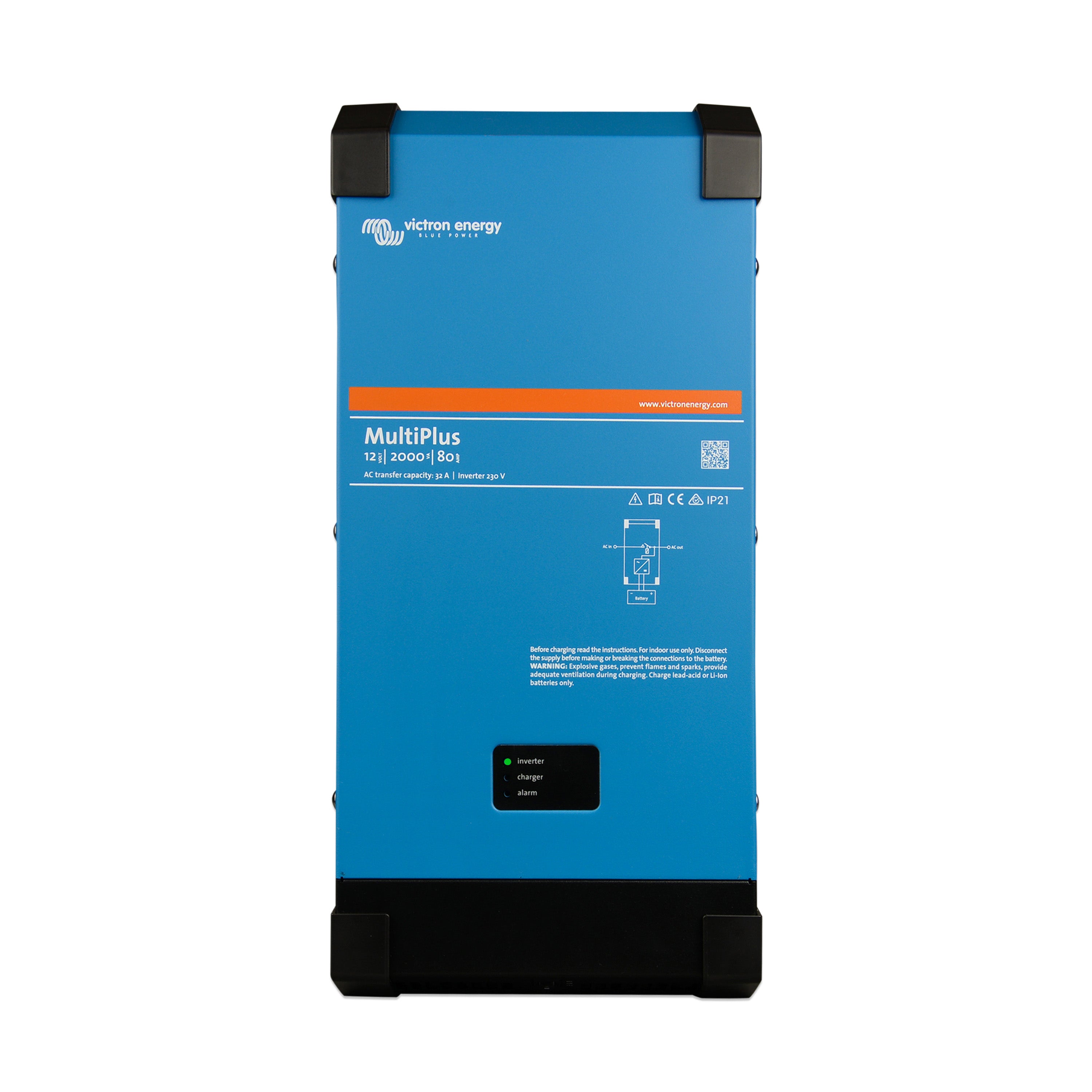

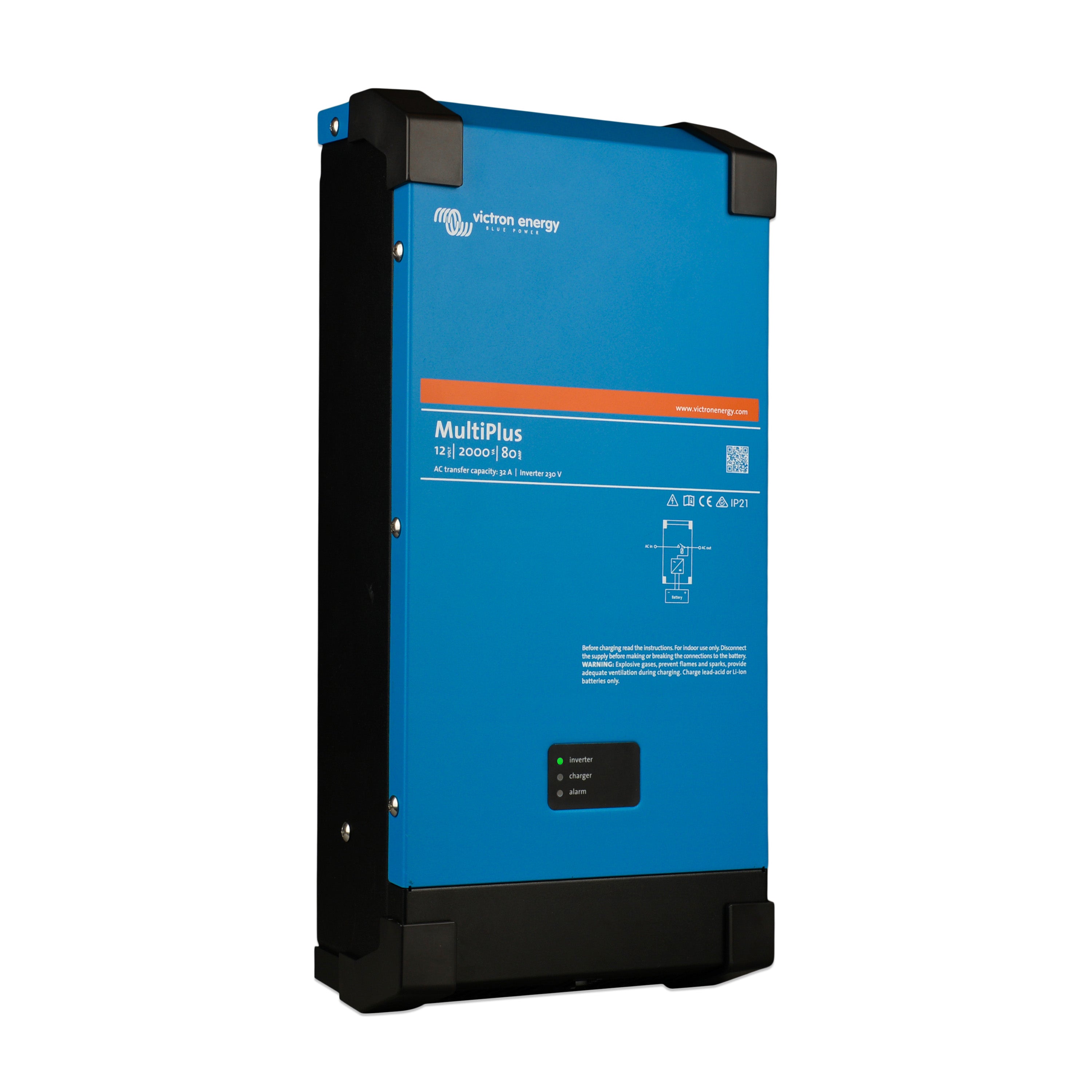

Victron MultiPlus 12/2000/80-32 230V VE.Bus

Victron MultiPlus 1600W Multifunction Device Inverter and 12 V Charger
  • Combination of inverter and charger
  • 230 V pure sine wave AC
  • Energy-saving mode to reduce standby losses
  • Hybrid Power Assist function and UPS
  • for 12 V batteries, 80 A charging current

Sale price900,24 €

Tax included. Shipping calculated at checkout

SKU: 300-3055

In stock
Versandbereit in: 1 - 3 Werktagen

Product description

Innovative combination unit from Victron: pure sine inverter and 12 V battery charger in one!

The MultiPlus 12/2000/80 from Victron is a combination unit consisting of a 1600 W pure sine inverter and battery charger. The smartly integrated battery charger delivers an impressive 80 A, allowing the batteries to be charged extremely quickly when shore or mains power is available. The pure sine voltage converter integrated in the MultiPlus converts the 12 V direct current from the battery into 230 V alternating current. Thanks to the pure sine wave, the quality of the voltage is perfectly suited even for sensitive electronic devices.

Versatile application

The MultiPlus is a powerful pure sine inverter, an advanced battery charger using adaptive charging technology, and a high-speed AC transfer switch in a single compact housing. Models are available in the range of 800 VA to 5000 VA per module.

Unique PowerAssist function

Load peaks often occur for only a limited period. In such a case, the MultiPlus ensures that insufficient shore or generator power is immediately compensated by energy from the battery. When the load is reduced, i.e., appliances are switched off, the then again sufficiently available energy can be used to charge the batteries.

Uninterruptible alternating current (UPS function)

In the event of a mains failure or an interruption of shore power or the onboard generator, the Multi inverter is automatically switched on and takes over the supply of the connected appliances. The switchover happens so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic devices is ensured.

Virtually unlimited power through parallel connection

Up to six Multi units can be connected in parallel for high power requirements. Three-phase or split-phase operation is also possible. Please refer to our data sheets to find out which models are suitable for parallel, three-phase, and split-phase operation.

PowerControl – Working with limited generator power, restricted shore or mains power (1600 VA).

With the Multi Control remote control panel, the maximum mains or generator current that can be drawn can be set. The MultiPlus then takes into account other connected AC appliances and uses only the "remaining" current for charging. This prevents the generator or shore power connection from being overloaded.

Monitoring and control on site

Several options are available: battery monitor, Multi Control panel, Ve.Net Blue Power panel, Color Control panel, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).

Remote monitoring and control

If systems with a Color Control panel are connected to the Ethernet, they can be accessed and settings can be changed remotely.

Remote configuration:

Victron Ethernet Remote, Venus GX, and the Color Control panel. The data can be stored and viewed free of charge on the VRM (Victron Remote Management) website.



Technical data MultiPlus 12/2000
Max. DC input voltage range 9.5–17 V
Cont. output power at 25 °C 1600 W
Peak power 3500 W
Max. efficiency 93%
Max. battery charging current 120 A
Operating temperature -40 °C to +65 °C
Weight approx. 15.5 kg
Dimensions 506 mm x 236 mm x 147 mm
