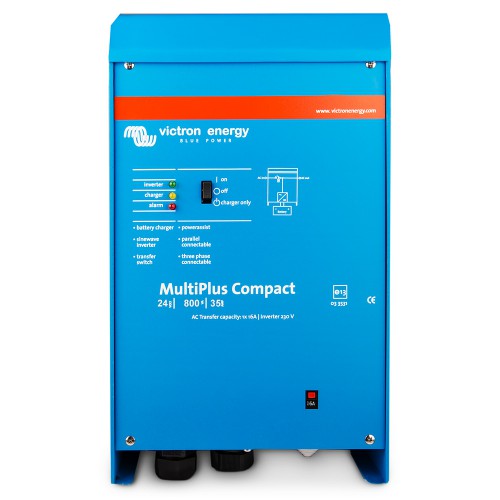

Victron MultiPlus C 24/800/16-16 230 V inverter 700W and charger 24V
Multifunktionsgerät Victron MultiPlus Compact 700W Wechselrichter und Ladegerät
- Kombination aus Wechselrichter und Ladegerät
- reiner Sinus 230 V Wechselspannung
- adaptive Ladefunktion
- Hybrid Power Assist Funktion und UPS
- für 24 V Batterien, 16 A Ladestrom
Tax included. Shipping calculated at checkout
Product details
Victron MultiPlus C 24/800/16-16 230 V inverter 700W and charger 24V
Multifunktionsgerät Victron MultiPlus Compact 700W Wechselrichter und Ladegerät
- Kombination aus Wechselrichter und Ladegerät
- reiner Sinus 230 V Wechselspannung
- adaptive Ladefunktion
- Hybrid Power Assist Funktion und UPS
- für 24 V Batterien, 16 A Ladestrom
Manufacturer information and, if applicable, the responsible person:
Victron Energy
The Paal 35
1351 JG Almere
sales@victronenergy.com
https://www.victronenergy.com
Product description
Innovative combination device from Victron: sine wave inverter and 24 V battery charger in one!
The Multiplus Compact 24/800/16 from Victron is a combination of a 700W sine wave inverter and a 24V battery charger. The smart integrated battery charger delivers an impressive 16A, allowing batteries to be charged extremely quickly when shore/mains power is available. The Multiplus's integrated sine wave voltage converter transforms the 24V direct current from the battery into 230V alternating current. Thanks to the true sine wave, the voltage quality is perfect even for sensitive electronic devices.
Versatile use
The MultiPlus is a powerful pure sine wave inverter, an advanced battery charger utilizing adaptive charging technology, and a high-speed AC transfer switch all in a single compact package. Models are available ranging from 800 VA to 5000 VA per module.
Unique PowerAssist feature
The MultiPlus prevents overloading a limited AC power source. First, it automatically reduces battery charging to protect against overload. Next, it boosts the power of a generator or shore power supply with energy from the battery.
Uninterruptible alternating current (UPS function)
In the event of a grid failure or an interruption to the shore power or on-board generator, the Multi's inverter automatically switches on and takes over powering the connected appliances. The switchover occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic devices is ensured.
Virtually unlimited power through parallel connection
Up to six Multis can be connected in parallel for high power requirements. Three-phase or split-phase operation is also possible. Please refer to our data sheets to find out which models are suitable for parallel, three-phase, and split-phase operation.
On-site monitoring and control
Several options are available: Battery monitor, Multi Control Panel, Ve.Net Blue Power Panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).
Remote monitoring and control
If systems with a Color Control Panel are connected to the Ethernet, they can be accessed and settings can be changed remotely.
Remote configuration:
Victron Ethernet Remote, Venus GX, and the Color Control Panel. Data can be saved and viewed free of charge on the VRM (Victron Remote Management) website.
Technical data
| Item number | 300-30411 |
|---|---|
| AC continuous power (W) | 700W |
| Voltage regulation | 24V DC / 230V AC |
| Self-consumption without load | 10W |
| Self-consumption without load in energy saving mode | 3W |
| Operating ambient temperature range | -40°C to 65°C |
| Number of battery outputs | 2 |
| Battery voltage | 24V |
| Protection class IP | IP21 |
| Output voltage (V) | 230V AC / alternating current |
| Power quality | true sine wave |
| AC Output Frequency Range (Hz) | 50Hz / +-0.1Hz |
| Manufacturer part number | PMP24800000 |
| Product type | Powerful pure sine wave inverter and battery charger with adaptive charging technology in one device. In addition, the MultiPlus devices have a transfer switch. |
| Transfer switch | 1 |
| Manufacturer | Victron Energy |
| Weight | 10 kg |
| Mass | 375x214x110 |
| guarantee | 5-year manufacturer's warranty |
| Transfer switch switching capacity (A) | 16A |
