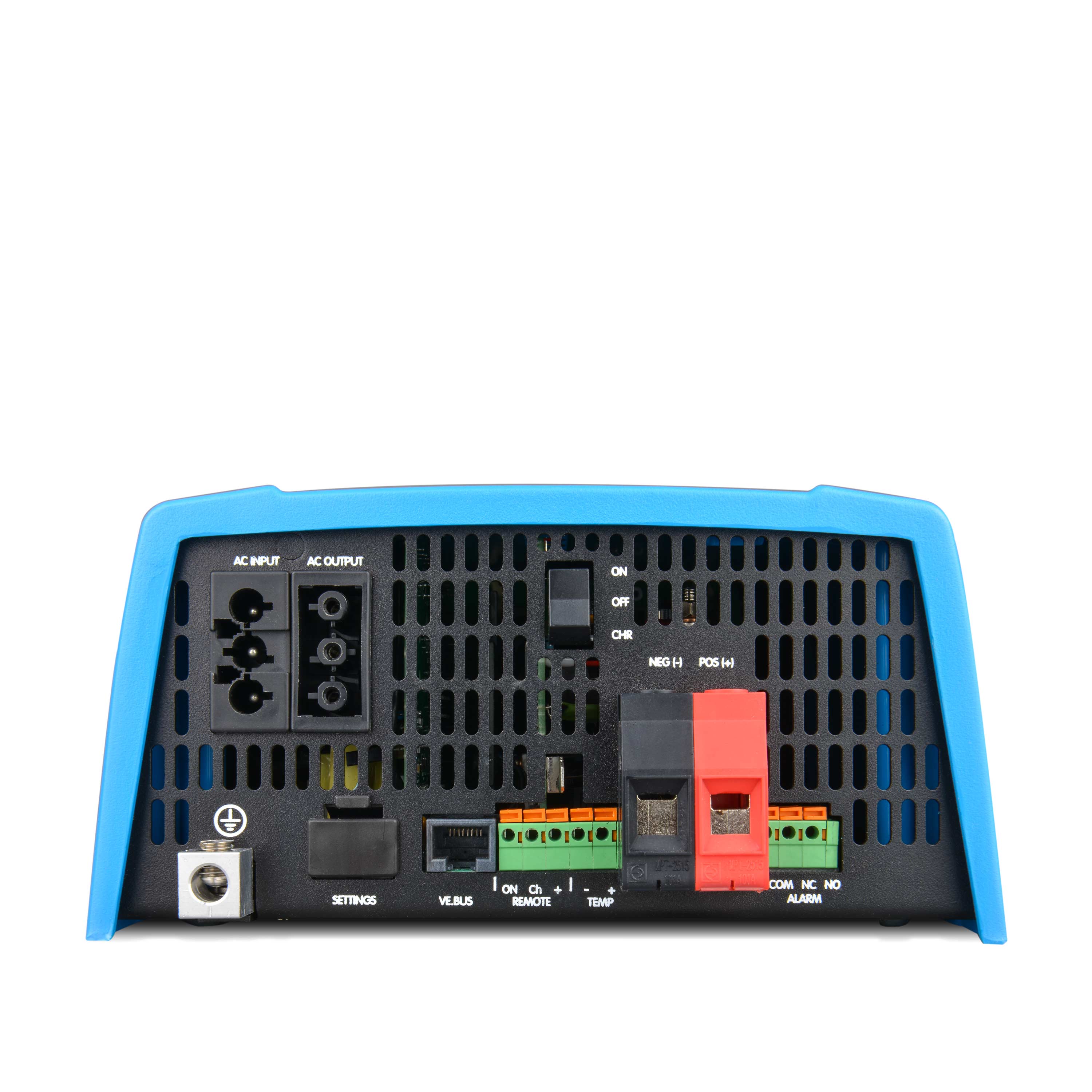

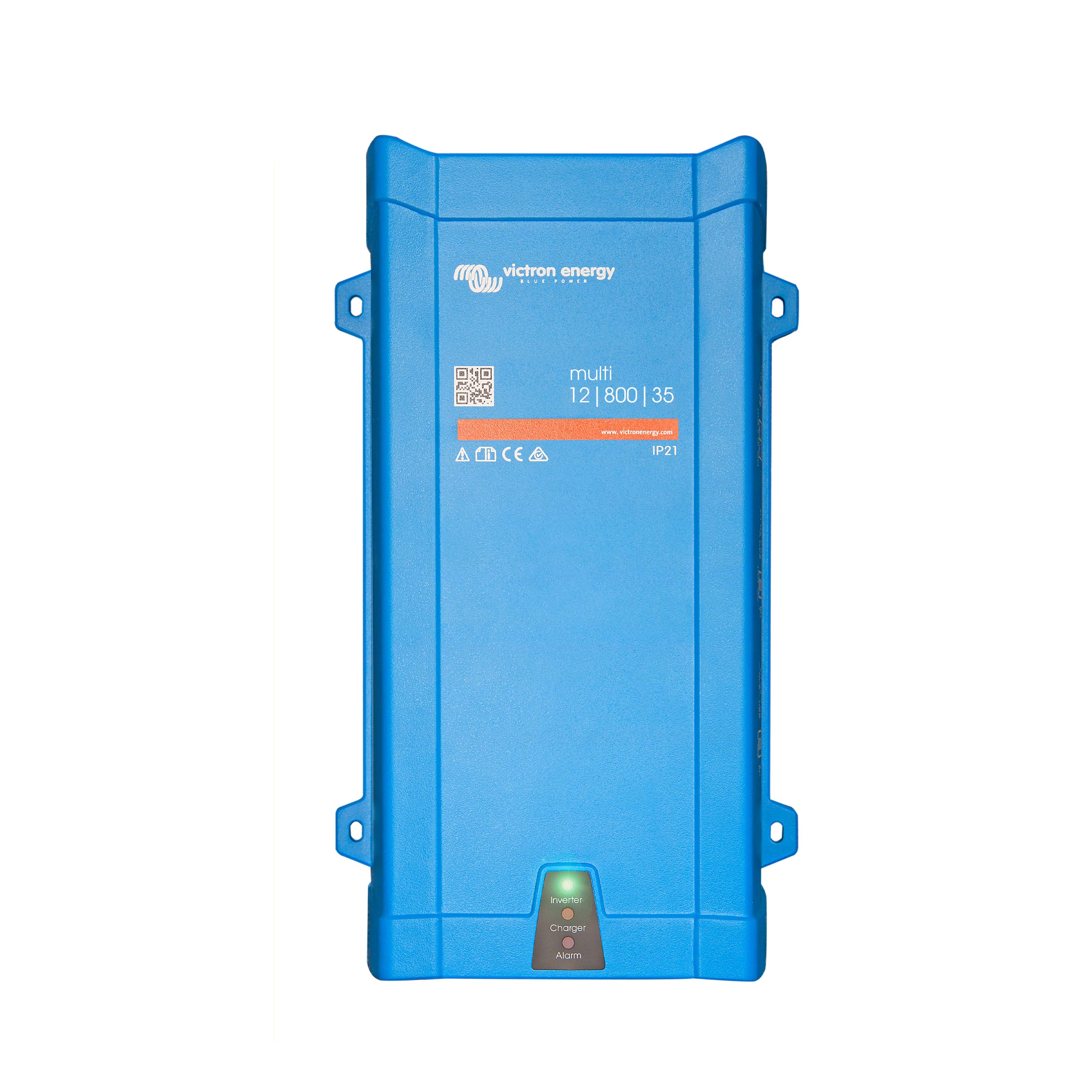

Victron MultiPlus Compact 12/800/35-16 230V VE.Bus

Discover the new MultiPlus 12/800/35-16 – Modern performance and reliability

The MultiPlus 12/800/35-16 is the successor to the MultiPlus Compact 12/800. This modern device combination combines a powerful pure sine wave inverter with an advanced 50A battery charger and a 16A high-speed AC transfer switch. Thanks to adaptive charging technology and fast switching, the MultiPlus ensures uninterrupted power supply even during grid interruptions.

Key features of the MultiPlus 12/800/35-16

• Continuous output power at 25°C: 700W (800W with non-linear load)
• System voltage: 12V
• Integrated 35A battery charger
• 16A high-speed transfer switch
• UPS operation possible
• Versatile use: on land and mobile
• Proven reliability: Short-circuit proof and protected against overheating

PowerControl (only MultiPlus 800VA & 1200VA)

With the Multi Control remote control panel, you can set the maximum grid or generator current. The MultiPlus intelligently adjusts its charging to avoid overloads on the grid or generator connection.

PowerAssist (MultiPlus 800VA & 1200VA only)

During short-term load peaks, the MultiPlus immediately compensates for weak grid or generator power with energy from the battery. As soon as the load decreases, the device uses the excess power to recharge the batteries.

High inrush power

The high inrush power of the MultiPlus is ideal for starting loads with high inrush currents, such as LED voltage converters, halogen lamps or power tools.

Search mode

In search mode, the MultiPlus reduces its power consumption by approximately 70% in no-load operation. It shuts down when there is little or no load and restarts briefly every two seconds. If the output current exceeds a certain value, the inverter resumes operation.

Programmable relay

By default, the multifunction relay acts as an alarm relay, which switches off the device in the event of faults such as overheating, excessive input voltage or low battery voltage.
