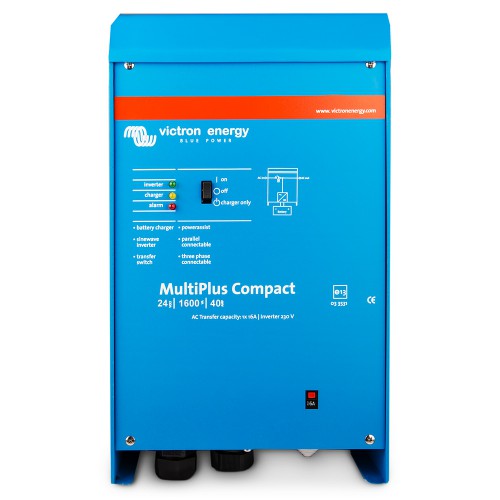

Victron MultiPlus Compact 24/1600/40-16 230V VE.Bus

Victron MultiPlus Compact 1300W Multifunction Inverter and Charger
  • Combination of inverter and charger
  • 230 V pure sine wave AC
  • adaptive charging function
  • Hybrid Power Assist function and UPS
  • for 24 V batteries, 40 A charging current

Sale price807,18 €
Vorbestellbar

Tax included. Shipping calculated at checkout

SKU: 300-3367

Re-stocking soon
Versandbereit in: 7 - 9 Werktagen

Product description

Innovative Victron combination unit: pure sine inverter and 24 V battery charger in one!

The Victron MultiPlus Compact 24/1600/40 is a combination unit consisting of a 1300 W pure sine inverter and battery charger. The smartly integrated battery charger delivers an impressive 40 A, allowing the batteries to be charged extremely quickly when shore or mains power is available. The pure sine voltage converter integrated in the MultiPlus converts the 24 V direct current from the battery into 230 V alternating current. Thanks to the pure sine wave, the quality of the voltage is perfectly suited even for sensitive electronic devices.

Versatile applications
The MultiPlus is a powerful pure sine inverter, an advanced battery charger using adaptive charging technology, and a high-speed AC transfer switch in a single compact enclosure. Models are available in the range of 800 VA to 5000 VA per module.

Unique PowerAssist function
The MultiPlus prevents the overloading of a limited AC source. First, the battery charging process is automatically reduced to protect against overloading. Next, the power of a generator or shore power supply is augmented with energy from the battery.

Uninterruptible alternating current (UPS function)
In the event of a mains failure or interruption of shore power or the onboard generator, the MultiPlus inverter automatically switches on and takes over the supply of the connected consumers. The switchover occurs so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic devices is ensured.

Virtually unlimited power through parallel connection
Up to six MultiPlus units can be connected in parallel when high power is required. Three-phase and split-phase operation are also possible. Please refer to our data sheets to find out which models are suitable for parallel, three-phase, and split-phase operation.

Local monitoring and control
Several options are available: battery monitor, Multi Control Panel, Ve.Net Blue Power Panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).

Remote monitoring and control
If systems with a Color Control Panel are connected to the Ethernet, they can be accessed and settings can be changed remotely.

Remote configuration:
Victron Ethernet Remote, Venus GX, and the Color Control Panel. The data can be stored and viewed free of charge on the VRM (Victron Remote Management) website.






Technical data Victron MultiPlus C 24/1600/40
Continuous power 1600 V
Peak power 3000 W
Output voltage 230 V
Input voltage 9.5 - 17 V
Max. efficiency 94 %
Temperature range - 40 °C to + 65 °C
Protection class IP 20
Weight 10.0 kg
Dimensions 375 x 214 x 110 mm
