Victron MultiPlus-II 24/3000/70-32 230V GX

Victron  MuliPlus-II 24/3000/70-32 230V GX

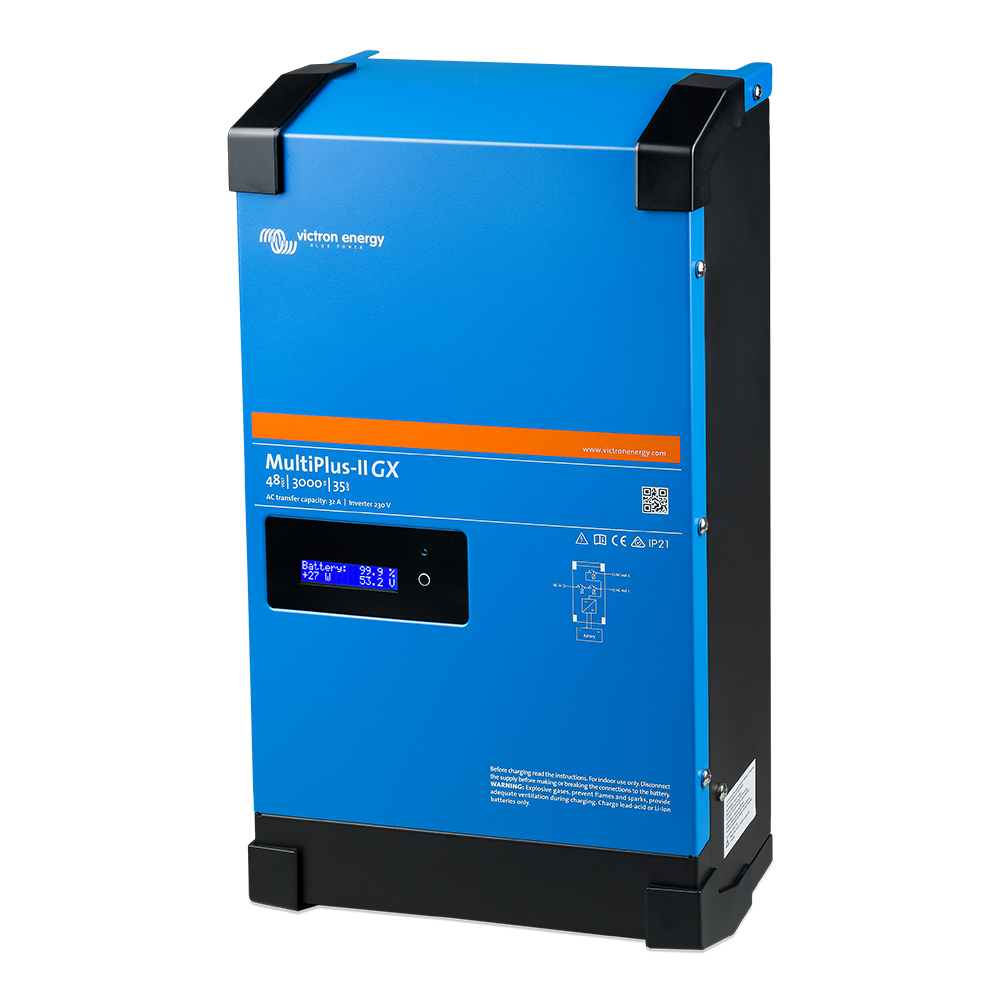

A MultiPlus-II with LCD and GX functionality
The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16-character display that shows system parameters.

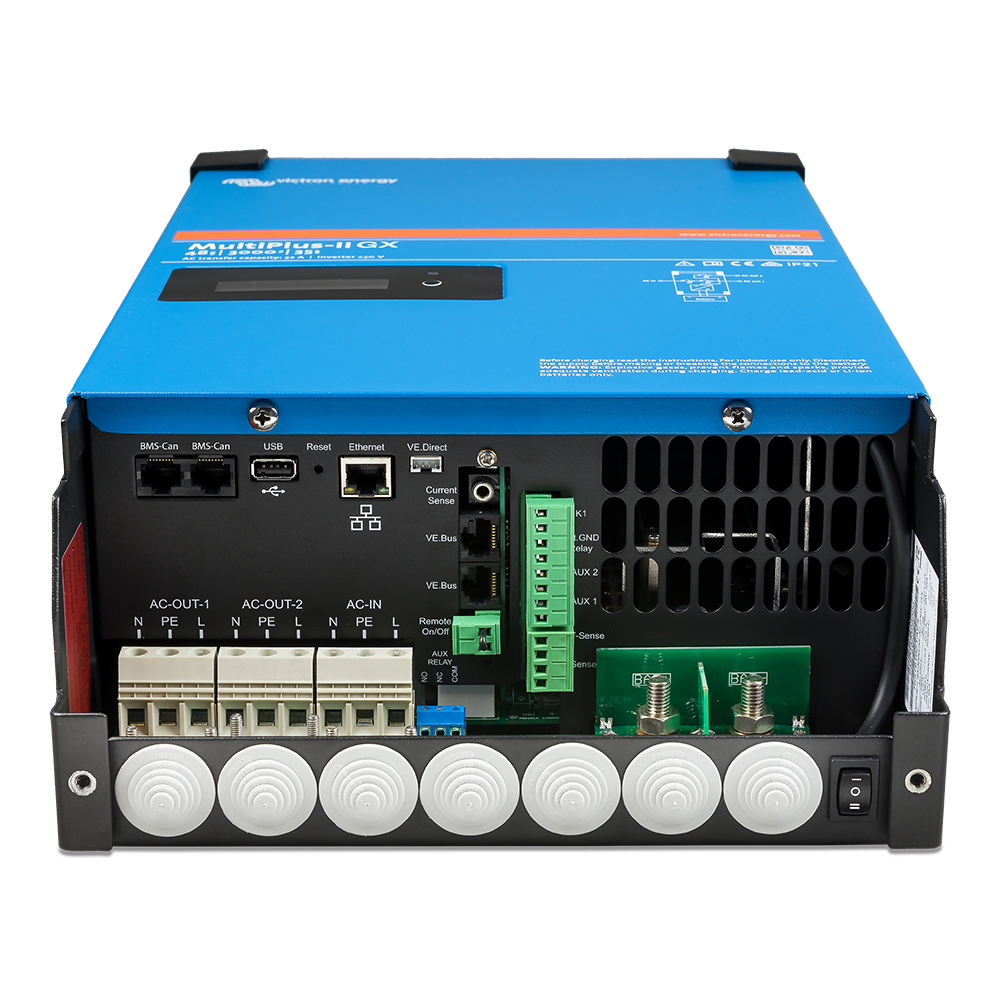

The integrated GX device includes:
• A BMS-CAN interface. This can be used to connect to a compatible battery managed via the CAN bus. Please note that this is not a VE.Can-compatible connection.
• A USB port.
• An Ethernet port.
• A VE.Direct connection

PowerControl and PowerAssist – Increasing grid or generator power
A maximum grid or generator current can be set. The MultiPlus-II then takes other connected AC consumers into account and uses only the remaining current to charge the battery. This prevents the generator or grid connection from being overloaded (PowerControl function). With the PowerAssist function, the PowerControl principle takes on a new dimension. Peak loads often occur only for a limited period. In such a case, the MultiPlus-II immediately compensates for insufficient generator, shore, or grid power using energy from the battery. If the load is reduced, i.e., consumers are switched off, the then again sufficiently available energy can be used to charge the batteries.

Solar power: AC power even during a power outage
The MultiPlus-II can be used with both off-grid and grid-connected PV systems, as well as with other alternative energy systems. It can be used with both solar charge controllers and grid-connected inverters.

Two AC outputs
The main output ensures uninterrupted operation. In the event of a power outage or an interruption of shore/generator power, the MultiPlus-II takes over the supply of the connected consumers. The switchover happens so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic devices is guaranteed. The second output only supplies power when AC power is available at the input of the MultiPlus-II. Consumers that are not allowed to discharge the battery, such as a water heater, can be connected to this output.

Virtually unlimited power through parallel and three-phase operation
Up to six Multis can be connected in parallel when high power is required. For example, six 48/5000/70 units provide 25 kW/30 kVA of output power with a 420 A charging capacity. In addition to the parallel connection, three units of the same model can also be configured for a three-phase output. However, that is not enough: by connecting up to 6 sets of three devices in parallel, you get 75 kW/90 kVA of inverter power or 1200 A charging current. Only one GX unit is required for parallel and three-phase operation.

On-site system configuration, monitoring, and control
The settings can be changed within a few minutes using the VEConfigure software (a computer or laptop and an MK3-USB interface are required for this). Several monitoring and control options are available: Color Control GX, Venus GX, Octo GX, CANvu GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart Dongle), Battery Monitor, Digital Multi control panel.
