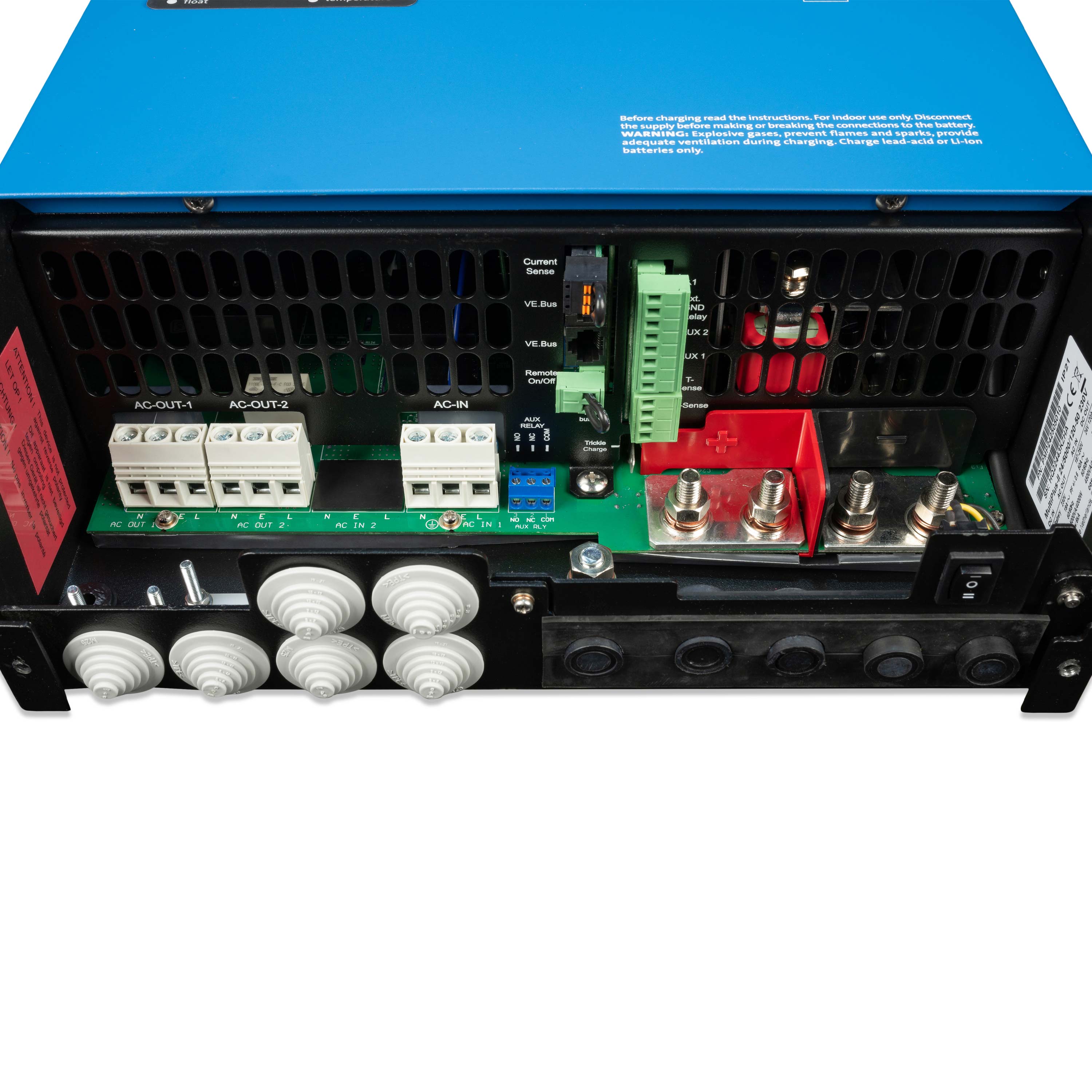

Victron MultiPlus-II 24/5000/120-95 120V

Victron MultiPlus-II 24/5000/120-95 120V – The ideal combination of inverter and charger with ESS function

The Victron MultiPlus-II 24/5000/120-95 120V is an advanced inverter/charger system that not only offers the proven features of the classic MultiPlus, but is also equipped with additional features such as an external current sensor for even greater performance. This device is perfect for professional shipping, yachts, vehicles, and off-grid applications on land.

Enhanced PowerControl and PowerAssist functions

With PowerControl, you can set the maximum grid or generator current, so that the MultiPlus-II only uses the excess current to charge the batteries and prevents overloading. PowerAssist technology goes one step further: During load peaks, the MultiPlus-II immediately draws on the battery reserves to compensate for weak grid or generator power, and charges the batteries as soon as the load drops again.

Reliable power supply even during power outages

The MultiPlus-II is ideal for both grid-tied and off-grid PV systems and other alternative energy systems. It ensures that your connected consumers are reliably supplied with power even during a power outage, thanks to a fast switch to inverter operation in less than 20 milliseconds.

Two AC outputs for maximum flexibility

The main output guarantees an uninterruptible power supply, while a second output only provides power when AC is available at the input of the MultiPlus-II. This is ideal for devices that should not discharge the battery, such as water heaters.

Unlimited power through parallel and three-phase operation

For applications with high power requirements, up to six MultiPlus-II units can be connected in parallel, which significantly increases the output power. If required, three devices can be configured for a three-phase output, and by connecting multiple sets in parallel, you can achieve an impressive 75 kW/90 kVA inverter power or 1200 A charging current.

Easy system configuration and monitoring

With the VEConfigure software, you can quickly and easily adjust the settings of the MultiPlus-II. Monitoring and control are possible via various interfaces, including Color Control GX, Venus GX, Octo GX, and Bluetooth (with the optional VE.Bus Smart Dongle).

Remote monitoring and control via the internet

By installing a Color Control GX or other GX products (not included), you can connect the MultiPlus-II to the internet. This allows you to store and monitor your operating data on the Victron Remote Management (VRM) website. Remote configuration of the system is also possible, so you have access to your settings anytime, anywhere.
