Victron Nucleo GX
- Supports integration of up to 25 VE.Direct devices
- Real-time monitoring of battery, consumption, and energy sources
- Expandable via USB accessories
Tax included. Shipping calculated at checkout
Your legal guarantee rights

Product description

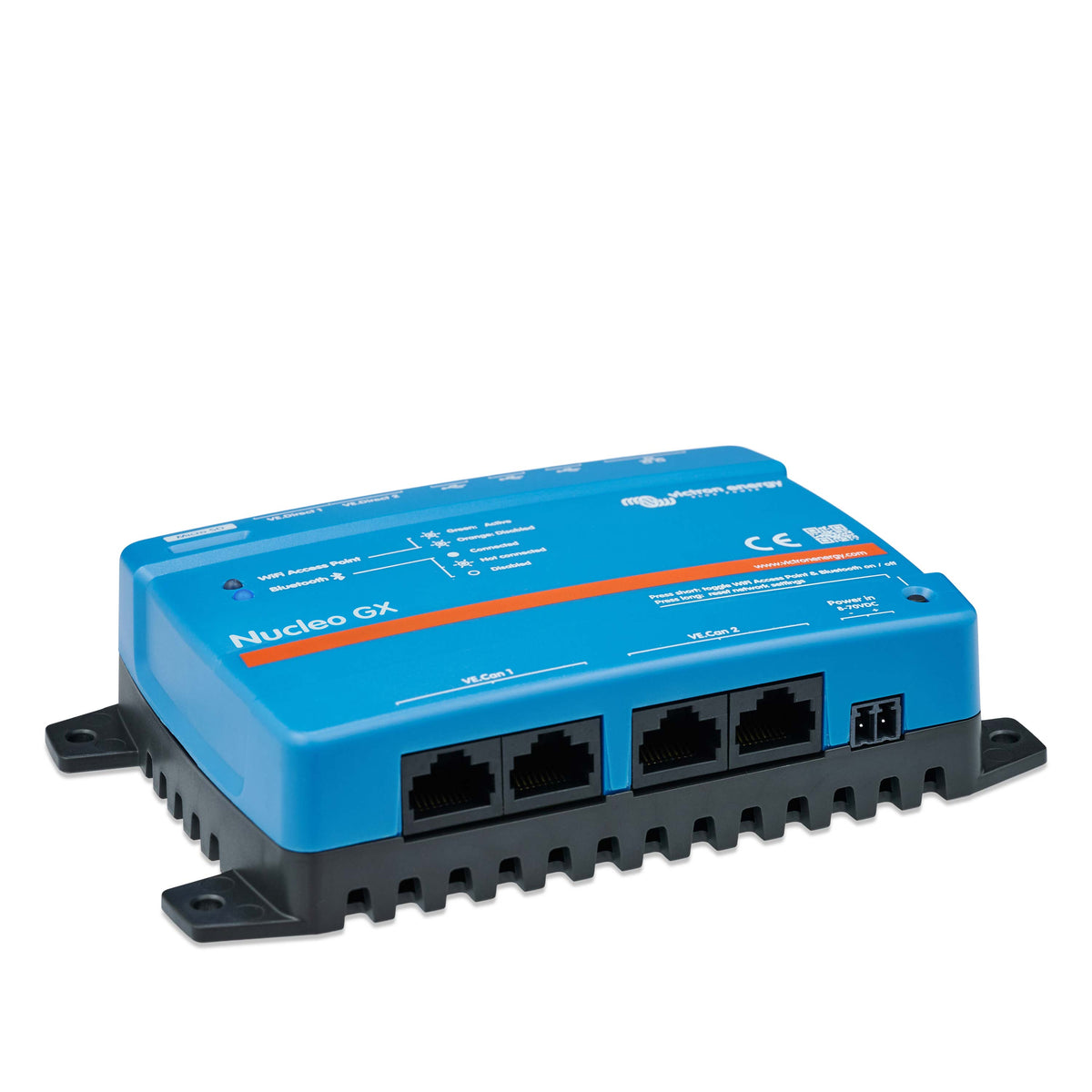

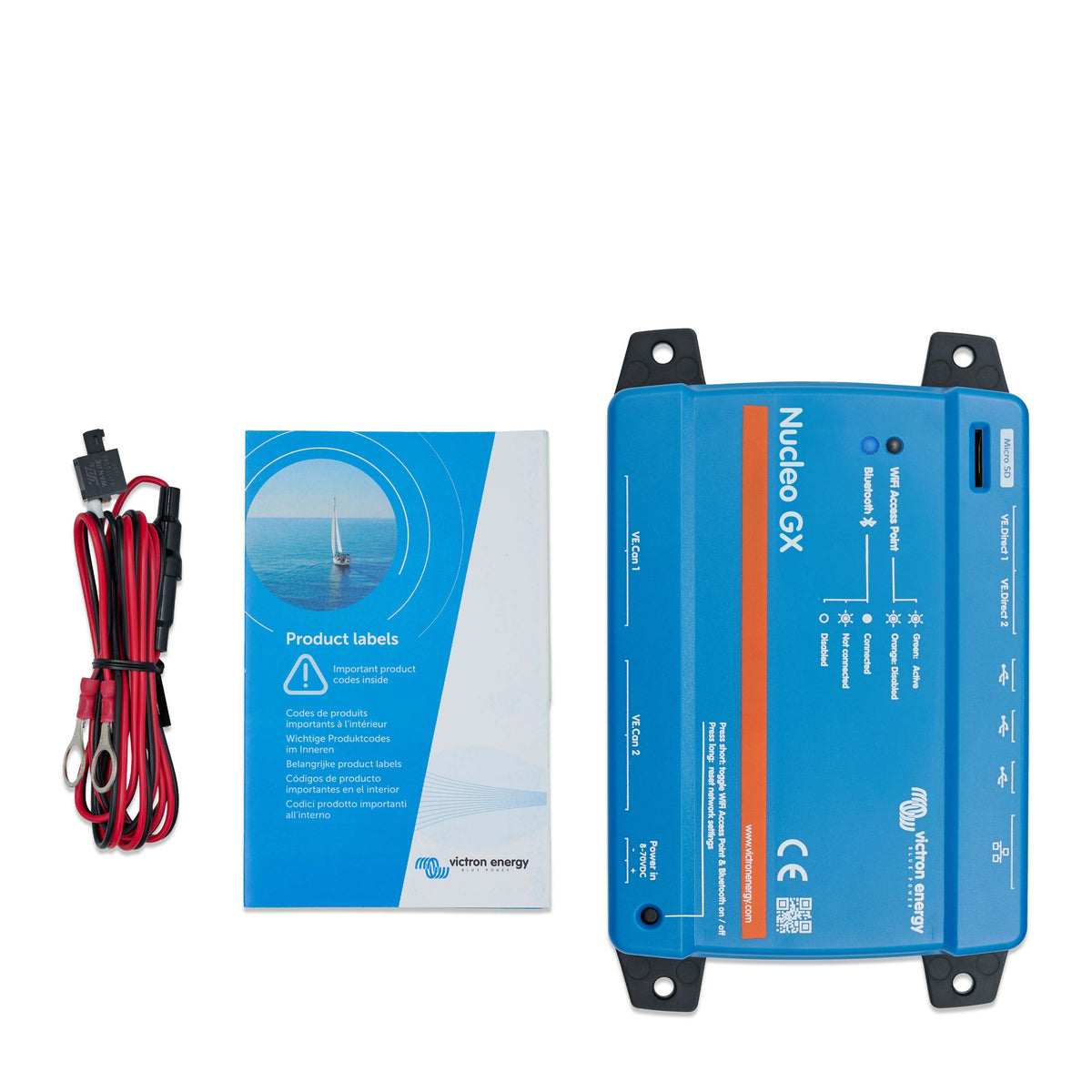

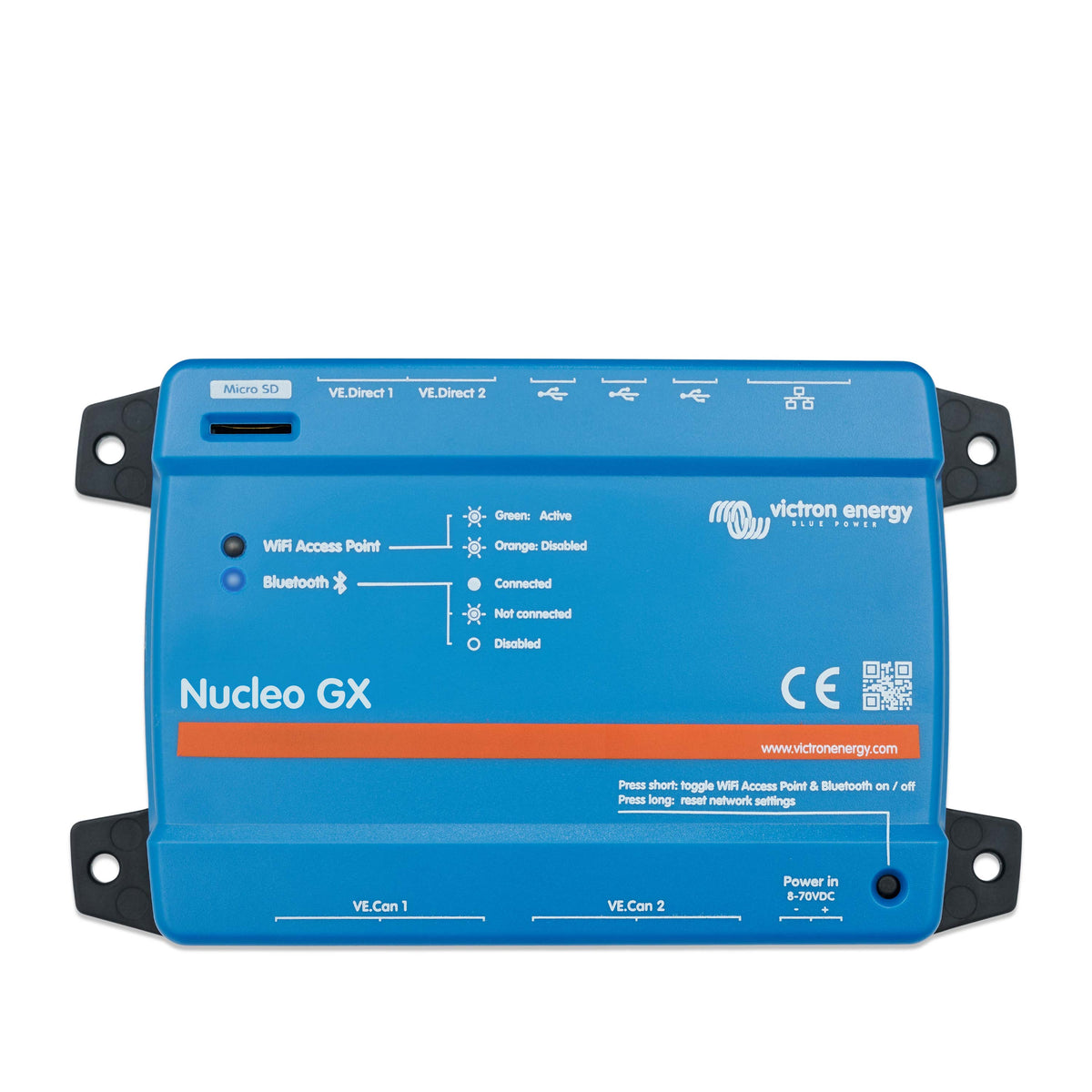

Victron Nucleo GX – compact GX central unit for quick system overview and control
The Victron Nucleo GX is a modern control and communication hub for Victron energy systems. It is particularly aimed at ESS and off-grid installations (e.g. based on the Multi RS), but is not limited to them: In a caravan, expedition vehicle or boat, it also takes on the central task of collecting and visualizing data and controlling the system.
The Nucleo GX combines a focused range of functions with high performance: A quad-core processor allows the integration of many components – including up to 25 VE.Direct devices (via VE.Direct) as well as additional hardware via USB and VE.Can. This allows you to view the battery status, energy consumption, and energy supply from photovoltaic, generator or mains in real time, and provides the basis for warning messages as well as automatic generator start/stop.
Many interfaces, flexible mounting – without unnecessary bulk
The Nucleo GX is compact, versatile to mount, and includes the common interfaces needed in modern Victron setups: Ethernet, Wi-Fi and Bluetooth Smart, multiple USB ports, a MicroSD slot, as well as visual/acoustic status indicators. Depending on your setup, you can use the VRM Remote Console, VictronConnect, the web browser, or an optional display (e.g. Android GX Wi-Fi Display) for operation.
Expandable via USB accessories
If you need more inputs and outputs or additional measured values, the system can be expanded with optional accessories – e.g. via the MK3 USB-C adapter, GX IO Extender 150, or GX Tank 140.
Important to know: no VE.Bus interface
If your system contains or is planned to contain a VE.Bus device (e.g. MultiPlus or Quattro), the Cerbo GX MK2 or Ekrano GX is usually the more suitable choice, as these devices have an integrated VE.Bus interface and thus offer the full range of functions for such systems.
Your benefits at a glance
- Powerful thanks to a quad-core processor
- Up to 25 VE.Direct devices can be integrated
- Interfaces: 2× VE.Direct (always isolated), 2× VE.Can (1× isolated), Ethernet & Wi-Fi, Bluetooth Smart, 3× USB-A, MicroSD slot
- Real-time monitoring of battery, consumption, and energy sources (PV/generator/mains)
- Supports warning messages as well as automatic generator start/stop
Note on Bluetooth: Bluetooth Smart on the Nucleo GX is primarily used for initial commissioning and network configuration. It is not intended to connect other Victron products directly via Bluetooth (e.g. SmartSolar charge controllers).
If you are looking for a compact, powerful GX central unit to monitor your Victron system clearly and control it efficiently, the Victron Nucleo GX is a very suitable choice.
