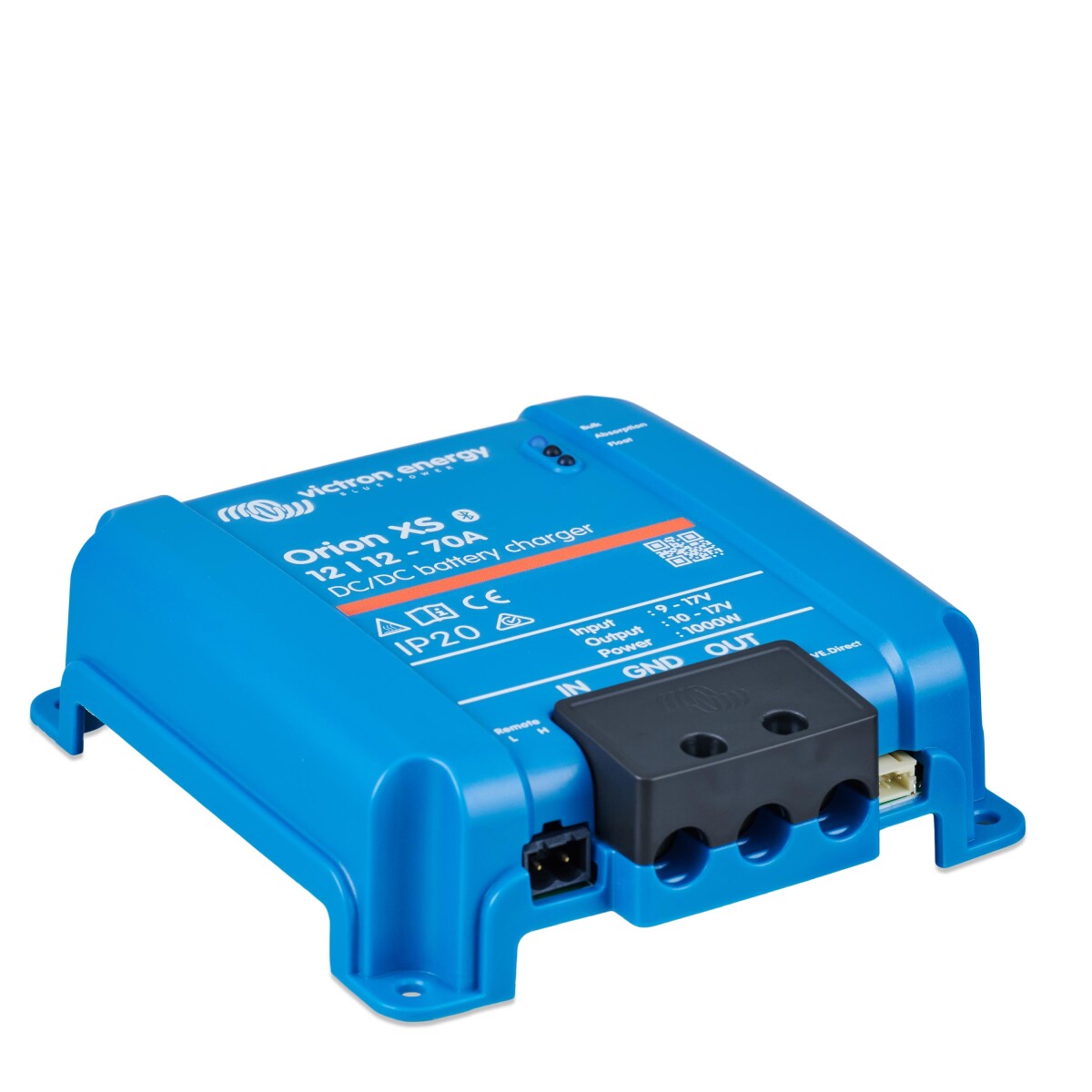

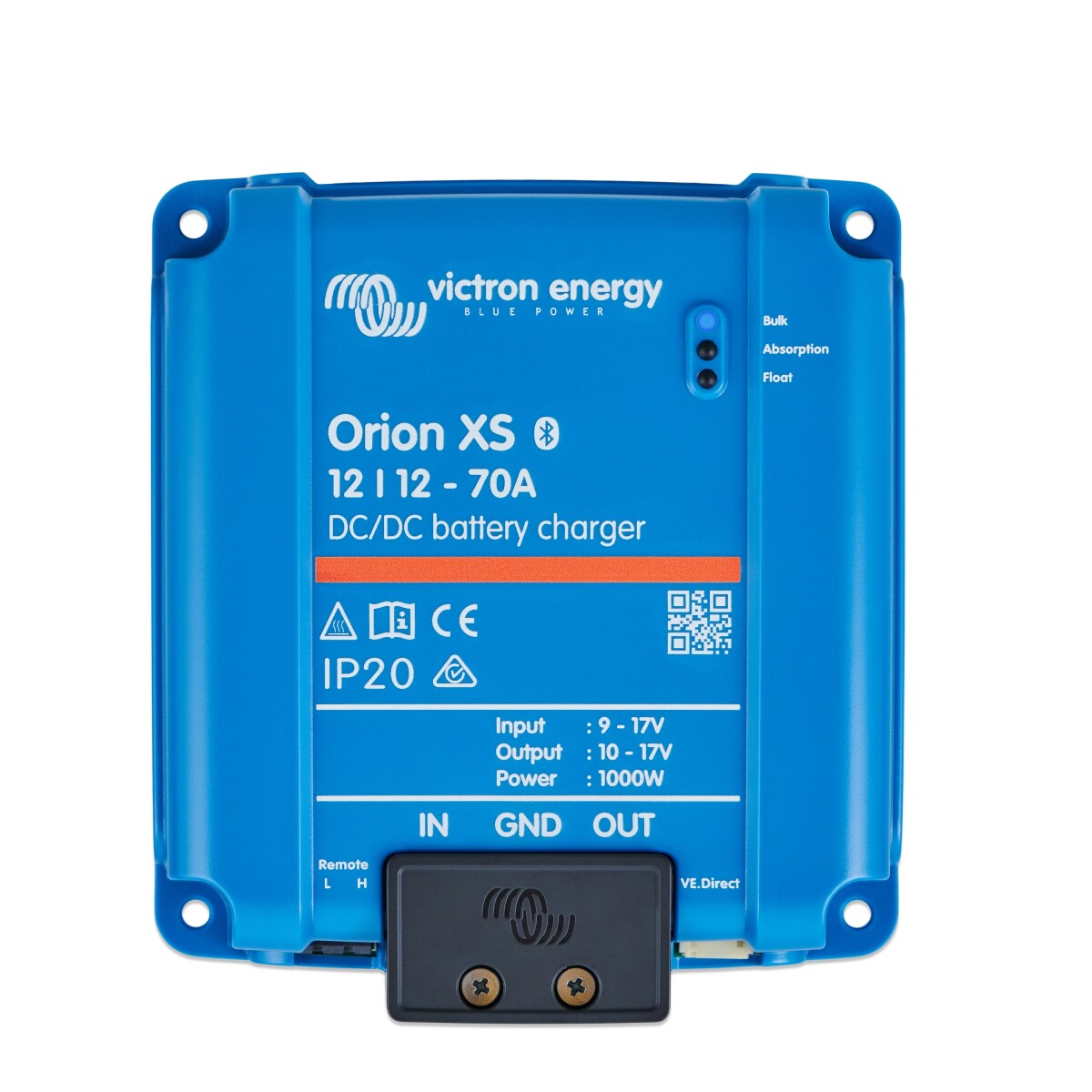

Victron Orion XS 12/12-70A DC-DC Battery Charger
- Fully configurable
- Detection of motor shutdown
- Intelligent charging algorithms
- Works with VictronConnect
- Optional remote monitoring
Tax included. Shipping calculated at checkout
Your legal guarantee rights

Product description
Victron Orion XS 12/12-70A DC-DC Battery Charger (Battery Booster) – without galvanic isolation
The Victron Orion XS 12/12-70A is a newly developed, professional DC-DC battery booster for 12 V onboard electrical systems, which charges from a starter battery/alternator to a leisure battery particularly efficiently and in a controlled manner. With charging currents of up to 70 A, 98.5% efficiency, Bluetooth, and VE.Direct, the Orion XS is aimed at anyone looking for a powerful, fully configurable B2B charger for a vehicle, motorhome, or boat – especially with intelligent alternators (Euro 5/Euro 6) or long cable runs with voltage drops.
Clean charging while driving – even with Euro 5/Euro 6
Modern, ECU-controlled alternators often only deliver a variable voltage or switch off intermittently. This is exactly where the Orion XS plays to its strengths: thanks to the wide input voltage range and regulated DC-DC charging, the leisure battery is reliably charged while driving, rather than just “tagging along”. This is particularly important if you rely on constant charging – e.g. with lithium batteries or with high-power consumers in the leisure area.
Integrated engine detection – no D+ required, no modification needed
The Orion XS automatically detects whether the engine is running and only operates when the alternator is also active. This prevents the starter battery from being unintentionally discharged while stationary. You do not need to interfere with vehicle systems or necessarily tap into a D+ signal. Alternatively, the battery booster can also be controlled via an external charging enable (e.g. ignition/D+).
For lead and lithium – adaptive 4-stage charging algorithm
With its adaptive 4-stage charging curve, the Orion XS is suitable for GEL, AGM, lead-acid as well as lithium batteries. Charging programs for common battery types are already pre-installed, and the curve can be individually adjusted via the VictronConnect app if required. Particularly convenient: the charging current can be set in 0.1 A increments to cleanly adapt the alternator and wiring to your actual system requirements.
More power without more complexity: 70 A and unlimited parallel operation
If 50 A was not enough for you, the Orion XS 12/12-70A fills exactly that gap – in the familiar, compact Orion XS format. And if your system continues to grow: You can operate unlimited devices in parallel to increase the charging capacity and charge large battery banks faster.
Also usable as a constant voltage power supply
In addition to charging operation, the Orion XS can be used as a constant voltage power supply: The output voltage remains stable within the specified input range – regardless of load and input voltage fluctuations. The desired output voltage can be easily set via the app, ideal for sensitive 12 V consumers that require a clean power supply.
Monitoring & system integration: Bluetooth, VE.Direct, VE.Smart Networking
- Bluetooth (VictronConnect): Set up, monitor, and update – incl. live data, alarms, and fine-tuning (e.g. charging current, input voltage range, charging parameters).
- VE.Direct: Wired connection to Victron communication hubs (e.g. Cerbo GX MK2 / Venus GX) and – with an internet connection – display in the VRM Portal.
- VE.Smart Networking: Wireless integration into a Bluetooth network with Victron sensors to use measured values such as voltage/temperature/current for optimized charging.
Your benefits at a glance
- Intelligent alternator compatibility (Euro 5/Euro 6)
- 98.5% efficiency for low heat generation
- Integrated engine detection (no D+ strictly required)
- Fully configurable via VictronConnect (charging current in 0.1 A increments)
- For lead and lithium thanks to the adaptive 4-stage charging algorithm
- Parallel connection of unlimited devices possible
- Bluetooth + VE.Direct (incl. DVCC) for monitoring/integration
- Electronic protection functions (e.g. overload, short circuit, overtemperature)
- IP20 (power electronics in an IP65 enclosure)
Note on alternator sizing
To ensure that the alternator is not overloaded, the rule of thumb is: alternator ideally at least double the rated power of the battery booster. For the 70 A booster, an alternator from 140 A is therefore recommended. If necessary, you can limit the current draw in the app – however, the appropriate alternator reserve is advisable for full charging capacity.
If you are looking for a powerful, compact, and cleanly integrable 12 V battery booster that also handles intelligent alternators and can be fully adapted to your system, the Victron Orion XS 12/12-70A is a very compelling solution.
| Technical data | Orion XS 12/12 - 70A |
| Input voltage range | 9 - 17 V |
| Output voltage range | 10 - 17 V |
| Input and output current setting range | 1 - 70 V |
| Max. charging current | 70 A |
| Constant output power | 1000 W |
| Max. efficiency | 98.5% |
| Weight | 340 g |
| Dimensions | 137.3 x 123.1 x 40 mm |
