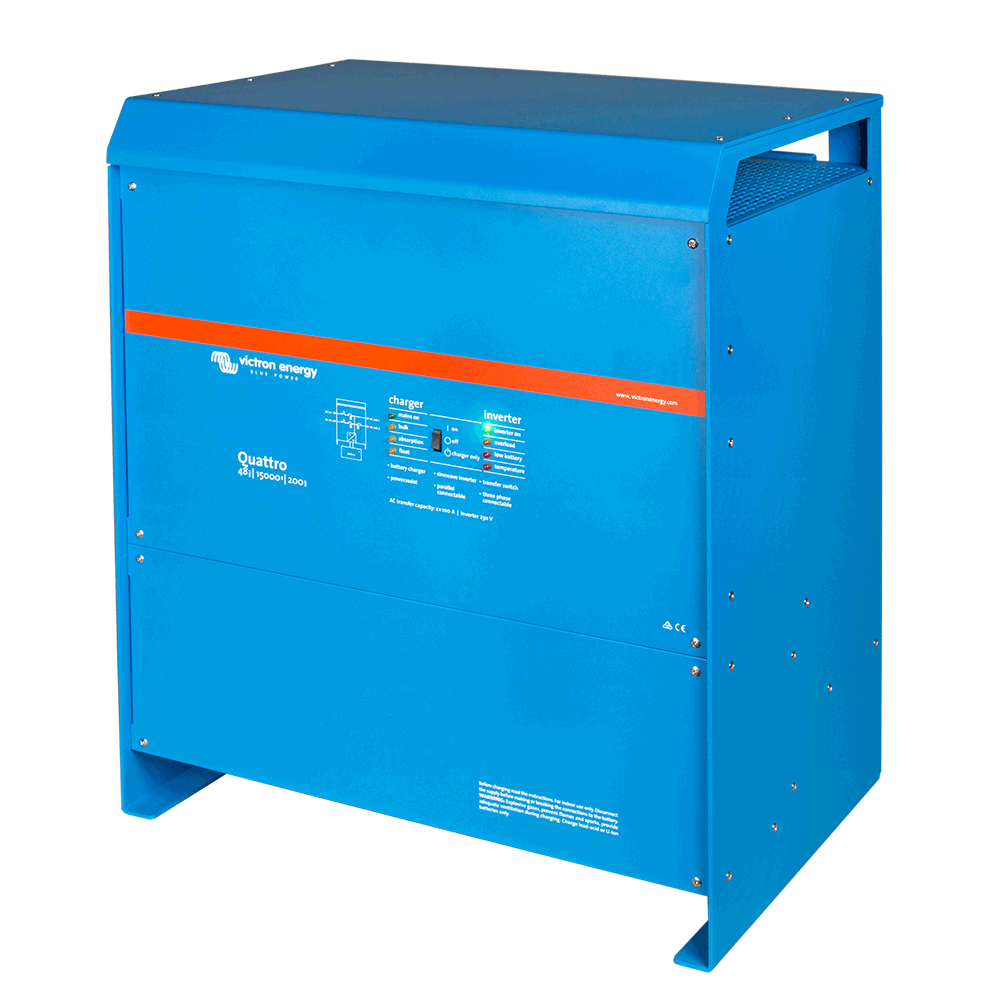

Victron Quattro 48/15000/200-100/100 inverter and charge controller 230 V VE.Bus

Victron Quattro 48/15000/200-100/100 Inverter and Charger 230 V VE.Bus

Two AC inputs with integrated transfer switch

The Quattro can be connected to two independent AC sources: for example, the public power grid and a generator, or two generators. The Quattro automatically connects to the active source.

Two AC outputs

The main output ensures uninterrupted operation. In the event of a power outage or an interruption of the shore/generator power, the Quattro takes over the supply of the connected consumers. The switchover happens so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic devices is guaranteed. The second output only supplies power if AC is available at one of the Quattro inputs. Consumers that must not discharge the battery, such as a water heater, can be connected to this output.

Virtually unlimited power through parallel connection

Up to 6 Quattros can be connected in parallel. This results, for example, with six 48/10000/140 units, in 54 kW/60 kVA of power or 840 A charging current. Three-phase operation Three units can be connected in a three-phase configuration. However, that is not enough: up to 6 sets of three devices can be connected in parallel, and you then get 162 kW/180 kVA inverter power and over 2,500 A charging capacity.

PowerControl – Working with limited generator power, restricted shore or grid power

The Quattro is a very powerful battery charger. Therefore, it draws a lot of current from the generator or shore power supply (16 A per 5 kVA Quattro at 230 VAC). A current limit can be set on each of the AC inputs. The Quattro then takes into account other connected AC consumers and only uses the power that is still "left over" for charging. This prevents the generator or grid connection from being overloaded.

PowerAssist – Increasing the shore connection or generator power

With this function, the PowerControl principle reaches a new dimension, as the Quattro supports any alternative source that is undersized. Load peaks often occur only for a limited period. In such a case, the Quattro ensures that an undersized grid or generator power is immediately compensated by energy from the battery. If the load is reduced, i.e., consumers are switched off, the now again sufficiently available energy can be used to charge the batteries.

Solar power: AC even during a power outage

The Quattro can be used with both off-grid and grid-tied PV systems as well as other alternative energy systems. Software for detecting a power outage is available.

System configuration - If settings need to be changed on an individual device, this can be done within a few minutes using a DIP switch setting procedure. - Parallel connected and three-phase systems can be configured with the VE.Bus Quick Configure and VE.Bus System Configurator software. - Off-grid, grid-tied, and self-consumption systems using grid-tie inverters and/or MPPT solar chargers can be configured using assistants (associated software for the respective systems).

Monitoring and control on site

Several options are available: battery monitor, Multi Control Panel, Ve.Net Blue Power Panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).

Remote monitoring and control

Victron Ethernet Remote, Victron Global Remote, and the Color Control Panel. The data can be stored and viewed free of charge on our VRM (Victron Remote Management) website. Remote configuration: If systems with a Color Control Panel are connected to the Ethernet, they can be accessed and settings can be changed remotely

Technical data
