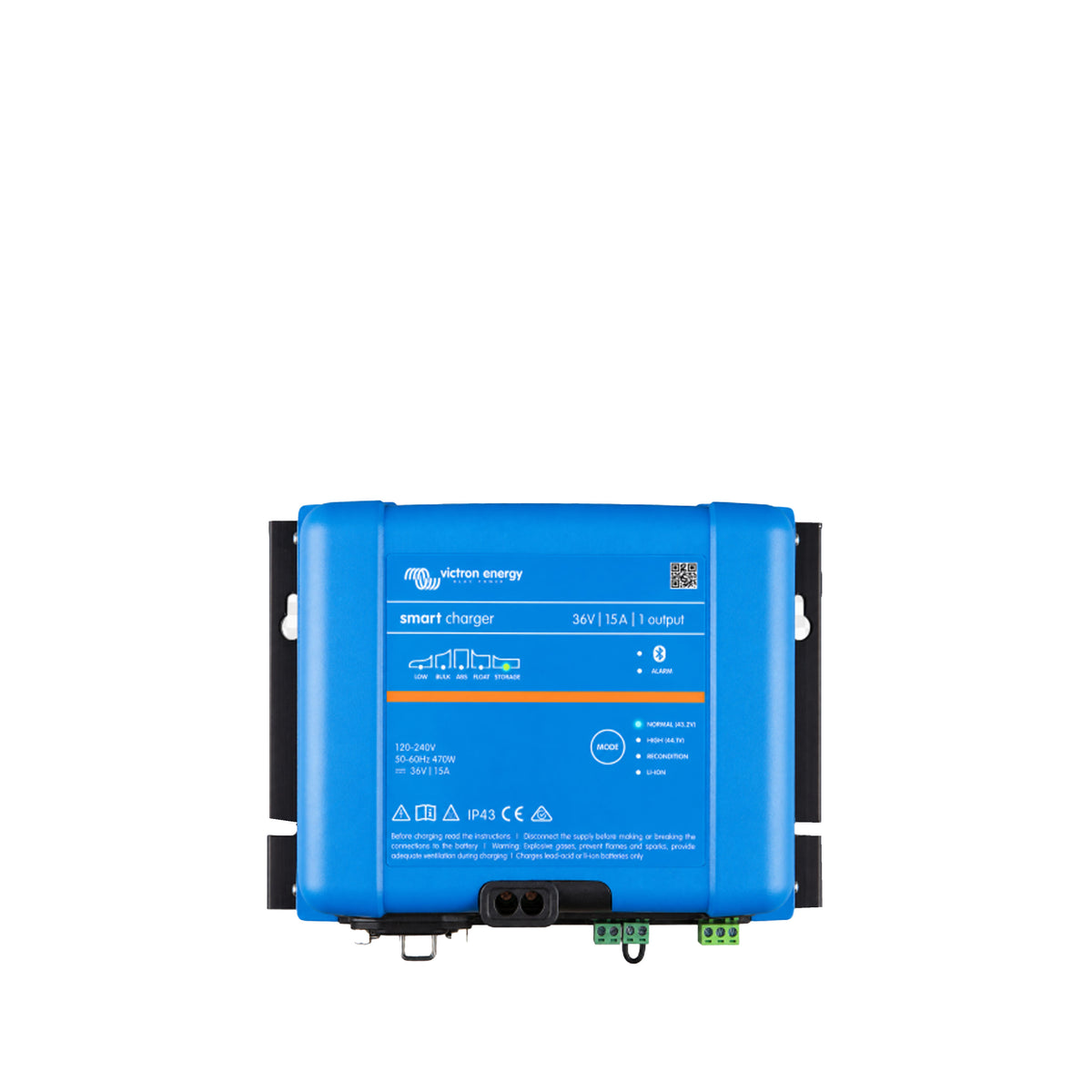

Victron Smart IP43 Charger 36/15(1) 120-240V

  • 36 V, max. 15 A
  • Adjustable up to 49.5 V
  • Input voltage: 90 – 375 V

Sale price505,75 €
Vorbestellbar

Tax included. Shipping calculated at checkout

SKU: 300-3546

Re-stocking soon
Versandbereit in: 7 - 9 Werktagen

Product description

Victron Smart IP43 Charger 36/15(1) – smart 36‑V charger with Bluetooth, adjustable 15 A and silent operation (120–240 V)

The Victron Smart IP43 Charger 36/15(1) is a 36‑V battery charger with max. 15 A (adjustable) that you can conveniently configure via Bluetooth using your smartphone. With a 6‑stage charging algorithm and adaptive charging adjustment, it supports battery-friendly charging – including preset charging profiles for various battery types (including lithium). If you need more precision, the charging characteristics can be custom-configured up to max. 49.5 V. Thanks to passive cooling without a fan, the device operates completely silently, and with its IP43 rating, it is well suited for protected installations in technical rooms, vehicles, or switchgear cabinet environments.

Battery type presets – or custom charging curve

You can select the appropriate charging cycles by battery type depending on the battery chemistry. For special applications (e.g. when the battery manufacturer specifies exact voltage values), the charging can be individually configured.

Smartphone instead of screwdriver: Bluetooth configuration

You can conveniently set up the charger via Bluetooth. In addition, the charger is externally switchable, making it easy to integrate into existing controls or switching concepts.

Also usable as a power supply – with flexible input

In addition to classic charging, the Smart Charger can also be used as a power supply. The input is flexible: 100–250 V AC (45–65 Hz) or alternatively 90–375 V DC. For wiring, connection terminals up to 16 mm² are available; a connection plug without cable is included.

Robust and quiet during operation

The aluminum housing also serves as a heat sink – allowing the charger to operate without a fan and remain silent. It is designed for -20 °C to +60 °C (with reduced output power above +40 °C) and can be operated at up to 95% humidity. In addition, you have a programmable relay at your disposal (5 A at 230 V AC / 36 V DC).

Your benefits at a glance

  • 36 V charger, max. 15 A (adjustable)
  • 6‑stage charging algorithm with adaptive charging adjustment
  • For many battery types, incl. lithium – selectable profiles
  • Custom-configurable up to 49.5 V
  • Bluetooth: setup via smartphone
  • Also usable as a power supply
  • Input: 100–250 V AC or 90–375 V DC
  • Passively cooled (without fan): silent operation via aluminum housing
  • IP43, humidity up to 95%
  • Programmable relay (5 A at 230 V AC / 36 V DC)
  • Externally switchable
  • Compact: 180 × 249 × 100 mm, 2.7 kg

If you are looking for a powerful 36‑V charger that is quiet, flexible, and can also be cleanly configured via Bluetooth, the Victron Smart IP43 Charger 36/15(1) is an excellent fit for professional 36‑V energy systems.






Technical data Smart IP43 36/15
Input voltage 85 - 250 V
DC input voltage range 90 - 375 V
Power consumption without load 1 W
Frequency 45 - 65 Hz
Max. efficiency 96 %
Temperature range - 20 °C to + 60 °C
Protection rating IP43 / IP22
Dimensions 180 x 249 x 116 mm
Weight 2.7 kg
