Victron Smart IP43 Charger 48/13(1) 120-240V
- 48 V, max. 13 A
- Input voltage: 90–375 V DC
Tax included. Shipping calculated at checkout
Your legal guarantee rights

Product description

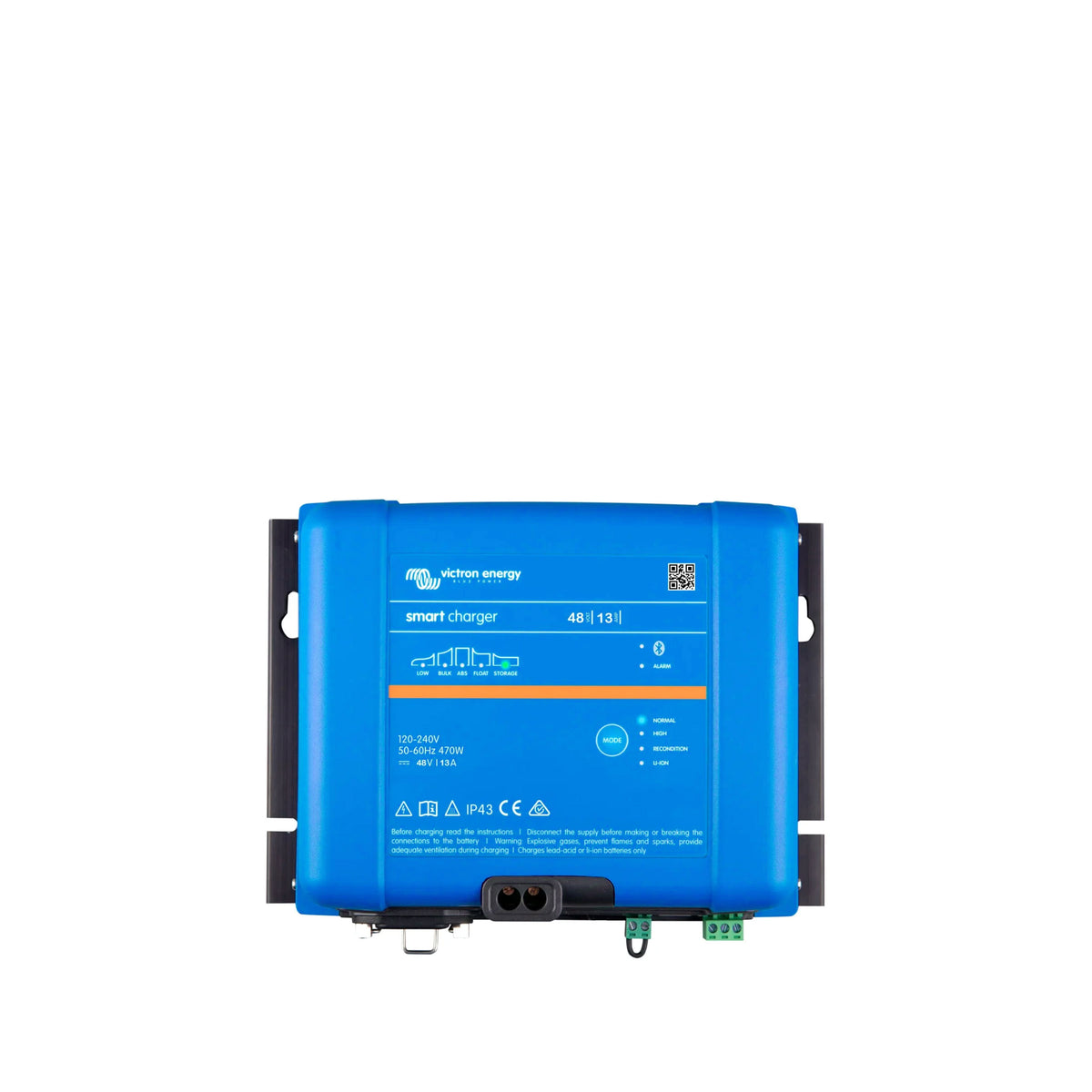

Victron Smart IP43 Charger 48/13(1) – smart 48‑V charger with Bluetooth, quiet passive cooling (120–240 V)
The Victron Smart IP43 Charger 48/13(1) is a 48‑V battery charger with max. 13 A that you can conveniently set up via smartphone thanks to Bluetooth. You get a 6‑stage charging algorithm with adaptive charging adjustment, designed for a long battery life. In addition to preset charging profiles for various battery types (including lithium), you can also configure the charging characteristics as a custom setting – up to max. 66 V DC. This is complemented by a noiseless, passively cooled aluminum enclosure, IP43 protection, and the option to use the device also as a power supply.
Intelligent charging: Choose profiles or configure your own
Depending on whether you use lead-acid or lithium batteries, you can select the appropriate preset charging cycles by battery type. If your setup requires special specifications, the charging characteristics can be individually adjusted. The adaptive charging adjustment automatically optimizes the charging process to support the battery life.
Bluetooth operation – and externally switchable
Via Bluetooth, you can make settings directly on your smartphone. In addition, the charger is externally switchable – ideal if you want to integrate it into a control system or switch it on and off depending on operating conditions.
Quiet, robust, and suitable for control cabinets
The passive cooling without fans makes the charger noiseless. With IP43, it is protected against spray water and solid foreign objects (suitable for indoor/protected installation). It operates at -20 °C to +60 °C, with the output power being reduced above +40 °C.
Flexible input and solid connections
The device can be powered with 100–250 V AC (45–65 Hz) or alternatively with 90–375 V DC. For installation, connection terminals up to 16 mm² are available. A connection plug without cable is included, so you can choose the supply line suitable for your setup.
Your benefits at a glance
- 48 V charger, max. 13 A (adjustable)
- 6‑stage charging algorithm with adaptive adjustment
- For many battery types, incl. lithium – profiles selectable
- Individually configurable charging characteristics (up to 66 V DC)
- Bluetooth: settings via smartphone
- Also usable as a power supply
- Input: 100–250 V AC or 90–375 V DC
- Passively cooled, without fans: noiseless
- IP43, humidity up to 95 %
- Programmable relay (5 A at 230 V AC / 48 V DC)
- Externally switchable
- Compact: 180 × 249 × 100 mm, 2.7 kg
If you are looking for a reliable 48‑V charger that integrates cleanly into your system, operates quietly, and offers you convenient configuration via Bluetooth, the Victron Smart IP43 Charger 48/13(1) is a very suitable solution.
| Technical data | Smart IP43 48/13 |
| Input voltage | 85 - 250 V |
| DC input voltage range | 90 - 375 V |
| Power consumption without load | 1 W |
| Frequency | 45 - 65 Hz |
| Max. efficiency | 96 % |
| Temperature range | - 20 °C to + 60 °C |
| Protection rating | IP43 / IP22 |
| Dimensions | 180 x 249 x 116 mm |
| Weight | 2.7 kg |
