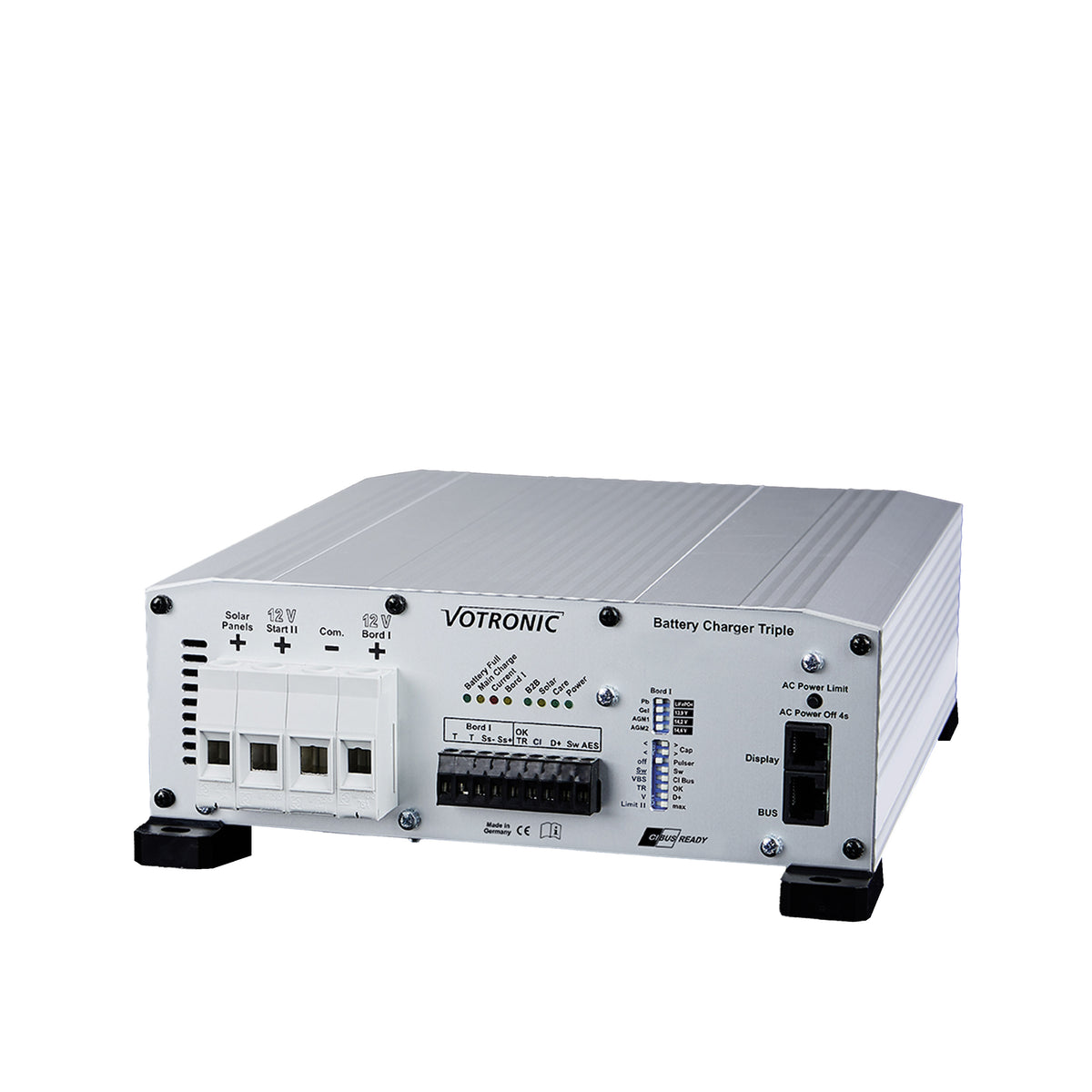

Votronic Battery Charger VBCS 45/30/600 Triple HV CI 3271
- Selectable battery type: Gel, AGM, Lead-acid, LiFePO4
- 12 V/12 V B2B charger operation
- MPPT solar charge controller operation
- Automatic battery regeneration/Li Auto Wake Up
Tax included. Shipping calculated at checkout
Your legal guarantee rights

Product description
Votronic Battery Charger VBCS 45/30/600 Triple HV CI 3271
The Votronic VBCS 45/30/600 Triple HV CI (MPN 3271) is a fully automatic combination unit with three charging sources for motorhomes and special-purpose vehicles: mains charger, B2B charging converter (booster), and MPPT solar controller working together in a compact unit. This reliably supplies the leisure battery and 12-V consumers depending on the situation – from mains power (110–230 V AC), while driving, or in solar operation. Ideal for long periods of inactivity: a secondary charging branch (12 V / 4–5 A) for trickle charging and maintaining the starter battery, as well as profiles for continuous operation.
Three charging sources – one control center
In everyday use, you constantly switch between the campsite, a stopover, and off-grid operation. That is exactly what the VBCS Triple is designed for: It automatically coordinates the power supply from the mains, alternator, and solar panels, ensuring that the battery is charged with the appropriate profile – without you having to switch settings constantly.
Mains operation: worldwide use, stable power for consumers
With its universal 110–230 V AC range, the device operates without switching and remains usable even with mains supply deviations (under-/overvoltage, sine wave, frequency). In addition to efficiently charging the leisure battery, it powers the 12-V consumers from the mains. A 12 V / 4–5 A secondary charging branch is available for the starter battery – ideal for long periods of inactivity (e.g., winter storage).
Driving operation: B2B booster for modern alternators
The integrated Battery-to-Battery charging converter brings the voltage up to the required level to precisely charge the leisure battery with its optimal profile. It compensates for line losses and offsets voltage fluctuations from modern alternators (e.g., Euro 6). At the same time, the 12-V consumers powered through it are protected against overvoltage and severe fluctuations.
Solar operation: MPPT for maximum yield + AES
In solar operation, the MPPT/MPP technology determines the optimal operating point of the modules several times per second. This makes a charging current increase of 10% to 30% possible, depending on conditions, which can shorten charging times. An AES switching output is also available, which can automatically switch compatible AES refrigerators (Automatic Energy Selector) from gas to 12-V operation during prolonged periods of high solar surplus.
Battery training, protection functions, and power supply mode
For lead batteries, an integrated pulser/battery training function can counteract sulfation during longer charging pauses. The charging process is regulated so that the voltage remains free of spikes and overcharging is prevented. In addition, it features comprehensive protection mechanisms (e.g., against overload, overheating, overvoltage, short circuits, and reverse current). Also practical: the power supply function, which allows consumers to be powered even without a connected battery (e.g., during battery replacement). An onboard mains filter makes parallel operation with additional charging sources easier.
Charging programs for gel, AGM, lead-acid, and LiFePO4
Depending on the battery, you can select suitable profiles for, among others, gel, AGM, lead-acid/wet (DIN 0510), UNIVERSAL, and LiFePO4. The temperature sensor (included) enables the automatic adjustment of the charging voltage to the battery temperature. For LiFePO4, battery protection at low temperatures (below 0°C) is particularly important, as the battery temperature can drop accordingly during operation.
Your benefits at a glance
- Three charging sources in one device: mains, B2B/driving, and solar (MPPT)
- Universal 110–230 V AC range without switching – ideal for travel
- 12 V / 4–5 A secondary charging branch for maintaining the starter battery during periods of inactivity
- MPPT control with a possible charging current increase of 10% to 30%
- AES switching output for compatible refrigerators during solar surplus
- Pulser/battery training to protect lead batteries during charging pauses
- Comprehensive protection functions + power supply mode for consumer operation without a battery
- Multiple charging programs including LiFePO4, plus temperature compensation via sensor
If you are looking for a robust, fully automatic solution that combines mains, driving, and solar charging in one device, takes care of both the starter and leisure batteries, and offers additional features such as MPPT, AES, and power supply mode, the Votronic VBCS 45/30/600 Triple HV CI is an excellent choice for the mobile onboard electrical system.
| Technical data | Votronic VBCS 45/30/600 |
| Operating voltage | 110 V - 230 V |
| Operating voltage range | 90 V - 270 V |
| Max. power consumption | 520 W |
| Max. current to starter battery | 10.5 V - 16.5 V |
| Solar panel power | 50 Wp - 600 Wp |
| Max. current from solar panel | 21 A |
| Max. voltage from solar panel | 50 V |
| Weight | 2.85 kg |
| Dimensions | 256 mm x 219 mm x 85 mm |
