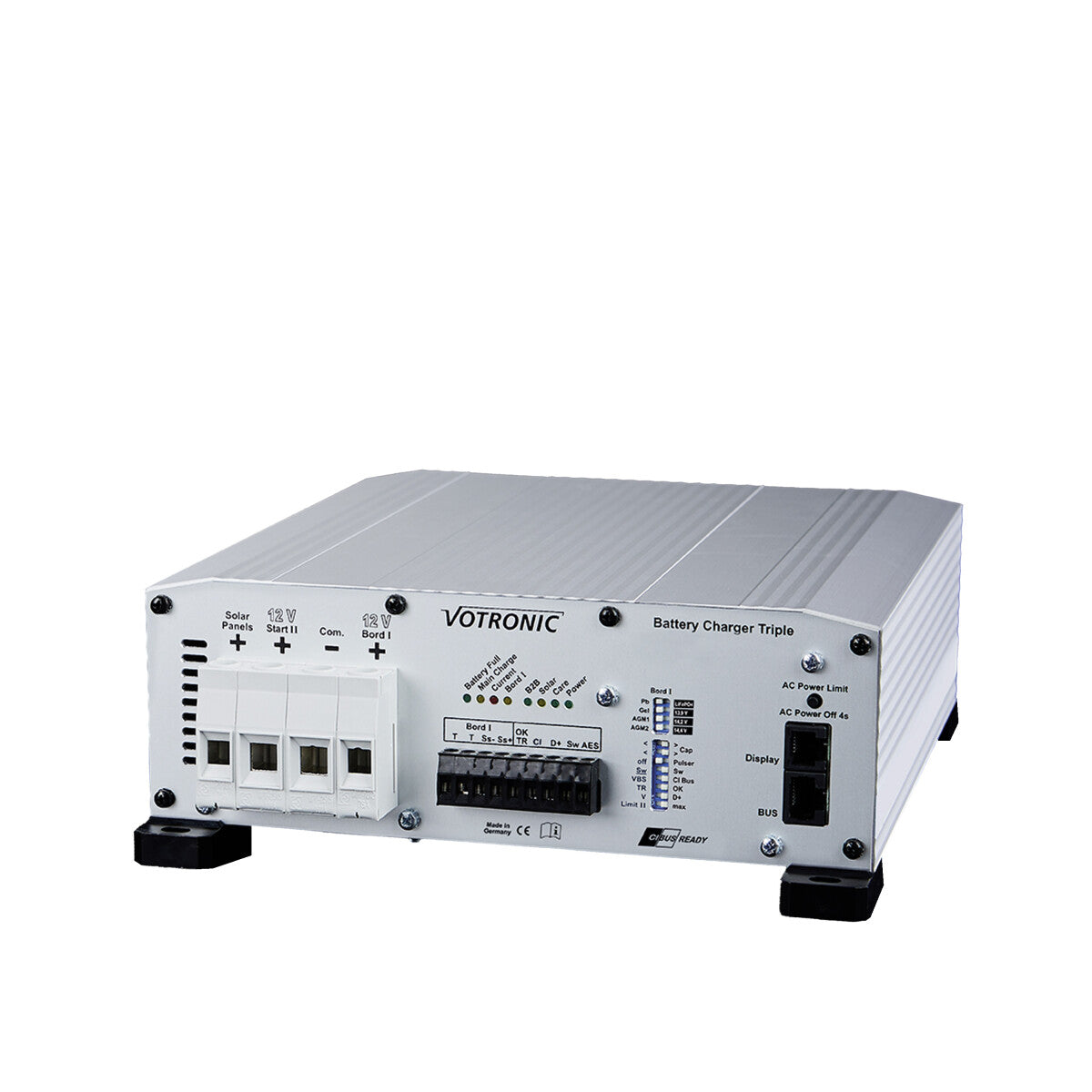

Votronic Battery Charger VBCS 60/40/800 Triple HV CI 3272
- Selectable battery type: Gel, AGM, Lead-acid, LiFePO4
- 12 V/12 V B2B charger operation
- MPPT solar charge controller operation
- Auto battery regeneration/Li Auto Wake Up
Tax included. Shipping calculated at checkout
Your legal guarantee rights

Product description
Votronic Battery Charger VBCS 60/40/800 Triple HV CI - Mains, Alternator & Solar in One Device
Mains operation, 12 V/12 V B2B charger (alternator/Euro 6 compatible) and MPPT solar charge controller in one compact device. In mains operation, it charges your leisure battery with up to 40 A, up to 60 A is possible in B2B operation, and via solar it supports modules from 60 to 800 Wp.
Triple Charger: Mains, B2B and MPPT Solar – Flexible for on the Road
The VBCS is designed as a "Triple" system for vehicles: You can charge from shore power (110–230 V / 45–65 Hz worldwide, full charging power), recharge via the alternator while driving and additionally use solar. The mains detection including AC power limit function is particularly practical, so that you can sensibly limit the power consumption at weaker connections.
Suitable for Many Battery Types – Incl. LiFePO4
To ensure that charging suits your battery, the battery type is adjustable: Gel, AGM, Lead-Acid or LiFePO4. In addition, the device supports lead battery temperature compensation or LiFePO4 protection. A temperature sensor 825 is already included in the delivery.
Clean Integration in the Vehicle: CI-BUS, Control and Switching Output
For modern motorhome setups, the charger is CI-BUS capable and offers you a control input to influence the operation. In addition, there are practical interfaces such as the plug connection for LCD-Charge Control S display as well as the VBS2 plug connection. For more everyday convenience, a switching output for AES refrigerator is also integrated.
B2B Charging (Euro 6) and Starter Battery in View
In 12 V/12 V B2B charger operation, the VBCS delivers up to 60 A charging power for the leisure battery. The voltage range at starter battery/alternator is 10.5–16.5 V (Euro 6), the max. current is 82 A. For the starter battery, a charging power of 5 A is available (via charging current distributor); a starter battery with 12 V and >100 Ah is recommended.
Your Advantages at a Glance
- 3-in-1: Mains charger + 12 V/12 V B2B charger + MPPT solar controller
- Up to 40 A charging in mains operation, up to 60 A in B2B operation
- MPPT solar for 60–800 Wp, max. 26.0 A, max. 55 V Voc
- Selectable battery type: Gel, AGM, Lead-Acid, LiFePO4
- Mains detection & AC power limit for controlled power consumption
- CI-BUS capable, connections for LCD-Charge Control S and VBS2
- AES refrigerator switching output and temperature sensor 825 included
If you want a powerful, versatile charging center for your 12-V onboard electrical system that cleanly combines mains, driving, and solar, the VBCS 60/40/800 Triple HV CI (3272) is a very well-thought-out solution.
| Technical Data | Votronic VBCS 60/40/800 |
| Operating voltage | 110 V - 230 V |
| Operating voltage range | 90 V - 270 V |
| Max. power consumption | 700 W |
| Max. current starter battery | 10.5 V - 16.5 V |
| Solar module power | 60 Wp - 800 Wp |
| Max. current solar module | 26 A |
| Max. voltage solar module | 55 V |
| Weight | 2.9 kg |
| Dimensions | 256 mm x 219 mm x 85 mm |
