WATTSTUNDE® house roof bracket end clamps + caps

WATTSTUNDE® Roof Mounting End Clamps + Caps – Stable & Corrosion-Resistant

WATTSTUNDE® roof mounting end clamps and caps are essential for the secure attachment of photovoltaic modules to pitched tile roofs. Made with high-quality aluminum and stainless steel components, they ensure a durable and corrosion-resistant installation. Pre-assembled parts make installation particularly efficient and time-saving.

Set contents

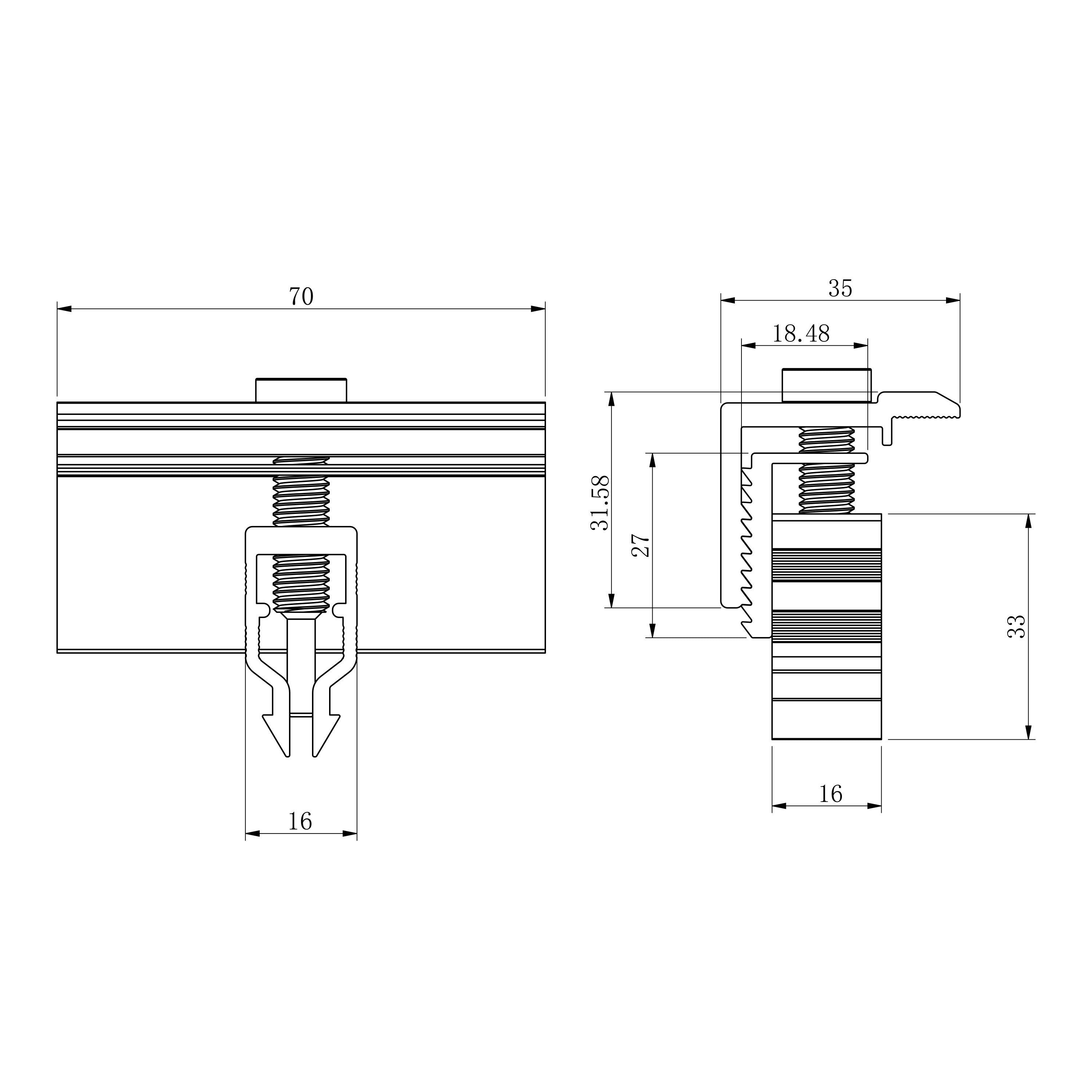

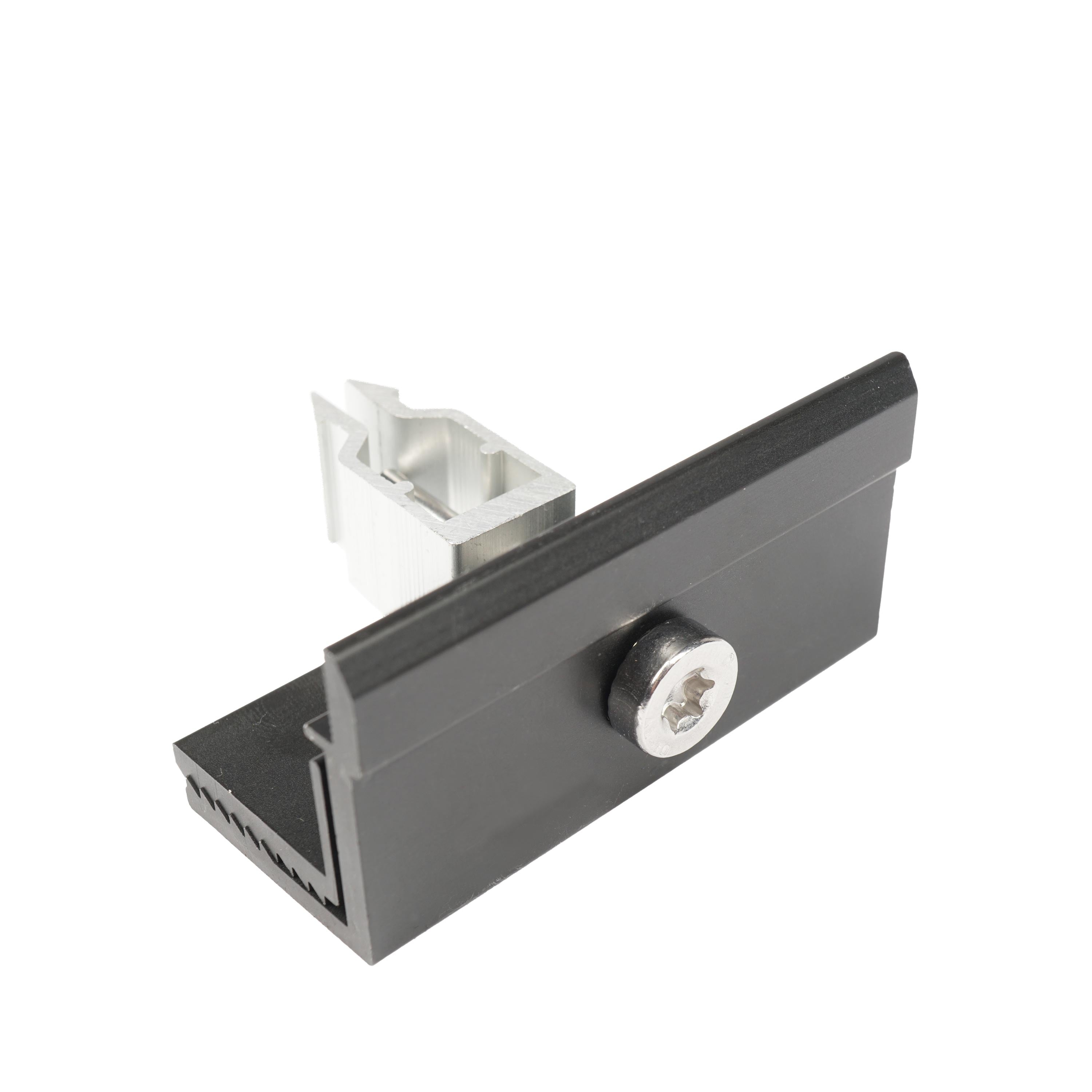

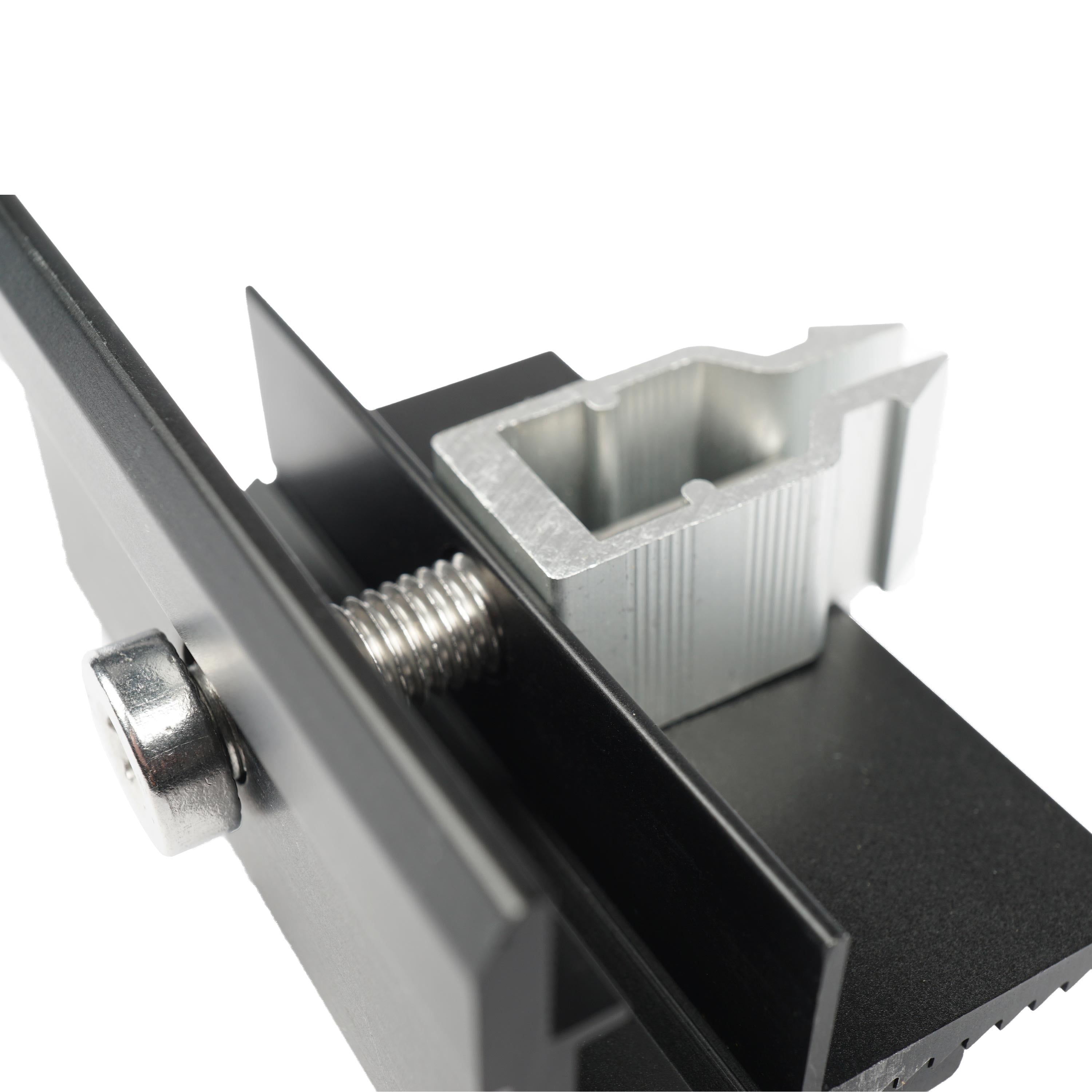

• 4 × End clamps (AL6005-T5, adjustable for 30–35 mm frame height)

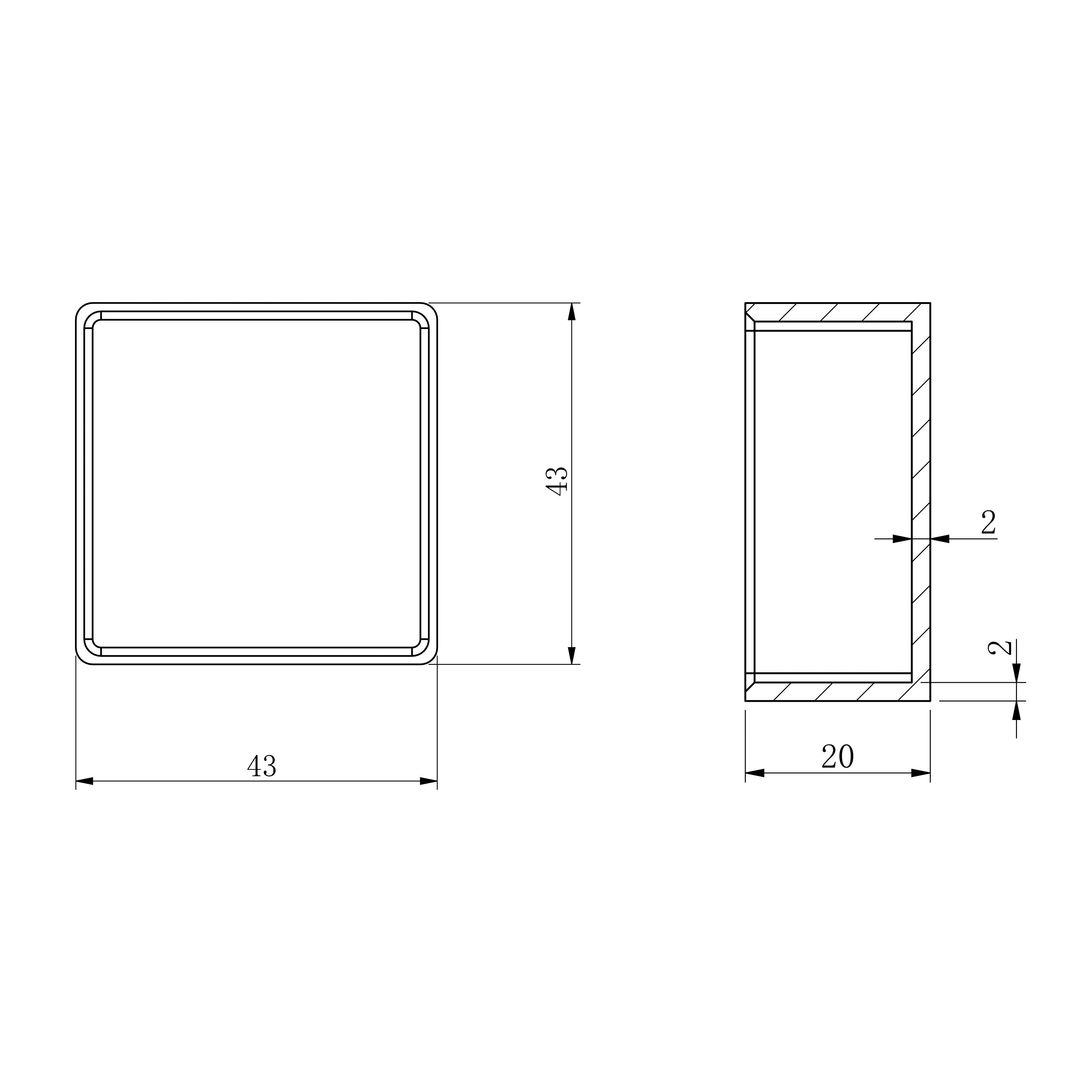

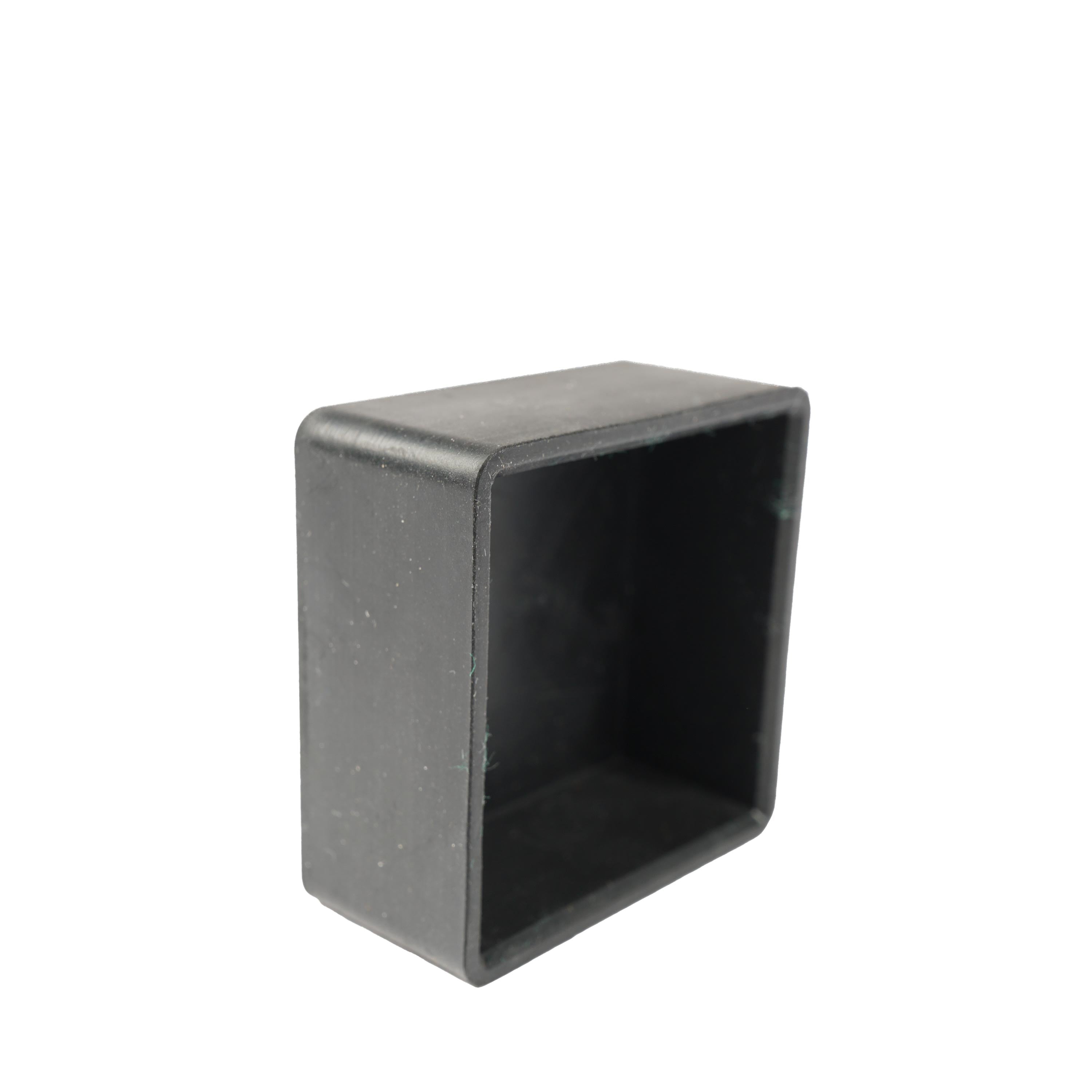

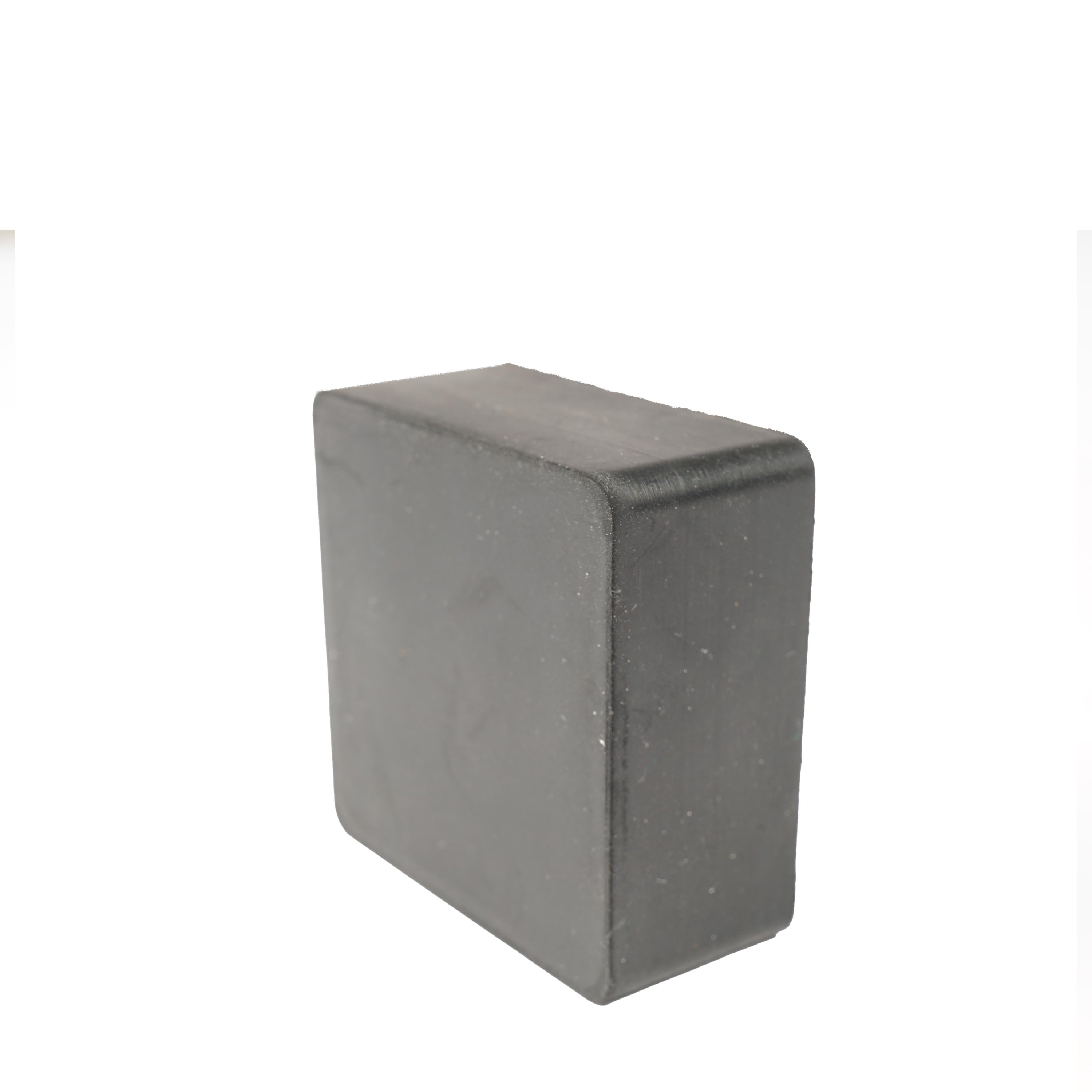

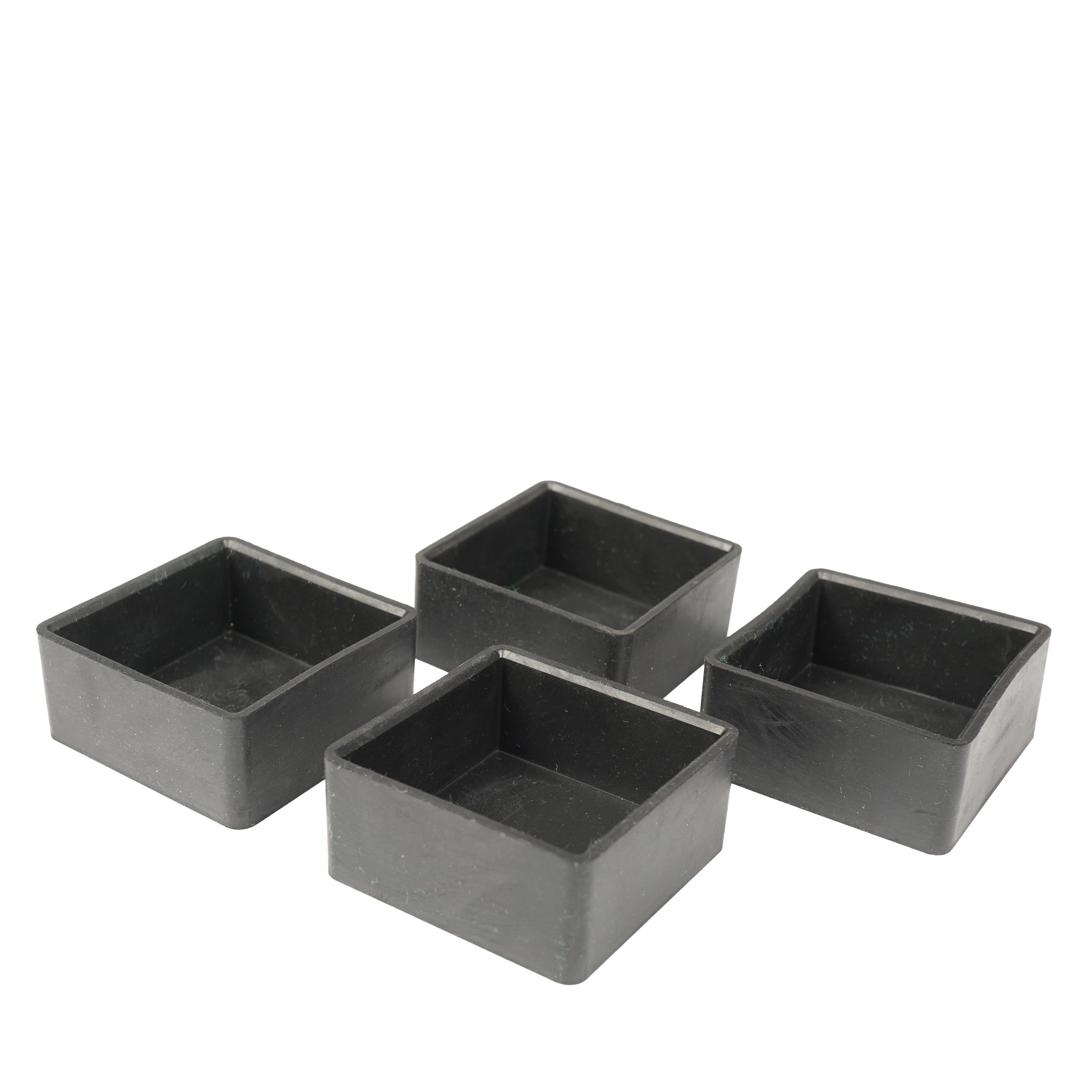

• 2 × end caps 40 × 40 mm (EPDM)
• 1 × Torx screw M8 × 42.5 (V2A / 304)

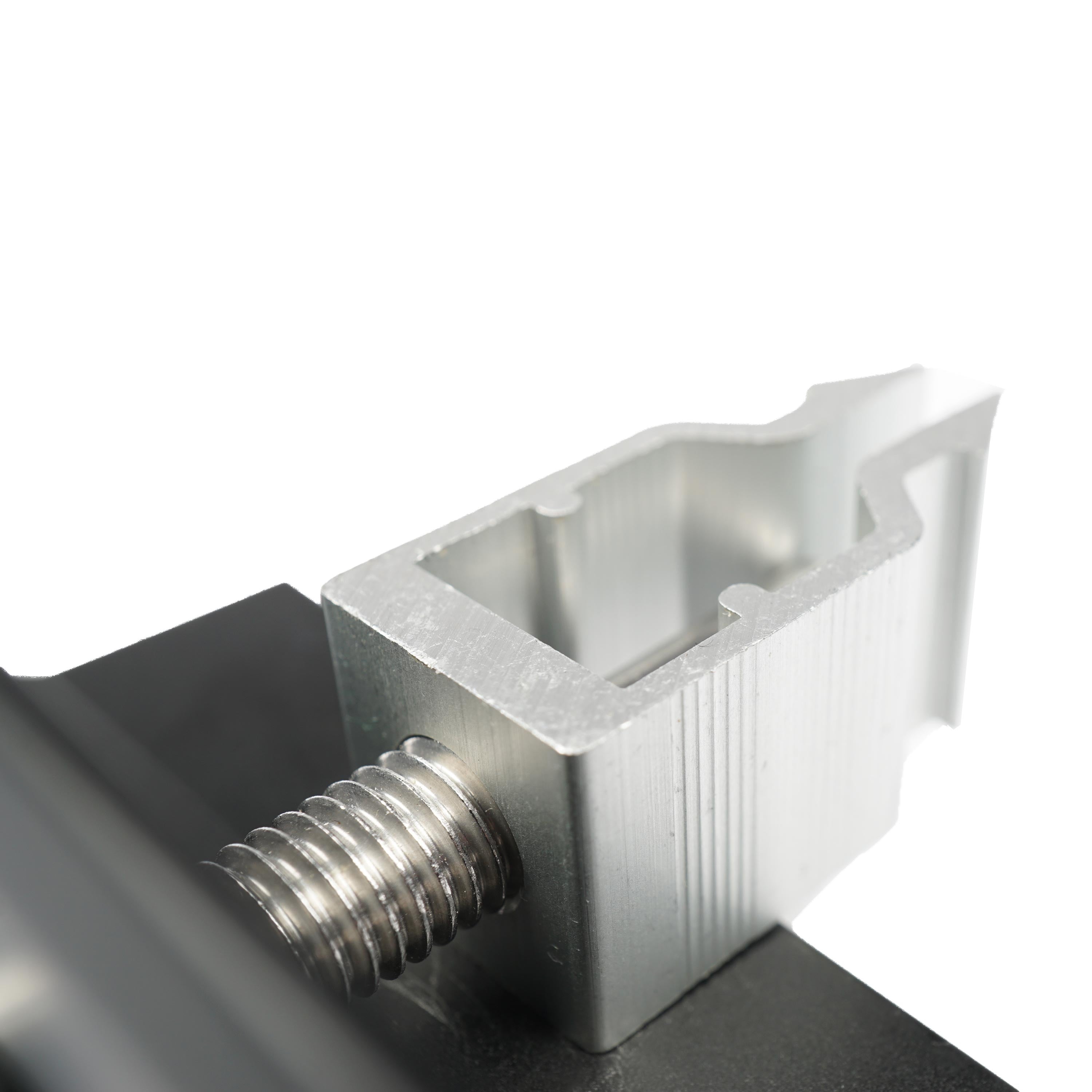

• 1 × Expanding nut (AL6005-T5)

Characteristics

• Universally applicable for 1, 2, 3 or 4 modules
• Adjustable for frame heights of 30–35 mm
• Corrosion resistant thanks to aluminum and stainless steel
• End caps made of weather-resistant EPDM
• Pre-assembled parts for faster assembly
• Secure hold of the modules in combination with roof hooks & mounting rails
• Manufacturer's warranty: 10 years

System components & expansion

The mounting system is modularly expandable and can be flexibly adapted to the desired number of modules:

Your benefits at a glance

• Set with 4 end clamps & 2 end caps
• Suitable for mounting 1 to 4 modules
• High corrosion resistance thanks to AL6005-T5 & stainless steel (V2A / 304)
• Quick and easy assembly thanks to pre-assembled parts
• Modularly expandable mounting system
• Weatherproof end caps made of EPDM

With the WATTSTUNDE® roof mounting end clamps and caps, you receive a well-designed set of 4 end clamps and 2 end caps, suitable for up to 4 modules. Corrosion-resistant materials and pre-assembled parts ensure straightforward installation and secure mounting of your photovoltaic system.
