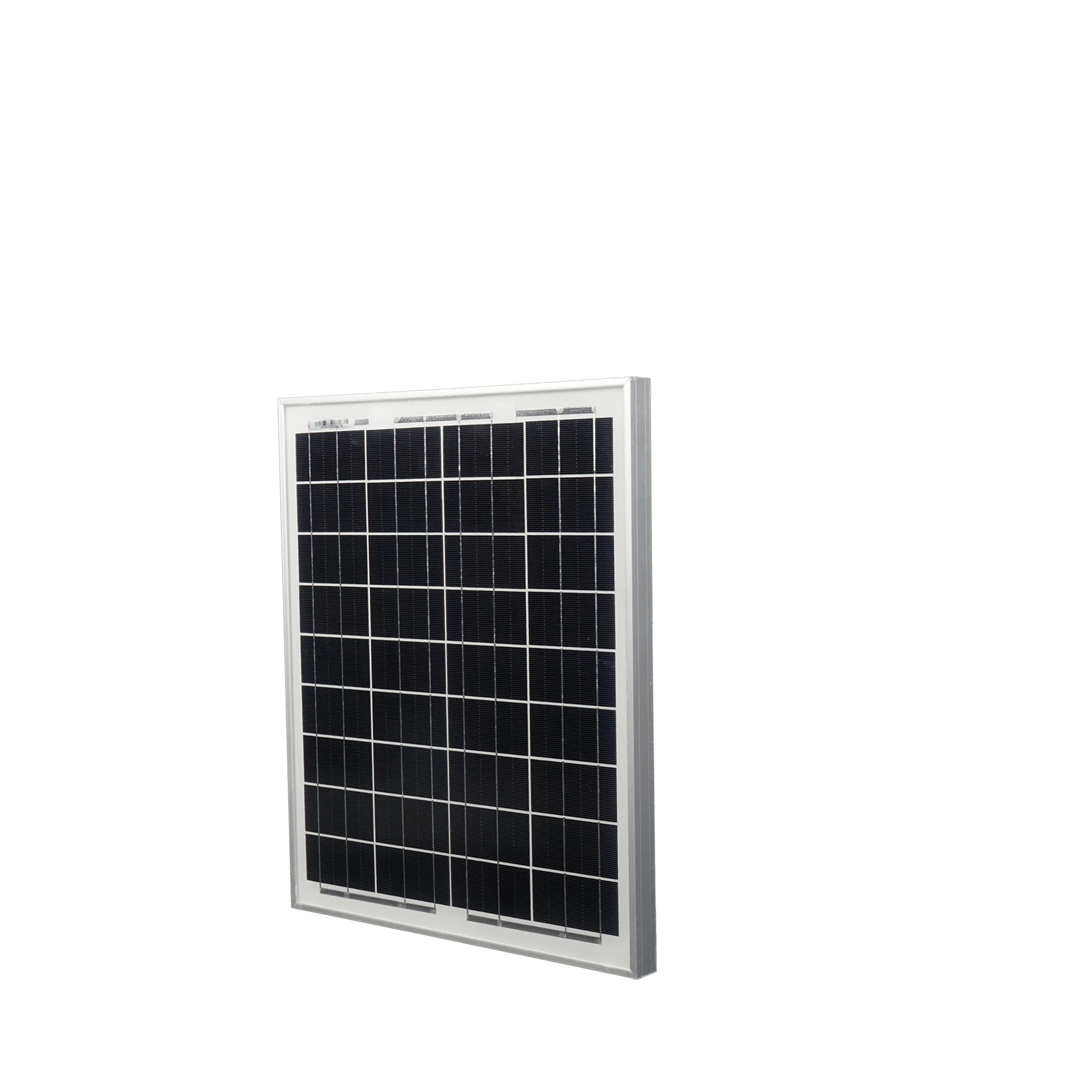

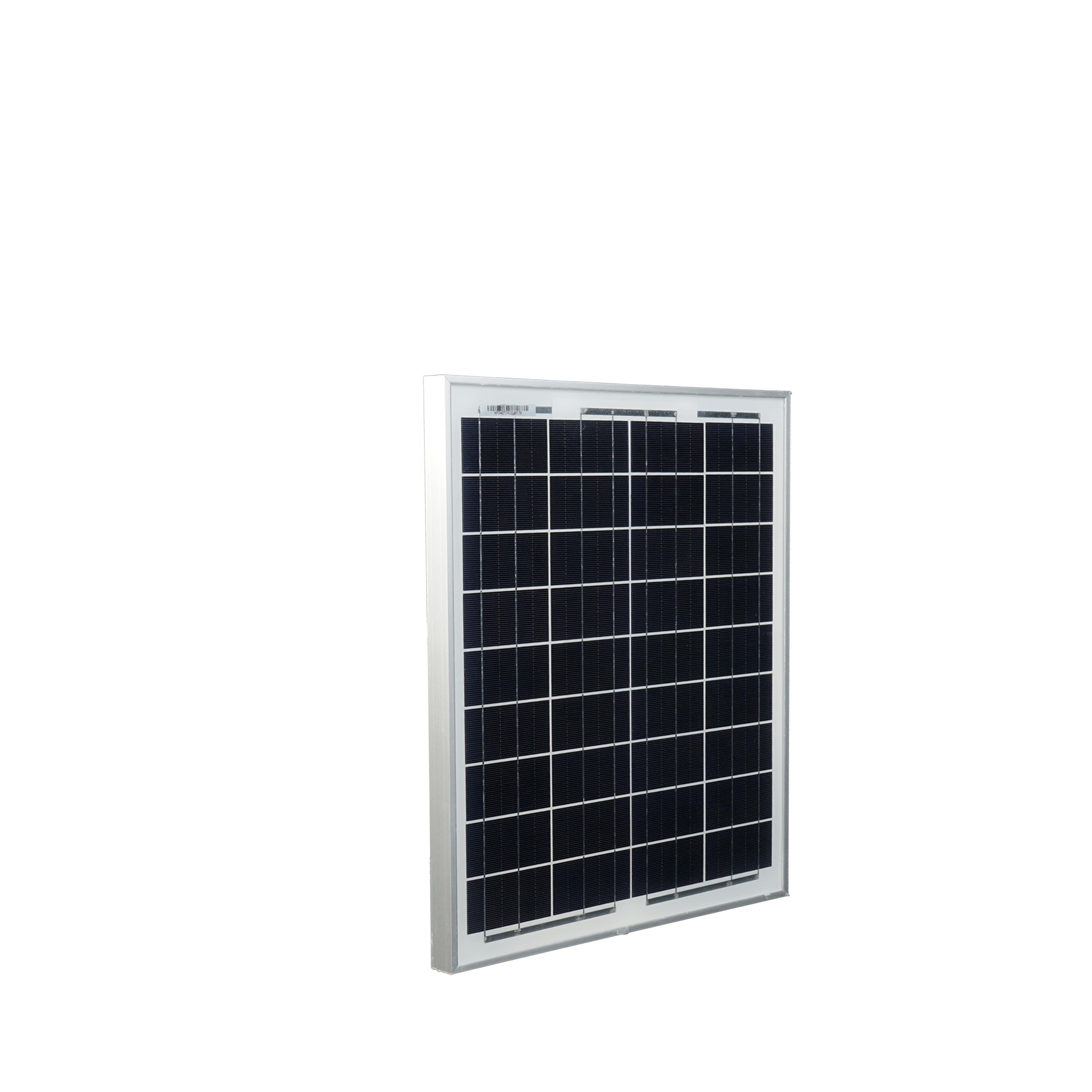

WATTSTUNDE® SOLA Frame Mono 20 Wp
- Leistung: 20 Watt
- Maße: 420 x 350 x 25 mm
- Monokristallin Technologie
- Gewicht: 1,75 kg
Tax included. Shipping calculated at checkout

Product description
Reliability and energy independence with the WATTSTUNDE® SOLA Frame Mono 20 Wp solar module
Experience top quality and reliability with the WATTSTUNDE® SOLA Frame Mono 20 Wp solar module, perfect for off-grid solar systems in RVs, gardens, or on boats. This high-quality monocrystalline solar module guarantees a self-sufficient energy supply thanks to top-tested solar panels that offer optimal performance.
Product features in detail:

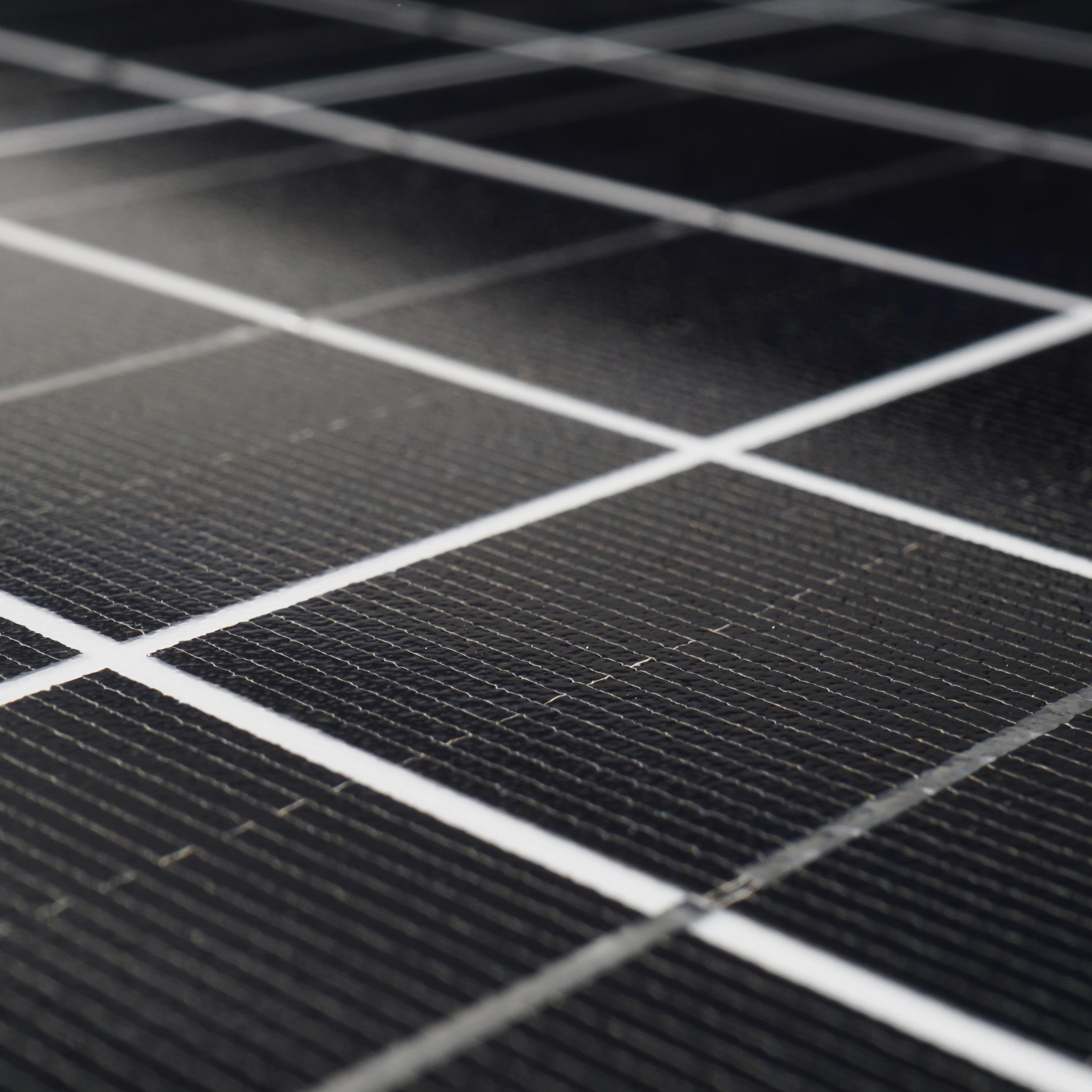

- Monocrystalline solar module with 20 Wp and a high cell efficiency of 18%.
- Provides continuous power even in partial shading or low light conditions thanks to integrated bypass diodes.

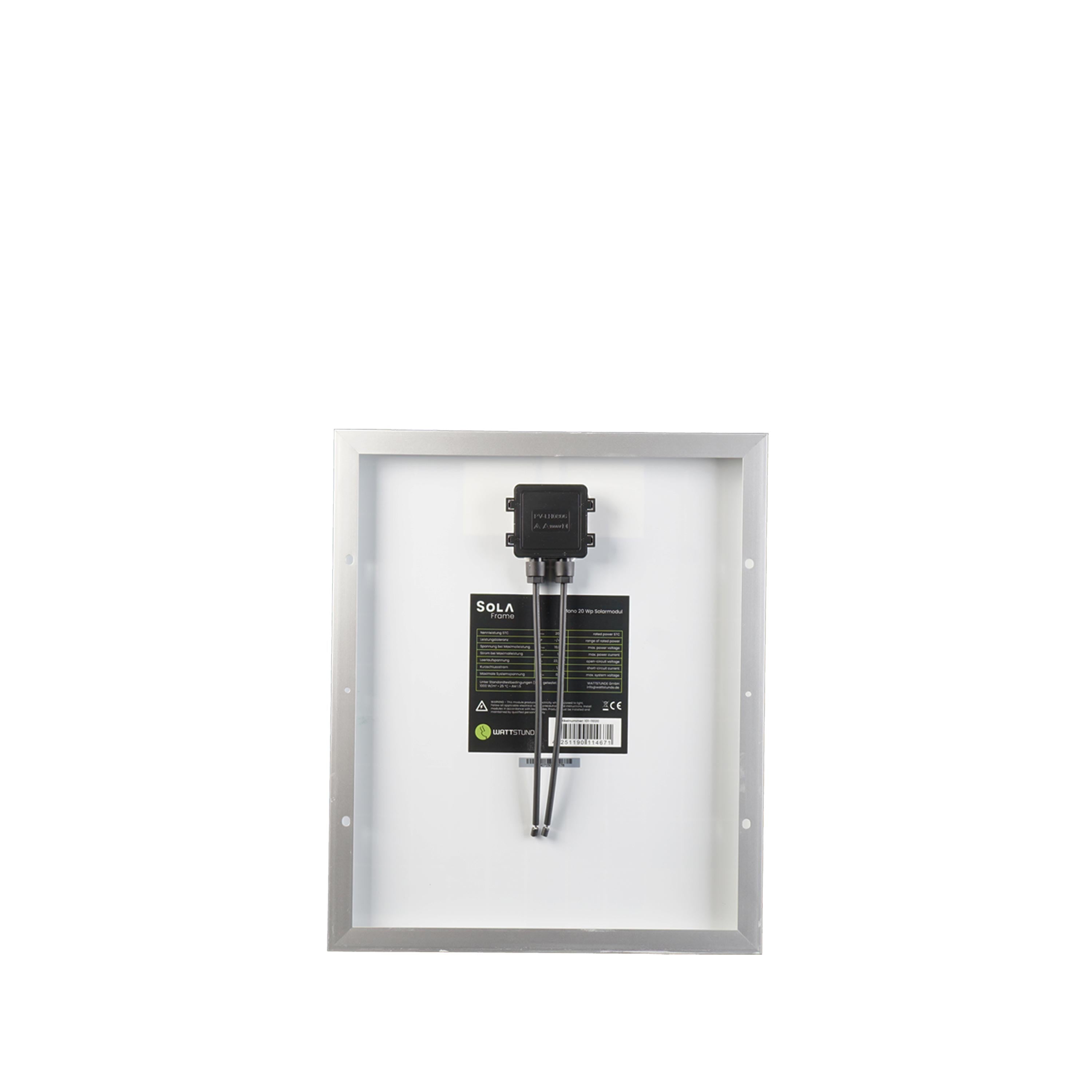

- The IP68 protection class of the junction box ensures resistance to all weather conditions.

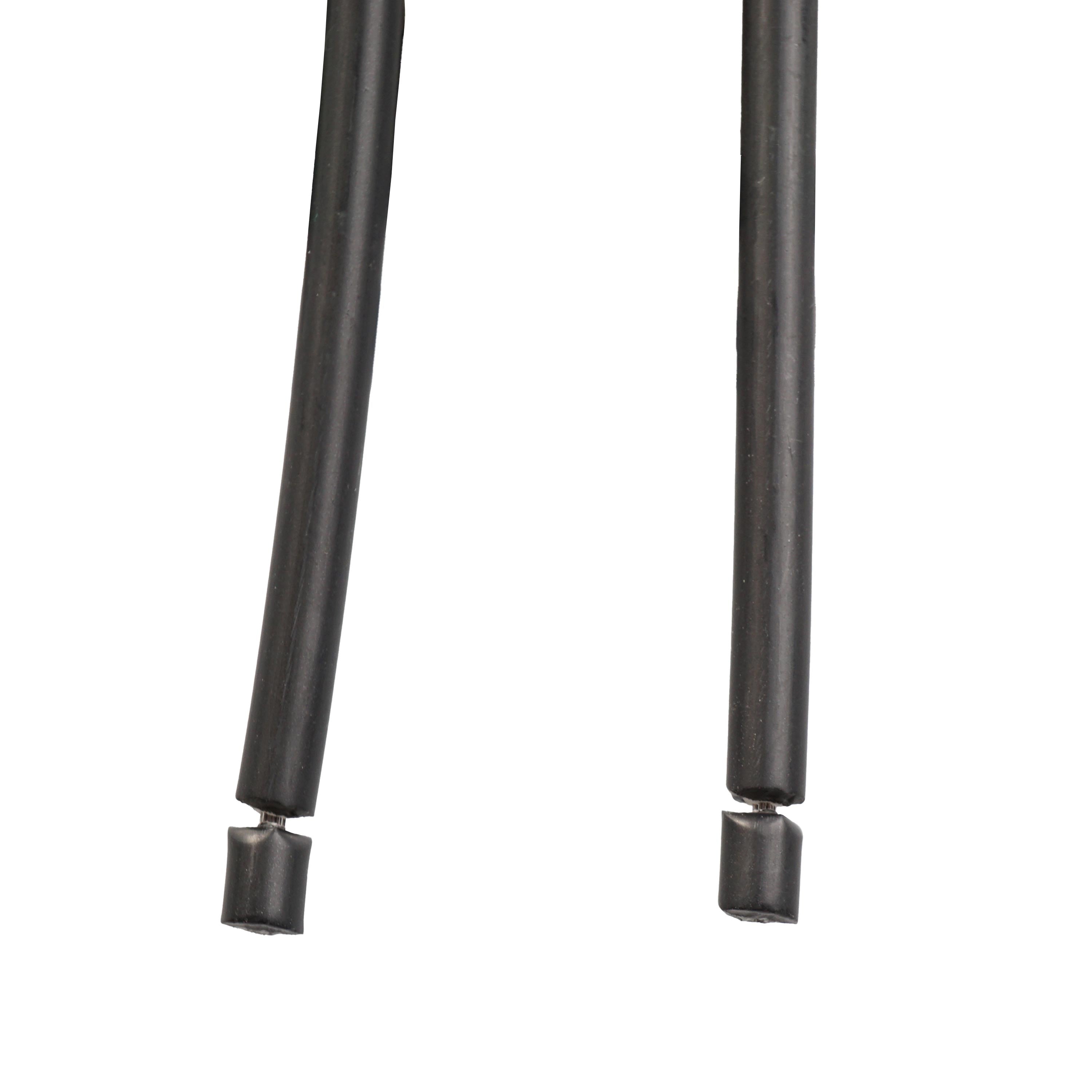

- Pre-wired with 20 cm solar cable without plug
- The robust construction with a hollow chamber profile frame offers maximum stability even under extreme conditions.
- Highly transparent, heat-resistant anti-reflective glass allows for increased light transmission and thus improved energy yields, especially in diffuse light intensity.
- A 10-year manufacturer's warranty and a 25-year performance guarantee on 80% of the capacity demonstrate the trustworthiness and long-term quality.
Simple installation and quick commissioning make these modules incredibly easy to use. They are ideal for anyone seeking a reliable and efficient solution for their self-sufficient energy supply. Their high voltage minimizes cable losses and maximizes energy yield, even during periods of low sunlight.
| Technical data | SOLA Frame Mono 20 Wp |
| Rated power | 20 W |
| Maximum daily yield (summer) | 80 Wh/d |
| Voltage (Umpp) | 19.80 V |
| Electricity (Impp) | 1.01 A |
| Open circuit voltage (Voc) | 22.68 V |
| Short-circuit current (Isc) | 1.07 A |
| Cell efficiency | ≤ 18% |
| Cell material | Monocrystalline |
| Bypass diode | Integrated |
| Weight | 1.75 kg |
| Dimensions | 420 x 350 x 25 mm |
