WATTSTUNDE® SOLA Frame Mono 30 Wp

  • Leistung: 30 Watt
  • Maße: 510 x 480 x 25 mm
  • Monokristallin Technologie
  • Gewicht: 2,5 kg

Größe:
30 W
Sale price39,00 €

Tax included. Shipping calculated at checkout

SKU: 101-11030

In stock
Versandbereit in: 1 - 3 Werktagen

Product description

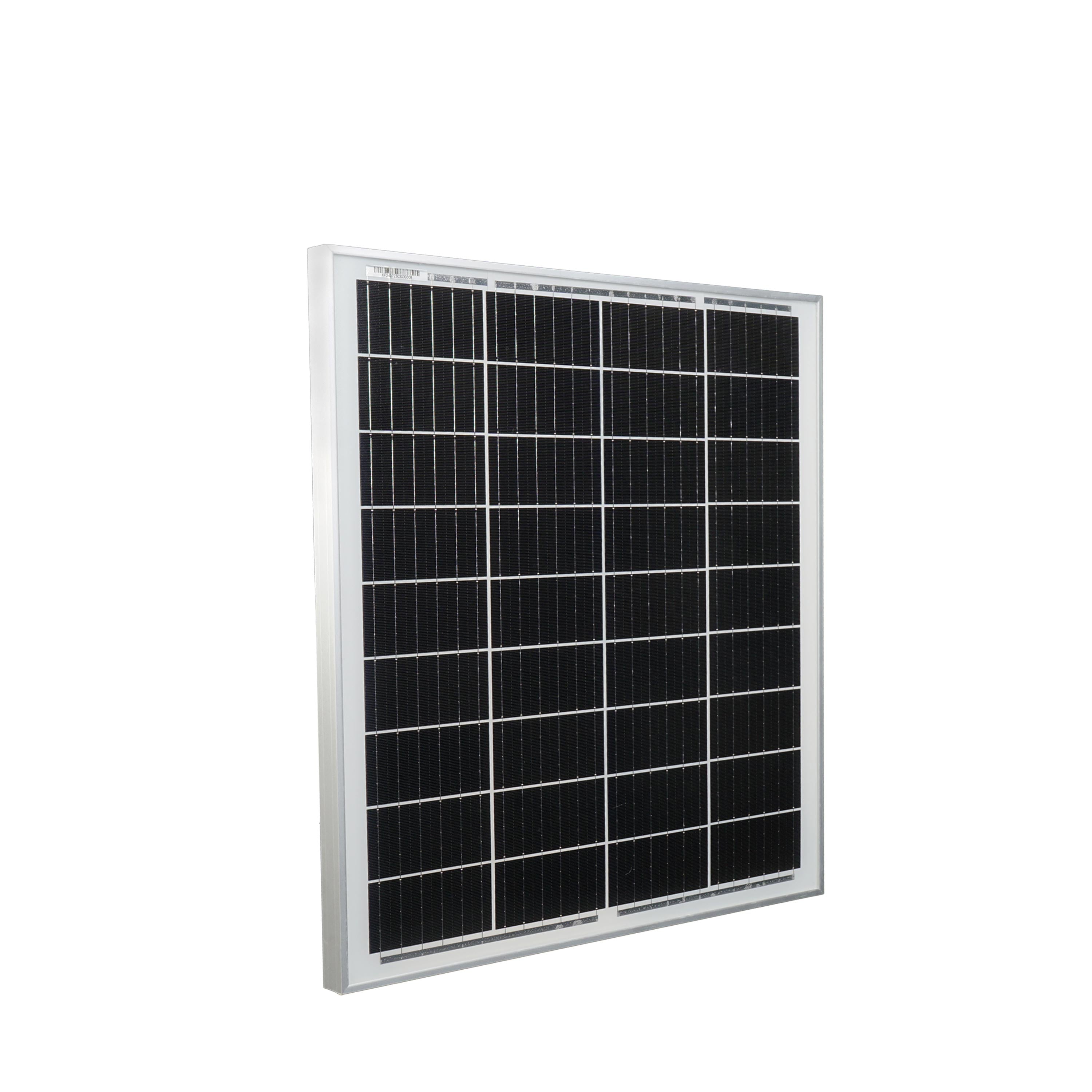

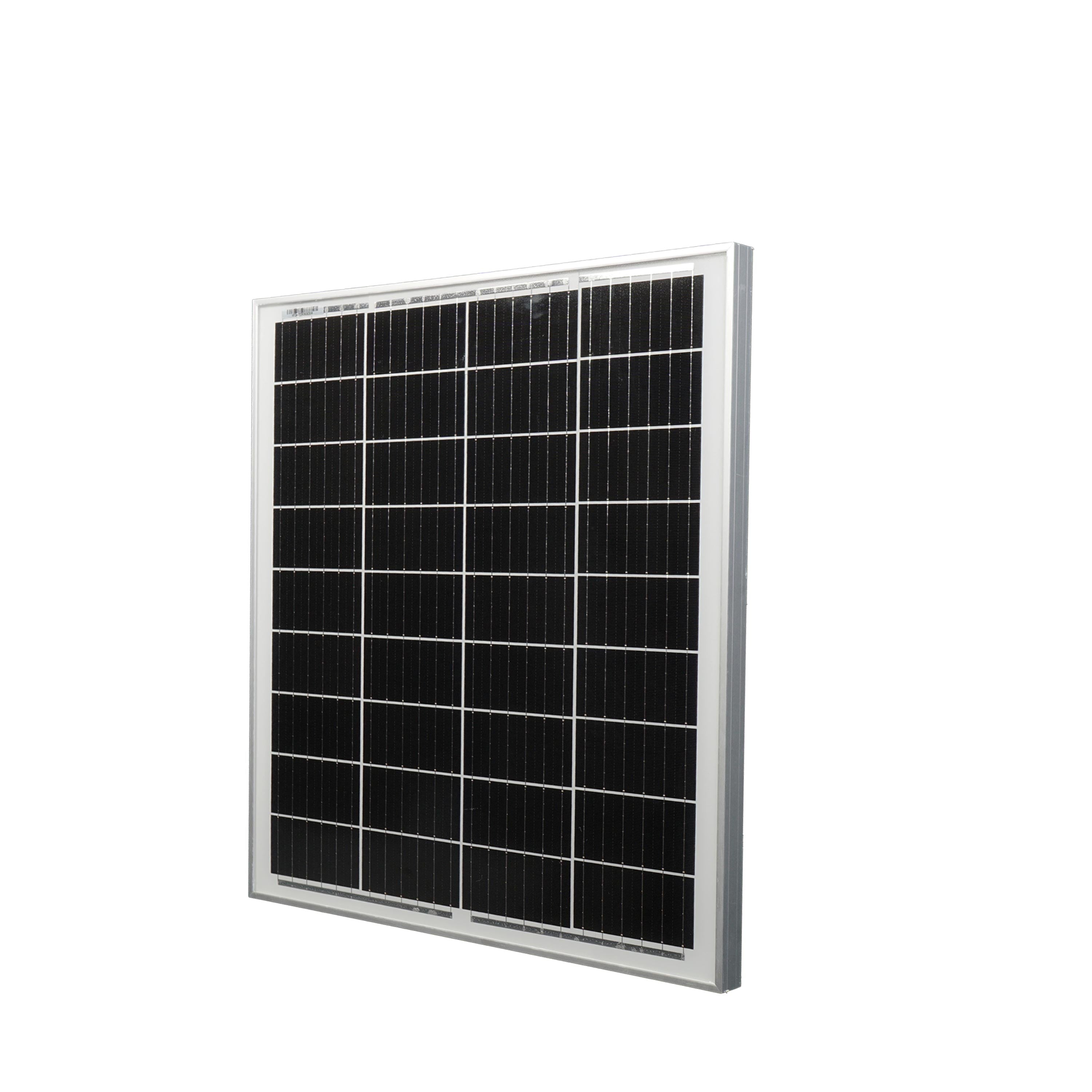

Reliability and energy independence with the WATTSTUNDE® SOLA Frame Mono 30 Wp solar module

Experience top quality and reliability with the WATTSTUNDE® SOLA Frame Mono 30 Wp solar module, perfect for off-grid solar systems in RVs, gardens, or on boats. This high-quality monocrystalline solar module guarantees a self-sufficient energy supply thanks to top-tested solar panels that offer optimal performance.

Product features in detail:

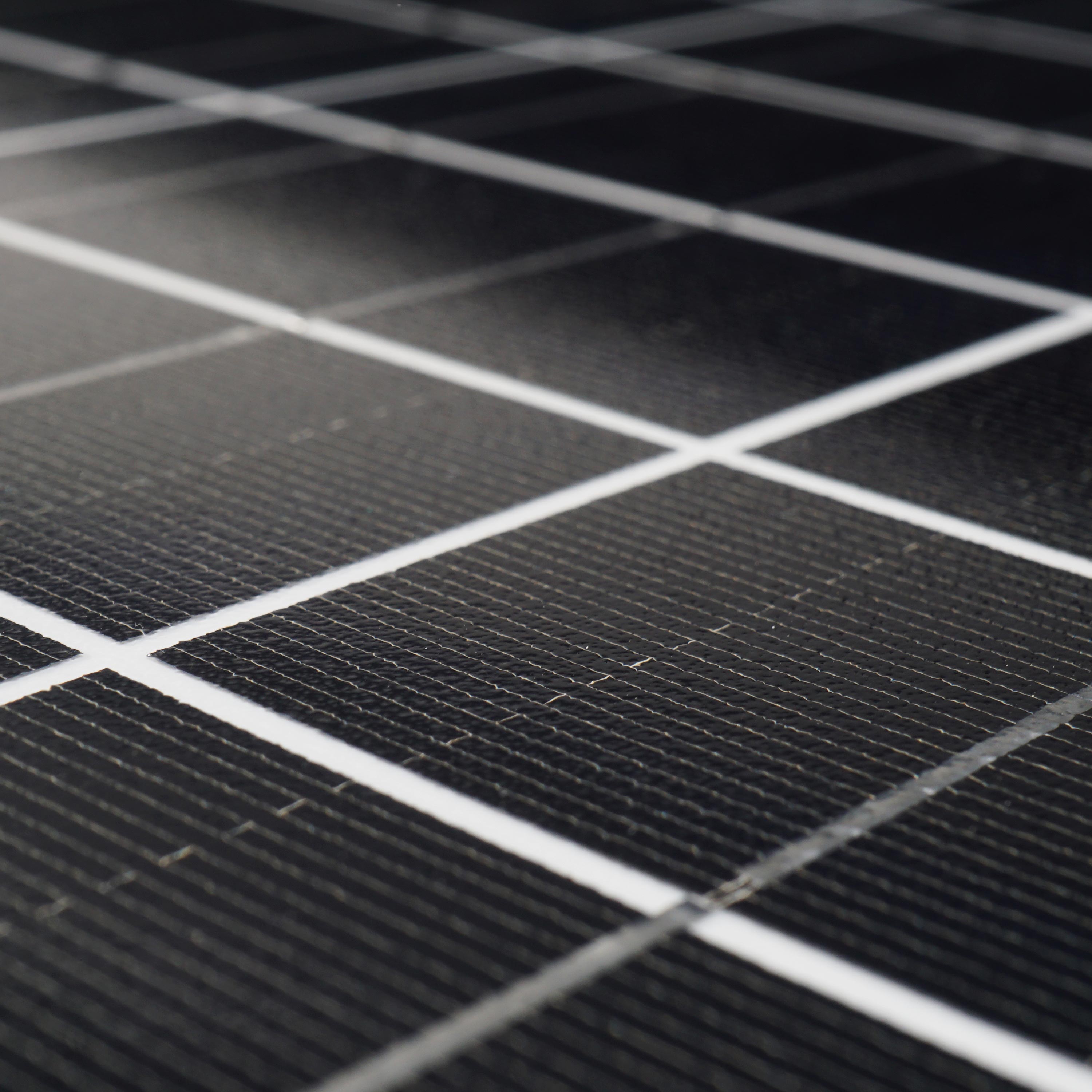

  • Monocrystalline solar module with 30 Wp and a high cell efficiency of 18%.
  • Provides continuous power even in partial shading or low light conditions thanks to integrated bypass diodes.

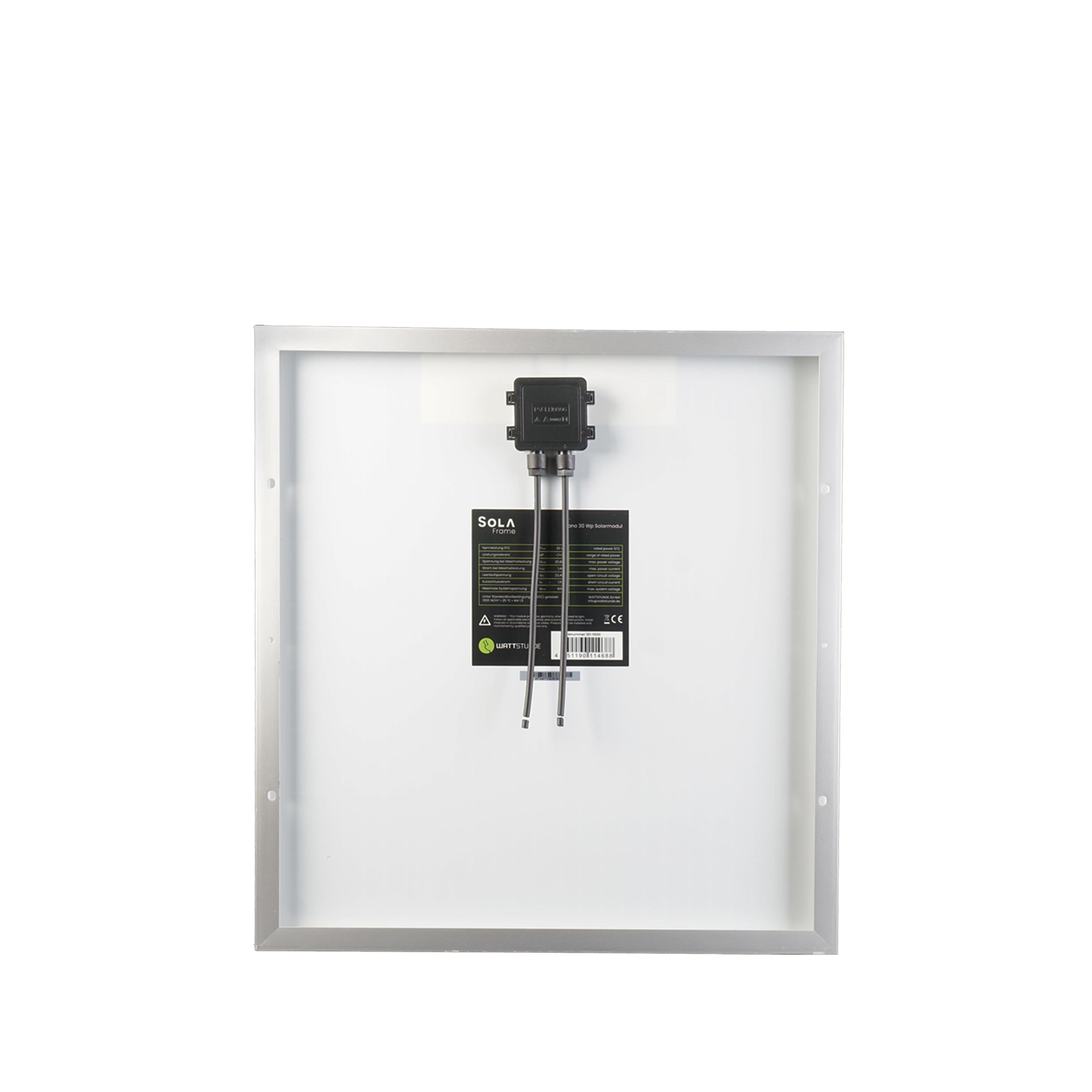

  • The IP68 protection class of the junction box ensures resistance to all weather conditions.

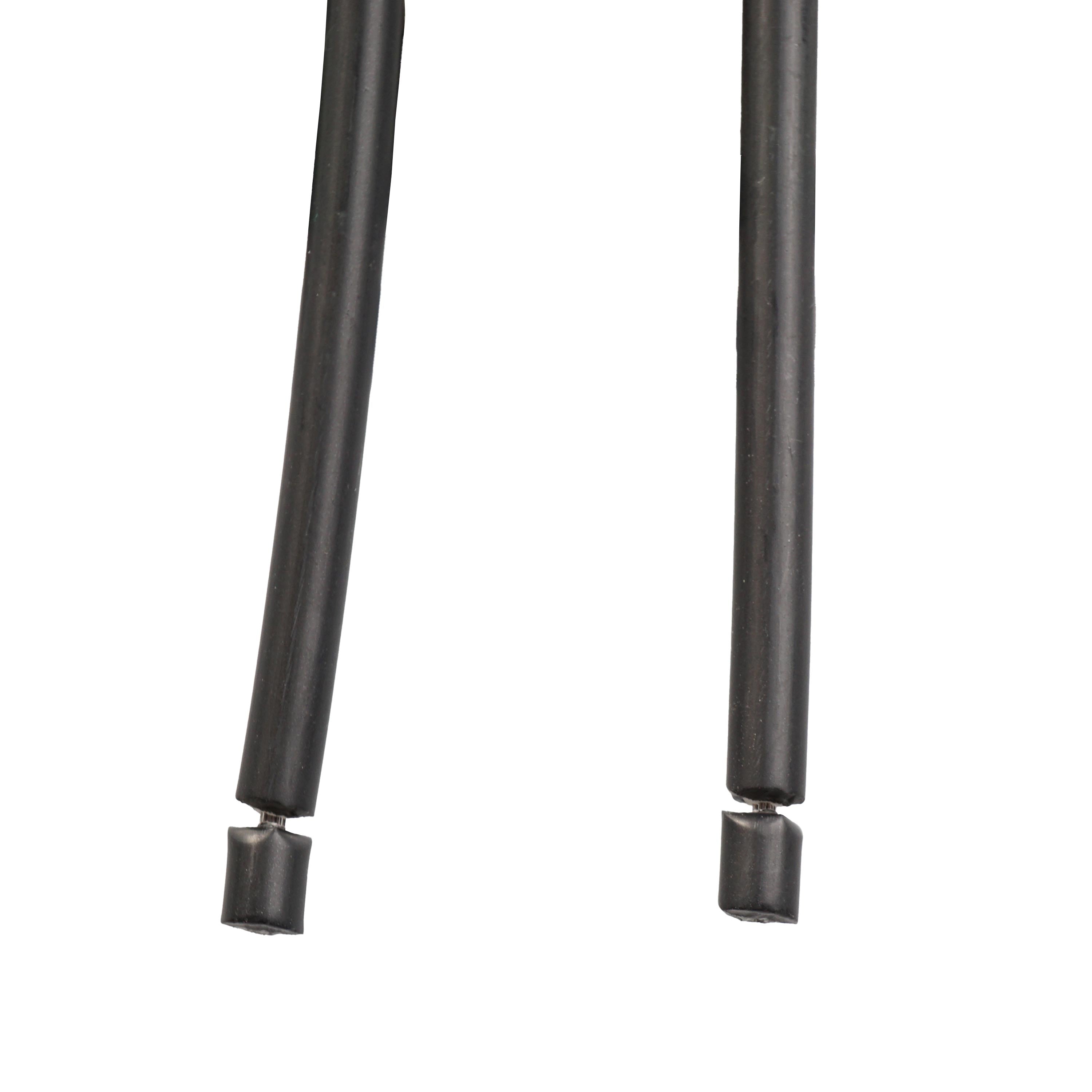

  • Pre-wired with 20 cm solar cable without plug.
  • The robust construction with a hollow chamber profile frame offers maximum stability even under extreme conditions.
  • Highly transparent, heat-resistant anti-reflective glass allows for increased light transmission and thus improved energy yields, especially in diffuse light intensity.
  • A 10-year manufacturer's warranty and a 25-year performance guarantee on 80% of the capacity demonstrate the trustworthiness and long-term quality.

Simple installation and quick commissioning make these modules incredibly easy to use. They are ideal for anyone seeking a reliable and efficient solution for their self-sufficient energy supply. Their high voltage minimizes cable losses and maximizes energy yield, even during periods of low sunlight.


Technical data SOLA Frame Mono 30 Wp
Rated power 30 W
Maximum daily yield (summer) 120 Wh/d
Voltage (Umpp) 22.88 V
Electricity (Impp) 1.44 A
Open circuit voltage (Voc) 23.40 V
Short-circuit current (Isc) 1.52 A
Cell efficiency ≤ 18%
Cell material Monocrystalline
Bypass diode Integrated
Weight 2.5 kg
Dimensions 510 x 480 x 25 mm
