WATTSTUNDE® SOLA Frame Mono 20Wp

  • Leistung: 20 Watt
  • Maße: 420 x 350 x 25 mm
  • Monokristallin Technologie
  • Gewicht: 1,75 kg
  • Leistungsgarantie 25 Jahre
  • Produktgarantie 10 Jahre

0% VAT according to §12 para. 3 UStG:

Further information on 0% VAT according to §12 para. 3 UStG

Sale price32,90 €

Tax included. Shipping calculated at checkout

SKU: 101-11020

In stock

Product details

WATTSTUNDE® SOLA Frame Mono 20Wp

  • Leistung: 20 Watt
  • Maße: 420 x 350 x 25 mm
  • Monokristallin Technologie
  • Gewicht: 1,75 kg
  • Leistungsgarantie 25 Jahre
  • Produktgarantie 10 Jahre

Product description

Reliability and energy independence with the WATTSTUNDE SOLA Frame Mono 20 Wp solar module

Experience the highest quality and reliability with the WATTSTUNDE SOLA Frame Mono 20 Wp solar module, perfect for off-grid solar systems in mobile homes, gardens, or on boats. This high-quality monocrystalline solar module guarantees a self-sufficient energy supply thanks to top-tested solar panels that offer optimal performance.

Product features in detail:

  • Monocrystalline solar module with 20 Wp and a high cell efficiency of 18%.
  • Provides continuous power even in partial shade or low light conditions thanks to integrated bypass diodes.

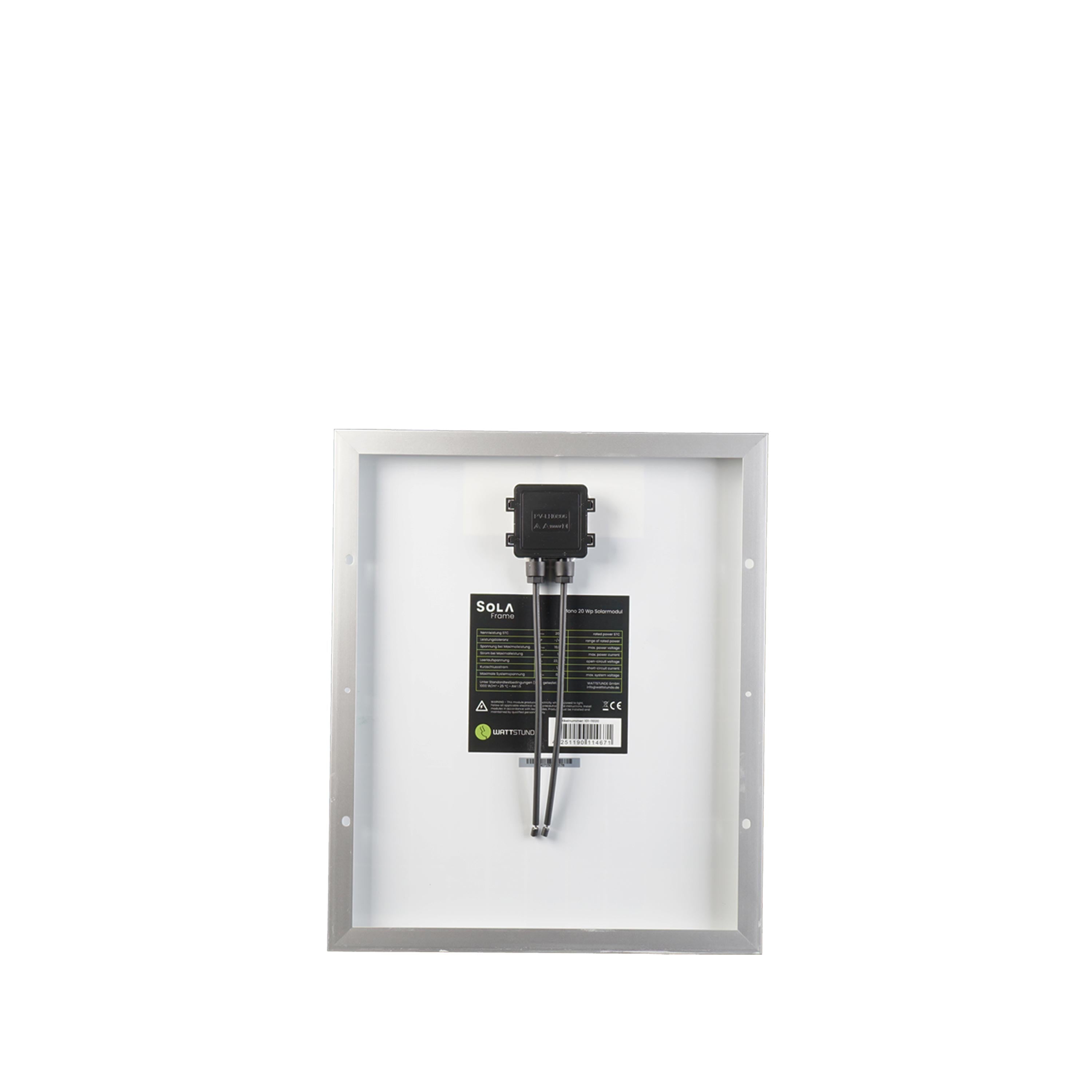

  • The junction box’s IP68 protection class ensures resistance to all weather conditions.

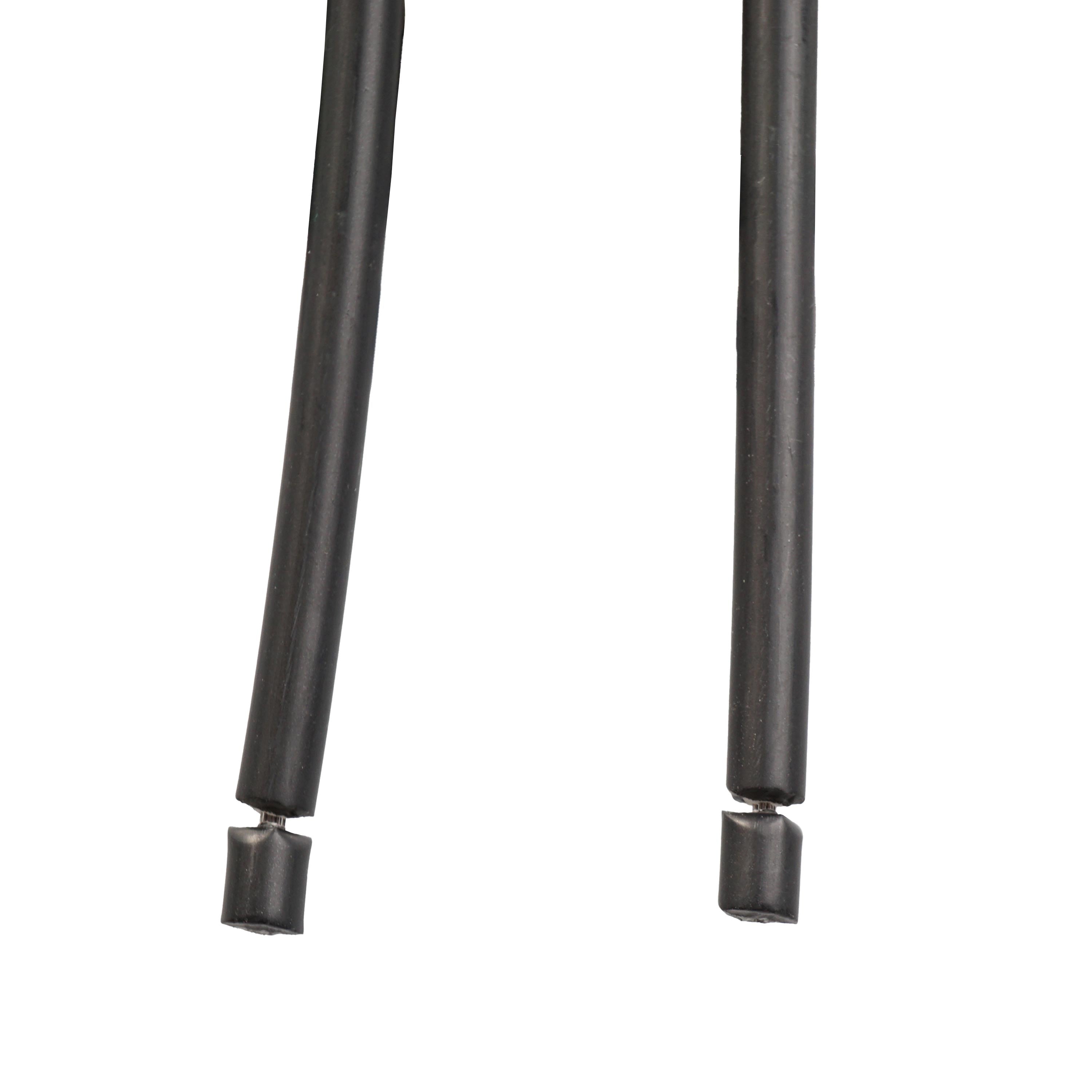

  • Pre-wired with 20 cm solar cable without plug
  • The sturdy construction with a hollow chamber profile frame offers maximum stability even under extreme conditions.
  • High-transmittance, heat-resistant anti-reflective glass enables increased light transmission and thus improved energy yields, especially in diffuse light intensities.
  • A 10-year manufacturer's warranty and a 25-year performance guarantee on 80% of capacity demonstrate trustworthiness and long-term quality.

Simple installation and quick commissioning make handling a breeze. These modules are ideal for anyone seeking a reliable and efficient solution for their self-sufficient energy supply. Their high voltage minimizes cable losses and maximizes energy yield, even during low-light seasons.


Technical data SOLA Frame Mono 20 Wp
Rated power 20 W
Max. daily yield (summer) 80 Wh/d
Voltage (Umpp) 19.80 V
Electricity (Impp) 1.01 A
Open circuit voltage (Voc) 22.68 V
Short-circuit current (Isc) 1.07 A
Cell efficiency ≤ 18%
Cell material Monocrystalline
Bypass diode Integrated
Weight 1.75 kg
Dimensions 420 x 350 x 25 mm
