WATTSTUNDE® SOLA Frame Shadow 125 W Solar Module Complete Set in White with Charge Controller

  • Power: 125 watts
  • N-type back-contact cells with anti-shading architecture
  • Up to 80% more power in partial shade
  • Weight: 6.5 kg
  • with Victron SmartSolar 75/15 MPPT Bluetooth charge controller
  • 1.5 m battery connection cable with 20 A fuse

Direkt zu den Produktinformationen ↓
Modulserie
Farbe der Halterung
Leistung:
Sale price515,13 €
Neues Produkt

Tax included. Shipping calculated at checkout

SKU: WS22-SFS-125100

In stock
Versandbereit in: 1 - 3 Werktagen

Product description

WATTSTUNDE® SOLA Frame Shadow 125 W Solar Module Complete Set (White) with Charge Controller – Including Mounting & Roof Penetration Accessories

With the WATTSTUNDE® SOLA Frame Shadow 125 W Complete Set in White, you get a fully coordinated solar solution for the vehicle roof: Victron SmartSolar MPPT 75/15 with integrated Bluetooth, suitable cabling incl. 20 A fuse, as well as mounting and penetration accessories in white. This includes everything you need to mount the module neatly, route the cables properly into the vehicle, and reliably charge the onboard battery.

The set also includes the WATTSTUNDE® SOLA Frame Shadow 125 with 125 Wp – a compact module for mobile conditions. On the vehicle roof, shade, heat, and changing irradiance can never be completely ruled out; the Shadow series is designed to keep the yield stable under such conditions.

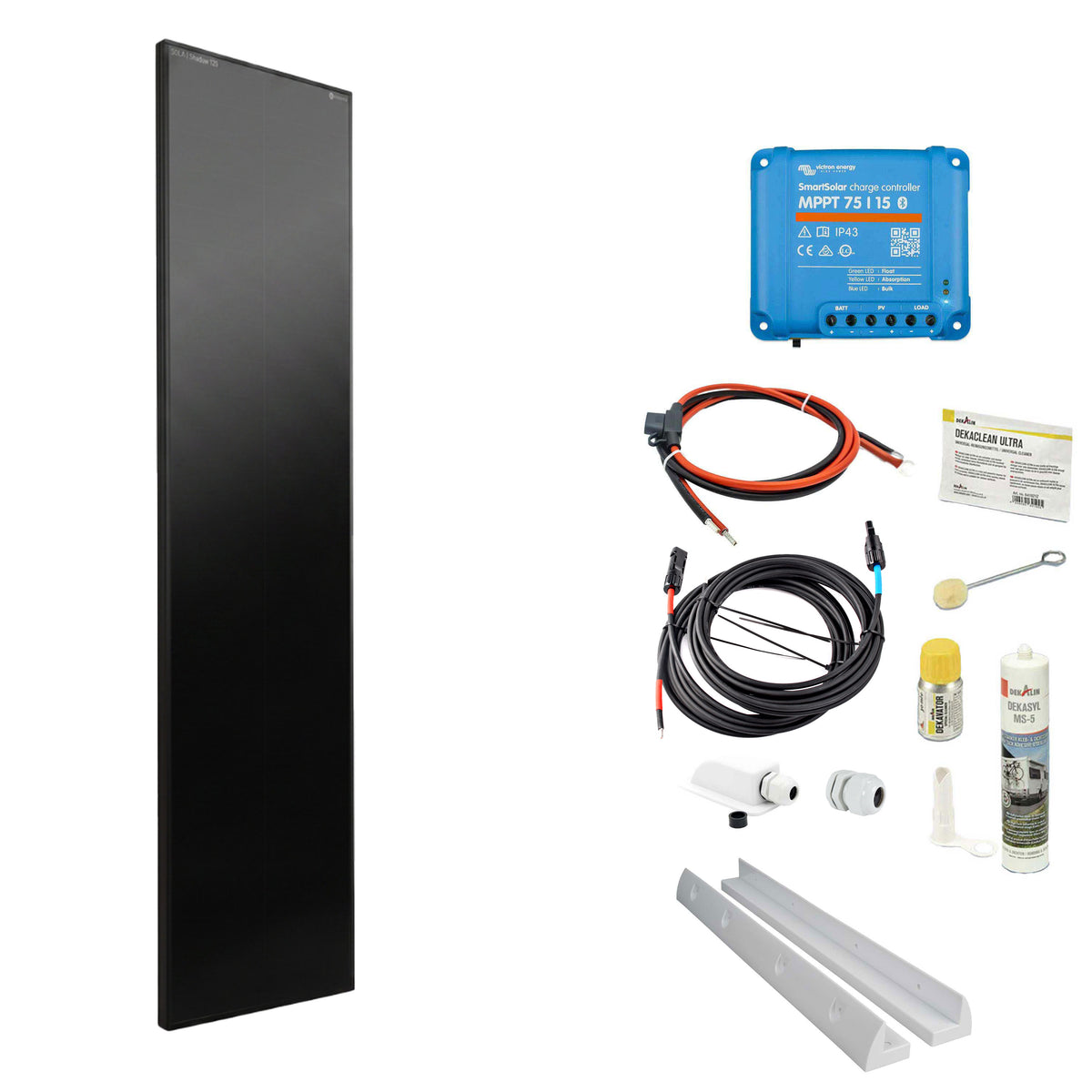

Set Contents

  • 1 × Victron SmartSolar MPPT 75/15 (integrated Bluetooth)
  • 1 × WATTSTUNDE® Fuse Cable (with 20 A fuse)
  • 1 × WATTSTUNDE® MVK 4.7 Connection Cable Solar Module → Charge Controller
  • 1 × Dekalin Adhesive Set (white)
  • 1 × WATTSTUNDE® Cable Gland Twin Solar Cable M20×1.5 (white)
  • 1 × WATTSTUNDE® Roof Penetration DX1/W ASA (white)
  • 1 × WATTSTUNDE® SOLA Frame Shadow 125 Solar Module
  • 1 × WATTSTUNDE® MOUNT Solar Module Mount 43 (white)

Victron MPPT 75/15: Charge Efficiently and View Values Live on Your Smartphone

The SmartSolar MPPT 75/15 operates with fast MPPT tracking and helps capture as much yield as possible in the battery, even with changing sunlight. Thanks to integrated Bluetooth, you connect directly to the VictronConnect App – for live data, setup, and updates, without additional accessories.

Neat Cabling Incl. Fuse – Perfectly Matched in the Set

To make the connection hassle-free, the cabling is practically prepared: The WATTSTUNDE® MVK 4.7 Connection Cable connects the solar module and charge controller. The WATTSTUNDE® Fuse Cable connects the controller to the battery and includes a replaceable 20 A fuse.

Mounting & Penetration in White: A Coordinated Look on Light-Colored Vehicle Roofs

For the roof installation, the components are designed in white: The WATTSTUNDE® MOUNT Solar Module Mount 43 ensures a stable fit, while the roof penetration and cable gland support neat, sealed cable routing. In addition, there is the Dekalin Adhesive Set in White for mounting and sealing.

Your Benefits at a Glance

  • Complete solution: Module, MPPT controller, cables, fuse, and mounting/sealing accessories in one set
  • 125 Wp Shadow module: reliable power supply under changing conditions
  • Ready-to-connect cabling: 2 × 7 m module-to-controller cables + battery cable with 20 A fuse
  • Coordinated look: Mounting and roof penetration accessories in white

If you are looking for a compact solar system for the vehicle roof where the components, cable lengths, and accessories fit together directly, this SOLA Frame Shadow 125 W Complete Set in White is a particularly practical choice.





Technical Data SOLA Frame Shadow 125
Rated Power 125 W
Max. Daily Yield (Summer) 500 Wh/d
Voltage (Vmp) 31.20 V
Current (Imp) 4.04 A
Open-Circuit Voltage (Voc) 36.40 V
Short-Circuit Current (Isc) 4.24 A
Cell Efficiency ≤ 26 %
Cell Material N-Type Back Contact
Bypass Diodes 2
Weight 6.5 kg
Dimensions 1560 x 392 x 30 mm



Technical Data SmartSolar MPPT 75 / 15
Battery Voltage 12 V / 24 V
Rated Charge Current 15 A
Rated PV Power 12 V 220 W
Rated PV Power 24 V 440 W
Max. PV Open-Circuit Voltage 75 V
Max. PV Short-Circuit Current 15 A
Efficiency 98 %
Constant Charge Voltage 14.4 V / 28.8 V
Float Charge Voltage 13.8 V / 27.6 V
Operating Temperature - 30 °C - + 60 °C
Weight 0.5 kg
Dimensions 100 x 113 x 40 mm
