WATTSTUNDE® SOLA Frame Shadow 175 W Solar Module Complete Set in Black with Charge Controller

  • Power: 175 watts
  • N-type back-contact cells with anti-shading architecture
  • Up to 80% more power in partial shade
  • Weight: 8.7 kg
  • with Victron SmartSolar 75/15 MPPT Bluetooth charge controller
  • 1.5 m battery connection cable with 20 A fuse

Direkt zu den Produktinformationen ↓
Modulserie
Farbe der Halterung
Leistung:
Sale price628,14 €
Neues Produkt

Tax included. Shipping calculated at checkout

SKU: WS22-SFS-175200

In stock
Versandbereit in: 1 - 3 Werktagen

Product description

WATTSTUNDE® SOLA Frame Shadow 175 W Solar Module Complete Set (Black) with Charge Controller

The complete set in black is ideal if you want to make more use of solar power on the vehicle roof while maintaining a harmonious, dark overall appearance. The set includes the Victron SmartSolar MPPT 75/15 with integrated Bluetooth, the appropriate cabling incl. 20 A fuse, as well as black mounting and cable entry accessories. This means everything is included to securely attach the module, neatly route the cables into the vehicle, and reliably charge the onboard battery.

The SOLA Frame Shadow 175 (175 Wp) is designed for mobile conditions: partial shading from roof structures, high temperatures, or changing light are difficult to avoid on the go. This is exactly where the Shadow series plays to its strengths and helps keep solar yield as stable as possible even under non-ideal conditions.

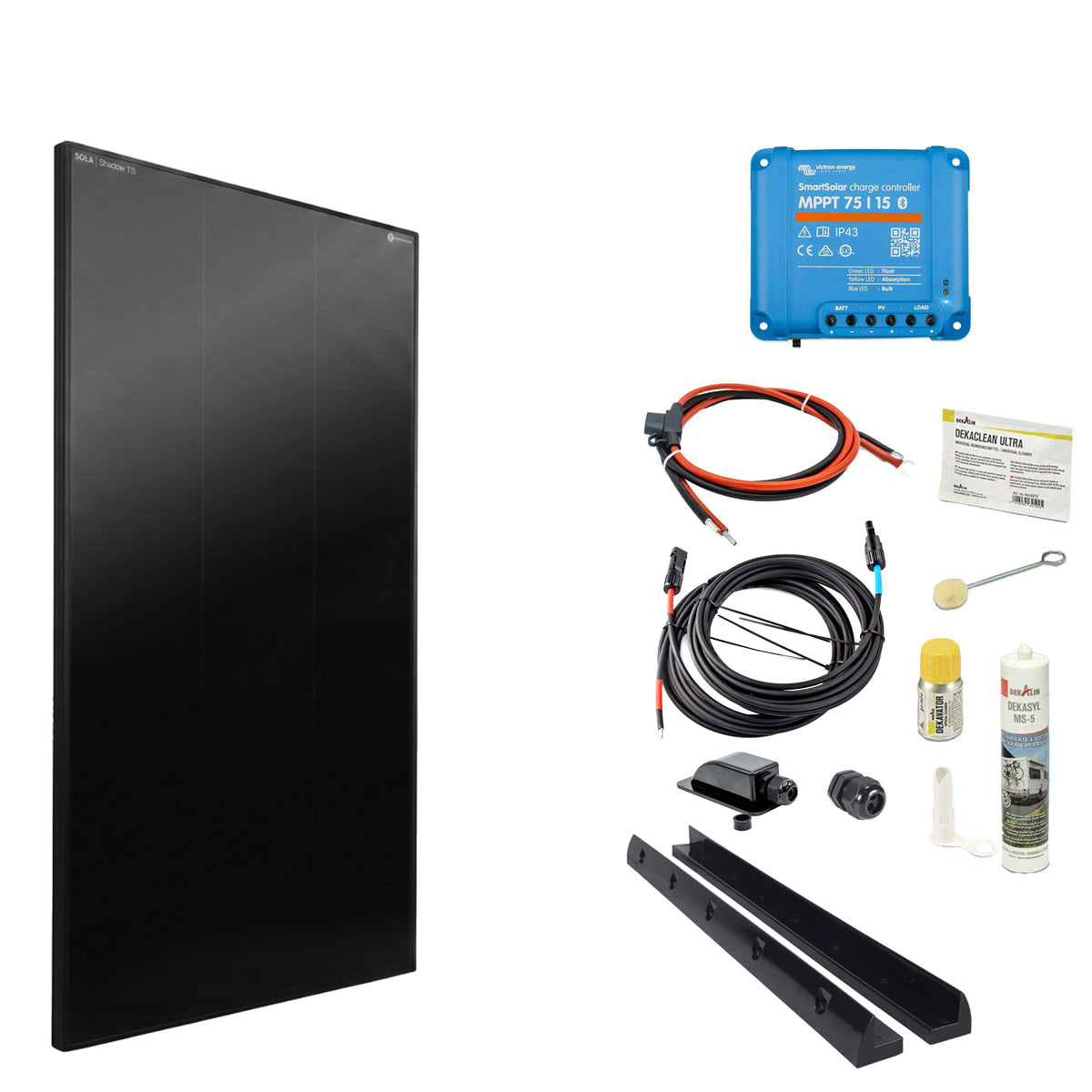

Set Contents

  • 1 × Victron SmartSolar MPPT 75/15 (integrated Bluetooth)
  • 1 × WATTSTUNDE® Fuse Cable (with 20 A fuse)
  • 1 × WATTSTUNDE® MVK 4.7 Connection Cable Solar Module → Charge Controller
  • 1 × Dekalin Adhesive Set (black)
  • 1 × WATTSTUNDE® Cable Gland Twin Solar Cable M20×1.5 (black)
  • 1 × WATTSTUNDE® Roof Entry DX1/W ASA (black)
  • 1 × WATTSTUNDE® SOLA Frame Shadow 175 Solar Module
  • 1 × WATTSTUNDE® MOUNT Solar Module Mount 67 (black)

Victron SmartSolar MPPT 75/15: Charge Efficiently and Monitor via App

The SmartSolar MPPT 75/15 uses MPPT tracking and efficiently transfers the generated energy to your onboard battery. Thanks to Bluetooth, you can connect the controller directly to the VictronConnect App, retrieve values, and adjust settings—without additional hardware.

Black Mounting and Entry Components for a Clean Roof Setup

For a visually uniform installation, the visible parts are black. The matching WATTSTUNDE® MOUNT Mount 67 (black) ensures a stable fit, while the roof entry and cable gland support tight, tidy cable routing. The Dekalin Adhesive Set (black) is also included for bonding and sealing.

Cabling Including Protection—Perfectly Matched in the Set

The cabling is already designed for use on the vehicle roof: The MVK 4.7 Connection Cable connects the solar module and charge controller. The fuse cable connects the controller to the battery and is equipped with a replaceable 20 A fuse.

Your Benefits at a Glance

  • Complete package: module, MPPT controller, cables, fuse, and mounting/sealing accessories in one set
  • 175 Wp module power for higher yield in mobile applications
  • Ready to connect: 2 × 7 m module-to-controller cables + battery cable with 20 A fuse
  • Black components for a subtle, uniform appearance (mount, roof entry, cable gland, adhesive set)

If you are looking for a powerful solar system for on the go that is technically well-integrated and visually discreet on the roof, the WATTSTUNDE® SOLA Frame Shadow 175 W Complete Set in Black is a very suitable choice.





Technical Data SOLA Frame Shadow 175
Rated power 175 W
Max. daily yield (summer) 700 Wh/d
Voltage (Umpp) 31.20 V
Current (Impp) 5.61 A
Open-circuit voltage (Voc) 36.40 V
Short-circuit current (Isc) 5.90 A
Cell efficiency ≤ 26 %
Cell material N-Type Back Contact
Bypass diodes 2
Weight 8.7 kg
Dimensions 1170 x 720 x 30 mm



Technical Data SmartSolar MPPT 75 / 15
Battery voltage 12 V / 24 V
Rated charging current 15 A
Rated PV power 12 V 220 W
Rated PV power 24 V 440 W
Max. PV open-circuit voltage 75 V
Max. PV short-circuit current 15 A
Efficiency 98 %
Constant charging voltage 14.4 V / 28.8 V
Maintenance charging voltage 13.8 V / 27.6 V
Operating temperature - 30 °C - + 60 °C
Weight 0.5 kg
Dimensions 100 x 113 x 40 mm
