WATTSTUNDE® SOLA Frame Shadow 250 W Solar Module Complete Kit in Black with Charge Controller

  • Power: 2 x 125 watts
  • N-type back-contact cells with anti-shading architecture
  • Up to 80% more power in partial shade
  • Weight: 6.5 kg
  • with Victron SmartSolar 100/20 MPPT Bluetooth charge controller
  • 1.5 m battery connection cable with 20 A fuse

Direkt zu den Produktinformationen ↓
Modulserie
Farbe der Halterung
Leistung:
Sale price903,32 €
Neues Produkt

Tax included. Shipping calculated at checkout

SKU: WS22-SFS-250200

In stock
Versandbereit in: 1 - 3 Werktagen

Product description

WATTSTUNDE® SOLA Frame Shadow 250 W Solar Module Complete Set (Black) with Charge Controller

With this complete set in black, you get a ready-to-install solar solution for the vehicle roof, where technology and aesthetics go hand in hand. Included are two Shadow modules, the matching Victron MPPT charge controller, as well as cabling, fuses, and roof accessories in black. This means nothing stands in the way of a clean installation from the roof to the battery.

The 250 W comes from 2 × SOLA Frame Shadow 125. This is a good basis if you need more solar yield for a refrigerator, lights, chargers, or other consumers in mobile everyday use. Especially on the roof, partial shading and changing light conditions are normal – the Shadow series is designed to deliver as stable energy as possible even under such conditions.

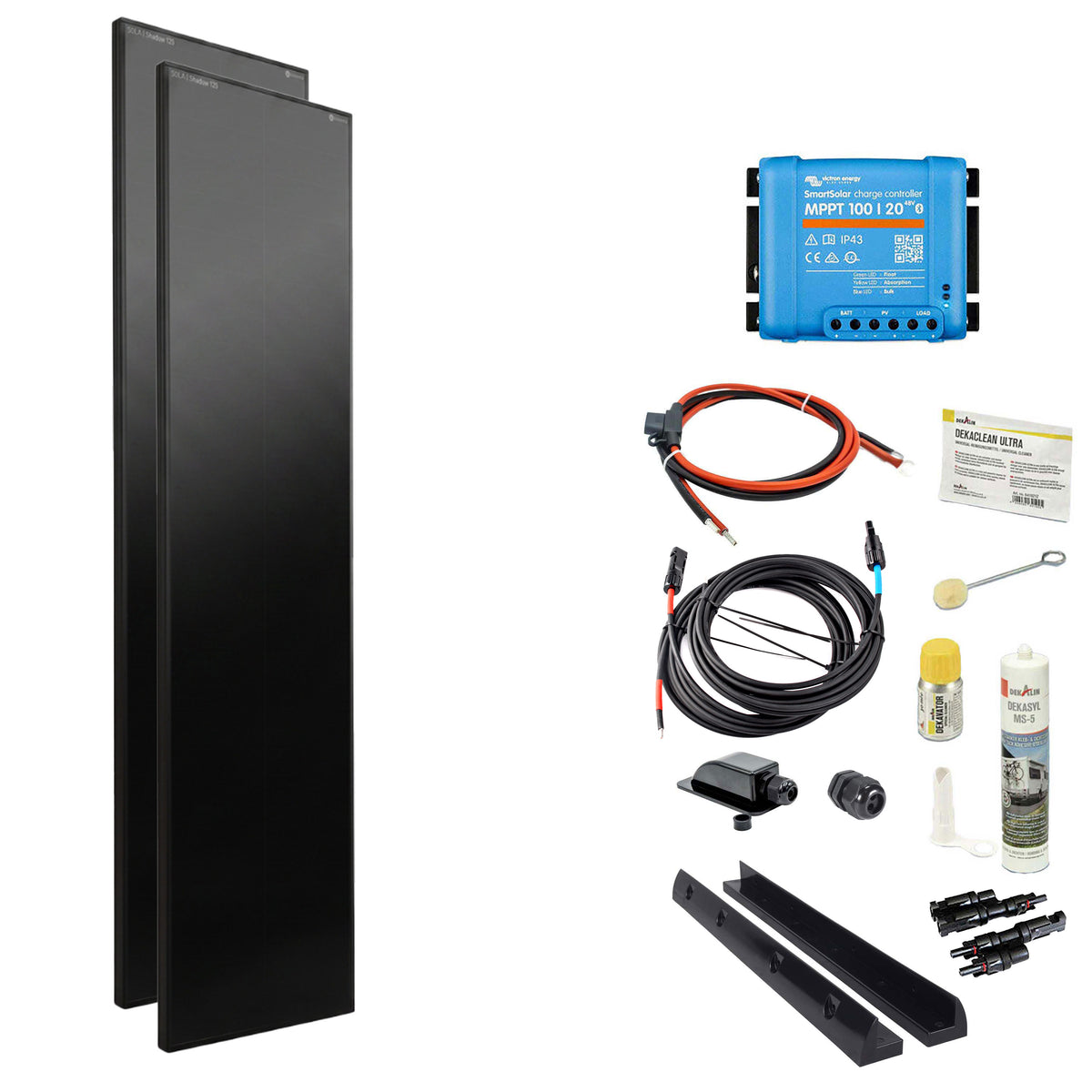

Set Contents

  • 1 × Victron SmartSolar MPPT 100/20 (integrated Bluetooth, up to 48 V)
  • 2 × WATTSTUNDE® SOLA Frame Shadow 125 (250 W total)
  • 2 × WATTSTUNDE® MOUNT Solar Module Mount 43 (black)
  • 1 × Dekalin Dekasyl MS-5 (black, 290 ml)
  • 1 × Dekalin Adhesive Set (black)
  • 1 × WATTSTUNDE® MC4.2 Connector Set (Y-connector for parallel connection)
  • 1 × WATTSTUNDE® MVK 4.7 Connection Cable Solar Module → Charge Controller
  • 1 × WATTSTUNDE® Fuse Cable (with 20 A fuse)
  • 1 × WATTSTUNDE® Roof Entry DX1/W ASA (black)
  • 1 × WATTSTUNDE® Cable Gland Twin Solar Cable M20×1.5 (black)

Victron SmartSolar MPPT 100/20 (up to 48 V): fast tracking and app monitoring

The Victron SmartSolar MPPT 100/20 is designed for systems up to 48 V and operates with ultra-fast MPPT tracking. In changing irradiance, this can increase the yield compared to PWM controllers. Even with partial shading, the controller is designed to find the optimal operating point.

Cabling & Fusing: practically prepared

For an uncomplicated installation, the matching cables are already included: The WATTSTUNDE® MVK 4.7 Connection Cable connects the solar modules to the charge controller. The WATTSTUNDE® Fuse Cable connects the controller to the battery and is equipped with a replaceable 20 A fuse (M8/cable lug, red/black).

Black roof components: installation, entry, and cable routing all in one

To keep the setup visually discreet, the visible parts are in black. For installation, 2 × WATTSTUNDE® MOUNT Solar Module Mount 43 (black) are included. For a clean cable entry, the WATTSTUNDE® Roof Entry DX1/W ASA (black) and the WATTSTUNDE® Cable Gland for Twin Solar Cable M20×1.5 (black) are also included.

Bonding & Sealing: Dekasyl MS-5 plus Dekalin Adhesive Set

For bonding and sealing, Dekalin Dekasyl MS-5 (black, 290 ml) is included. Additionally, a Dekalin Adhesive Set (black) is also included in the set so that preparation and processing can be carried out cleanly.

MC4.2 Connector Set: simply connect two modules in parallel

For the parallel connection of the two modules, a WATTSTUNDE® MC4.2 Connector Set is included (Y-connector). This saves cable runs and ensures a neat installation. The plug connection is robust and designed for outdoor use (plugged IP67).

Your benefits at a glance

  • 250 W total power from 2 modules – more solar yield for everyday mobile use
  • Complete for installation: cables, fuse, mounts, roof entry, and cable gland are included
  • Dekasyl MS-5 + Adhesive Set for bonding and sealing
  • MC4.2 Y-connector for easy parallel connection of the two modules
  • Black components for a discreet, uniform roof appearance

If you are looking for a powerful solar system that is ready to install and where the controller, cabling, and roof accessories match, the WATTSTUNDE® SOLA Frame Shadow 250 W Complete Set in Black is a very suitable choice.






Technical Data SOLA Frame Shadow 125
Rated power 125 W
Max. daily yield (summer) 500 Wh/d
Voltage (Vmp) 31.20 V
Current (Imp) 4.04 A
Open-circuit voltage (Voc) 36.40 V
Short-circuit current (Isc) 4.24 A
Cell efficiency ≤ 26 %
Cell material N-Type Back Contact
Bypass diodes 2
Weight 6.5 kg
Dimensions 1560 x 392 x 30 mm



Technical Data SmartSolar MPPT 100 / 20
Battery voltage 12 V / 24 V /48 V
Rated charging current 20 A
Rated PV power 12 V 290 W
Rated PV power 24 V / 48 V 580 W / 1160 W
Max. PV open-circuit voltage 100 V
Max. PV short-circuit current 20 A
Efficiency 98 %
Constant charging voltage 14.4 V / 28.8 V / 57.6 V
Float charging voltage 13.8 V / 27.6 V / 55.2 V
Operating temperature - 30 °C - + 60 °C
Weight 0.65 kg
Dimensions 100 x 113 x 60 mm
